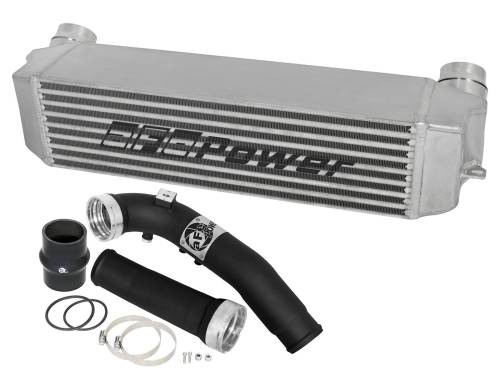

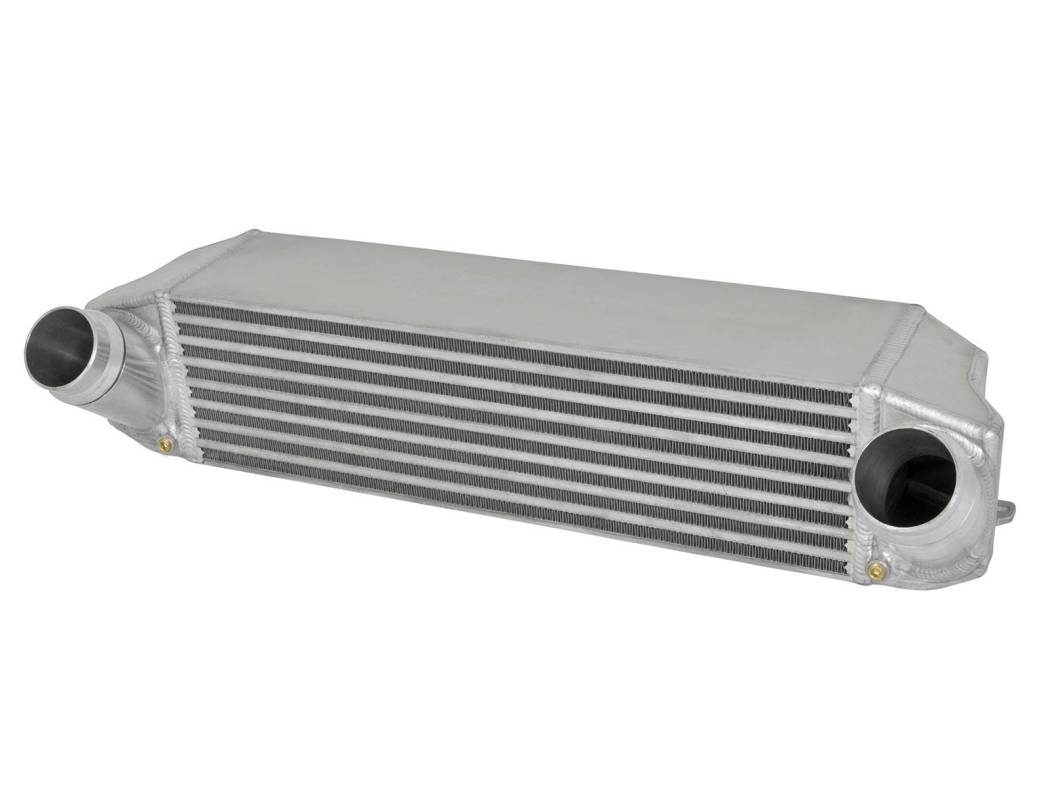

46-20222-B | AFE Power BladeRunner GT Series Intercooler with Tube (2012-2018 1, 2, 3, 4 Series L4-2.0L (t) N20, N26)

• Outflows factory intercooler by 17%
• Lowers manifold intake air temperature
• 2-1/2" Billet aluminum inlet and outlet for superior strength & durability
• Incorporates the factory style quick connections for intercooler tubes
• 5" Bar and plate core design that is 29% larger than stock
• This intercooler is 100% TIG-Welded by certified craftsmen for strength and durability
• 1/8" NPT ports are provided on bothe the intercooler and tube for connecting pressure sensors or water methanol injection
• Absolutely no cutting or modifications are needed for the installation of this intercooler kit

This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2012-2018 BMW 328i (F3X) 12-16 L4-2.0L (t) with the N20 engine, this BladeRunner intercooler utilizes a 5" bar and plate core design. This design outflows the factory tube and fin core design, while the 3/16" TIG-Welded end tanks offer superior strength and durability. In testing, this intercooler showed flow gains up to 21% and lowered the intake air temperatures.

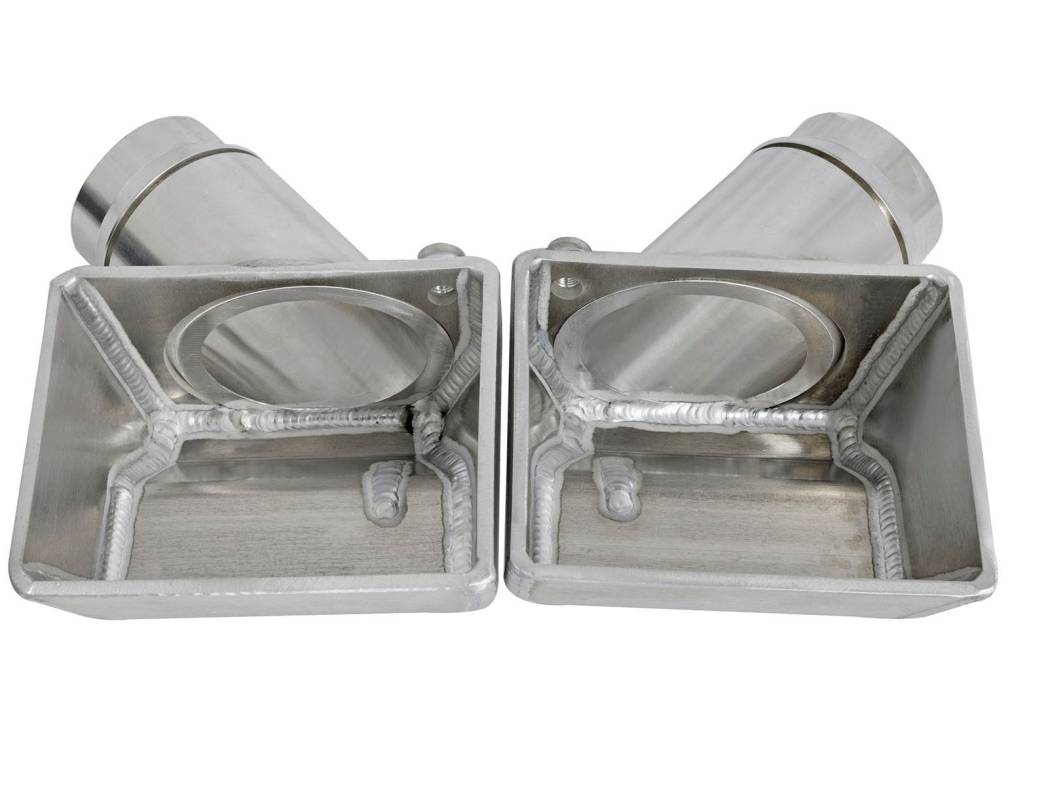

End Tanks:
The unique BladeRunner end tanks are constructed out of 3/16" thick aluminum plates and include two 1/8" NPT ports for sensors or water-methanol injection.

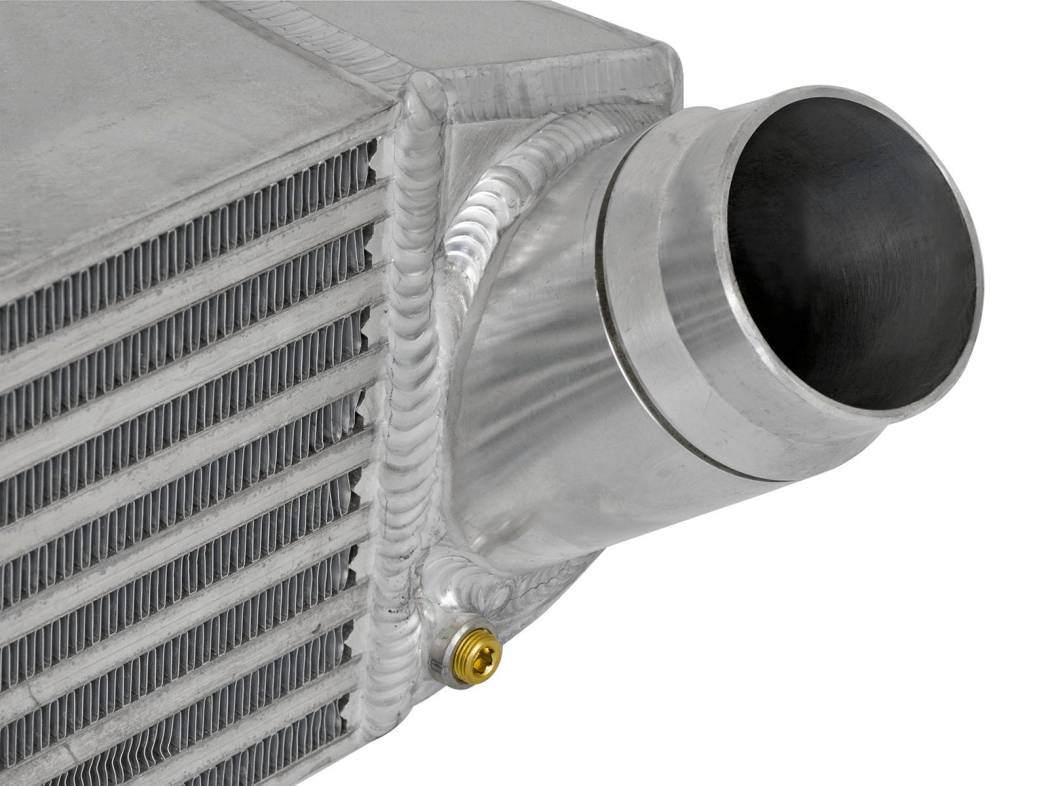

5" Bar and Plate Core Design:
The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory.

TIG-Welded:
100% TIG-Welded inside and out by a certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks.

Pressure Tested:
The BladeRunner Intercooler is test pressure rated at 200psi.

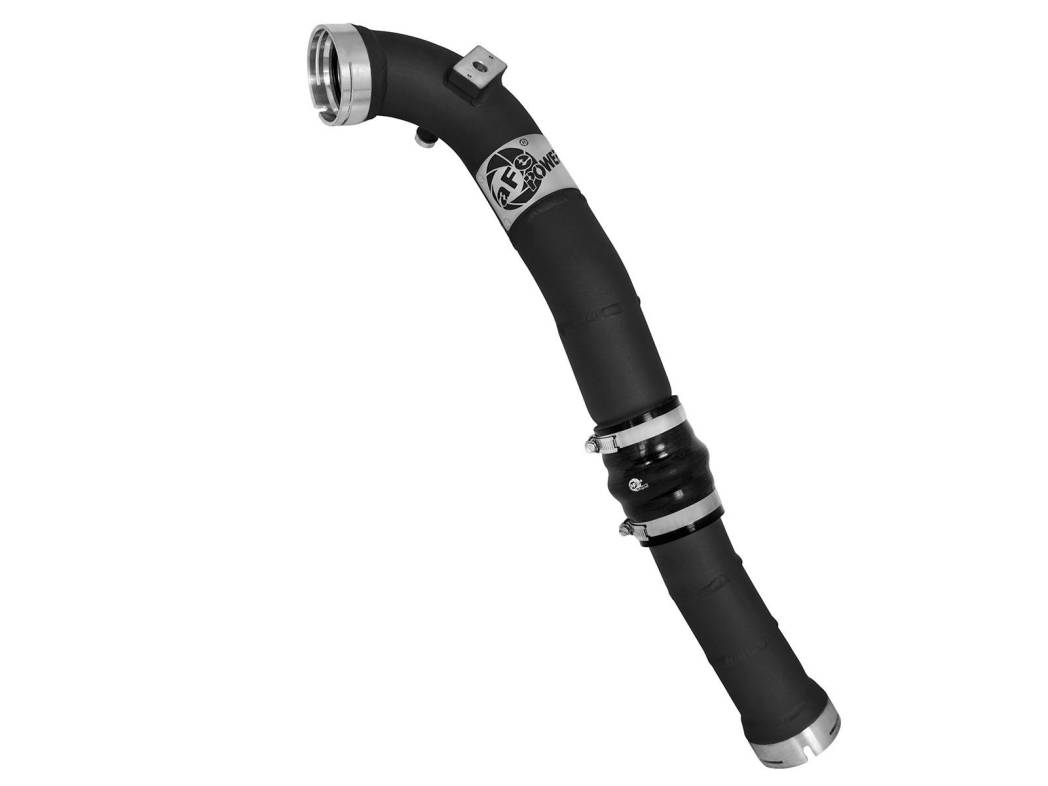

Cold Side Tube:

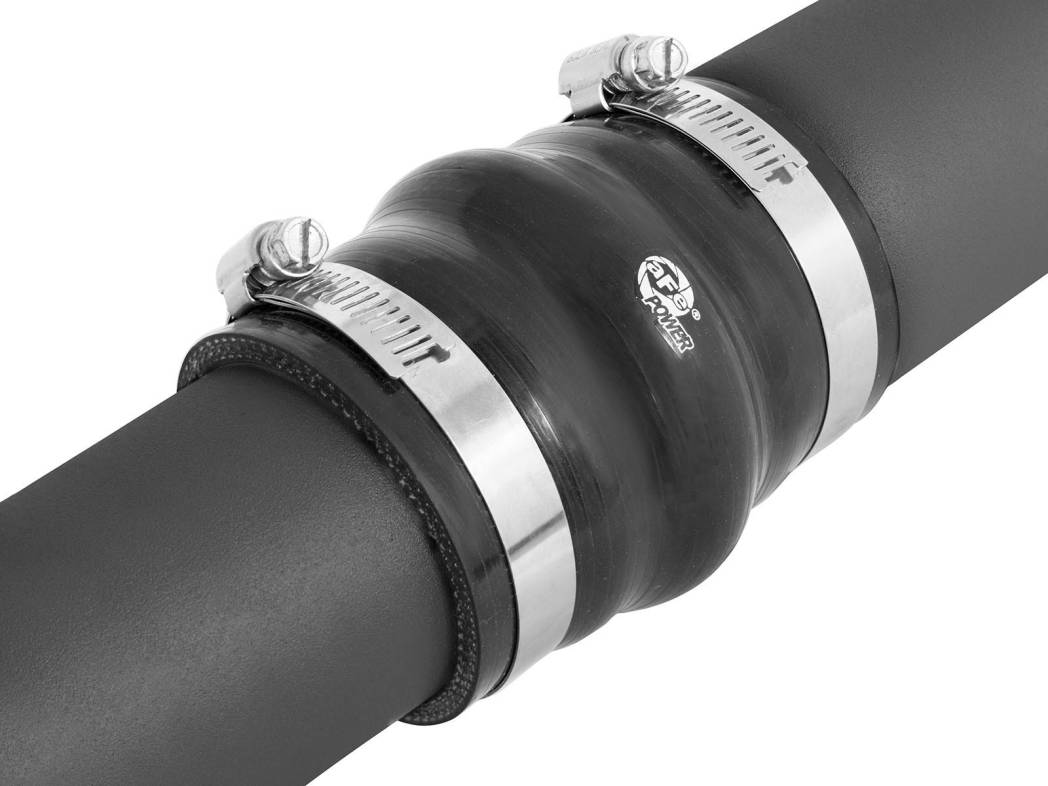

Constructed of 2-1/2" to 2-3/4" mandrel-bent aluminum tubing and powder-coated wrinkle-black for heat and corrosion resistance. The smooth transition mandrel bends decrease turbulence which increases horsepower and torque. The high-temp wrinkle-black powder-coating insulates the tube from engine heat and protects the tube from corrosion. Includes stainless steel clamps for a leak-free seal and heavy-duty 5-Ply reinforced silicone coupling for strength.

Perfect Fit:

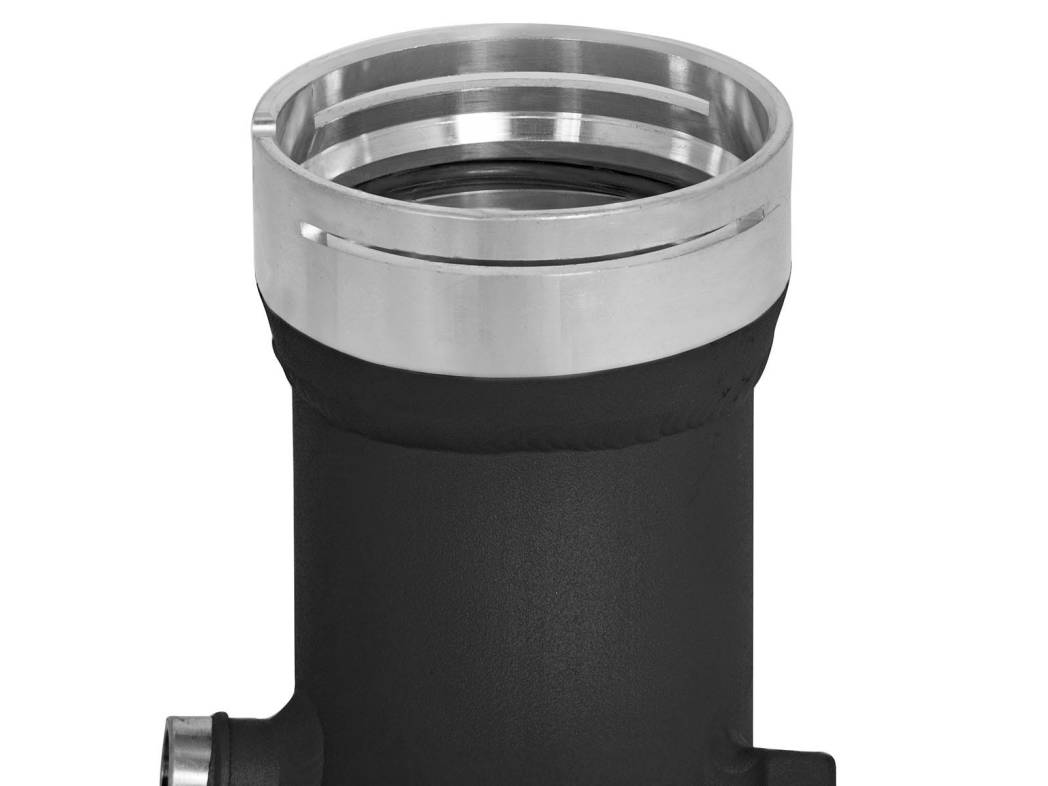

Utilizes the factory mounting locations for a hassle-free installation. The intercooler and tubes utilize billet factory style quick connects to assure a leak-free connection.
