BDS1858FRS | BDS Suspension 1.5 Inch Lift Kit For Chevrolet Silverado Or GMC Sierra 1500 4WD | Fox 3.0 Factory Race Series Coil-Over, Rear Fox 3.0 Factory Race Series Shocks
For 2025-2025 Chevrolet Silverado 1500 Custom Trail Boss & LT Trail Boss / 2025-2025 GMC Sierra 1500 AT4
Description
Up the ante in your Chevy Silverado or GMC Sierra 1500 truck with style and performance by installing this 3.5-inch lift kit featuring FOX Factory Race Series 3.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires (Chevy) or 33" tires (GMC).
Up front the lift kit includes FOX Factory Race Series 3.0 remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes fabricated steel lift blocks, longer u-bolts and a complementary set of FOX Factory Race Series 3.0 shocks for unmatched performance.
Features & Benefits
- Builds off factory suspension geometry for improved performance with easy install.
- Front FOX 3.0 Factory Race Series IBP coil overs for unmatched performance and capability with simple adjustment of settings.
- Rear FOX 3.0 Factory Race Series IBP shocks for improved ride quality, performance and capability.
- BDS HD upper control arms for strength and increased suspension travel.
- High misalignment angle, greaseable heavy duty ball joints.
- Rubber control arm bushings to promote long life and no maintenance of the joint.
- Rear lift block kit to produce a level to slightly tail height stance. 1/4" wheel spacer provided to be used with the spare tire if needed.
- Optional weld on steering stops to help tire clearance to fenders, control arms, etc. Dependent upon wheel offset selected.
- Factory Protection Plus included.
Recommended Tires & Wheels
(Trimming may be required)
- 33 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 33 x 12.5 with 20 x 9 and 5 in. Backspace
- 35 x 12.5 with 20 x 9 and 5.5 in. Backspace
FOX Factory Race Series
FOX Factory Race Series 3.0 Internal Bypass shocks for the Ford Bronco deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.
Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.
Finned external reservoirs and aluminum shock bodies keep shock fluid temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter bodies. The DSC adjuster allows you to dial in your Bronco for load, environment, and driving style.
FOX Internal Bypass shocks deliver the support and confidence you need while driving high-speed through rugged terrain. Experience race-bred performance next time you leave the pavement.
HD Upper Control Arms (UCA)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Important Notes
- Fits 4WD models only
- 5.5" max wheel backspacing can be used.
- Will not fit models with Adaptive Ride Control (ARC).
- Lift heights specific for Trail Boss and AT4 models only
- This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.
- Lifting of the bed required for shock install.
Installation
Est. Install Time :
4-5 hrsDifficulty Level :
ModerateSpecialty Tools Needed :
Cut Off Wheel or Equiv., Ball Joint Separation Tool, Welding Equipment
Specification
- Front Lift Method : Coil-Over
- Front Lift Height : 1.5"
- Rear Lift Method : Block
- Rear Lift Height : 0.5"
- Shocks Included : Yes
- Lift Height : 0-1.5"
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2025 | GMC | Sierra 1500 | AT4 | 4WD | GAS | Front and Rear | 1.5" |
| 2025 | Chevrolet | Silverado 1500 | LT Trail Boss | 4WD | DIESEL | Front and Rear | 1.5" |
| 2025 | Chevrolet | Silverado 1500 | LT Trail Boss | 4WD | GAS | Front and Rear | 1.5" |
| 2025 | Chevrolet | Silverado 1500 | Custom Trail Boss | 4WD | DIESEL | Front and Rear | 1.5" |
| 2025 | Chevrolet | Silverado 1500 | Custom Trail Boss | 4WD | GAS | Front and Rear | 1.5" |
| 2025 | GMC | Sierra 1500 | AT4 | 4WD | DIESEL | Front and Rear | 1.5" |

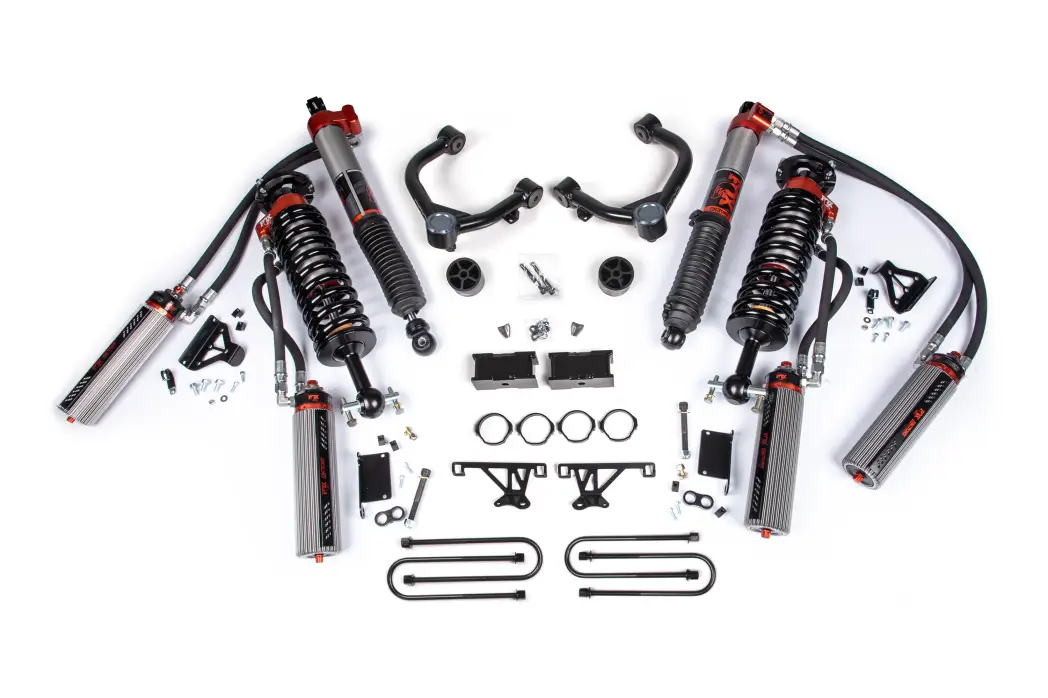

Component List
1 FOX88326105 FOX 3.0 Remote Reservoir Internal Bypass Rear Shocks | 2-3 Inch Lift | Factory Race Series | Chevrolet Silverado and GMC Sierra 1500 (19-25)
1 BDS011351 2025 Chevy/GMC 1500 Coilover 3.5" Box Kit
Tires & Wheels
33 x 12.5 with 17 x 9 and 4.5 in. Backspace
33 x 12.5 with 20 x 9 and 5 in. Backspace
35 x 12.5 with 20 x 9 and 5.5 in. Backspace
Details
- BDS1858FRS
- BDS1858FRS
- 840416433838
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L36.0000”
- Free Ground Shipping | Exclusions Apply*
