BDS1794H | BDS Suspension 4 Inch Lift Kit With Radius Arm For Ram 3500 4WD | Diesel, NX2 Nitro Series Shocks
For 2013-2018 Ram 3500 4WD Diesel
Description
Upgrade the ride and style of your 2013-2018 RAM 3500 diesel powered truck by installing this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Features & Benefits
- Heavy duty tubular radius arms improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Important Notes
- The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
- Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
- Will not fit models with rear factory air ride.
Installation
Est. Install Time :
6-8 hrsDifficulty Level :
Specialty Tools Needed :
Drill / Bit Set, Pitman Arm Puller, Welding Equipment
Specification
- Front Lift Method : Coil Spring
- Front Lift Height : 4"
- Rear Lift Method : Block
- Rear Lift Height : 3"
- Shocks Included : Yes
- Lift Height : 4-6"
Application List
| Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
|---|---|---|---|---|---|---|---|
| 2013 | Ram | 3500 | ALL | 4WD | DIESEL | Front and Rear | 4" |
| 2014 | Ram | 3500 | ALL | 4WD | DIESEL | Front and Rear | 4" |
| 2015 | Ram | 3500 | ALL | 4WD | DIESEL | Front and Rear | 4" |
| 2016 | Ram | 3500 | ALL | 4WD | DIESEL | Front and Rear | 4" |
| 2017 | Ram | 3500 | ALL | 4WD | DIESEL | Front and Rear | 4" |
| 2018 | Ram | 3500 | ALL | 4WD | DIESEL | Front and Rear | 4" |

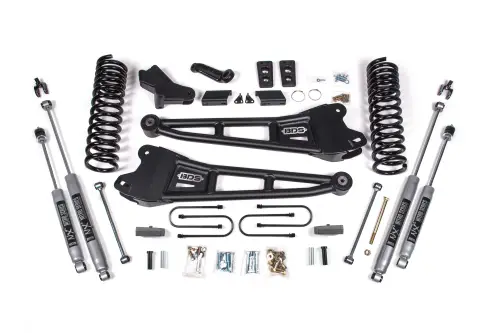

Component List
1 BDS012432 2014-2018 Ram 2500 4wd 4" Radius Arm Front Box Kit
1 BDS122321 Radius Arm Upgrade | Ram 2500 (14-25) and 3500 (13-23) 4WD
1 BDS032401 Coil Springs | 4 Inch Lift - Diesel / 5.5 Inch Lift - Gas | RAM 2500 (14-18) & 3500 (13-18)
2 BDS85752 NX2 Nitro Front Shock | 4-6 Inch Lift | Ram 2500 (14-23) and 3500 (13-23) 4WD
2 BDS85759 Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1
Tires & Wheels
37 x 12.5 with 20 x 9 and 5.625 in. Backspace
35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Details
- BDS1794H
- BDS1794H
- 840416409451
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L36.0000”
