BDS770FSR | BDS Suspension 2 Inch Leveling Kit With Fox Coilover Upgrade For Chevrolet Silverado / GMC Sierra 1500 4WD | Front Fox 2.0 Snap Ring Shocks

For 2019-2026 Chevrolet Silverado / GMC Sierra 1500 4WD

BDS770FSR
Pricing: $2,512.64
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The BDS 2" Leveling Kit for your GM 1500 trucks delivers a premium blend of improved stance, enhanced ride quality, and off-road capability. This system features heavy-duty BDS tubular upper control arms equipped with high-strength ball joints that are significantly stronger than OEM, reducing the risk of unwanted failures and ensuring long-term durability. The arms also optimize ball joint angles and increase suspension travel for reliable performance in demanding conditions. Up front, FOX 2.5 Performance Series coil-overs provide vehicle-specific tuning, exceptional cooling, and precise ride-height control to achieve a true 2" level while contributing to the kit’s superior ride comfort. Complementing the front, FOX 2.5 Performance Series rear shocks deliver balanced handling, fade-resistant performance, and enhanced stability on and off the road. The result is a durable, high-performance leveling solution that maintains factory-like drivability while offering a stronger, more aggressive stance and noticeably improved all-terrain ride quality.

Features & Benefits

  • BDS upper control arms which feature improved range of motion as well as increased strength over the OEM components.
  • Choice of FOX 2.0 Snap Ring coilover, FOX 2.0 Performance Series coilover or FOX 2.5 Performance Series HTO coil over and shock absorber which improves ride, handling and towing versus the OEM suspension.
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 performance series IFP rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation

Recommended Tires & Wheels

(Trimming may be required)

  • 295 / 70 with 17 x 9 and 5.5 in. Backspace
  • 295 / 70 with 18 x 9 and 5.5 in. Backspace
  • 295 / 70 with 20 x 9 and 5.5 in. Backspace

Shock Option

FOX 2.0 Snap Ring

    • 2-inch Impact extruded aluminum body
    • 3 pre-load settings to adjust ride height
    • Internal floating piston (IFP) monotube design
    • CNC machined 6061-T6 aluminum mounting ends
    • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
    • Race-developed high-flow piston design
    • Application-specific valving to maximize performance
    • Long-lasting clear anodized finish

FOX 2.0 Performance Series

      • 2-inch Impact extruded aluminum body
      • Internal floating piston (IFP) monotube design
      • CNC machined 6061-T6 aluminum mounting ends
      • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
      • Race-developed high-flow piston design
      • Application-specific valving to maximize performance
      • Long-lasting clear anodized finish

FOX 2.5 Performance Series HTO

    • Increased off-road capabilities
    • Easily adjust your shock for terrain, load and speed
    • 2.5-inch Impact extruded aluminum body
    • 5/8-inch hard chrome plated heat-treated alloy steel shaft
    • Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
    • Fully serviceable for a lifetime of use
    • 1-year Manufacturer's Warranty

Important Notes

  1. Requires a maximum of 5.5" BS Wheel for tire clearance to the upper ball joint when used on 2-3.5" kits
  2. Will not fit models equipped with ARC

Installation

Est. Install Time :

3 hrs

Difficulty Level :

Easy

Specialty Tools Needed :

Basic Hand Tools, Ball Joint Separation Tool

Specification

  • Front Lift Method : Coil-Over
  • Front Lift Height : 2"
  • Rear Lift Method : Stock
  • Rear Lift Height : 0"
  • Shocks Included : Yes

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2019GMCSierra 1500Base4WDALL
2019ChevroletSilverado 1500RST4WDALLFront2"
2019GMCSierra 1500AT4ALLALLFront0"
2019GMCSierra 1500SLE4WDALLFront2"
2019GMCSierra 1500Elevation4WDALLFront2"
2019ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2019ChevroletSilverado 1500LTZ4WDALLFront2"
2019ChevroletSilverado 1500Custom4WDALLFront2"
2019ChevroletSilverado 1500SSV4WDALL
2019ChevroletSilverado 1500LT Trail BossALLALLFront0"
2019ChevroletSilverado 1500WT4WDALLFront2"
2019GMCSierra 1500SLT4WDALLFront2"
2019ChevroletSilverado 1500WT Cab Regular4WDALL
2019ChevroletSilverado 1500LT4WDALLFront2"
2019ChevroletSilverado 1500WT Doble Cabina4WDALL
2020GMCSierra 1500SLE4WDALLFront2"
2020ChevroletSilverado 1500SSV4WDALL
2020ChevroletSilverado 1500Custom4WDALLFront2"
2020GMCSierra 1500SLT4WDALLFront2"
2020GMCSierra 1500AT4ALLALLFront0"
2020ChevroletSilverado 1500LTZ4WDALLFront2"
2020ChevroletSilverado 1500WT4WDALLFront2"
2020ChevroletSilverado 1500LT Trail BossALLALLFront0"
2020ChevroletSilverado 1500RST4WDALLFront2"
2020ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2020ChevroletSilverado 1500WT Cab Regular4WDALL
2020GMCSierra 1500Base4WDALL
2020ChevroletSilverado 1500LT4WDALLFront2"
2020ChevroletSilverado 1500WT Doble Cabina4WDALL
2020GMCSierra 1500Elevation4WDALLFront2"
2021ChevroletSilverado 1500LT Trail BossALLALLFront0"
2021GMCSierra 1500SLT4WDALLFront2"
2021GMCSierra 1500AT4ALLALLFront0"
2021ChevroletSilverado 1500LTZ4WDALLFront2"
2021ChevroletSilverado 1500WT4WDALLFront2"
2021GMCSierra 1500SLE4WDALLFront2"
2021ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2021ChevroletSilverado 1500SSV4WDALL
2021ChevroletSilverado 1500RST4WDALLFront2"
2021ChevroletSilverado 1500Custom4WDALLFront2"
2021GMCSierra 1500Elevation4WDALLFront2"
2021GMCSierra 1500Base4WDALL
2021ChevroletSilverado 1500LT4WDALLFront2"
2022ChevroletSilverado 1500WT4WDALLFront2"
2022ChevroletSilverado 1500LT4WDALLFront2"
2022ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2022ChevroletSilverado 1500LTZ4WDALLFront2"
2022ChevroletSilverado 1500LT Trail BossALLALLFront0"
2022GMCSierra 1500Elevation4WDALLFront2"
2022GMCSierra 1500SLE4WDALLFront2"
2022GMCSierra 1500AT4ALLALLFront0"
2022GMCSierra 1500Pro4WDALLFront2"
2022ChevroletSilverado 1500Custom4WDALLFront2"
2022ChevroletSilverado 1500RST4WDALLFront2"
2022GMCSierra 1500SLT4WDALLFront2"
2023GMCSierra 1500AT4ALLALLFront0"
2023GMCSierra 1500SLT4WDALLFront2"
2023ChevroletSilverado 1500LTZ4WDALLFront2"
2023GMCSierra 1500SLE4WDALLFront2"
2023ChevroletSilverado 1500RST4WDALLFront2"
2023ChevroletSilverado 1500LT Trail BossALLALLFront0"
2023ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2023ChevroletSilverado 1500Custom4WDALLFront2"
2023GMCSierra 1500Elevation4WDALLFront2"
2023ChevroletSilverado 1500WT4WDALLFront2"
2023ChevroletSilverado 1500PPVALLALLFront2"
2023GMCSierra 1500Pro4WDALLFront2"
2023ChevroletSilverado 1500LT4WDALLFront2"
2024ChevroletSilverado 1500Custom4WDALLFront2"
2024GMCSierra 1500Pro4WDALLFront2"
2024GMCSierra 1500SLE4WDALLFront2"
2024GMCSierra 1500SLT4WDALLFront2"
2024ChevroletSilverado 1500LT Trail BossALLALLFront0"
2024ChevroletSilverado 1500RST4WDALLFront2"
2024ChevroletSilverado 1500WT4WDALLFront2"
2024GMCSierra 1500AT4ALLALLFront0"
2024ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2024ChevroletSilverado 1500LT4WDALLFront2"
2024GMCSierra 1500Elevation4WDALLFront2"
2024ChevroletSilverado 1500LTZ4WDALLFront2"
2024ChevroletSilverado 1500PPVALLALLFront2"
2025GMCSierra 1500AT4ALLALLFront0"
2025GMCSierra 1500Pro4WDALLFront2"
2025ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2025GMCSierra 1500SLT4WDALLFront2"
2025GMCSierra 1500Elevation4WDALLFront2"
2025ChevroletSilverado 1500LTZ4WDALLFront2"
2025ChevroletSilverado 1500WT4WDALLFront2"
2025ChevroletSilverado 1500PPVALLALLFront2"
2025ChevroletSilverado 1500LT Trail BossALLALLFront0"
2025ChevroletSilverado 1500LT4WDALLFront2"
2025ChevroletSilverado 1500Custom4WDALLFront2"
2025GMCSierra 1500SLE4WDALLFront2"
2025ChevroletSilverado 1500RST4WDALLFront2"
2026ChevroletSilverado 1500LT4WDALLFront2"
2026ChevroletSilverado 1500Custom Trail BossALLALLFront0"
2026GMCSierra 1500AT4ALLALLFront0"
2026ChevroletSilverado 1500LTZ4WDALLFront2"
2026GMCSierra 1500Pro4WDALLFront2"
2026ChevroletSilverado 1500PPVALLALLFront2"
2026GMCSierra 1500SLT4WDALLFront2"
2026ChevroletSilverado 1500RST4WDALLFront2"
2026GMCSierra 1500Elevation4WDALLFront2"
2026ChevroletSilverado 1500WT4WDALLFront2"
2026ChevroletSilverado 1500Custom4WDALLFront2"
2026ChevroletSilverado 1500LT Trail BossALLALLFront0"
2026GMCSierra 1500SLE4WDALLFront2"

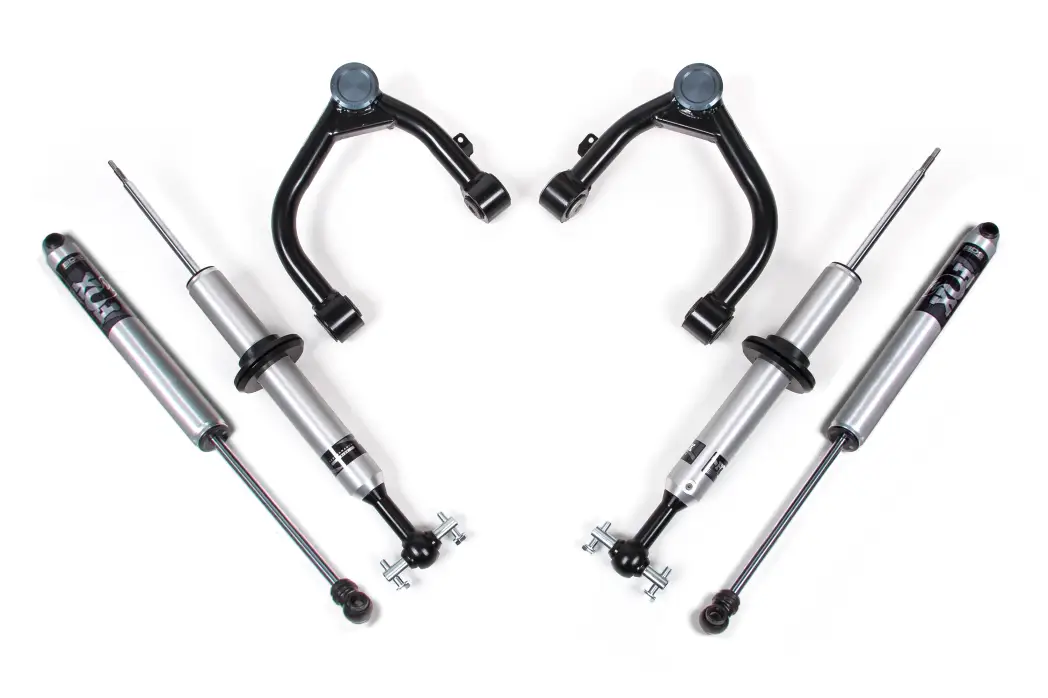

Component List

1 BDS121260 2019-2026 Chevy/GMC 1500 BDS UCA (2”-3.5”, 4" and 6")
2 FOX98562012 2019-2026 GM 1500, Front C/O, Snap Ring, PS, 2.0, IFP, 5.2", 0-2" Lift
2 FOX98224719 Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1

Tires & Wheels

(Trimming may be required)
295 / 70 with 17 x 9 and 5.5 in. Backspace
295 / 65 with 18 x 9 and 5.5 in. Backspace
295 / 60 with 20 x 9 and 5.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
