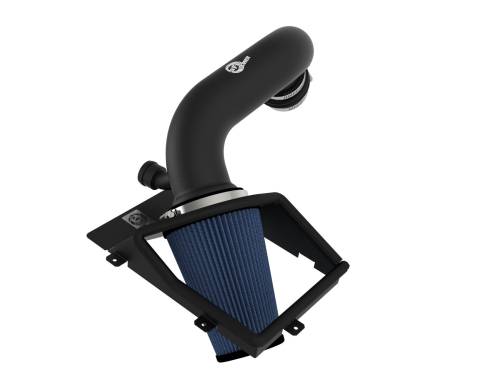

52-10014R | aFe Power Rapid Induction Cold Air Intake System With Pro 5R Filter For Audi Q3 L4-2.0L (t) 45TFSI
For 2019-2025 Audi Q3 45TFSI Engine Gas L4-2.0L (t)
Description
Large Five Layer Performance Air Filter:
This aFe POWER Pro 5R air filter is a 7” tall, pre-oiled, 360-degree radial flow performance air filter with five layers of progressively finer cotton gauze media for maximum performance. It provides your engine with the largest amount of high-flowing air, usually resulting in the highest power gains out of all our filter media options. This media is perfect for street and/or track use.
Mandrel-Bent Tubing:
One Piece 3" Mandrel-Bent Wrinkle-Black Powder-Coated Aluminum Intake Tube directs unrestricted airflow from the massive filter to the turbo for more horsepower and torque.
Top Mounted Heat Shield Design:
aFe developed this sturdy 18 gauge steel wrinkle-black powder-coated heat shield to mount onto the top of the lower half of the factory airbox to provide a hassle-free installation utilizing factory mounting locations.
Premium Hardware:
Premium hardware and clamps are used to securely mount the high flow air filter and the intake tube.
Optional cover :
Optional cover (P/N: 54-12678-B) is available for this air intake system and is sold separately.
Filter Cleaning Instructions:
Click here for air filter cleaning instructions and video: https://afepower.com/air-filter-media#filter-maintenance
Emissions Disclaimer
This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.
This item will only fit models equipped with 45 TFSI engine (228-hp).
Details
- Dyno-Proven Gains up to +17 HP and +20 Lbs. x Ft. TQ
- Outflows Factory Intake by up to 19%
- Measured Flow: 320 CFM @ 7" H20
- Washable and Reusable Pro 5R Air Filter for Maximum Performance
- 3" Mandrel-Bent Wrinkle-Black Powder-Coated Aluminum Intake Tube Improves Volumetric Efficiency for Better Performance
- Powder-Coated One Piece Heat Shield utilizes factory mounting locations
- No Cutting or Drilling on OEM Parts for Faster Installation
Attributes
- Replacement Air Filter 24-90069
- Pre-Filter 28-10213
- Horse Power Increase 17 Horsepower
- Torque Increase 20 Ft-Lbs
- Air Flow Gain 19 Percent
- Filter Color Blue
- Air Box Type Open
- Heat Shield Included Yes
- Mounting Hardware Included Yes
- ECU Tuning Required No
