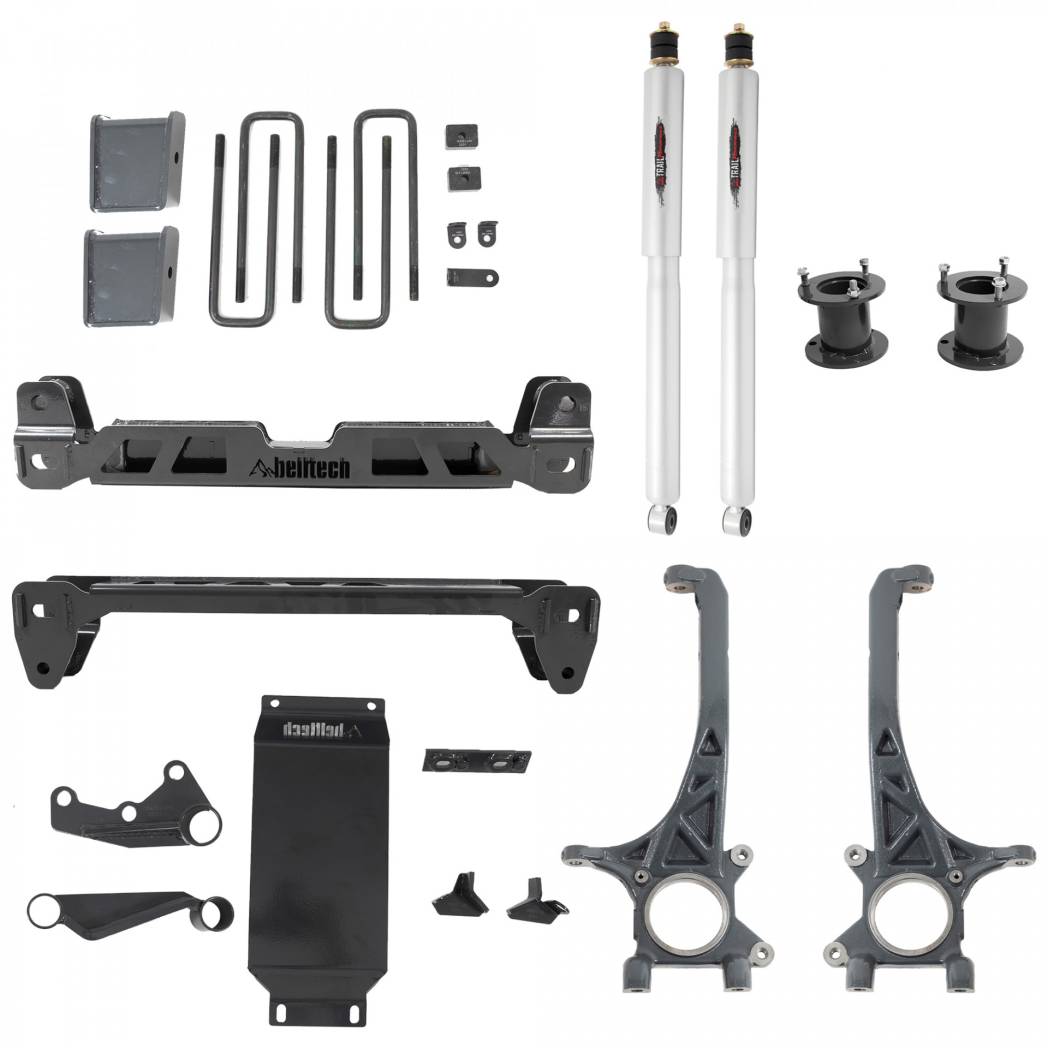

154301BK4 | Belltech 4 Inch Complete Lift Kit with Trail Performance Rear Shocks (2016-2023 Tacoma 4WD)

Elevate your truck or Jeep to new heights with Belltech's all new suspension lift kit systems from Belltech. Precision engineered in the USA to ensure every aspect was considered to provide you with the highest quality Lift Kit Suspension System that delivers on performance. Through innovative design with the focus on performance, these suspension lift kit systems are the best riding lift kits on the market - period. Built to ride, handle and tackle off road obstacles with ease!

Fits: 2016-2023 Toyota Tacoma 4WD (Excludes TRD Pro)

Durability, longevity, and versatility all come to mind when thinking of a Toyota Tacoma. Belltech mirrors these quality characteristics in our 3rd generation Toyota Tacoma 4WD complete lift kit. We have created solution that takes your truck to entirely new levels of functionality and performance

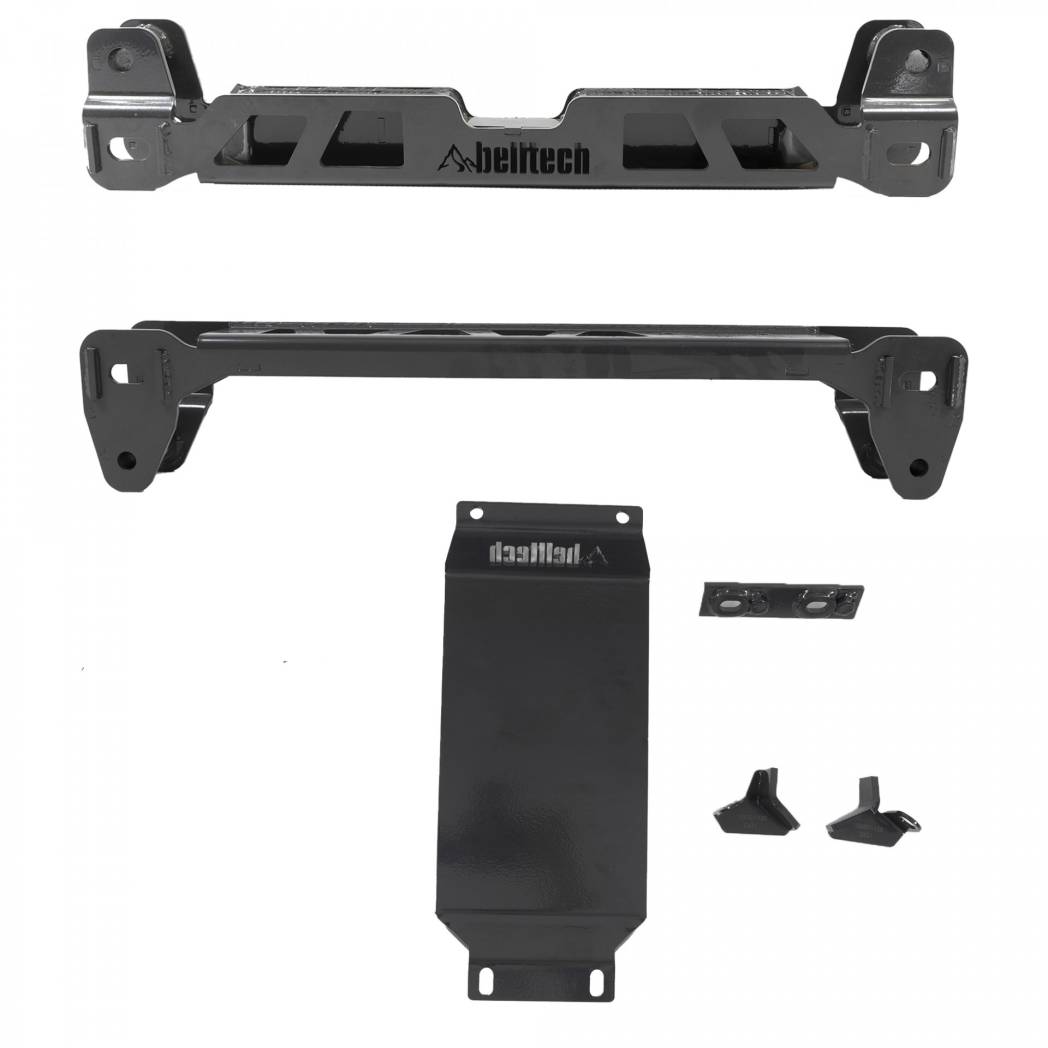

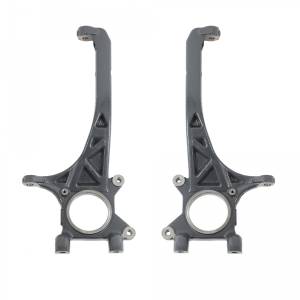

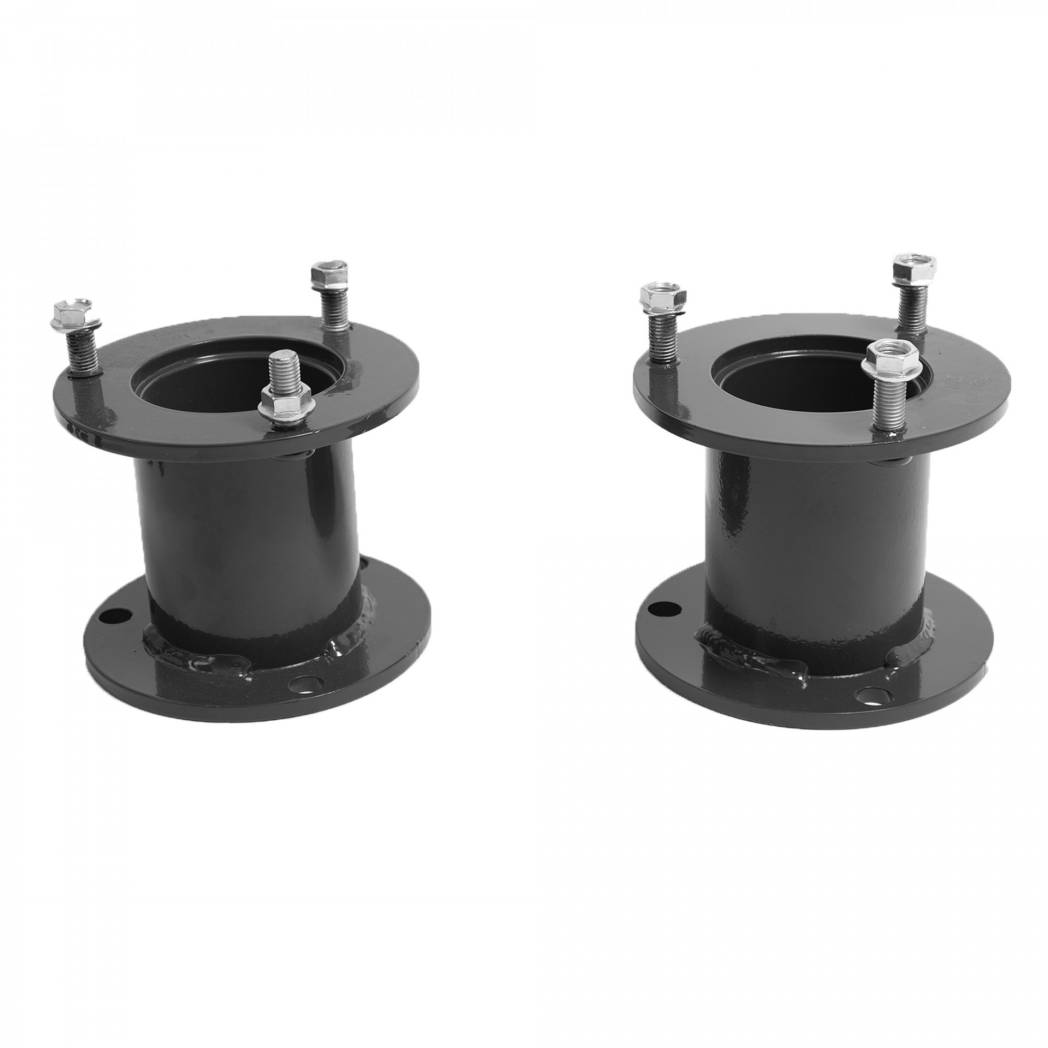

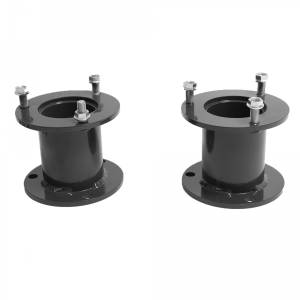

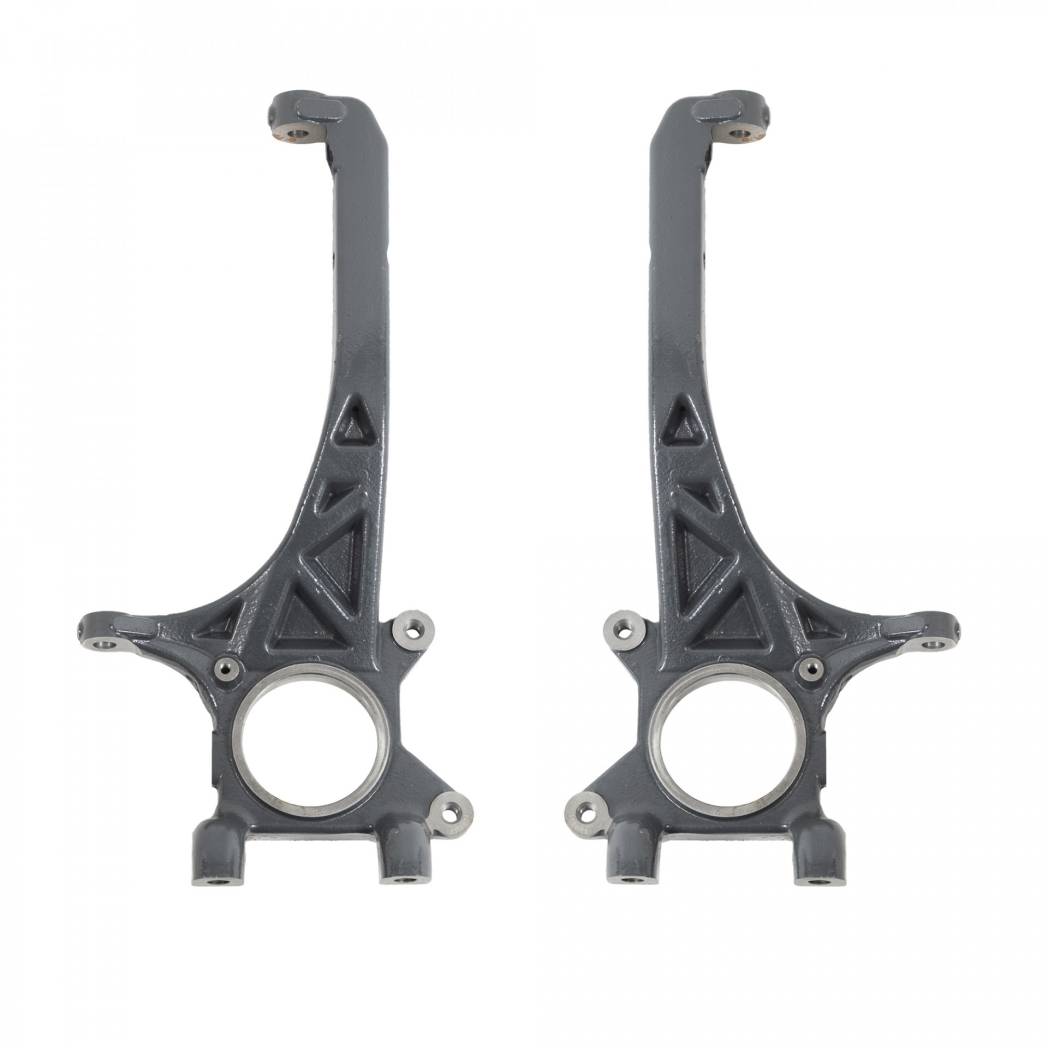

The front end utilizes a successful grouping of components. Two Belltech heavy-duty 4" powder coated steel strut spacers add clearance and create room for larger tires and wheels. Another successful component pairing is our Belltech lift spindles, which are made of ductile iron and powder-coated to increase longevity. Belltech lift spindles are purposely designed to reduce weight, increase strength, and keep proper ball joint angles. In keeping ideal ball-joint angles, we maintain factory geometry. Our kit also retains your vehicle's factory turning radius and does not increase track width. Also included in the front end are Belltech high clearance cross members constructed of ¼" thick steel. Our cross members are made to be immensely rigid. They bring down the control arms to maintain factory suspension geometry and integrate a mounting point for the differential. Connecting the cross member to the differential are our diff drop-down brackets, which mimic OE alignment. Our kit makes it easy to reuse your OE skid plate but adds a lower ¼" thick skid plate to protect the differential. A steering stop bracket is used to prevent overextension of the steering rack, and sway bar relocation brackets reposition your OE sway bars to keep proper alignment.

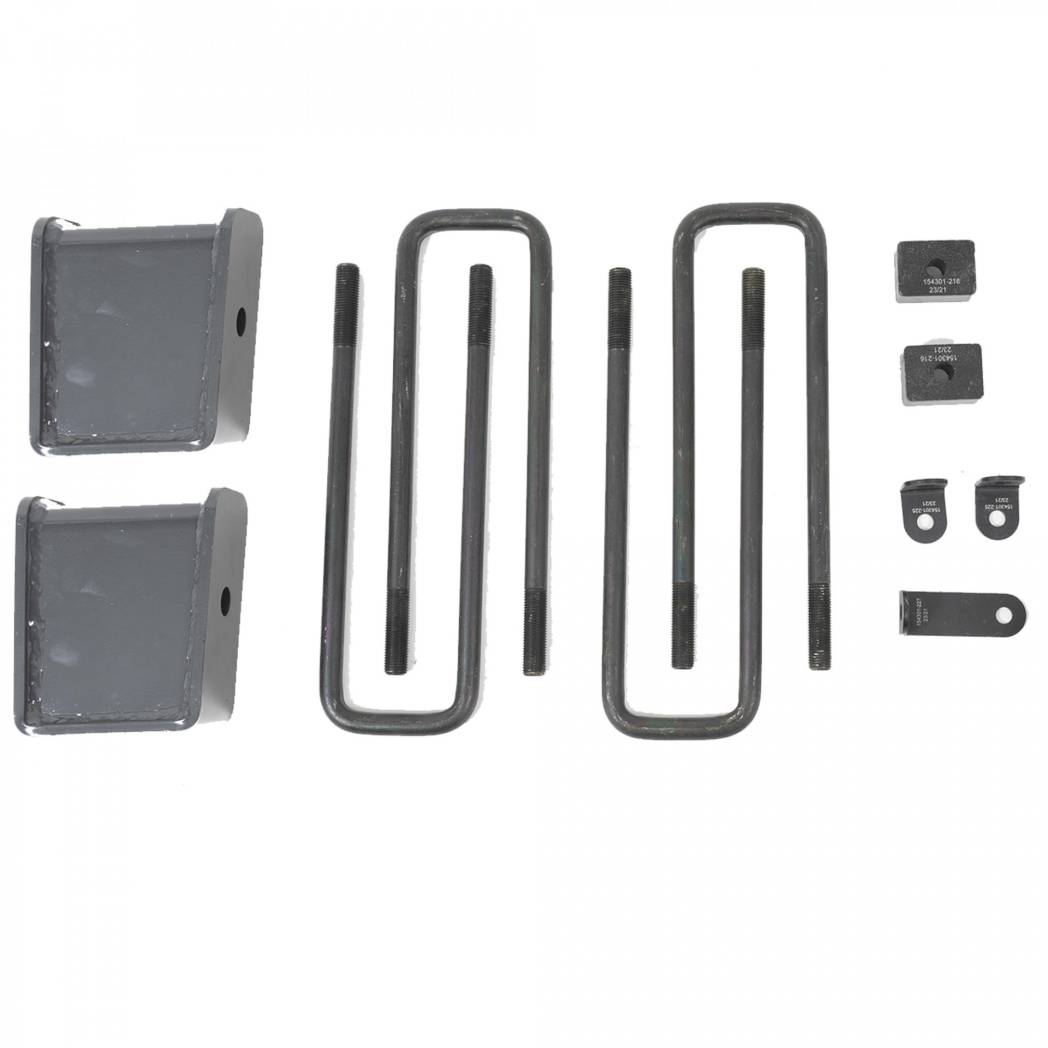

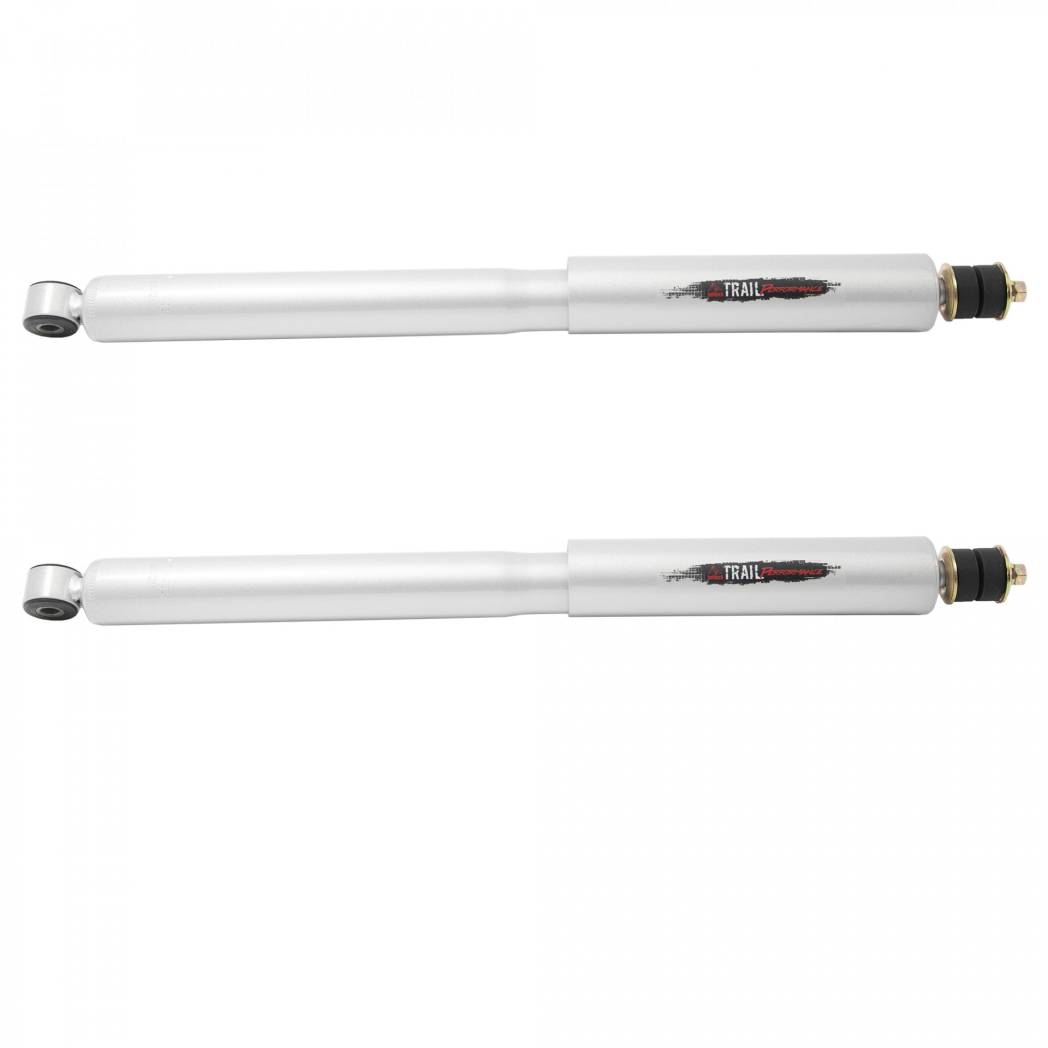

At the rear, Belltech improves ride quality with Trail Performance Twin Tube Shocks that feature preset, low-friction dampers that are precisely tuned for the Tacoma, and do not lose damping forces over time or under stress. The dampers have large, 55mm bodies and 35mm independent rebound and compression valves, which result in finely tuned low and high-speed damping. Heavy-duty powder-coated 4" steel lift blocks and extended length U-bolts add height and clearance, while a carrier bearing spacer drops the driveshaft down to retain factory pinion angles.

High-quality hardware and relocation brackets, place brake lines in appropriate settings when necessary. Our phenomenal, long-lasting Belltech components with the factory alignment system make installation easy. Take new roads and challenging terrain with Belltech's complete Tacoma lift kit.

Rear Trail Performance Twin Tube shocks
55mm shock bodies
35mm independent rebound and compression valves
Rear lift blocks add 4" of height
Strut spacers add 4" of lift in the front
Retains factory alignment
Retains OE suspension geometry
Includes a differential drop-down bracket
Easy installation
High-quality hardware
Improved ride-quality
Adds clearance
Allows room for larger tires and wheels
¼" thick skid plate protects differential
Retains factory track width and turning radius
High-clearance, rigid cross members
Wheel and Tire Combinations:
16" minimum wheel diameter
4.5" to 5" wheel back spacing

Recommended tire size: 33" (may fit up to 35" at a 6" lift however trimming may be required)
