447612 | Baja Designs OnX6+ 20 Inch Grille LED Light Bar Kit For Ford Ranger | 2019-2022

OnX6+ 20 Inch Grille LED Light Bar Kit For Ford Ranger | 2019-2022

447612
Pricing: $1,466.38
Qty:
Free Ground Shipping | Exclusions Apply*

Description

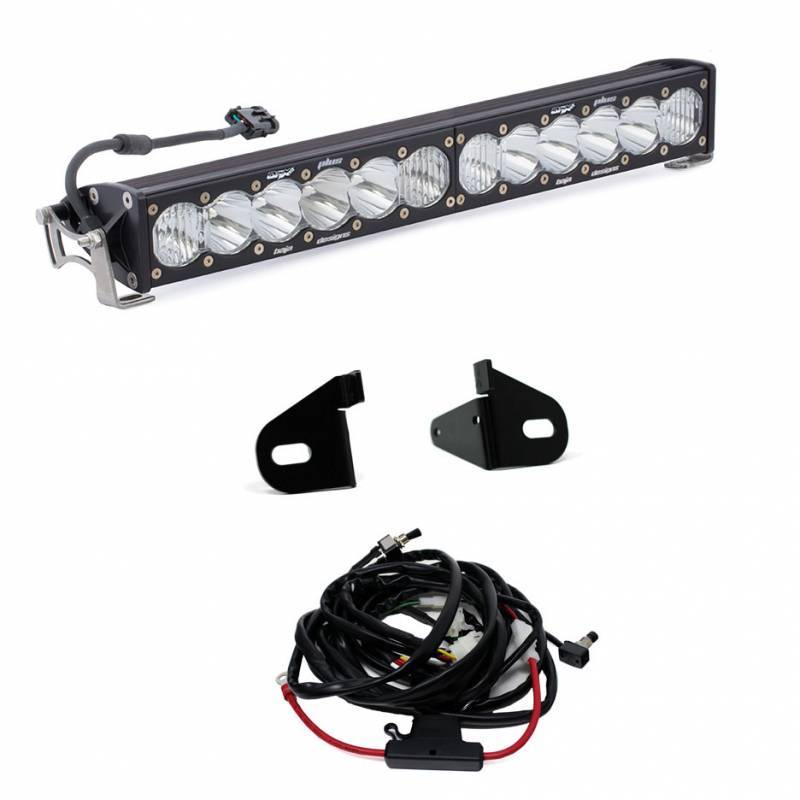

Looking for the ultimate lighting kit for your Ranger? Look no further! The 20-inch OnX6 plus kit is the kit for you, it includes everything you need, the light, wiring harness, and mounts.

At an impressive 24,920 lumens, the brightest just got up to 69% brighter. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue.

The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.

The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

This kit is mounted in the lower grille, and mounting the light doesn’t require any drilling or modifications to your vehicle. Note that vehicles equipped with the “Active Cruise Control” will NOT be able to run this kit without removing, or relocating the sensors. An industry-first, 30-day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

INCLUDED WITH KIT:

SKU: 452003

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 20
Weight (lbs.) 7.85

Specifications

Amperage Rating (A) 16.6 (High); 12.0 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 24,920 (High); 18,460 (Low)
Description Straight; Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 12
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 20 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 216 (High); 160 (Low)
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)



DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Ford Ranger 2019-2022
