19440 | Rough Country 3.5 Inch Lift Kit With Upper Control Arms For Chevrolet Silverado/GMC Sierra 1500 | 2014-2016 | Front M1 Struts, Rear M1 Shocks

3.5 Inch GM Suspension Lift Kit With Upper Control Arms | Chevrolet Silverado/GMC Sierra 1500 | 2014-2016 | Does NOT Fit AWD, Classic, Magnetic Ride | Front M1 Struts, Rear M1 Shocks

19440
Pricing: $1,606.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! This kit includes Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. Features natural rubber bushings and an eye-catching metallic silver paint.

This kit also features Forged Aluminum Control Arms with POM ball joints that offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.

FEATURES

  • Increased ground clearance.
  • Can be returned to stock height!
  • Differential drops maintain proper axle angle.
  • Control arms include POM ball joints for greater range of motion and easier installation.
  • Ball joints are pre-installed to ease installation.
  • Rear fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
  • Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

OPTIONAL N3 LOADED STRUTS

  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Nitrogen-charged
  • Engineered for lifted applications
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Massive 1 3/8in Bore
  • Silver powder coat finish
  • 3-year Manufacturer's Warranty

OPTIONAL V2 MONOTUBE SHOCKS

  • Monotube design
  • Internal floating piston
  • Nitrogen-charged
  • 46mm high-flow piston
  • Fast heat dissipation
  • 36kN Tensile Strength
  • Mounts inverted
  • T6061 brushed aluminum body
  • 3-year Manufacturer's Warranty

OPTIONAL VERTEX COILOVERS

  • 8-Stage Adjustable Damping
  • Monotube Design
  • Nitrogen-charged
  • Massive 2.5in Piston
  • 22mm Chrome-Hardened Piston Rod
  • 3-Stage Seal System
  • Heat-Treated, Alloy Bearing
  • Honed Steel Body
  • 3-year Manufacturer's Warranty

NOTES - IMPORTANT

  • This kit fits models with both cast steel or aluminum factory control arms.
  • Does NOT fit models with factory stamped steel control arms.
  • Requires cutting and grinding.
  • New lift block replaces the factory equipped block.
  • If truck is equipped with a mass damper on the front differential, the damper must be removed.
  • Does NOT fit AWD models.
  • Does NOT fit 2007 "Classic / old body style" models.
  • Does NOT fit GMC Denali models with Magnetic Ride Control.
  • Retain your factory wheels with our 0.25" wheel spacers available here! SKU: 1065

Vehicle Applications

2007 - 2016 Chevrolet Silverado 1500
2007 - 2016 GMC Sierra 1500

NOTES - IMPORTANT
Requires cutting and grinding New lift block replaces the factory equipped block.
If truck is equipped with a mass damper on the front differential, the damper must be removed.
Does NOT fit AWD models.
Does NOT fit models with stock Stamped Steel control arms.
Retain your factory wheels with our 0.25" wheel spacers (#1065).

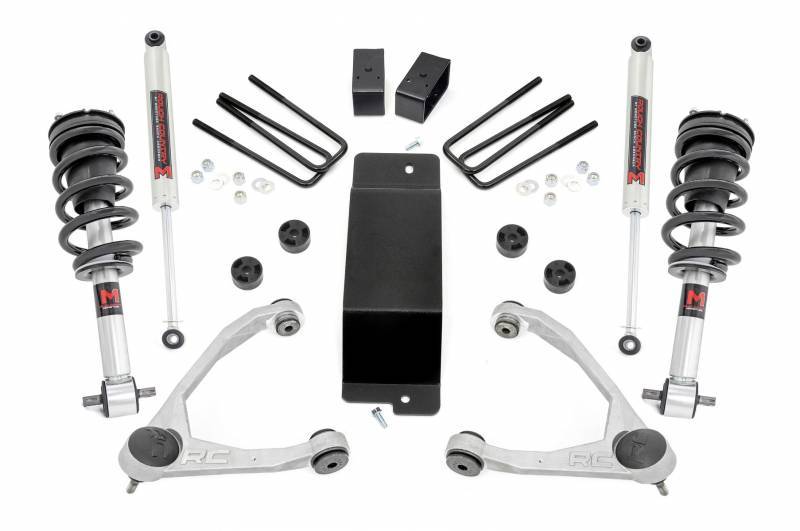

Components

FRONT
Strut spacers
Forged upper control arms
Upper POM ball joints
Differential drop spacers
Differential skid plate
Hardware

REAR
3in fabricated lift blocks
U-bolts
Hardware

SHOCKS
(2) Shocks

Tires & Wheels

285/70R17 Factory 17 6x5.5 - -
285/65R18 Factory 18 6x5.5 - -
285/55R20 Factory 20 6x5.5 - -
285/70R17 17x8.5 6x5.5 +0 -
285/70R17 17x8.5 6x5.5 +1 -
285/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +12 -
285/70R17 17x9 6x5.5 +18 -
285/70R17 17x9 6x5.5 +20 -
285/65R18 18x8.5 6x5.5 +0 -
285/65R18 18x8.5 6x5.5 +1 -
285/65R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 -
305/60R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +18 -
305/60R18 18x9 6x5.5 +20 -
285/65R18 18x9 6x5.5 +20 -
285/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 -
295/55R20 20x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +18 -
295/55R20 20x9 6x5.5 +20 -
285/55R20 20x9 6x5.5 +20 -

Details

  • 19440
  • 19440
  • 840269917011
  • Rough Country
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 118.3 lbs.
  • W14.0000” x H8.0000” x L30.0000”
  • Free Ground Shipping | Exclusions Apply*
