31030 | VIAIR 310 SS Stealth Series Portable Compressor IP67 Rating | 200 PSI /1.46 CFM - 12V
310 SS Stealth Series Portable Compressor IP67 Rating | 200 PSI /1.46 CFM - 12V | Universal - Check Specification Before Ordering
Description
VIAIR’s 310 Stealth-Series (SS) compressors feature upgraded internals, a newly developed head and a new metal filter assembly with an internally integrated muffler, reducing audible noise levels by up to 50% when compared to our other comparable compressors*. Additionally, the 310 Stealth-Series compressors are RoHS/REACH certified and equipped with newly designed spring-loaded vibration isolators, black-sleeved stainless steel leader hose and black nickel-plated check valves that eliminate the possibility of high amperage restarts.
Please Note:
Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
FILL RATES
2.5 Gallon Tank
- 0 to 145 PSI 4 min. 20 sec. (± 15 sec.)
- 110 to 145 PSI 1 min. 20 sec. (± 10 sec.)
- 0 to 200 PSI 6 min. 40 sec. (± 15 sec.)
- 165 to 200 PSI 1 min. 30 sec. (± 10 sec.)
5.0 Gallon Tank
- 0 to 145 PSI 9 min. 05 sec. (± 15 sec.)
- 110 to 145 PSI 2 min. 45 sec. (± 10 sec.)
- 0 to 200 PSI 14 min. 00 sec. (± 15 sec.)
- 165 to 200 PSI 3 min. 20 sec. (± 10 sec.)
SPECIFICATIONS
- 12 Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Duty Cycle: 50% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 23-Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.7″L x 4.4″W x 7.3″H
- Net Weight: 9.75 lbs.

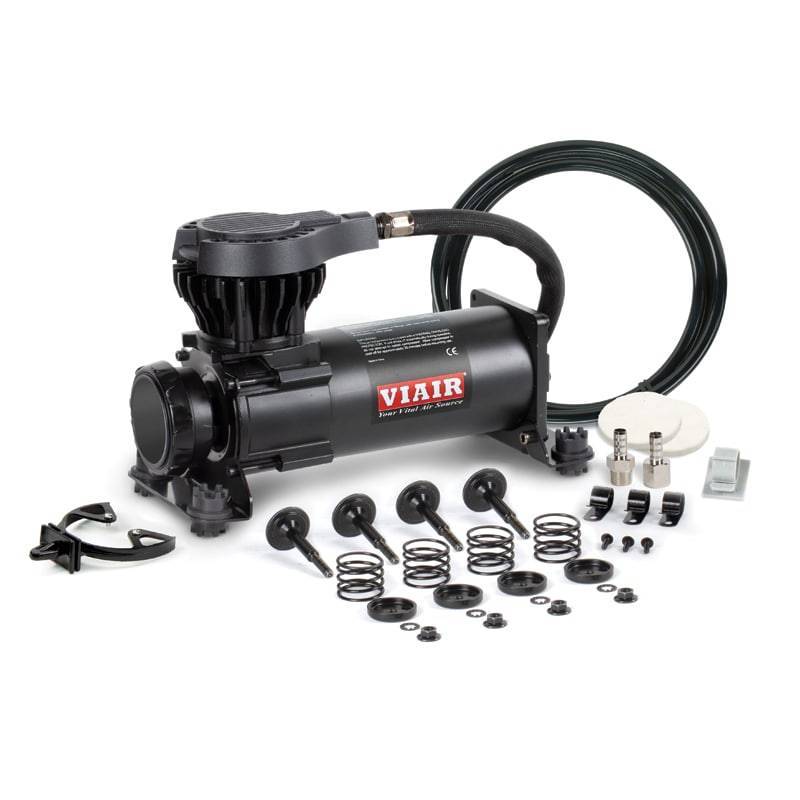

FEATURES
- Thermal Overload Protector
- Check Valve
- Spring Loaded Vibration Isolating Feet
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount 6-Stage Air Filter/Muffler Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
RECOMMENDED COMPONENTS
- 2.5 Gallon Tank (P/N 91028)
- All Pressure Switches
- All Pressure Switches w/ Relays
- All Sealed Pressure Switches
