K947563L | 6 Inch Suspension Lift Kit w/ 4 Link (2019-2022 Ram 3500 4WD | NON Air Ride)

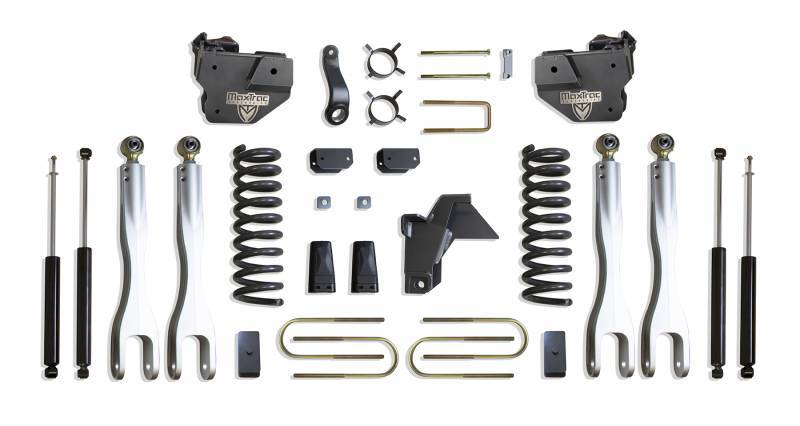

MAXTRAC SUSPENSION’S KIT# K947563L IS A COMPLETE 6″ LIFT KIT INCLUDING DIESEL COILS, FORGED ALUMINUM 4LINKS, TRAC BAR BRACKET, PITMAN ARM, SWAY BAR BRACKETS, BUMP STOPS, BLOCKS, U-BOLTS & FRONT/REAR MAXTRAC SHOCKS

• Part Number: K947563L
• Kit Number Break Down:
• 6" LIFT COILS (PART# 752860)
• TRAC BAR BRACKET & HARDWARE (PART# 947400-1)
• DRIVER SIDE 4-LINKS ARMS & BRACKET (PART# 947200-3)
• PASS. SIDE 4-LINK ARMS & BRACKET (PART# 947200-4)
• MAXTRAC SHOCKS (PART# 947360S)
• 3.5" REAR BLOCKS W/ U-BOLTS (PART# 907335)
• Kit Type: LIFT/LEVEL

Notes:

• REQUIRES 18" RIMS OR LARGER W/ 5.5" BACKSPACING OR LESS
• CLEARS UP TO A 38" x 13.50" TIRE ON 8"-9" WIDE RIM
• FENDER TRIMMING MAY BE REQUIRED
• DOES NOT FIT 2WD MODELS
• KITS MAY FIT GAS MODELS BUT HAVE NOT BEEN TESTED ON THEM
• MAXTRAC SUSPENSION DOES NOT RECOMMEND USING WHEELS WIDER THAN 9" OR WHEELS WITH LESS THAN 4.5" BACKSPACING.
• DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES

Important Footnotes Please Read

• PART# RAM-4119K-AISIN (driveshaft) is required on all 2019+ Ram 3500 4WD with an AISIN transmission running 6"-8" lift kits
