33870 | Rough Country 5 Inch Lift Kit For Ram 1500 4WD | 2019-2023 | Without 22" Factory Wheels, Front Strut Spacers, Rear V2 Shocks

5 Inch Lift Kit For Ram 1500 4WD | 2019-2023 | Without 22" Factory Wheels, Front Strut Spacers, Rear V2 Shocks | ONLY Fits Air Ride Modes, NOT Fit 2019 "Classic", AWD, Factory Wheels Models

33870
Pricing: $2,304.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Transform your 5th generation RAM 1500 into an absolute BEAST with Rough Country’s 5in Suspension Lift Kit for Air-Ride Models. This all-inclusive kit comes with everything you need to give your truck an aggressive look and a formidable stance that complements the revamped design and upgraded look of this rugged vehicle.

Rough Country’s 5in Suspension Lift gives you plenty of increased ground clearance for off-road action and enough additional ride height to run up to 35in tires for a head-turning look that’s sure to command attention.

Each kit features a set of high-quality front and rear crossmembers with a laser-cut RC logo, giving the truck a fierce, but streamlined look after lifting. For true trailblazers, this kit also ships with a set of rear N3 Nitrogen-charged shock absorbers - valved specifically for a blend of on and off-road performance. This kit also includes an upgraded outer tie-rod that’s engineered to optimize turning and minimize bump steer while allowing you to fit a wider variety of wheels.

Best of all? You'll achieve better performance, bigger tires, and considerable protection all without sacrificing the look of your truck. All components are specifically designed to keep things nice and tidy underneath, utilizing drop brackets to promote proper geometry and leaving nothing hanging out in plain sight. Includes Rough Country’s Lifetime Replacement Guarantee.

FEATURES

  • Increased ground clearance
  • Levels front of vehicle with rear
  • Maintains factory air ride modes

NOTES - IMPORTANT

  • ONLY fits models with factory air ride suspension.
  • Does NOT fit 2019 "classic" models (5-lug)
  • Kit is not recommended for AWD models.
  • "TRX" models will achieve approximately 1" of additional lift.
  • Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.
  • Does NOT fit factory wheels.

SPECS

  • Est. Install Time 7-8 hours

Application List

2019-2023 4WD Ram 1500

NOTES - IMPORTANT
ONLY fits models with factory air ride suspension.
Does NOT fit 2019 "classic" models (5-lug)
Kit is not recommended for AWD models.
"TRX" models will achieve approximately 1" of additional lift.
Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.
Does NOT fit factory wheels.

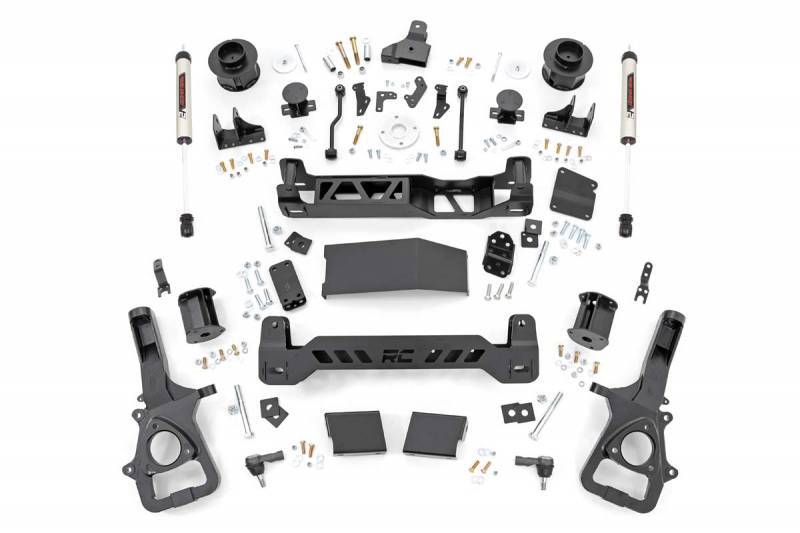

Components

FRONT
Lifted knuckles
Strut spacers
Front crossmember
Differential drop brackets
Driveshaft spacer
Sway-bar links
Skid plate
Hardware

REAR
Coil spacers
Rear crossmember
Sway-bar links
Track bar bracket
Bump-stop extensions
Brake line brackets
Brake lines
Hardware

SHOCKS
(2) Shocks

Tires & Wheels

35x12.50R20 20x9 6x5.5 +0
35x12.50R20 20x9 6x5.5 +1
35x12.50R20 20x9 6x5.5 +12
35x12.50R20 20x10 6x5.5 -25 Minor Trimming
35x12.50R20 20x10 6x5.5 -24 Minor Trimming
35x12.50R20 20x10 6x5.5 -19 Minor Trimming
35x12.50R20 20x10 6x5.5 -18 Minor Trimming
35x12.50R22 22x9 6x5.5 +0
35x12.50R22 22x9 6x5.5 +1
35x12.50R22 22x9 6x5.5 +12
35x12.50R22 22x10 6x5.5 -25 Minor Trimming
35x12.50R22 22x10 6x5.5 -24 Minor Trimming
35x12.50R22 22x10 6x5.5 -19 Minor Trimming
35x12.50R22 22x10 6x5.5 -18 Minor Trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
