47850 | 4.5 Inch Ford Suspension Lift Kit w/ Vertex Reservoir Shocks

For 2008 - 2010 Ford F-350 Super Duty 4WD / 2008 - 2010 Ford F-250 Super Duty 4WD

47850
Pricing: $3,976.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.

Features

  • Easy bolt-on installation
  • Increased ground clearance
  • Levels the front with the rear of the vehicle
  • Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
  • Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
  • Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
  • Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

Fitment Notes

  • Does NOT fit V-8 gas engine models.
  • Does NOT fit dually models.
  • V-10 gas engine models will require exhaust modification to clear the front driveshaft.
  • If vehicle is equipped with rear overload leafs, they will need to be removed.

Specifications

Est. Install Time: 6-8 hours

Application List

2008 - 2010 Ford F-350 Super Duty 4WD
2008 - 2010 Ford F-250 Super Duty 4WD

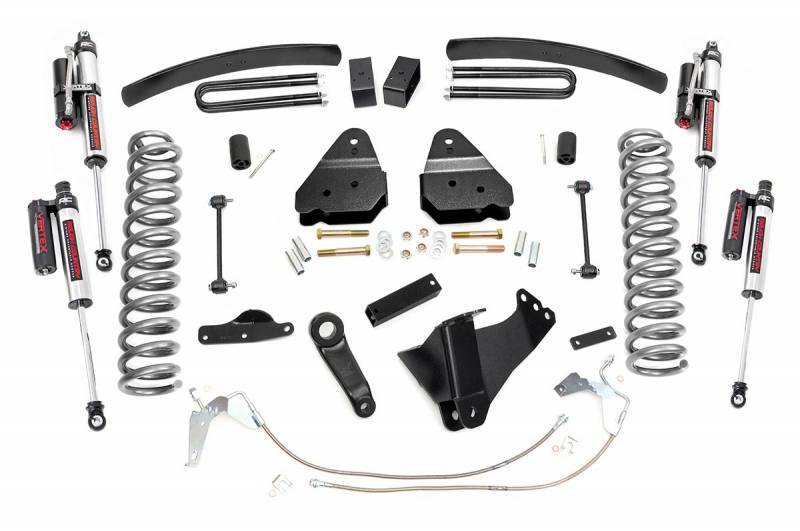

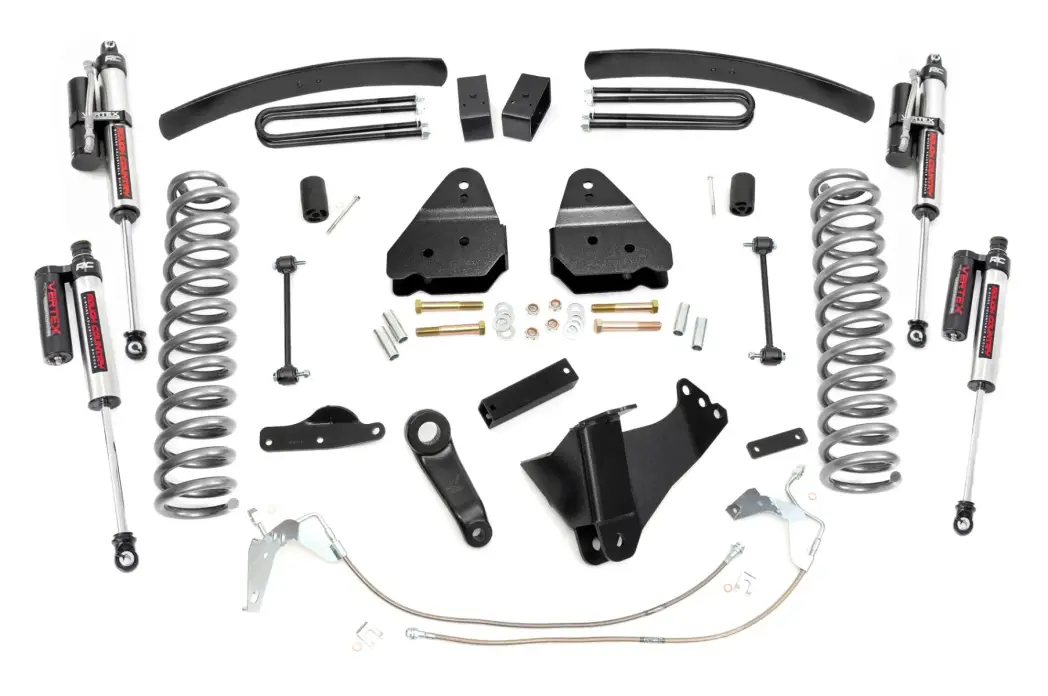

Components

FRONT
Lifted coil springs
Radius arm drop brackets
Extended sway-bar links
Track bar drop bracket
Pitman arm
Stainless steel braided brake lines
Bumpstop spacers
Hardware

REAR
Fabricated anti-wrap lift blocks
Carrier bearing drop bracket
U-bolts
Hardware

SHOCKS
(4) Vertex Reservoir Shocks

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 125.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
