K861B | Superlift 6 inch Suspension Lift Kit with Bilstein Shocks (1999-2010 Silverado, Sierra 2500 LD 4WD)

2001-2006 Chevrolet, GMC Silverado, Sierra 1500 HD 4WD | 1999-2010 Chevrolet, GMC Silverado, Sierra 2500 LD 4WD

K861B
Pricing: $3,266.49
Qty:
Free Ground Shipping | Exclusions Apply*

Description

This is a complete knuckle style lift kit for the 1999-2010 Chevy/GMC 1500HD/2500 4WD
Provides 6” lift height
Includes related drop brackets, rear blocks, front and rear 5100 Series Bilstein shocks

What does it include?

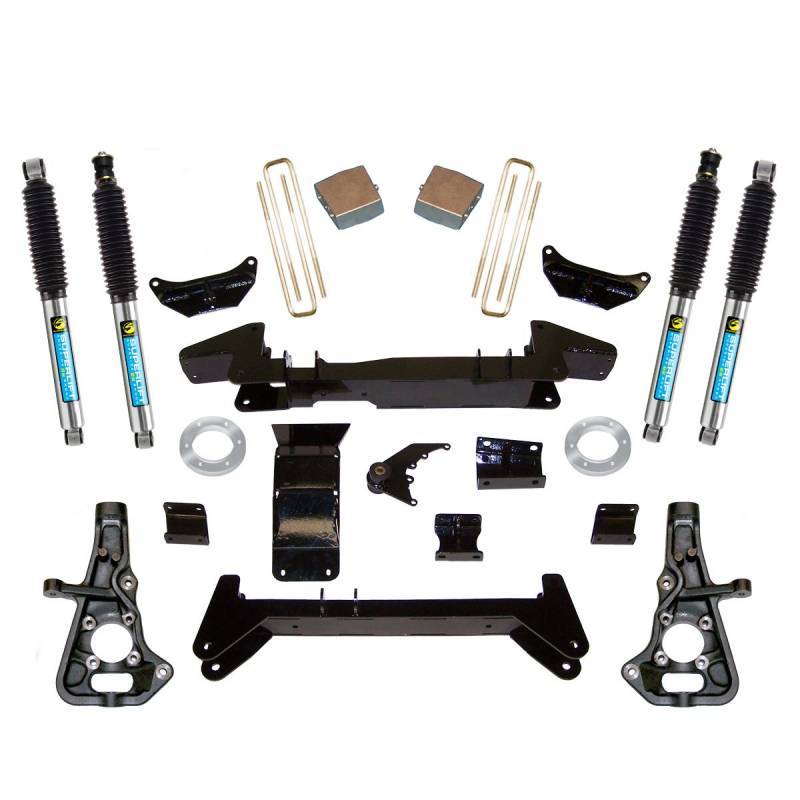

All brackets, cross-members, shocks, steering knuckles, rear block and u-bolt kit, and hardware required specific to the 1999-2010 2500 NON HD and 2001-2006 1500HD 4WD Chevrolet/GMC.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

This Superlift is a complete knuckle style lift kit providing 6” lift height.

Features:
Replacement knuckles yield the best possible alignment specs with minimal increase in track width.
Skid plate connects and strengthens the front / rear crossmembers while protecting the differential
Bilstein shocks included
Installer-friendly design
No replacement front driveshaft required
High clearance, one-piece crossmembers, and all other load-bearing bracketry are laser cut from .25" thick plate steel.

Notes:
Installation time: 8 hours
Difficulty level: 4 of 5

Application List

2002-2006 Chevrolet Avalanche 2500 4wd
2001-2003 Chevrolet Silverado 1500 HD 4wd
2005-2006 Chevrolet Silverado 1500 HD 4wd
2007 Chevrolet Silverado 1500 HD Classic 4wd
2000-2010 Chevrolet Suburban 2500 4wd
1999-2000 GMC K2500 4wd
2001-2003 GMC Sierra 1500 HD 4wd
2005-2006 GMC Sierra 1500 HD 4wd
2007 GMC Sierra 1500 HD Classic 4wd
2000-2010 GMC Yukon XL 2500 4wd

Tires & Wheels

Tire Wheel Backspacing Offset
35 x 12.5 16 x 8 4.5 -
35 x 12.5 17 x 9 - -12 to 0
35 x 12.5 18 x 9 - -12 to 0
35 x 12.5 20 x 9 - -12 to +12



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Details

  • K861B
  • K861B
  • 804260049812
  • SuperLift
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W18.0000” x H24.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
