DJM2055-46 | DJM Suspension 4 Inch Front / 6 Inch Rear Lowering Kit for 1988-1991 C1500 Pickup 2WD | Single Cab ONLY (Shocks Included)

This might be the drop that made the spindle famous, the 4/6 C1500 kit. Using the spindle with drop coil springs to put together a 4" front drop has been done countless times, probably more times than any other lowering technique!

A "flip kit" moves the rear axle from beneath the leaf spring to on top of the spring. Nothing is really "flipped" and this is the best way to drastically lower the rear end of most trucks! You will need to "C-notch" your frame for provide suspension travel and DJM includes frame support brackets to reinforce your frame as well as DJM’s exclusive pinion adjustable axle brackets

Shocks are included. DJM Recommended Parts:

• Front Shock number 1315
• Rear Drivers side Shock number 2000
• Rear Passengers side Shock number 2200

Note: The shocks are staggered in the rear and require slightly different angles.

Drop Spindles InstructionsFront Coil Springs InstructionsRear Flip Kit Instructions

Additional information

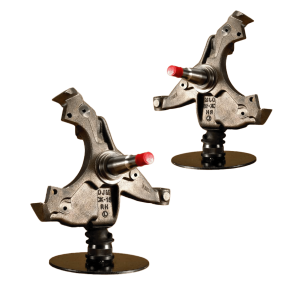

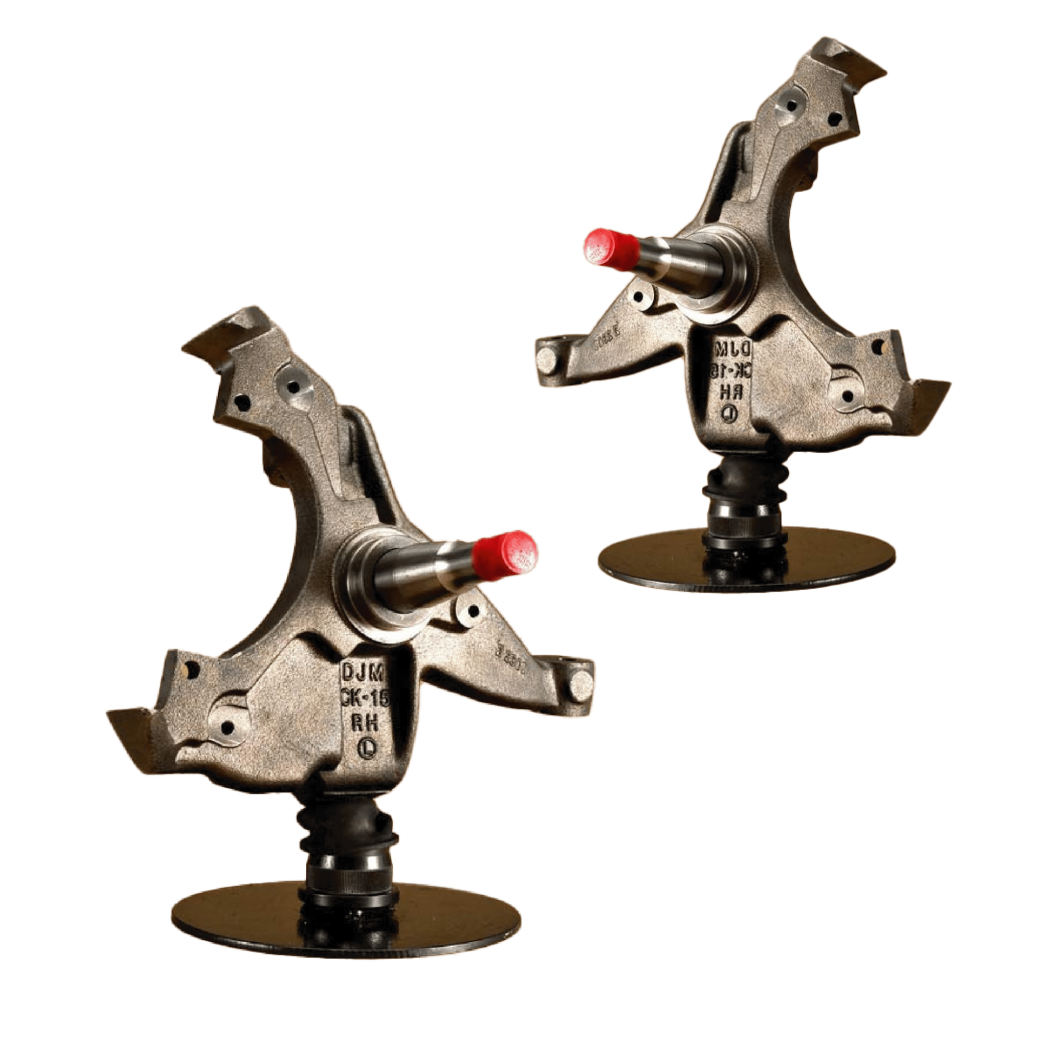

1988-1991 C1500 Standard Cab 2 inch Drop Spindles (Pair)

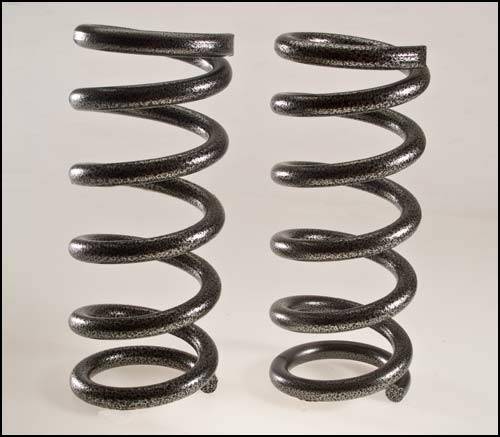

1988-1999 C1500 Silverado/Sierra 2 inch drop coil springs

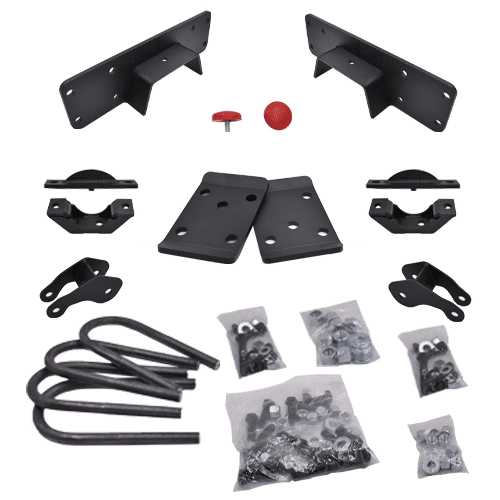

1988–1998 Chevy C1500 6 inch Rear Leaf Spring Axle Flip Kit

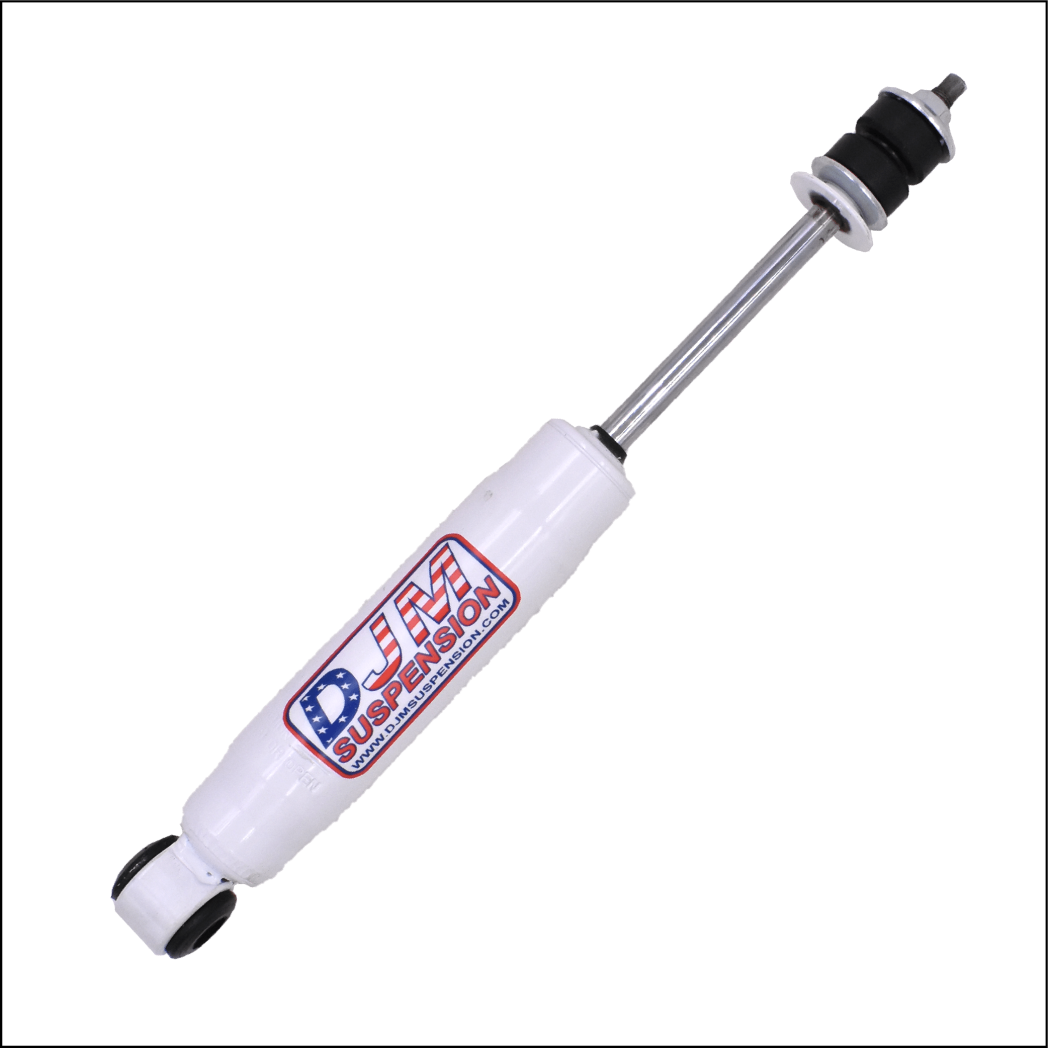

13.5" Stem / Loop SuperShock (1315)

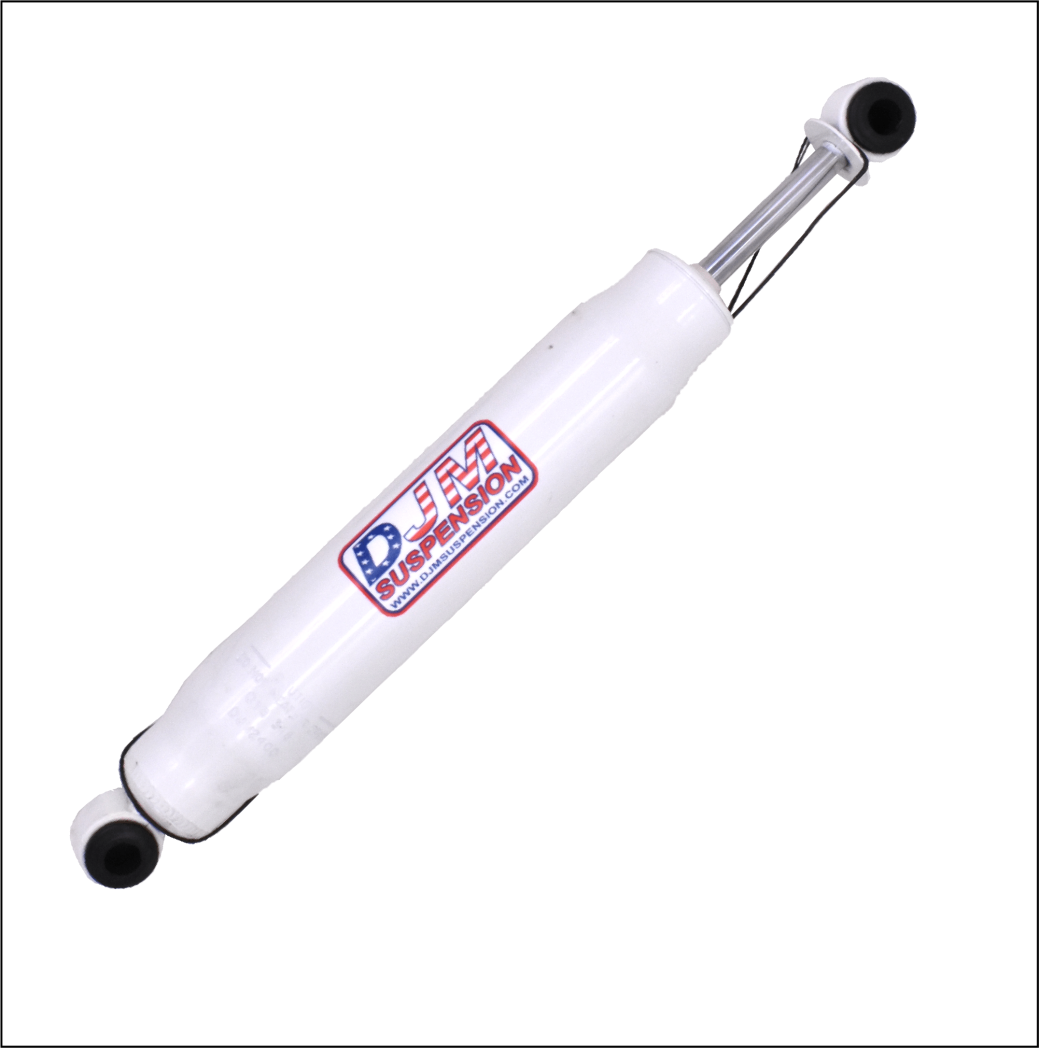

20.5" Loop/Loop SuperShock (2000)

22.5" Loop/ Loop SuperShock (2200)
