52350 | McGaughys 7 to 9 Inch Lift Kit, 2011-2019 GM Truck 2500 4wd DIESEL

7″-9″ Premium Lift kit Lift kit comes powder-coated silver

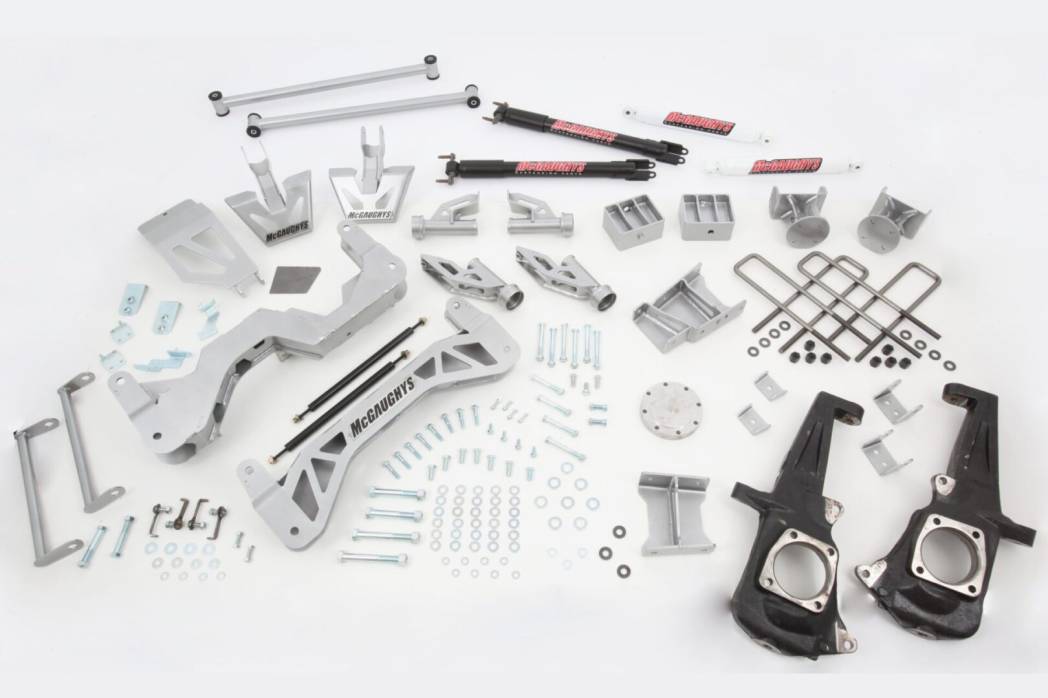

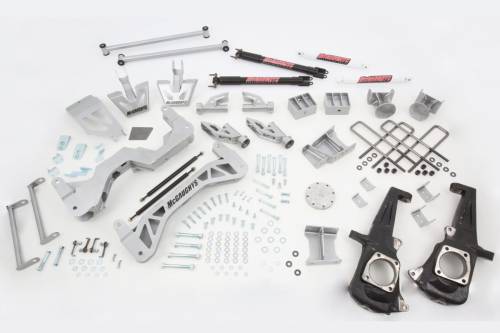

Kit Includes:
(2) Spindles
(2) Lift Blocks w/ U-bolts & Hardware
(1) Front Crossmember
(1) Rear Crossmember
(1) Skid Plate
(2) Sway Bar End Links
(2) Compression Struts
(2) Lower A-frame Support Rods
(2) Torsion Bar Drops
(1) Differential Drop
(1) CV Axle Spacer
(1) Weld-in Filler Plate
(4) Front & Rear Bump Stops
(1) Brake Cable Extenders
(1) Rear Brake Bracket Extenders
(2) Rear Compression Strut Retainer Brackets
(2) Front Brake Line Bracket Extenders
(2) Upper Shock Mounts w/ Hardware
(2) Front Shocks
(2) Rear Shocks

Fitment
2011-2019 GM 2500 Trucks 4wd Models
Diesel Models

Optional Add-Ons
MS52314 Upper Control Arms (not included with kit)
MS52310 Torsion Keys (not included with kit)
MS52361 Rear Lift Shims (not included with kit)
MS52318 Traction Bars (not included with kit)
MS1102 Upgraded Front Reservoir Shocks (not included with kit)
MS1103 Upgraded Rear Reservoir Shocks (not included with kit)
MS52357 Front Shock Reservoir Mounts (not included with kit)
MS52315 Upgraded Compression Struts (not included with kit)
MS51411 Billet Face Plates for Upgraded Compression Struts (Black) (not included with kit)
MS51413 Billet Face Plates for Upgraded Compression Struts (Raw) (not included with kit)
MS51321 Billet Face Plates for Traction Bars (Black) (not included with kit)
MS51323 Billet Face Plates for Traction Bars (Raw) (not included with kit)
MS51052 Billet Ball Joint Cap for Upper Control Arms (not included with kit)

Replacement Parts
MS2600 Front Shock
MS3250 Rear Shock
MS52360 Sway Bar End Link

Notes:
PLEASE NOTE: If you are installing the optional rear shims and rear traction bars, you may need to get longer u-bolts than what come with the kit. This is most common on 3500 trucks when installing all the rear shims along with rear traction bars.

This kit can be adjusted to 8″ or 9″. You will need Torsion Keys #52310 (sold separately), to raise up the front. You will also need the Rear Lift Shim Kit #52361 (sold separately), to raise the rear up.

If running this kit at the 9″ position, we highly recommend using Upper Control Arms #52314 (sold separately) to help with bump stop clearance issues.
