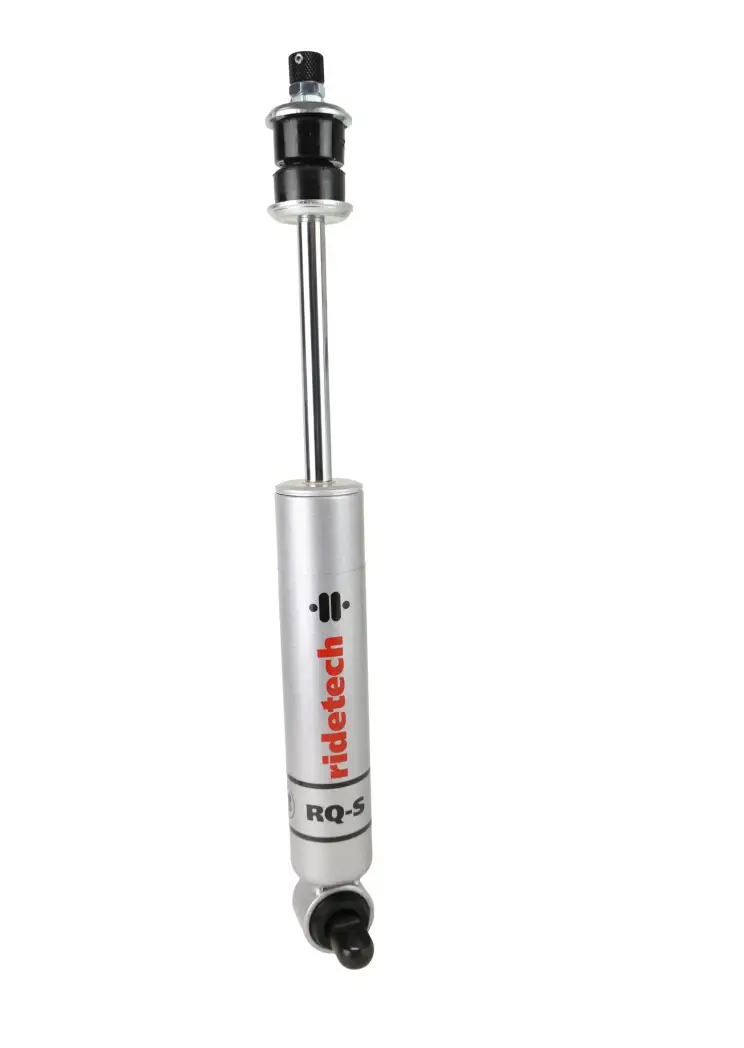

20349846 | RideTech Front RQ-S Shock With 4.75 Inch Stroke and Narrow T-Bar Stud Mount For Chevrolet Camaro, Corvette and El Camino / GMC S15 and Sprint / Oldsmobile Cutlass and 442

Shock absorbers are without a doubt the brains of your suspension. Nothing influences how your car rides and handles more than its shock absorbers. Their primary function is to control the oscillations of your car’s springs thereby keeping your tires in contact with the road. To best accomplish that objective, Ridetech shock absorbers utilize a monotube design which allows for a larger piston and more precise valving. The same superior design is utilized in our RQ-S shocks, taking advantage of better damping and reliability over a conventional twin tube shock design. Ridetech RQ-S Shocks include a 1.5″ steel body, twenty four position rebound adjustability, heavy-duty half-inch shock shafts and carry a best-in-industry 1,000,001 mile warranty.

Features & Benefits:

• Steel construction provides durability
• Monotube design provides superior damping control thanks to larger piston and precise valving

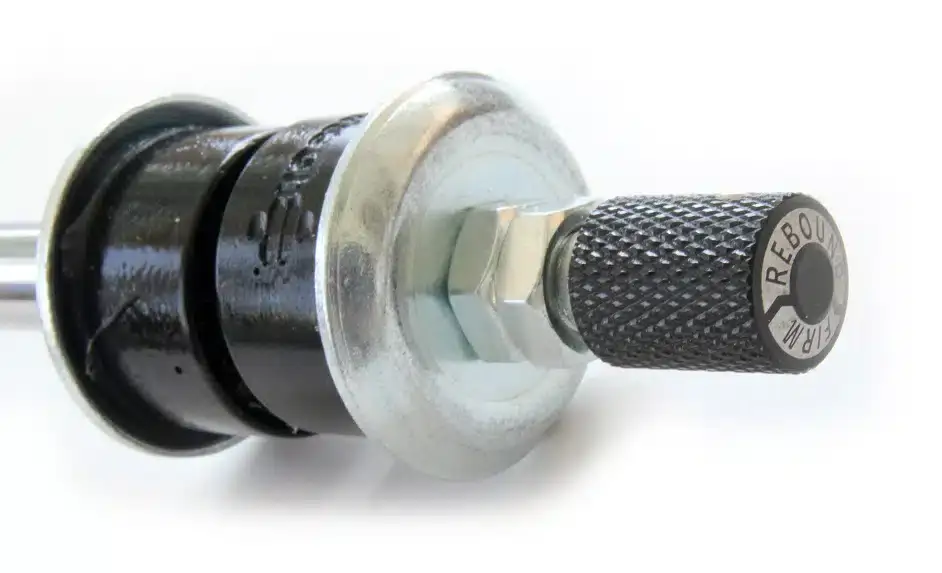

• 24-position rebound adjustability allow you to dial in the rebound responsiveness of each corner of your ride
• Heavy-duty 1/2” shock shafts serve to combat against deflection and bending
• “Best-in-industry” 1,000,001 mile warranty

Dimensions:

• Compressed – 8.55″
• Ride Height – 11.5″
• Extended – 13.3″

Narrow T-Bar – 2.25″ to 2.56″ Center to Center

Additional Information

• Suspension Location Front
• Compressed Length 8.5
• Length at Ride Height 11.5
• Extended Length 13
• Shock Stroke 4.75"
• Upper Mount Stem Mount
• Lower Mount Tie Bar Pin Narrow – 2.250 to 2.562 Bolt Spacing
• Actual Compressed 8.55"
• Actual Extended Height 13.3"
• Suspension Type StreetGRIP – Stock Upgrade
