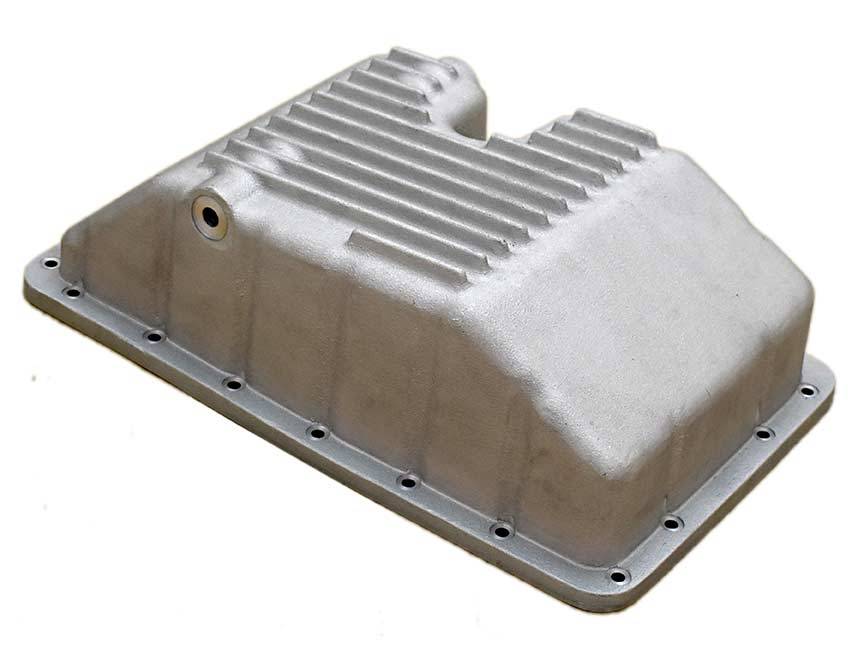

11112-2-AC | PML Cover A760E, A760F Deep Transmission Pan For Toyota Tundra & Sequoia / Lexus GX | Natural As-Cast Finish

Pan includes magnetic drain plug and mounting hardware.

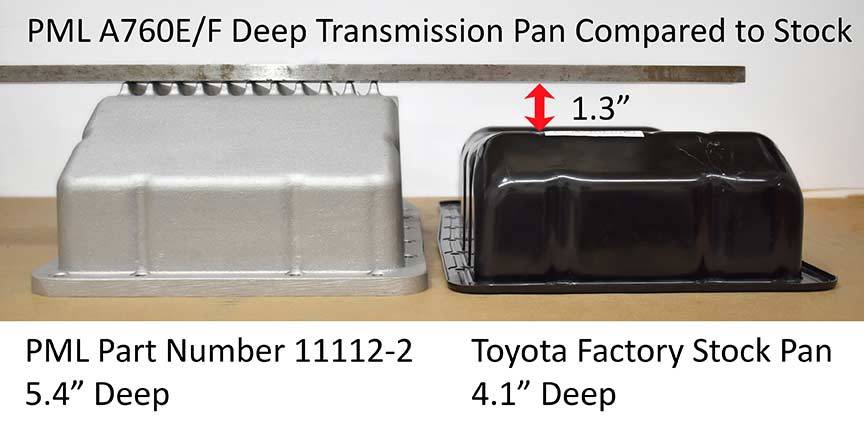

Volume:

1 to 1 1/2 quarts over stock

Number of Bolts:

20

Benefits:

• Extra capacity
• Heavy duty construction
• Drain hole and magnetic drain plug included
• Fins for cooling fluid
• Thick gasket flange for a secure seal to the transmission housing

The PML pan works on both the A760E and the A760F. The stock transmission pan and filter are the same for both. The A760E is used on 2WD applications and the A760F is used on 4WD applications.

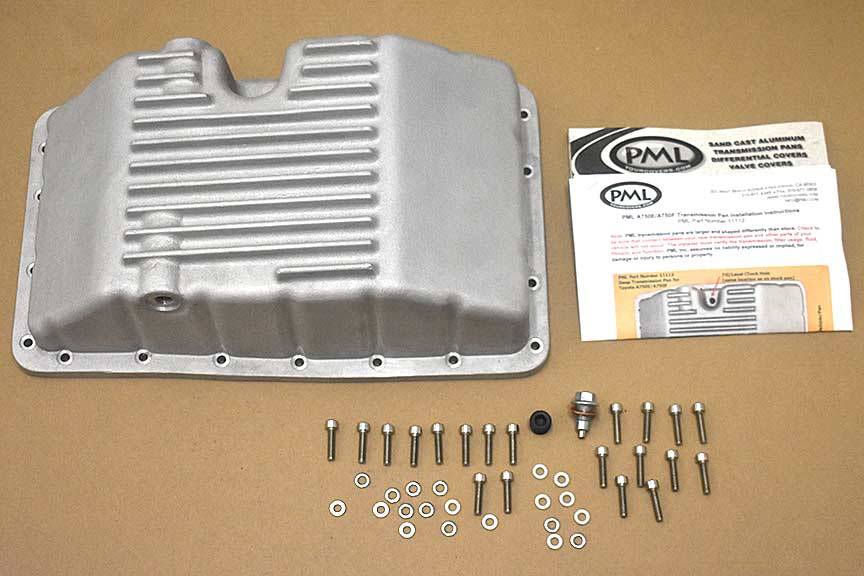

Included With PML Transmission Pan

With each pan, PML includes new mounting bolts and a magnetic drain plug.

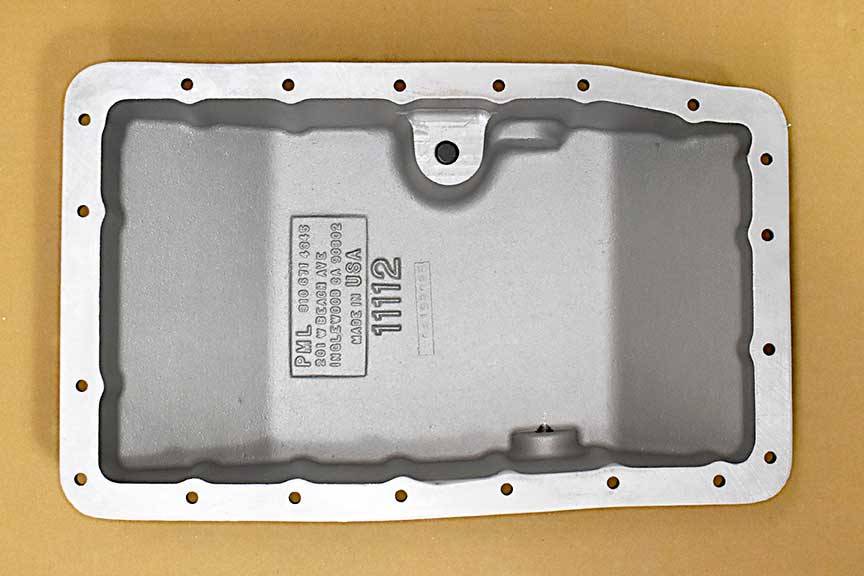

Inside of PML Transmission Pan

The level check hole is on the right/passenger side.

Drain, Fill/Level Check, and Optional Machining For Temperature Sending Unit

Drain: On left/driver side of pan at the bottom for complete draining.

Level Check/Fill: On the passenger/right side. On the PML pan, the level check hole is at the same location relative to the transmission as on the stock pan. There should be a fill hole on the main casing, no dip stick or fill tube, but the level check hole can also be used to fill.

1/8 NPT Option: Optionally drill and tap can be done for a 1/8 NPT hole for a temperature sending unit. This would be for an aftermarket temperature gage. There is a boss (thick area) on the passenger side of the pan for this.

Filter and Gasket

The PML A760 transmission pan works with the stock gasket and filter (not included).
