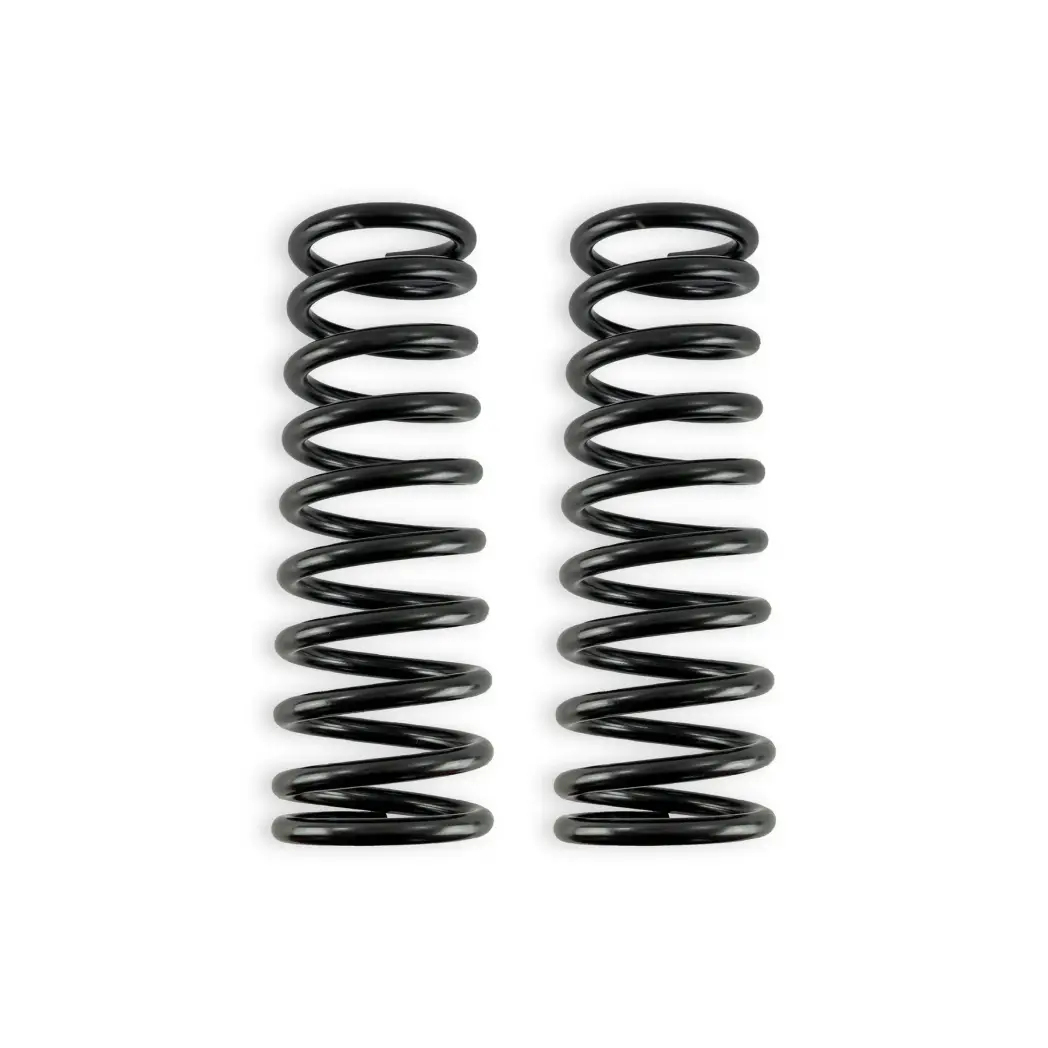

TF-4LFC-TF36 | Thuren Fabrication XS Performance Coils For Ram 2500 / Ram Power Wagon / Ram 3500

For 1994 - 2013 Ram 2500 / Ram 3500 / 2005 - 2013 Ram Power Wagon

TF-4LFC-TF36
Pricing: $604.00
Qty:
Free Ground Shipping | Exclusions Apply*

Description

The original goal of the Thuren 1994-2013 "Xtra-Soft" front coils coils was to address the HEMI and Power Wagon trucks, but these are PLENTY durable to be used as an extra soft front coil on the Diesel trucks also.

We actually prefer these XS coils on the 1994-2002 Diesel trucks over the true Diesel 2" and 3" coils, as the 2nd gens are quite a bit lighter than the 2003-2013 trucks.

The XS coil free-height is the exact same 22" as our standard Diesel coils, so full flex and ultimate wheel travel is still available, as long as all the appropriate shocks are used.

Fitment:

  • Fits 1994-2013 Ram 4 Wheel Drive, Solid Axle 4 link trucks
  • Does not fit the 2013+ Ram 3500, or the 2014+ 2500 and Power Wagon.

Details:

  • Sold in Pairs
  • Be sure you measure Your Specific Truck to find the lift height you like.
  • Being very soft, the end lift height will vary quite a bit if weight is added to the front of the vehicle.

Estimated lift heights:

Diesel

  • 1994-1998 Ram 2500/3500 Diesel Trucks....................... 2.50" lift.
  • 1998-2002 Ram 2500/3500 Diesel Trucks....................... 2.25" lift.
  • 2003-2009 Ram 2500/3500 Diesel Trucks....................... 1.75" lift.
  • 2010-2013 Ram 2500/3500 Diesel Trucks....................... 1.50" lift.

Gas

  • 1994-1998 Ram 2500/3500 Gas Trucks....................... 3.50" lift.
  • 1998-2002 Ram 2500/3500 Gas Trucks....................... 3.25" lift.
  • 2003-2009 Ram 2500/3500 Gas Trucks....................... 2.75" lift.
  • 2010-2013 Ram 2500/3500 Gas Trucks....................... 2.50" lift.

Power Wagon

  • 2005-2009 Ram Power Wagon ....................... 1.00" lift.
  • 2010-2013 Ram Power Wagon ........................0.75" lift

NOTE: All MegaCab trucks subtract .25" from the listed height.

Application List

1994 - 2013 Ram 2500
1994 - 2013 Ram 3500
2005 - 2013 Ram Power Wagon

Component List

XS Coil (x2)
