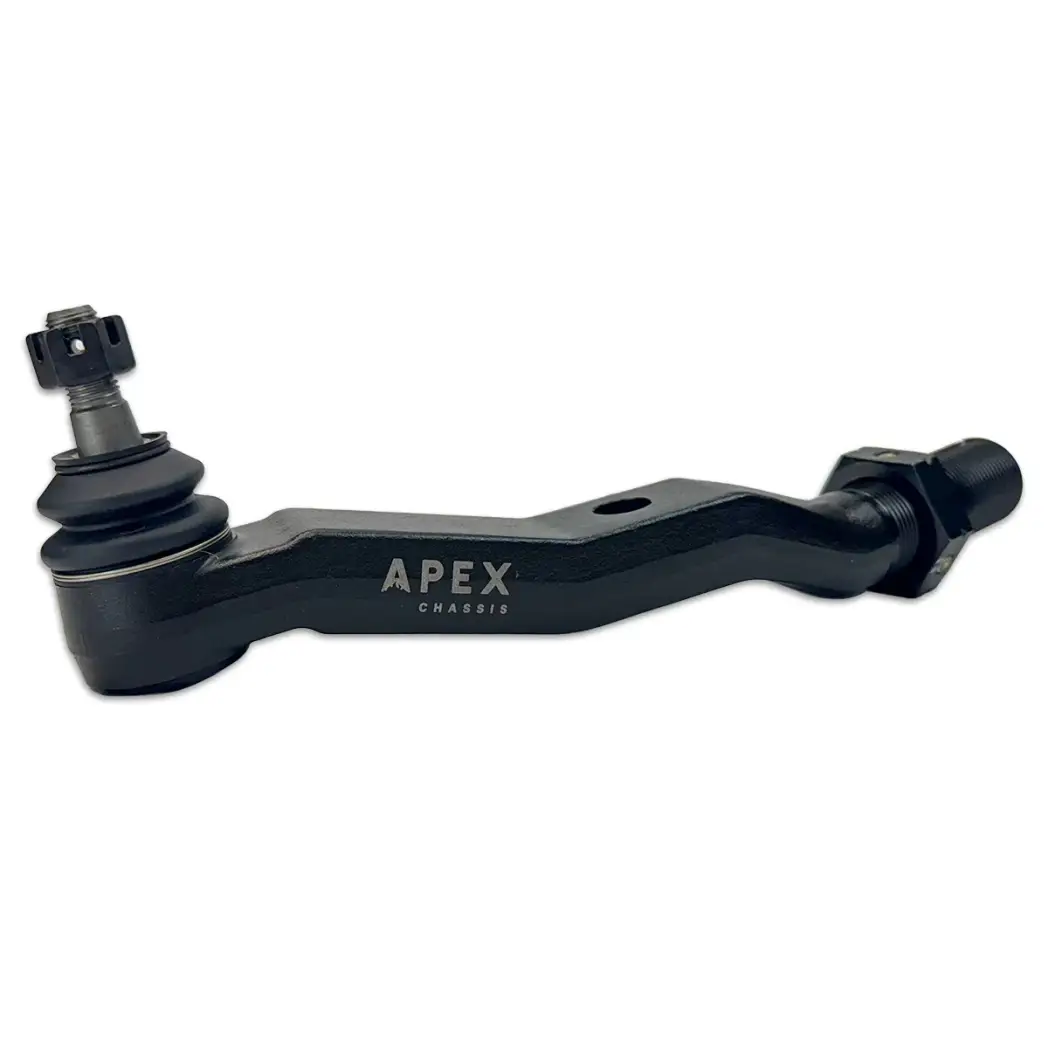

TR300 | Apex Chassis ProLock Tie Rod End, Left Hand Thread, Passenger Side, Coarse Thread For Dodge Ram 2500/3500

SKU: TR300

Availability:

Pricing: $277.97

Description

Prolock keyway washers:

KW224 - Steel assembly

KW225 - Aluminum assembly

**Will not fit KIT180 or KIT181 adjusting sleeves

**Not a direct OE replacement

HOUSING

SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
Step Threads: allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

BOOTS

CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
Accordion Boot: Ideal for high-articulation components, more flexibility means longer life.

HARDWARE

LUBRICATION

Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
Greaseable: Because it should be.
Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.

SPECIAL FEATURES

Our patent-pending ProLock Link Connect System™ is engineered to eliminate one of the most common steering system failures: unwanted tie rod rotation and loosening jam nuts.
At the core of the system is a machined keyway integrated directly into the threads of our rod ends. This pairs with a precision-cut keyway washer to create a mechanical lock between the tie rod or drag link ends and the adjusting sleeve—effectively preventing any unintended rotation of the connecting rod.
To further secure the assembly, we’ve developed a purpose-built jam nut with integrated set screws. This design positively locks everything in place, eliminating the long-standing issue of jam nuts loosening over time.

2003-2009 Dodge Ram 2500 Pickup
2003-2009 Dodge Ram 3500 Pickup
2010-2013 Ram 2500 Pickup
2010-2012 Ram 3500 Pickup
