125071000 | PPE Performance 3/8 Inch Line Fluid Thermal Bypass Valve, 8L90 Transmission For Chevrolet Silverado / GMC Sierra 1500
For 2015-2025 Chevrolet Silverado / GMC Sierra 1500
Description

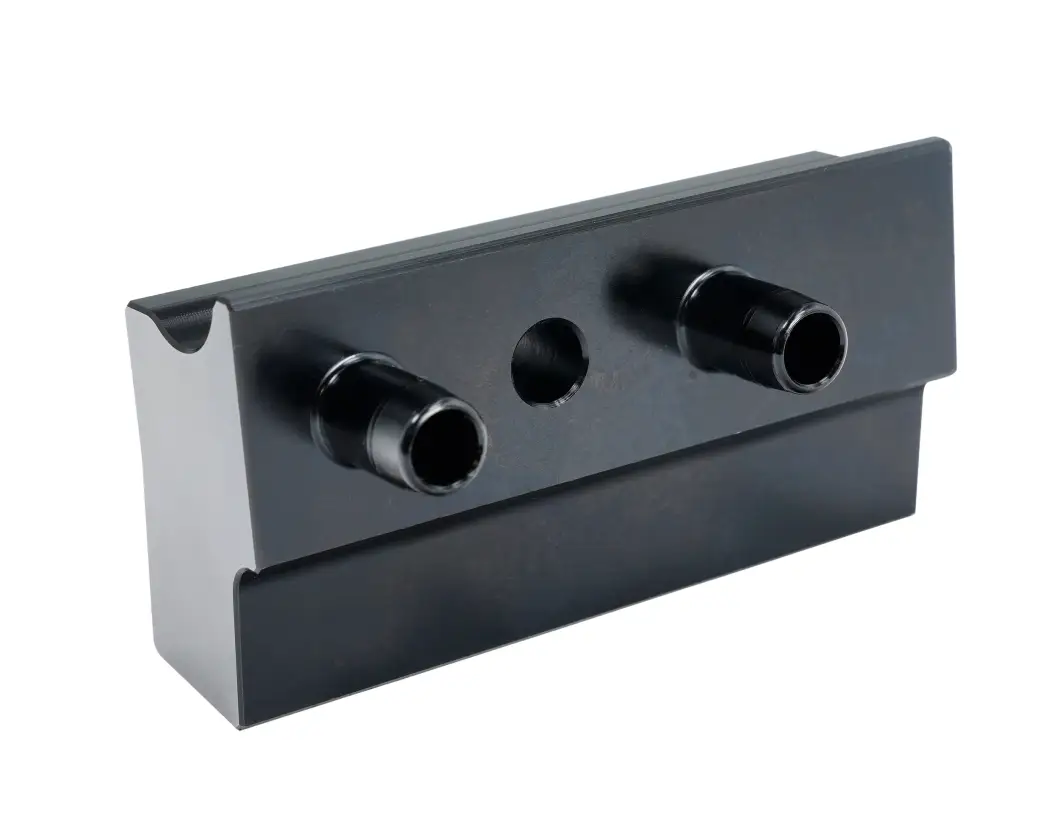

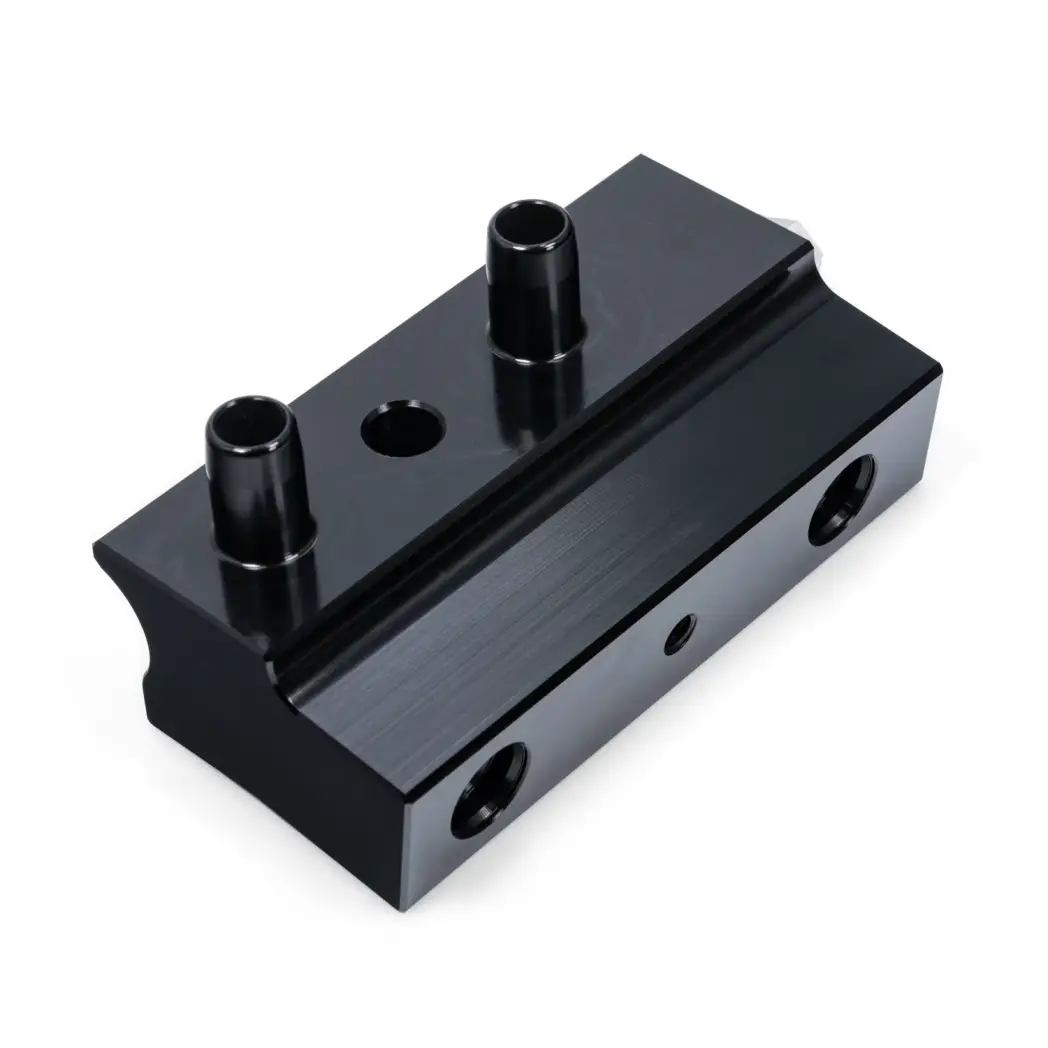

Add another measure of protection and increase fluid flow to the transmission cooler. Increase cooling capacity with this easy-to-install billet aluminum PPE Transmission Fluid Thermal Bypass Valve for the GM 8L90 8-speed transmission.

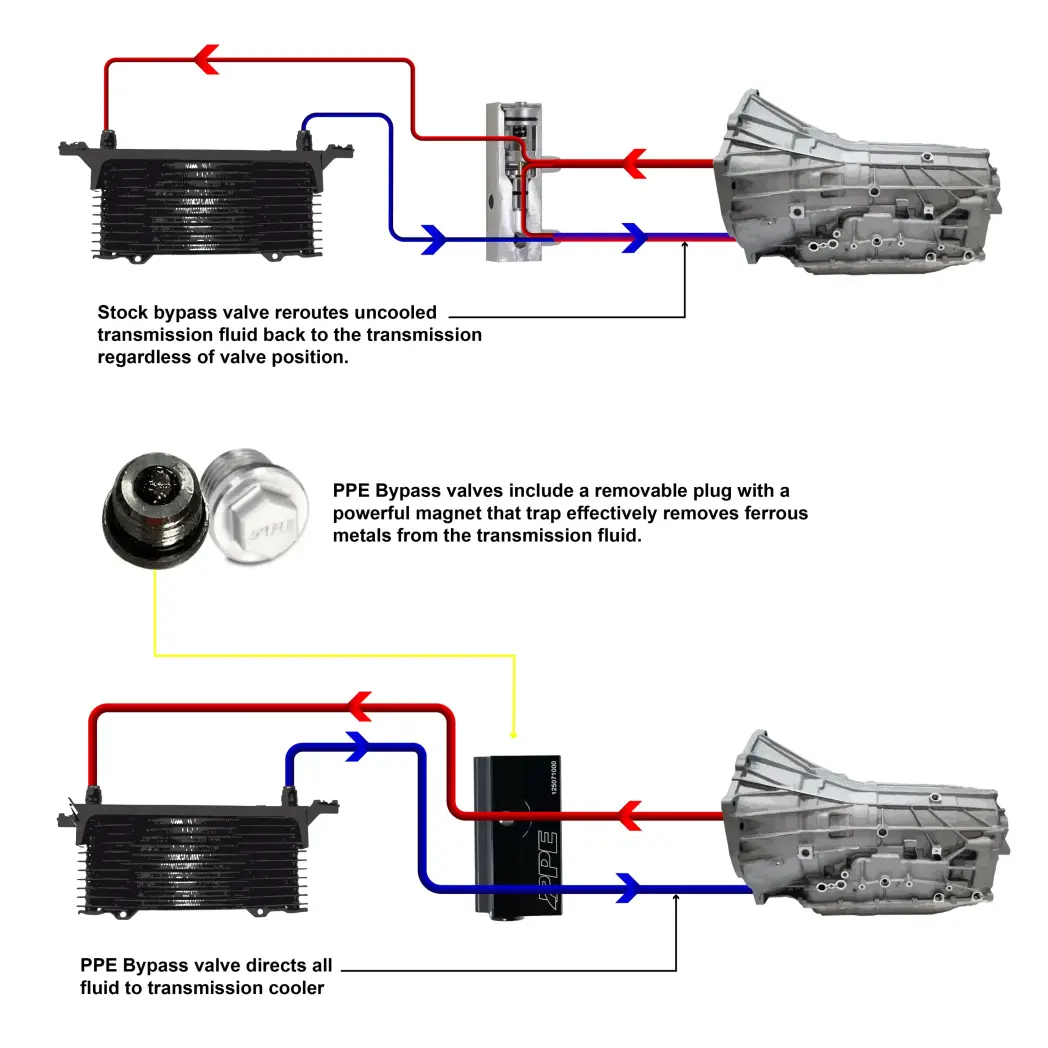

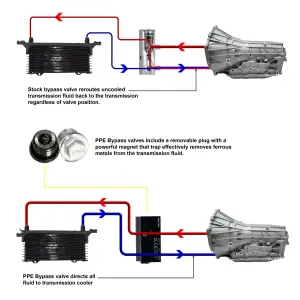

The OEM part has restrictive internal passages. When the OEM valve fails in the closed position, transmission fluid doesn’t reach your cooler. This can be caused by mechanical failure or debris. The result of stock valve failure can cause the transmission to dangerously overheat. Without properly cooled transmission fluid, the demands of towing and rigorous stop-and-go driving conditions shorten the life of transmission components. The PPE Bypass Valve eliminates the extremely restrictive mechanical factory valve, maximizing fluid flow to and from the transmission cooler.

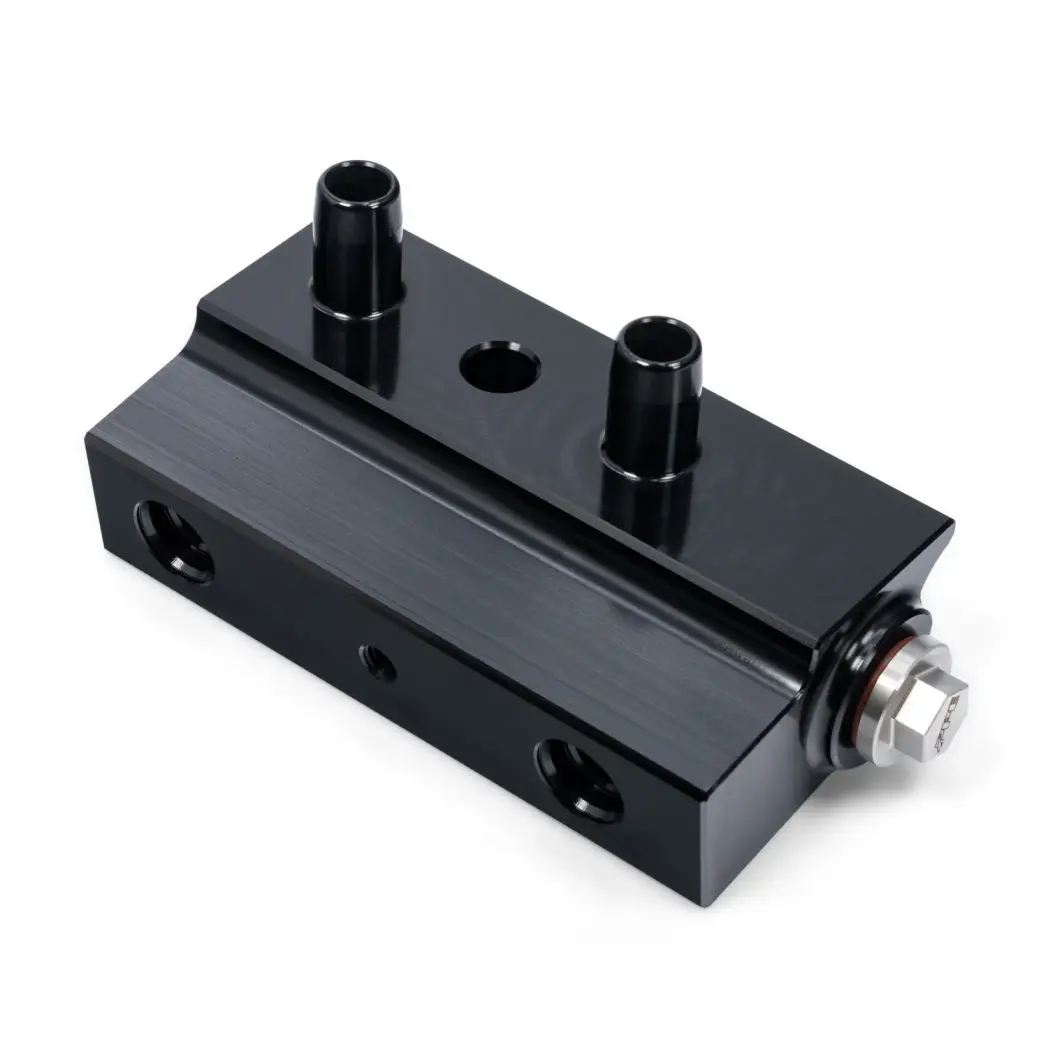

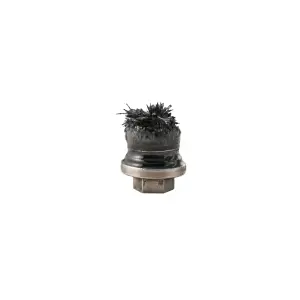

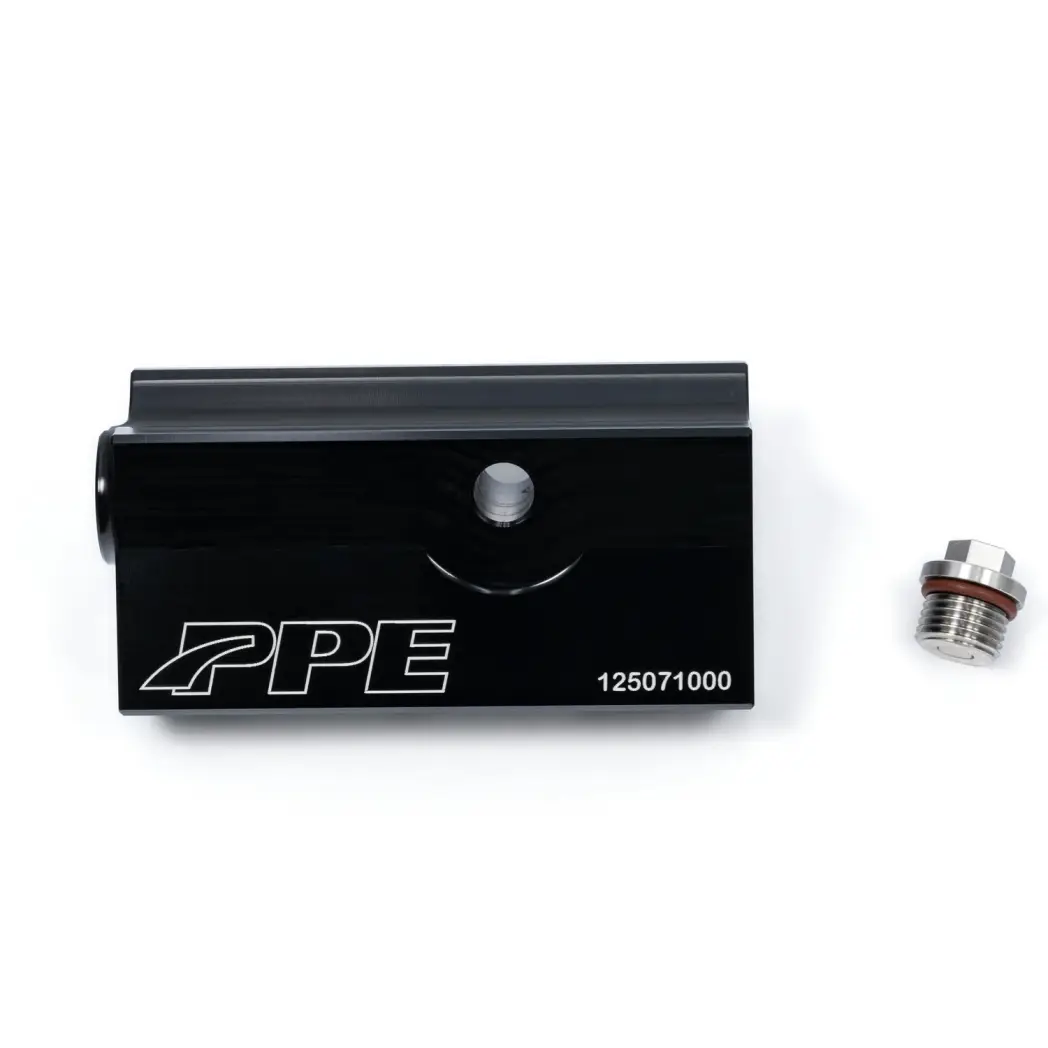

For further protection, a Neodymium magnet-equipped service plug with an O-ring seal has been added. The removable plug traps ferrous debris and can be accessed to remove particles from the system. The factory bypass valve does not have this feature.
GM Equivalent P/N: 13561467
FEATURES
- Maximizes fluid flow to and from the transmission cooler
- Billet aluminum construction
- Direct fit with OEM 8L90 8-speed transmission and fluid lines
- Service plug with Neodymium magnet and O-ring seal
Application List
2025 Chevrolet Express 2500 4.3L V6 Gas
2024 GMC Savana 2500 4.3L V6 Gas
2024 Chevrolet Express 2500 4.3L V6 Gas
2023 GMC Savana 2500 4.3L V6 Gas
2023 Chevrolet Express 2500 4.3L V6 Gas
2022 GMC Savana 2500 4.3L V6 Gas
2022 Chevrolet Express 2500 4.3L V6 Gas
2021 GMC Savana 2500 4.3L V6 Gas
2021 Chevrolet Express 2500 4.3L V6 Gas
2020 GMC Savana 2500 4.3L V6 Gas
2020 Chevrolet Express 2500 4.3L V6 Gas
2019 GMC Savana 2500 4.3L V6 Gas
2019 Chevrolet Express 2500 4.3L V6 Gas
2018 GMC Sierra 1500 6.2L V8 Gas
2018 GMC Sierra 1500 5.3L V8 Gas
2018 GMC Savana 2500 4.3L V6 Gas
2018 Chevrolet Silverado 1500 6.2L V8 Gas
2018 Chevrolet Silverado 1500 5.3L V8 Gas
2018 Chevrolet Express 2500 4.3L V6 Gas
2017 GMC Yukon XL 6.2L V8 Gas
2017 GMC Yukon 6.2L V8 Gas
2017 GMC Sierra 1500 6.2L V8 Gas
2017 GMC Sierra 1500 5.3L V8 Gas
2017 Chevrolet Silverado 1500 6.2L V8 Gas
2017 Chevrolet Silverado 1500 5.3L V8 Gas
2017 Cadillac Escalade 6.2L V8 Gas
2016 GMC Yukon XL 6.2L V8 Gas
2016 GMC Yukon 6.2L V8 Gas
2016 GMC Sierra 1500 6.2L V8 Gas
2016 GMC Sierra 1500 5.3L V8 Gas
2016 Chevrolet Silverado 1500 6.2L V8 Gas
2016 Chevrolet Silverado 1500 5.3L V8 Gas
2016 Cadillac Escalade 6.2L V8 Gas
2015 GMC Yukon 6.2L V8 Gas
2015 GMC Sierra 1500 6.2L V8 Gas
2015 Chevrolet Silverado 1500 6.2L V8 Gas
2015 Cadillac Escalade 6.2L V8 Gas
Details
- 125071000
- 125071000
- 840171223149
- Pacific Performance Engineering
- New
Categories
Shipping Information
- Item Requires Shipping
- 0.8 lbs.
- W4.0000” x H2.0000” x L5.0000”
