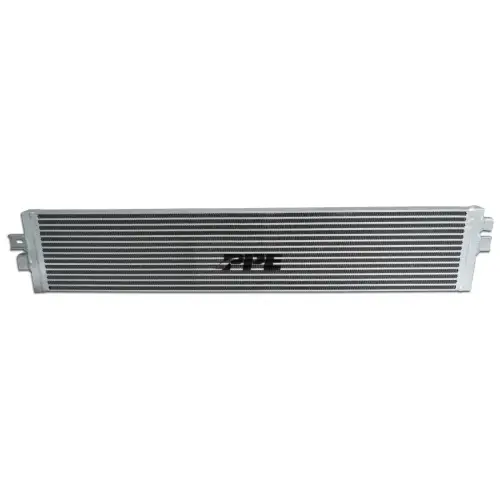

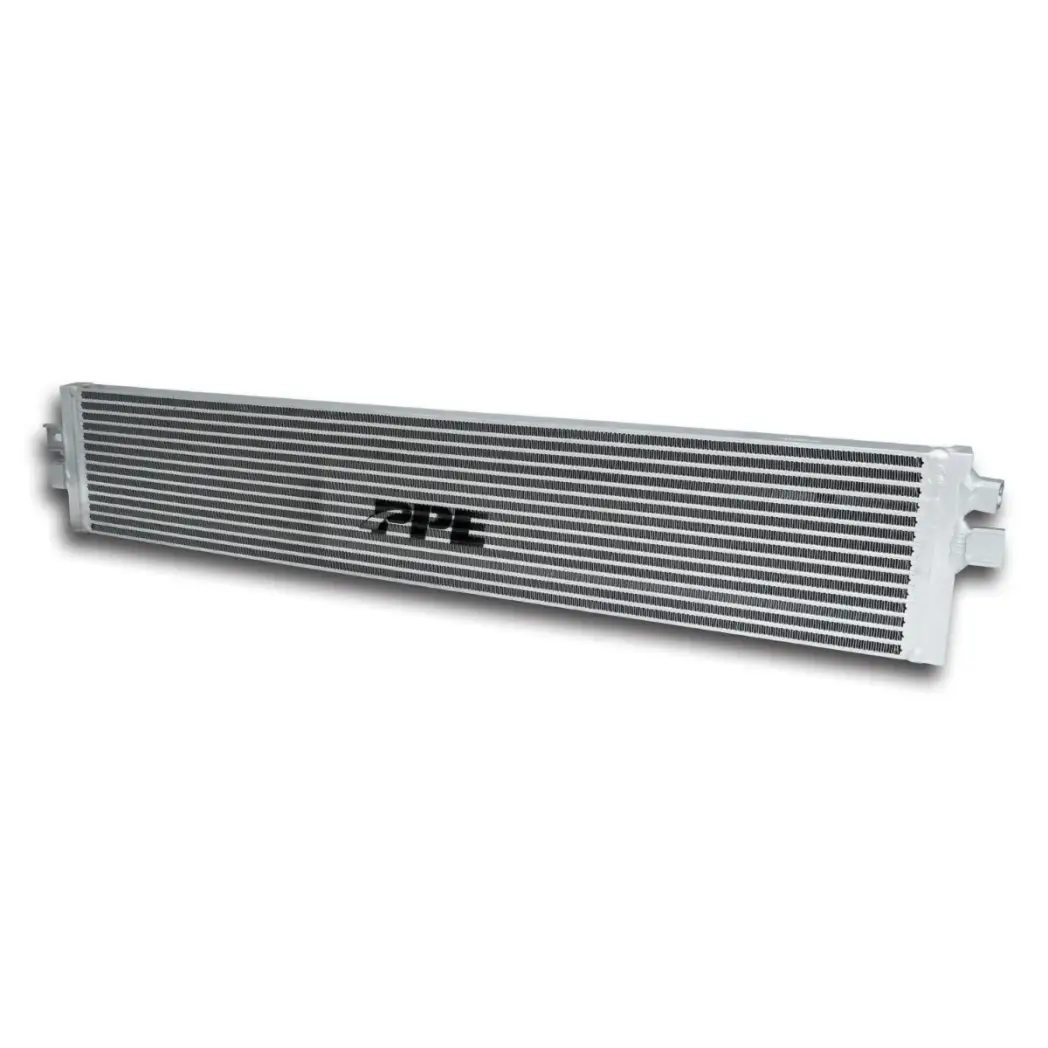

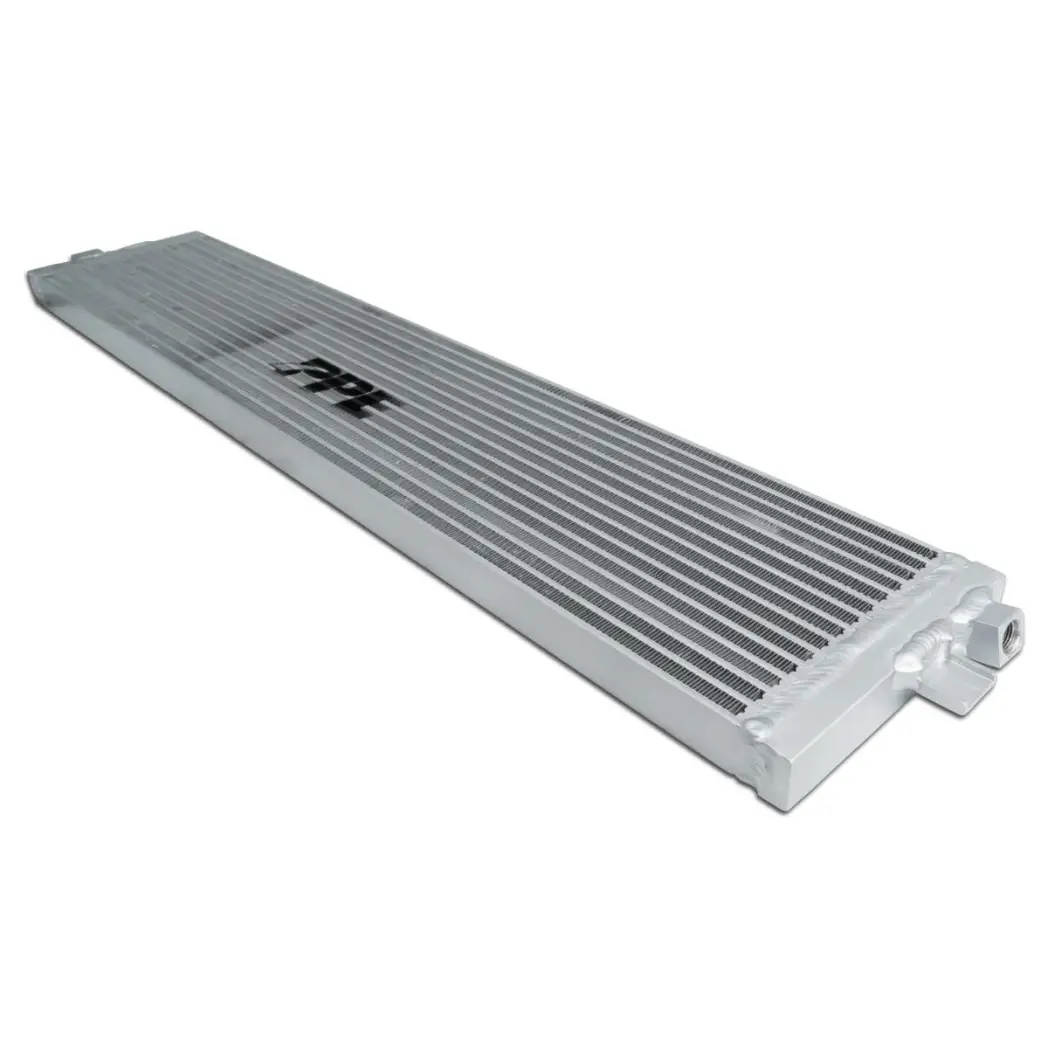

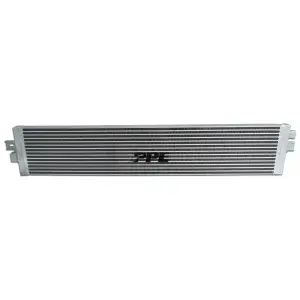

124067000 | PPE Performance Transmission Cooler Bar and Plate For GM 1500 3.0L/5.3L/6.2L

Excessive heat is the number one contributor to transmission failures and can cause clutch pack slipping, clunky shifting, fluid breakdown, etc. Constant overheating can reduce the transmission service life by 50% or more. The PPE 10L80 Bar and Plate Transmission Cooler provides the proper cooling that your transmission needs to stay healthier and longer.

The PPE all-aluminum transmission cooler features a massive 248 cubic-inch core – that’s 3.25 times the volume of the stock cooler. The 73% larger frontal area increases its airflow exposure, enhancing heat dissipation. Its dense, louvered external fins maximize heat transfer to ambient air, helping achieve a temperature drop of up to 45°F to keep your transmission within the optimal temperature range – even under demanding conditions.

The PPE cooler’s bar and plate construction is a heavy-duty upgrade over the factory stacked plate design, delivering significantly greater cooling mass and flow capacity for true performance gains. Its all-aluminum build also offers superior pressure resistance and durability, making it ideal for performance applications.

Note: For 3.0L Duramax applications, add PPE Thermostat Bypass Valve (SKU 125069000) for maximized cooling performance.

Fitment Note: For MY 2026 Silverado/Sierra 1500 pickups, use PPE SKU 124068000.

OEM P/N REFERENCE: GM 23409058

FEATURES

• Massive 248 cubic-inch core volume - that’s 3.25 times the volume of the stock cooler for better heat dissipation
• 73% larger frontal area for increased airflow exposure and maximized heat transfer
• All-aluminum bar and plate construction for improved cooling capacity and pressure resistance

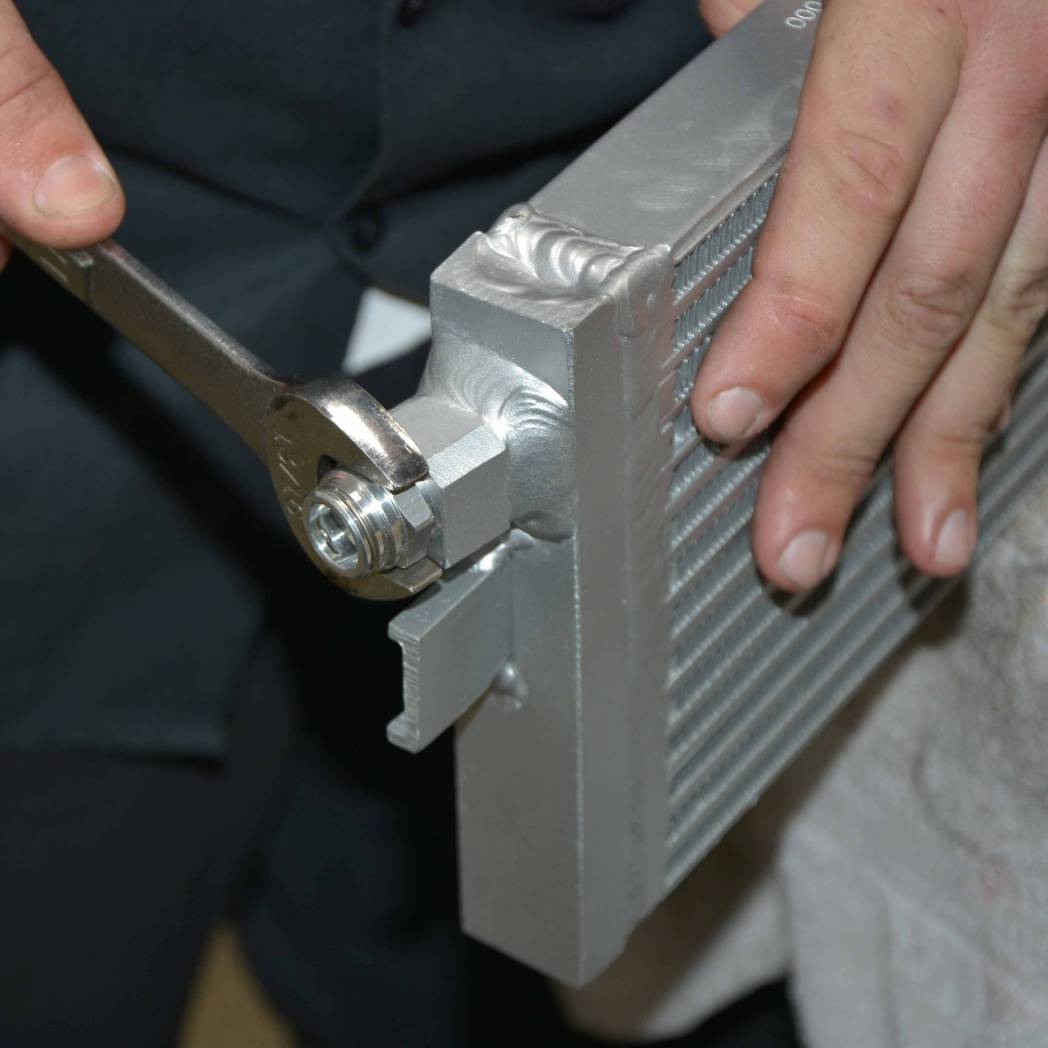

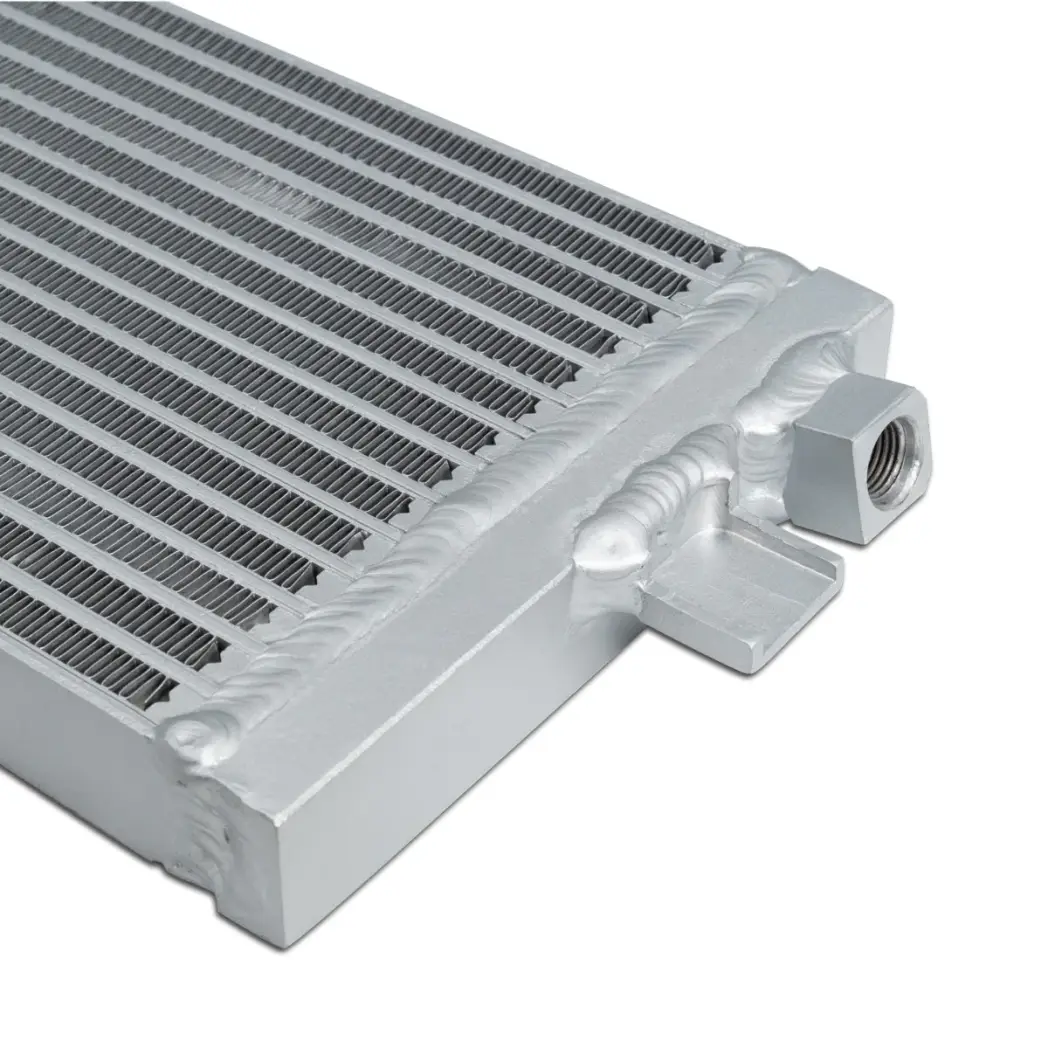

• Fully TIG-welded end tanks enhance strength and durability
• Delivers up to 45°F temperature drop, protecting against overheating and burnt clutches

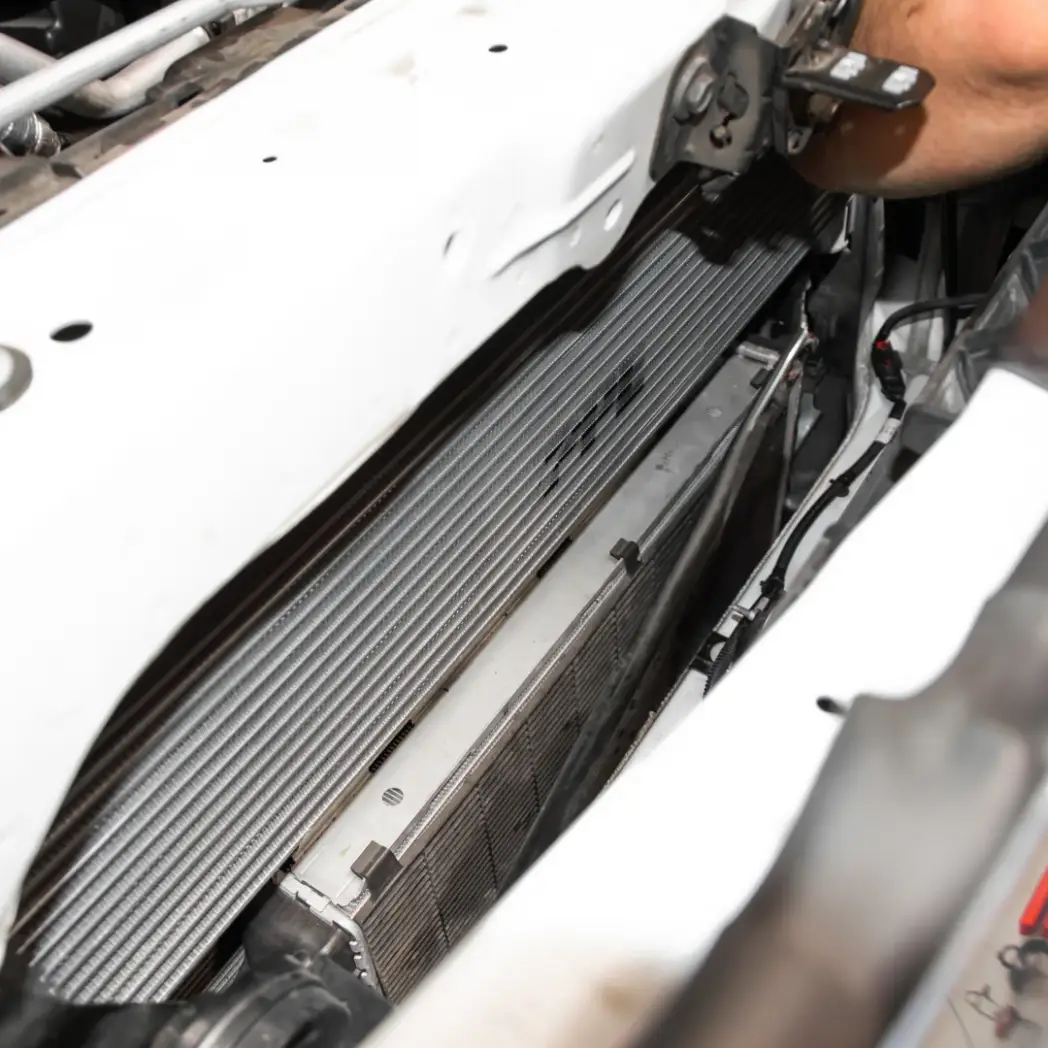

• Retains all factory mounting points for a bolt-on installation
