158031500 | PPE Performance Stage 3 Forged Tie Rod Assemblies Kit (Pair) For GM 2500/3500 HD

For 2001-2010 GM 2500 HD/3500 HD

158031500
Pricing: $251.99
Qty:
Free Ground Shipping | Exclusions Apply*

Description

These tie rods are overkill for some, but when it comes to steering components, failure is not an option.

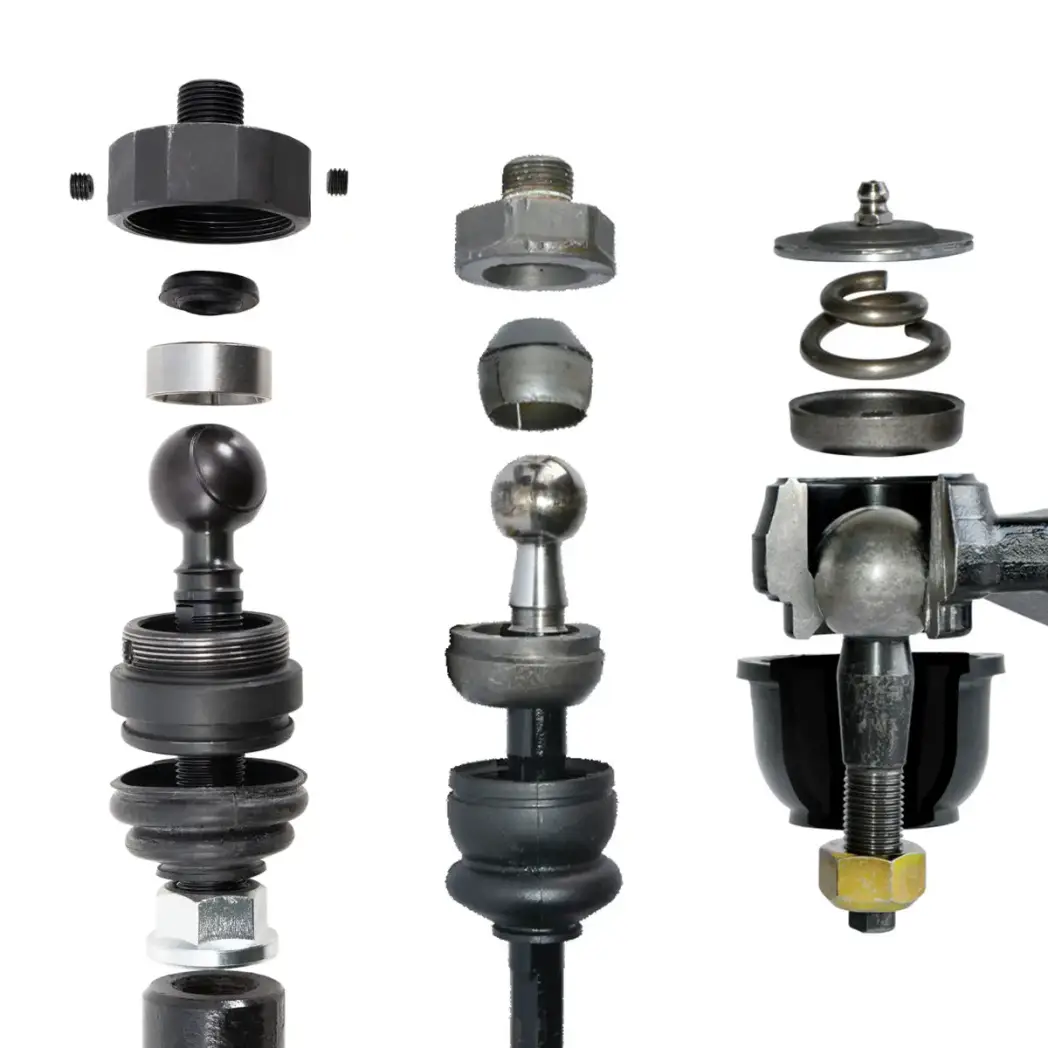

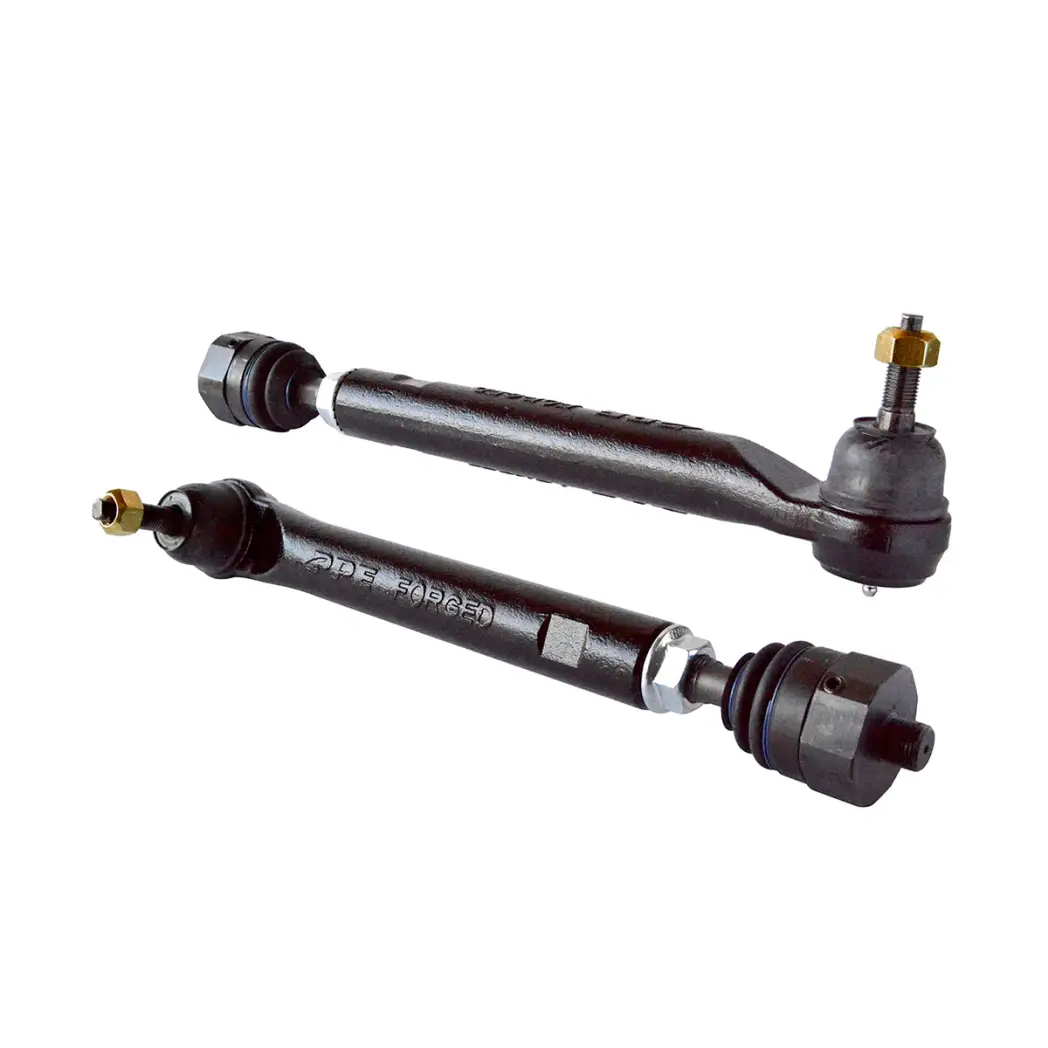

These tie rod assemblies are the best of the best. Featuring a 1.5" wide forged tie rod, massive 2 1/3" ball joints, and a much larger and stronger, adjustable inner ball joint. The outer tie rod end contains a spring-loaded gusher bearing that maintains constant pressure.

Features:

  • Heavy-duty forged steel construction
  • 3/4'’ toe adjusting shaft

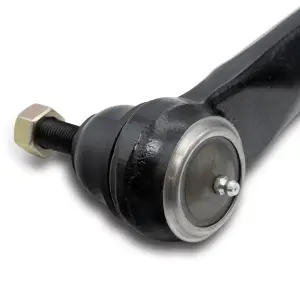

  • Grease fitting for easy maintenance

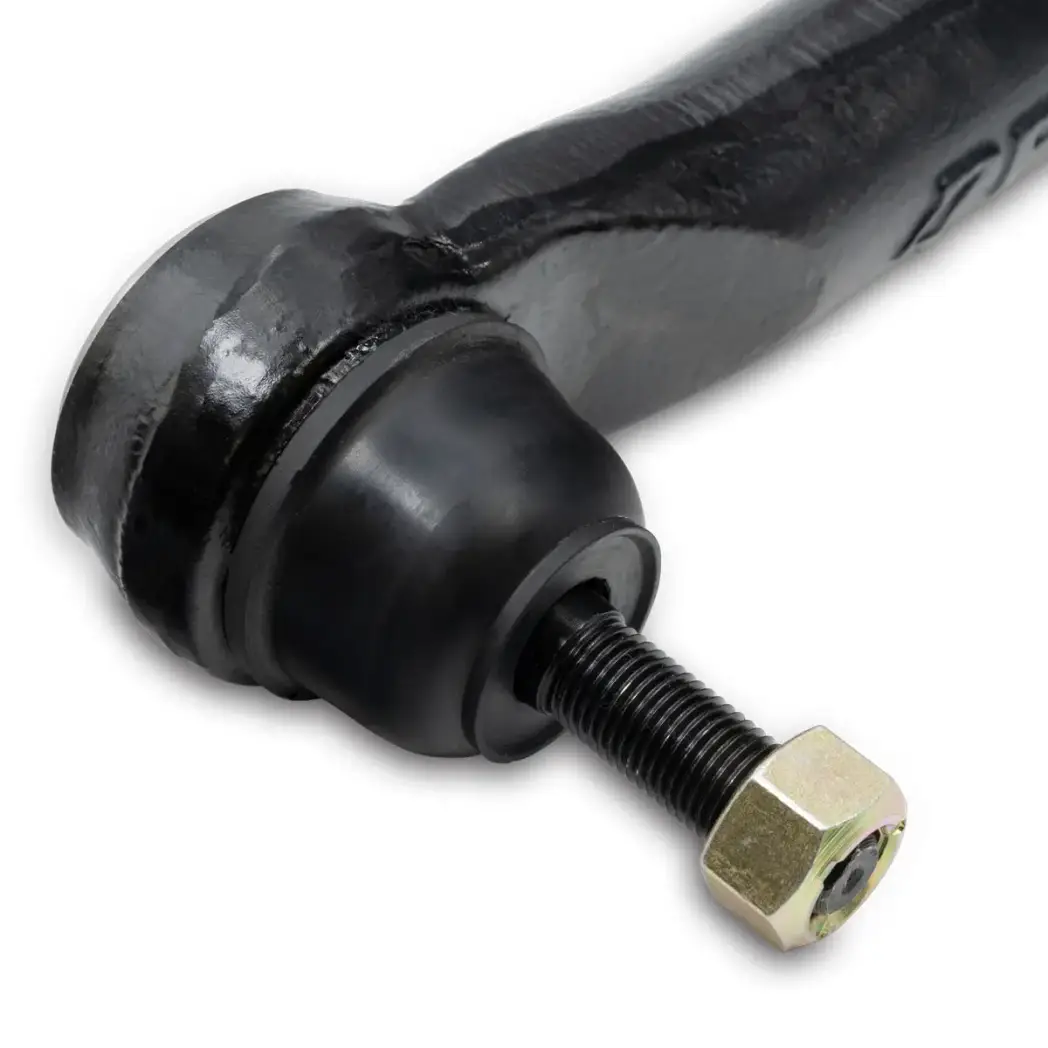

  • Lock nut for spindle connection

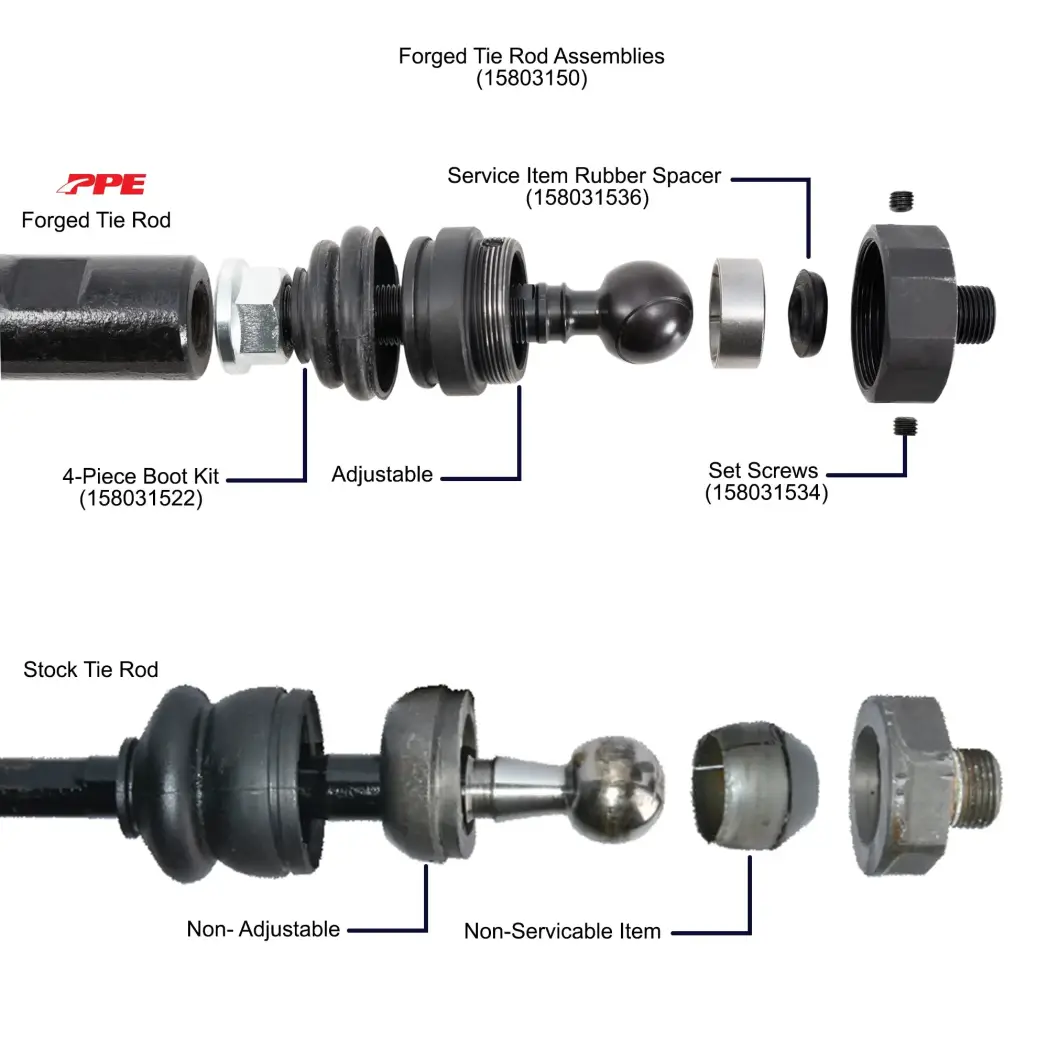

When compared to factory components:
30% larger toe adjusting shaft
53% larger tie rod body
35% larger outer ball joint
28% larger, adjustableinner ball joint

OEM part numbers for reference:

Inner tie rods - AC Delco 46A1311A/GM 19435545,

Outer tie rods - AC Delco 46A1093A/45A1093.

Note

1) Do not exceed 500 PSI of pressure when applying grease will risk damage to grease caps causing tie rod failure and will result in voiding your warranty.

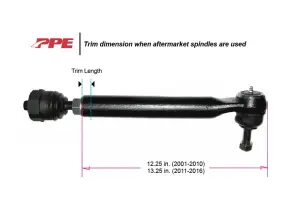

2) PPE Stage3 Tie Rods are engineered to fit GM stock steering components. Some aftermarket steering manufacturers have changed the placement of the tie rod mounting perch on the front spindle, which then requires a shorter tie rod. The Stage3 Tie Rod outers are fully-threaded internally and may be trimmed to accommodate the relocated aftermarket perch location. An experienced installer should measure to determine the appropriate trim length.

Application List

2010 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2010 GMC Sierra 3500HD 6.0L V8 Gas
2010 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2010 GMC Sierra 2500HD 6.0L V8 Gas
2010 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2010 Chevrolet Silverado 3500HD 6.0L V8 Gas
2010 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2010 Chevrolet Silverado 2500HD 6.0L V8 Gas
2009 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2009 GMC Sierra 3500HD 6.0L V8 Gas
2009 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2009 GMC Sierra 2500HD 6.0L V8 Gas
2009 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2009 Chevrolet Silverado 3500HD 6.0L V8 Gas
2009 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2009 Chevrolet Silverado 2500HD 6.0L V8 Gas
2008 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2008 GMC Sierra 3500HD 6.0L V8 Gas
2008 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2008 GMC Sierra 2500HD 6.0L V8 Gas
2008 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2008 Chevrolet Silverado 3500HD 6.0L V8 Gas
2008 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2008 Chevrolet Silverado 2500HD 6.0L V8 Gas
2007 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2007 GMC Sierra 3500HD 6.0L V8 Gas
2007 GMC Sierra 2500HD Classic 8.1L V8 Gas
2007 GMC Sierra 2500HD Classic 6.6L V8 Turbo Diesel (Duramax)
2007 GMC Sierra 2500HD Classic 6.0L V8 Gas
2007 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2007 GMC Sierra 2500HD 6.0L V8 Gas
2007 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2007 Chevrolet Silverado 3500HD 6.0L V8 Gas
2007 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2007 Chevrolet Silverado 2500HD 6.0L V8 Gas
2006 GMC Sierra 3500HD 8.1L V8 Gas
2006 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2006 GMC Sierra 3500HD 6.0L V8 Gas
2006 GMC Sierra 2500HD 8.1L V8 Gas
2006 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2006 GMC Sierra 2500HD 6.0L V8 Gas
2006 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2006 Chevrolet Silverado 3500HD 6.0L V8 Gas
2006 Chevrolet Silverado 2500HD 8.1L V8 Gas
2006 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2006 Chevrolet Silverado 2500HD 6.0L V8 Gas
2005 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2005 GMC Sierra 3500HD 6.0L V8 Gas
2005 GMC Sierra 2500HD 8.1L V8 Gas
2005 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2005 GMC Sierra 2500HD 6.0L V8 Gas
2005 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2005 Chevrolet Silverado 3500HD 6.0L V8 Gas
2005 Chevrolet Silverado 2500HD 8.1L V8 Gas
2005 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2005 Chevrolet Silverado 2500HD 6.0L V8 Gas
2004 GMC Sierra 3500HD LLY 6.6L V8 Turbo Diesel (Duramax)
2004 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2004 GMC Sierra 3500HD 6.0L V8 Gas
2004 GMC Sierra 2500HD 8.1L V8 Gas
2004 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2004 GMC Sierra 2500HD 6.0L V8 Gas
2004 Chevrolet Silverado 3500HD LLY 6.6L V8 Turbo Diesel (Duramax)
2004 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2004 Chevrolet Silverado 3500HD 6.0L V8 Gas
2004 Chevrolet Silverado 2500HD LLY 6.6L V8 Turbo Diesel (Duramax)
2004 Chevrolet Silverado 2500HD 8.1L V8 Gas
2004 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2004 Chevrolet Silverado 2500HD 6.0L V8 Gas
2003 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2003 GMC Sierra 3500HD 6.0L V8 Gas
2003 GMC Sierra 2500HD 8.1L V8 Gas
2003 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2003 GMC Sierra 2500HD 6.0L V8 Gas
2003 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2003 Chevrolet Silverado 3500HD 6.0L V8 Gas
2003 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2003 Chevrolet Silverado 2500HD 6.0L V8 Gas
2002 GMC Sierra 3500HD 8.1L V8 Gas
2002 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2002 GMC Sierra 3500HD 6.0L V8 Gas
2002 GMC Sierra 2500HD 8.1L V8 Gas
2002 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2002 GMC Sierra 2500HD 6.0L V8 Gas
2002 Chevrolet Silverado 3500HD 8.1L V8 Gas
2002 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2002 Chevrolet Silverado 3500HD 6.0L V8 Gas
2002 Chevrolet Silverado 2500HD 8.1L V8 Gas
2002 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2002 Chevrolet Silverado 2500HD 6.0L V8 Gas
2001 GMC Sierra 3500HD 8.1L V8 Gas
2001 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
2001 GMC Sierra 3500HD 6.0L V8 Gas
2001 GMC Sierra 2500HD 8.1L V8 Gas
2001 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
2001 GMC Sierra 2500HD 6.0L V8 Gas
2001 Chevrolet Silverado 3500HD 8.1L V8 Gas
2001 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
2001 Chevrolet Silverado 3500HD 6.0L V8 Gas
2001 Chevrolet Silverado 2500HD 8.1L V8 Gas
2001 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
2001 Chevrolet Silverado 2500HD 6.0L V8 Gas

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 16.6 lbs.
  • W6.6200” x H2.5000” x L19.7500”
  • Free Ground Shipping | Exclusions Apply*
