314052200 | PPE Performance Heavy-Duty Cast Aluminum Engine Oil Pan Raw Finish (2018-2021 F150 Pickup 3.0L Power Stroke )

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases oil capacity by 1/4 quart for higher thermal capacity

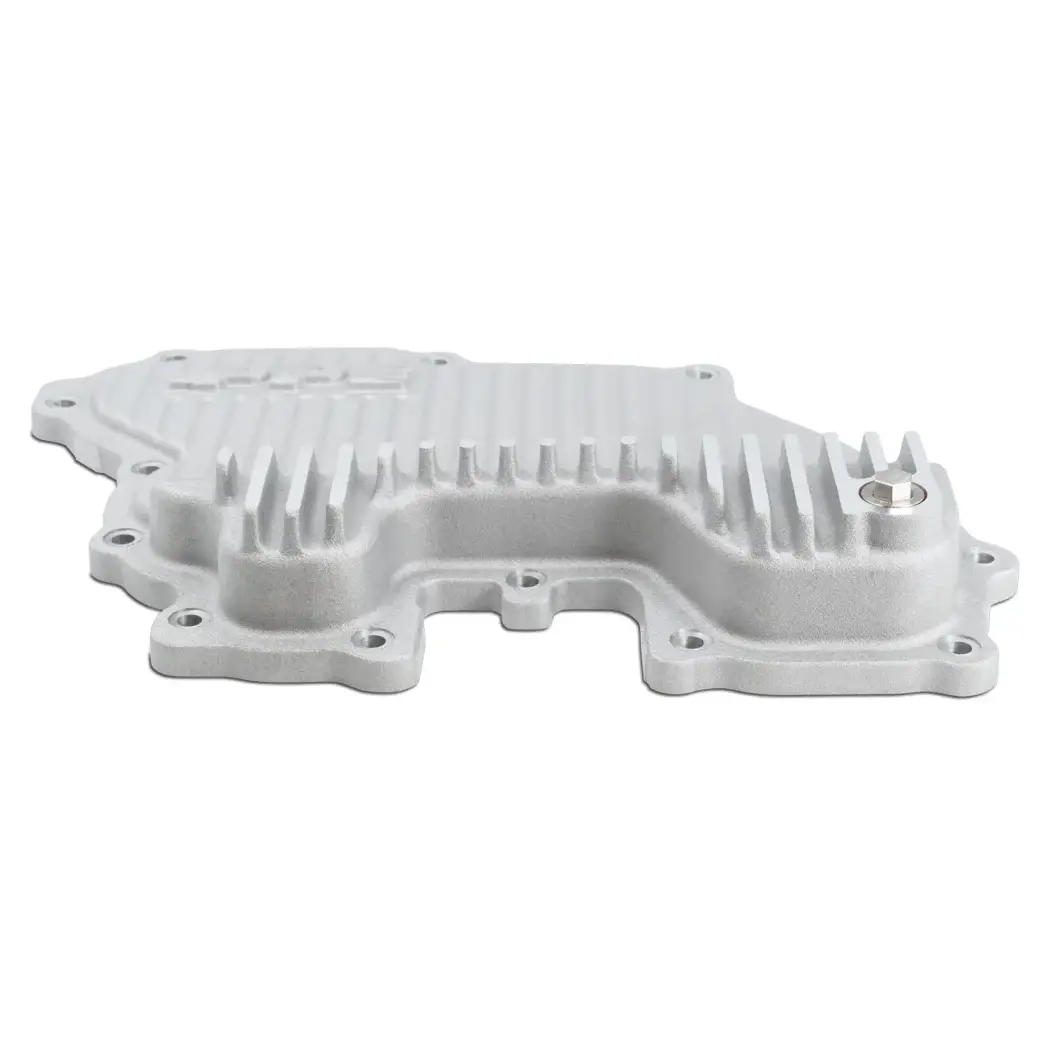

• Half-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Longitudinal cooling channels along the bottom of the pan, increasing external surface area and enhancing heat dissipation
• Precision machined sealant grooves guide the application of RTV-style sealant for a consistent bead and a reliable seal
• Stainless steel drain plug with built-in high temperature rated neodymium magnet

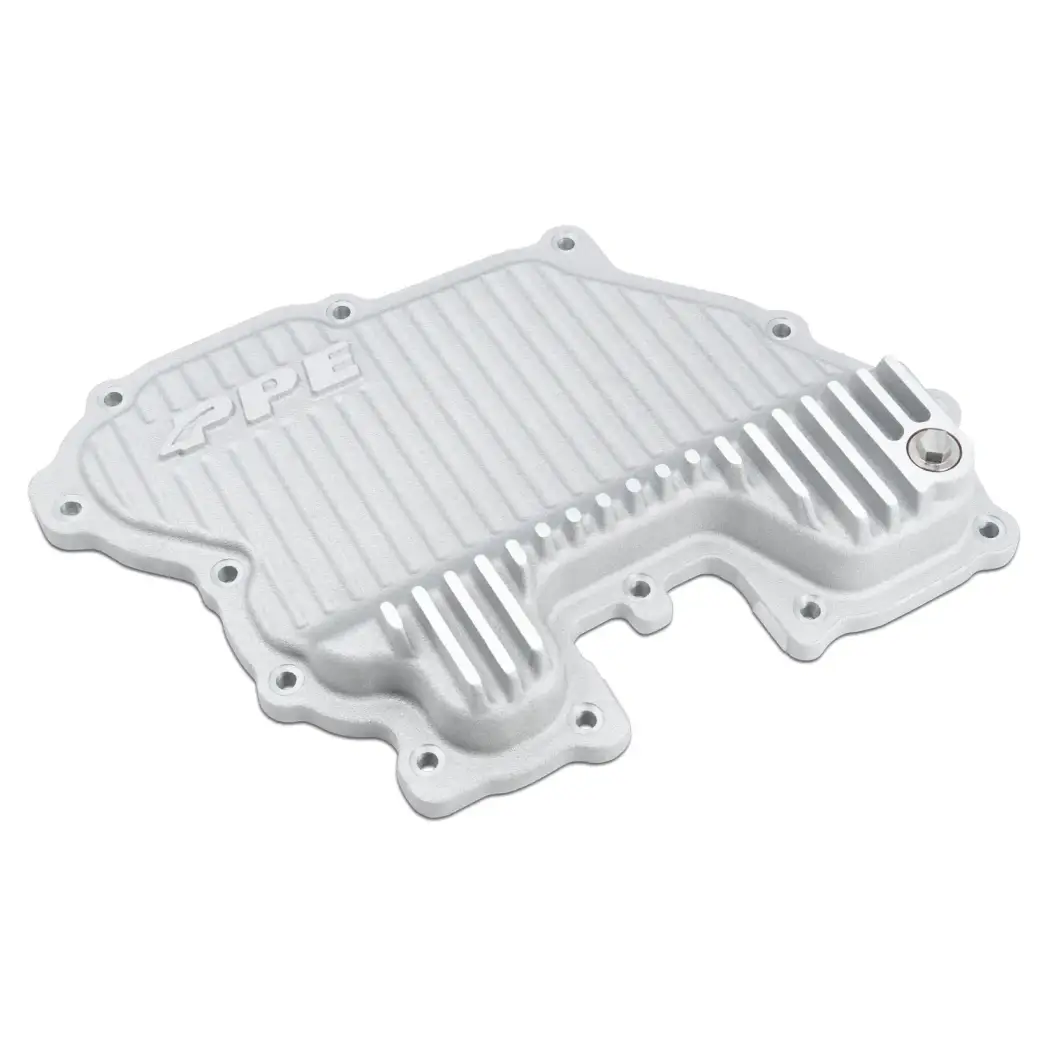

Engine Oil Pan 2018-2021 F150

This new engine oil pan is engineered as a performance replacement for the thin, stamped steel factory pan. Cast in high-strength A356-T6 aluminum alloy, this thick pan dissipates heat more efficiently to reduce engine oil temperatures.

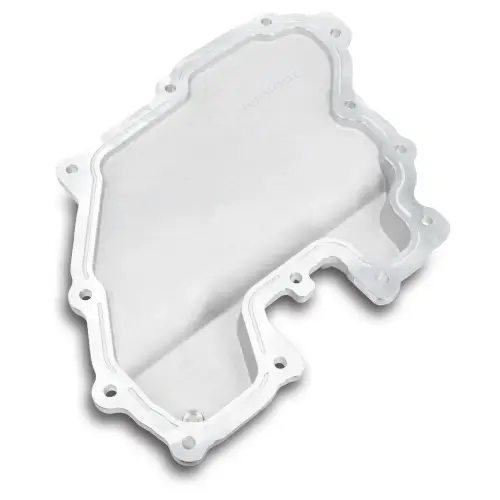

External fins add strength and take advantage of free-flowing air. The CNC machined grooves increase effective surface area and also help reduce oil temperature. CNC inner flange grooves promote a complete seal.

The PPE Oil Pan includes a hardened billet stainless steel drain plug that contains a high-power Neodymium magnet that attracts and holds ferrous metal particles, keeping them from damaging your engine’s vital internal components.

OEM Part Number for Reference: Ford JL3Z-6675-C
