214053020 | PPE Performance Heavy-Duty Cast Aluminum Engine Oil Pan Black Finish (2018-2025 Wrangler JL 2.0L )

FEATURES

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases oil capacity by a half quart for higher thermal capacity

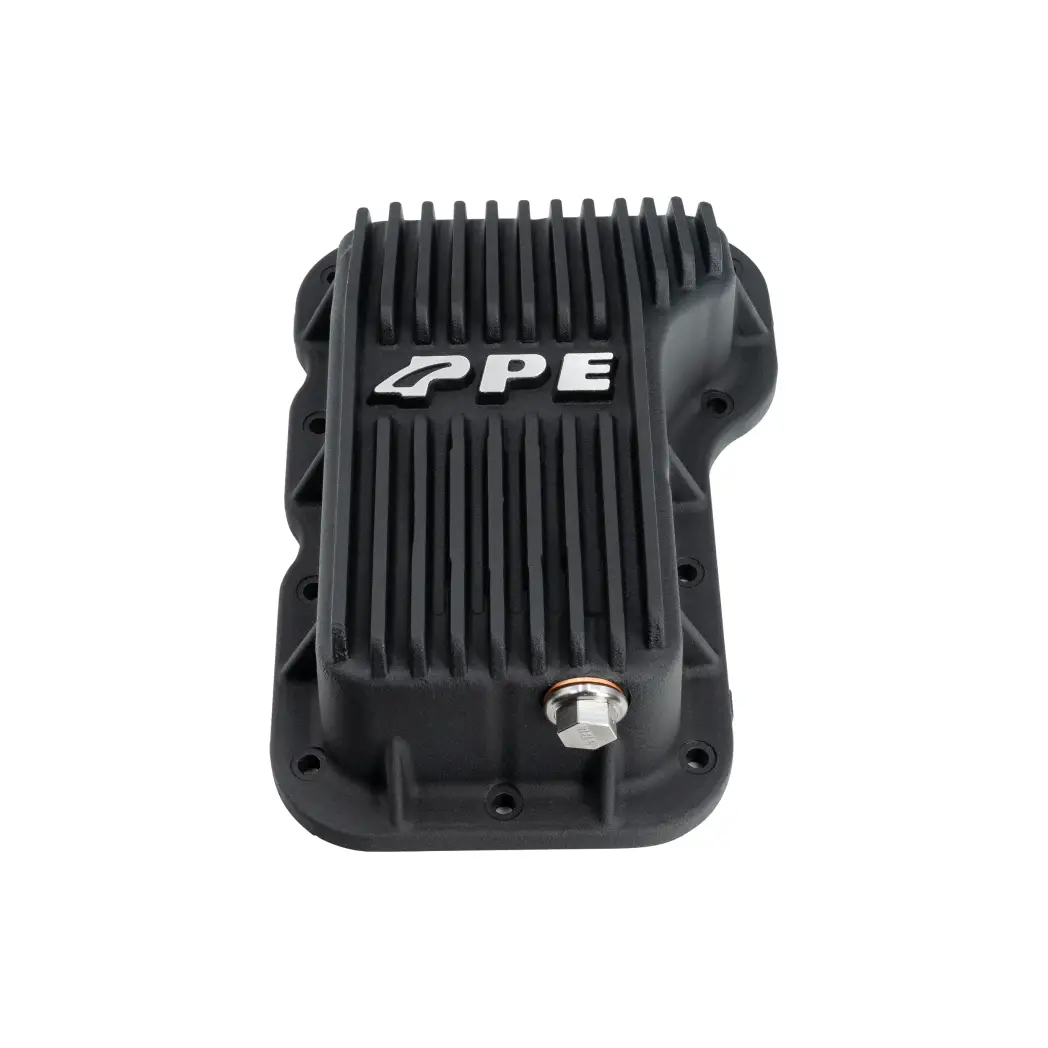

• Half-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Cast-in gussets for additional upper oil pan flange support and increased rigidity
• Precision machined sealant grooves guide the application of RTV-style sealant for a consistent bead and a reliable seal
• Stainless steel drain plug with built-in high temperature rated neodymium magnet
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug

Cast Aluminum Engine Oil Pan - Heavy-Duty

Whether your stock-stamped steel oil pan has been damaged, or you want a simple bolt-on upgrade with better performance, the PPE Cast Aluminum Engine Oil Pan is your best choice for increased strength and lower oil temps.

Thick cast aluminum is far superior to the stock-stamped steel for cooling engine oil. PPE has engineered deep exterior fins that follow underside airflow and increase surface area to radiate heat better than stock. Cast gussets provide strength and rigidity to the housing. We’ve even upgraded the drain plug. Our exclusive PPE High-Power Neodymium Magnet Equipped, Billet, Hardened Stainless Steel Drain Plug is included. The high-power Neodymium magnet pulls ferrous metals out of the oil before they do damage. The factory plug has no magnet and provides no protection.

Upgrade performance looks, and quality with this easy install.

Recommendation Disclaimer
If using a copper washer SKU 114052002 on the drain plug, replace it with a new washer during each service.
If using a compound washer SKU 114052004, inspect the washer during each service and replace as needed.
