214052210 | PPE Performance Heavy-Duty Cast Aluminum Engine Oil Pan Brushed Finish (2013-2018 RAM 1500, 2011-2025Durango, 2011-2022 Grand Cherokee 3.6L )

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases oil capacity by 1/4 quart for higher thermal capacity
• Half-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Cast-in gussets for additional upper oil pan flange support and increased rigidity
• Precision machined sealant grooves guide the application of RTV-style sealant for a consistent bead and a reliable seal
• Stainless steel drain plug with built-in high temperature rated neodymium magnet

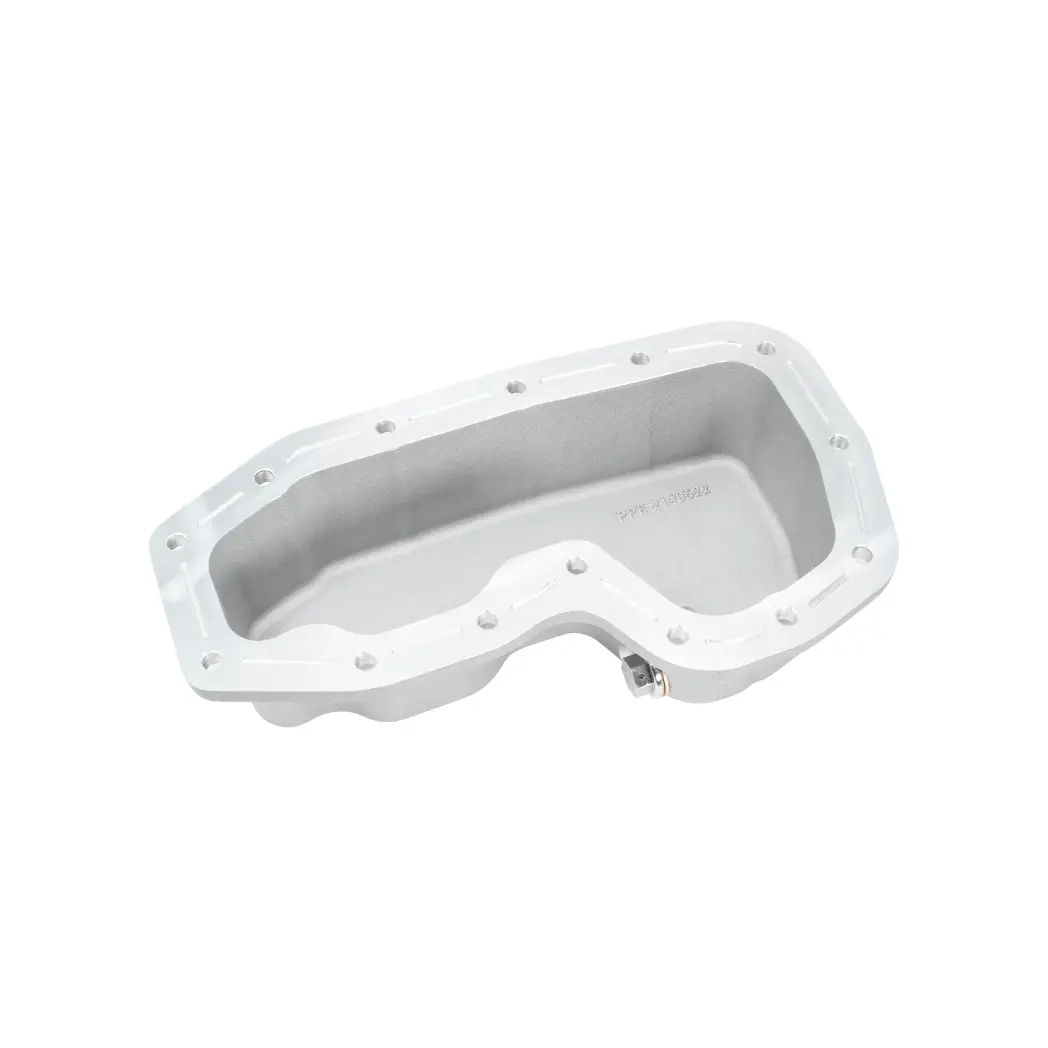

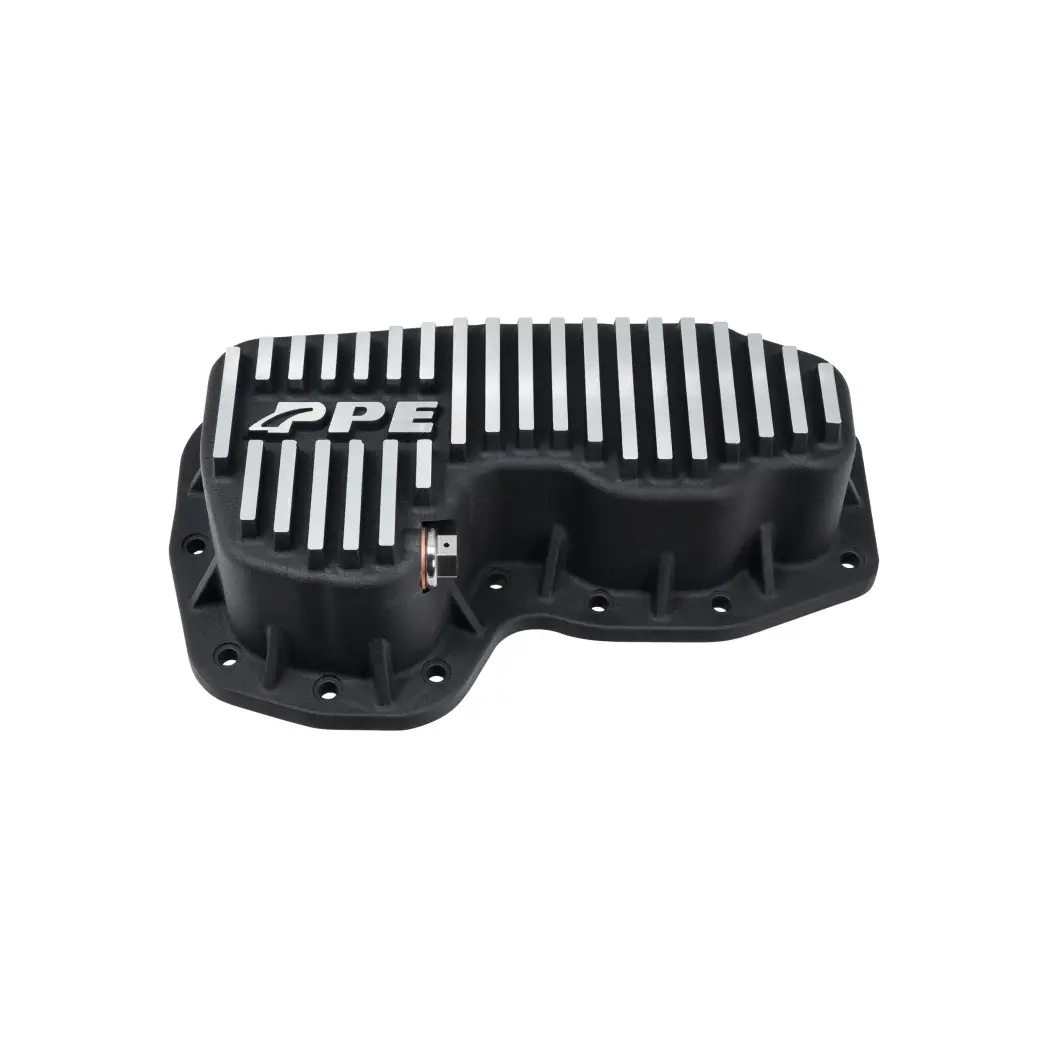

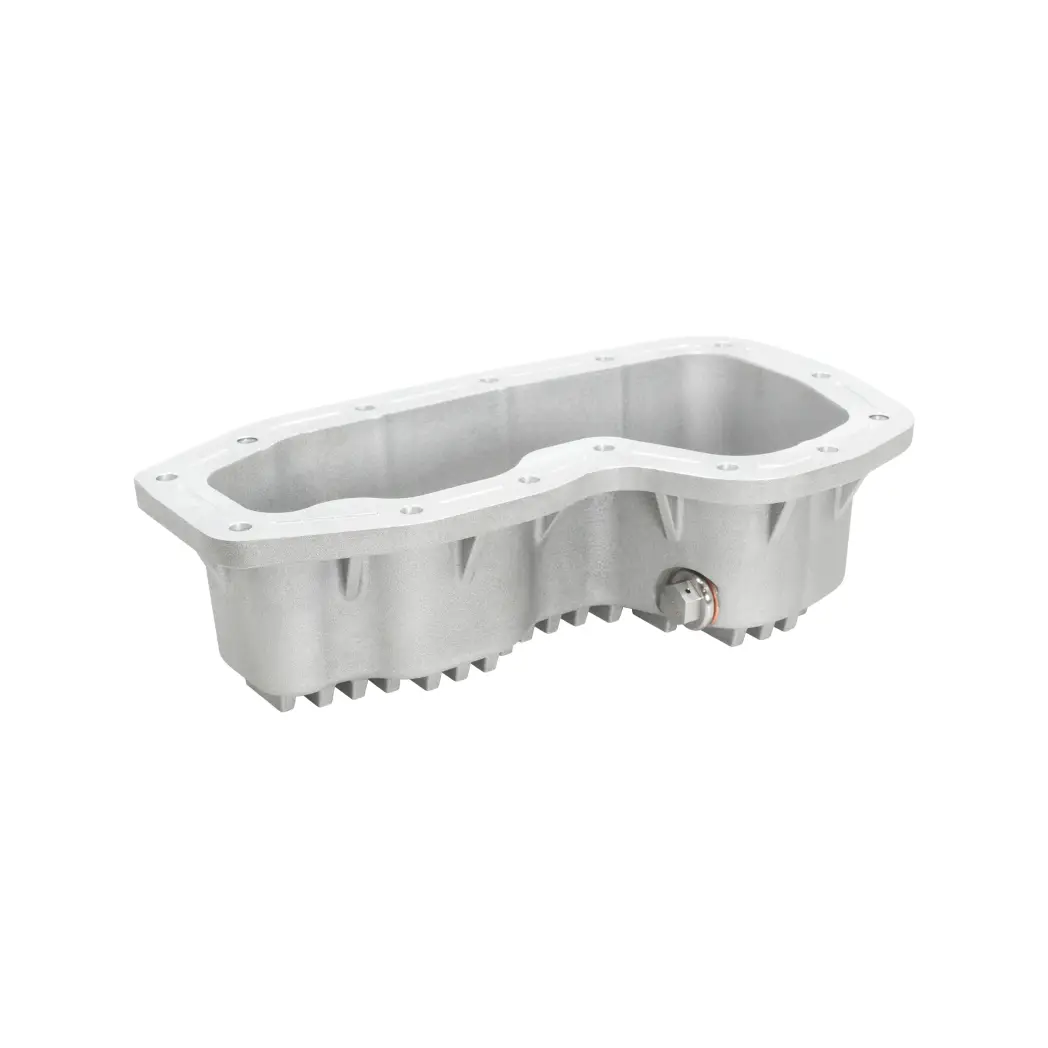

Heavy-Duty Cast Aluminum Engine Oil Pan

Whether your stock, stamped steel oil pan has been damaged, rusted, or you want a simple bolt-on upgrade with better performance, the PPE Cast Aluminum Engine Oil Pan is your best choice.

Thick, cast A356.0-T6 aluminum is far superior to stamped steel for cooling engine oil. PPE has engineered deep exterior fins that follow underside airflow and increase surface area to radiate heat better than stock. Cast gussets provide strength and rigidity to the housing. We’ve even upgraded the drain plug.

Our exclusive PPE Neodymium Magnet Equipped Billet Hardened Stainless Steel Drain Plug is included. The powerful integrated magnet pulls ferrous metals out of the oil before they do damage. The factory plug has no magnet and provides no protection. Upgrade performance, looks, and quality with this easy install.

Chrysler Equivalent P/N: 5184407AF

Recommendation Disclaimer
If using a copper washer SKU 114052002 on the drain plug, replace it with a new washer during each service.
If using a compound washer SKU 114052004, inspect the washer during each service and replace as needed.
