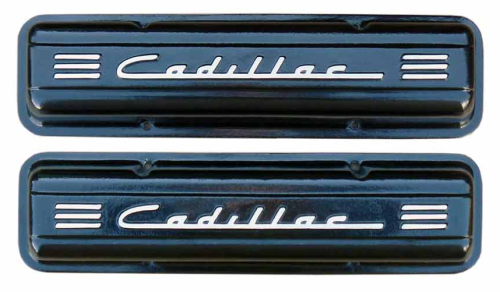

11107-BK | PML Cover Valve Covers Chevy Small Block, 265, 283, 327, 350 & 400 Engines, CADILLAC Script & Fins | Black Powder Coat Finish

Price for set of 2 covers. Includes mounting bolts. Does not include gaskets.

Number of Bolts:

4 per cover, on the perimeter, straight across

Finishes:

PML designed these valve covers with the old school 1949 CADILLAC script and three fins. PML valve covers reproduce the traditional look with added height for many roller rocker system. PML sand cast aluminum construction adds thick walls and gasket flanges so there is not any distortion when bolts are tightened.

Benefits:

• Classic CADILLAC script design
• GM licensed product
• Heavy duty sand cast aluminum construction
• Thick flange will not flex when bolts are tightened
• Mid height design to work with many roller rocker systems
• Standard perimeter 4 bolt mounting to cylinder head found on 1959 to 1986 Chevy small block engines
• Mounting bolts provided
• Made in USA

The script is cast into the cover and raised. On powder coated parts, the powder coat is shaved off the top of the script. On polished finish parts, the band is not polished to provide contrast to the script.

The classic CADILLAC script and small fins are cast into the cover and raised. The script replicates the 1949 GM CADILLAC logo. These PML valve covers are licensed GM products.

On powder coated parts, the powder coat is shaved off the top of the script and fins. On polished finish parts, the area between the fins and the script is not polished so the script and fins stand out.

These PML valve covers are standard flange mount covers for V8 small block Chevy engines (265, 283, 327, 350, 400). The valve covers mount on to the cylinder heads with four bolts on the perimeter, directly across from each other. These valve covers can fit the small block engines originally produced in 1959 to 1986 and many new crate motors.

We fit each cover on a stock GM cylinder head with stock rocker arms.

See SPECIFICATIONS for information to determine if these valve covers will for your engine configuration.

Will These Valve Covers Fit On Your Engine?

Engine configurations vary! Before ordering use our checklist: https://yourcovers.com/checklist-for-fitting-pml-small-block-valve-covers.html

Gaskets

Gaskets are not included with these valve covers. PML designed these Chevy Small Block Perimeter Mount Valve Covers to work with cork composite gaskets.

Optional PCV, Breather, and Oil Fill Holes

PCV/breather/oil fill holes are optional. PML makes these valve covers without holes and can machine holes when needed for an engine configuration.

Our approach to PCV and breather holes is unique so we made a PDF file with pictures and details: https://yourcovers.com/Merchant5/graphics/00000001/valve-covers/11026_holes.pdf

If these PML valve covers are ordered with PCV, oil fill and breather holes, PML will machine one hole in each cover on the intake manifold side and include a PCV grommet, a push-in breather, and an oil fill tube.

Call if your engine configuration requires one hole or to discuss your requirements.
