328053410 | PPE Performance Heavy-Duty Cast Aluminum Transmission Pan Brushed Finish (2020-2026 Ford F250, F350 Super Duty 6.2L, 7.3L 10R140)

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 5 quarts for higher thermal capacity
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance

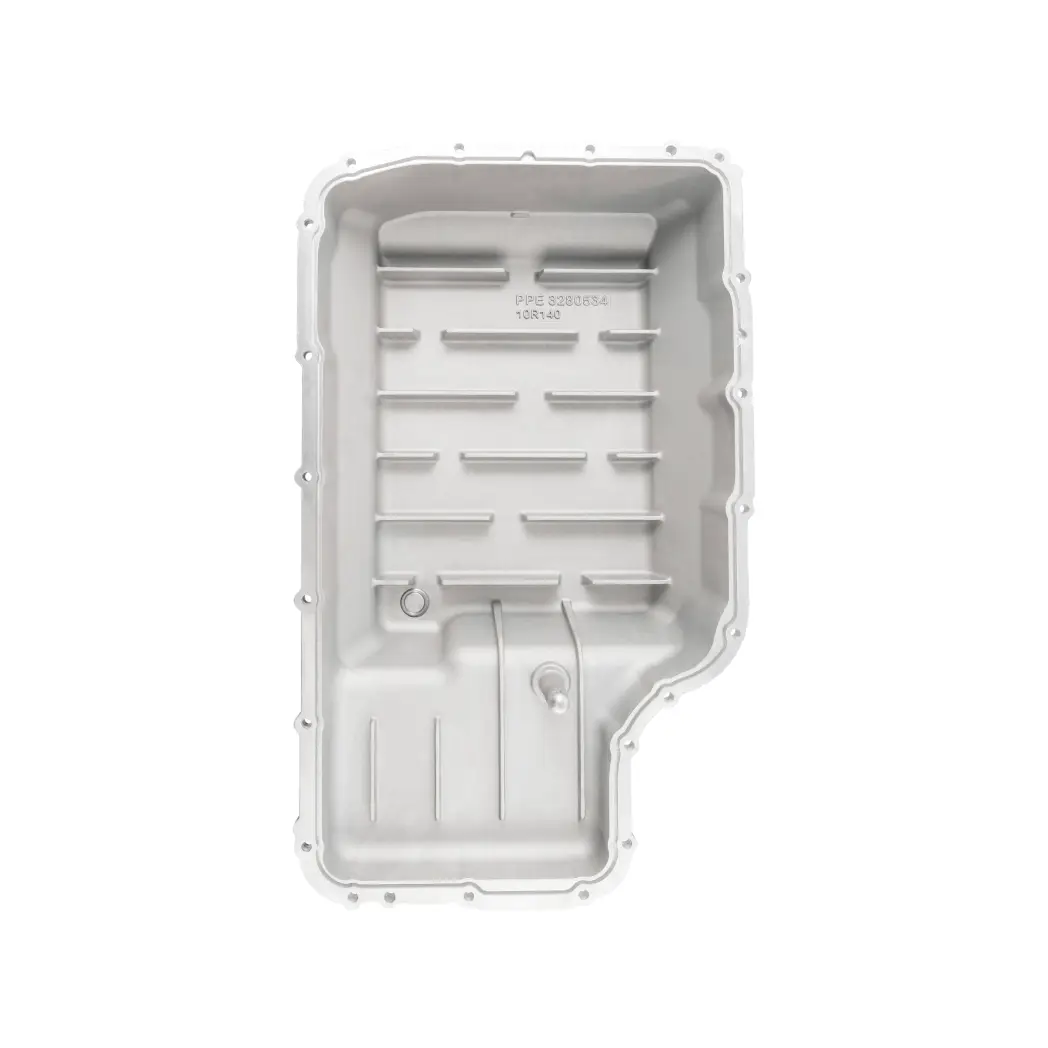

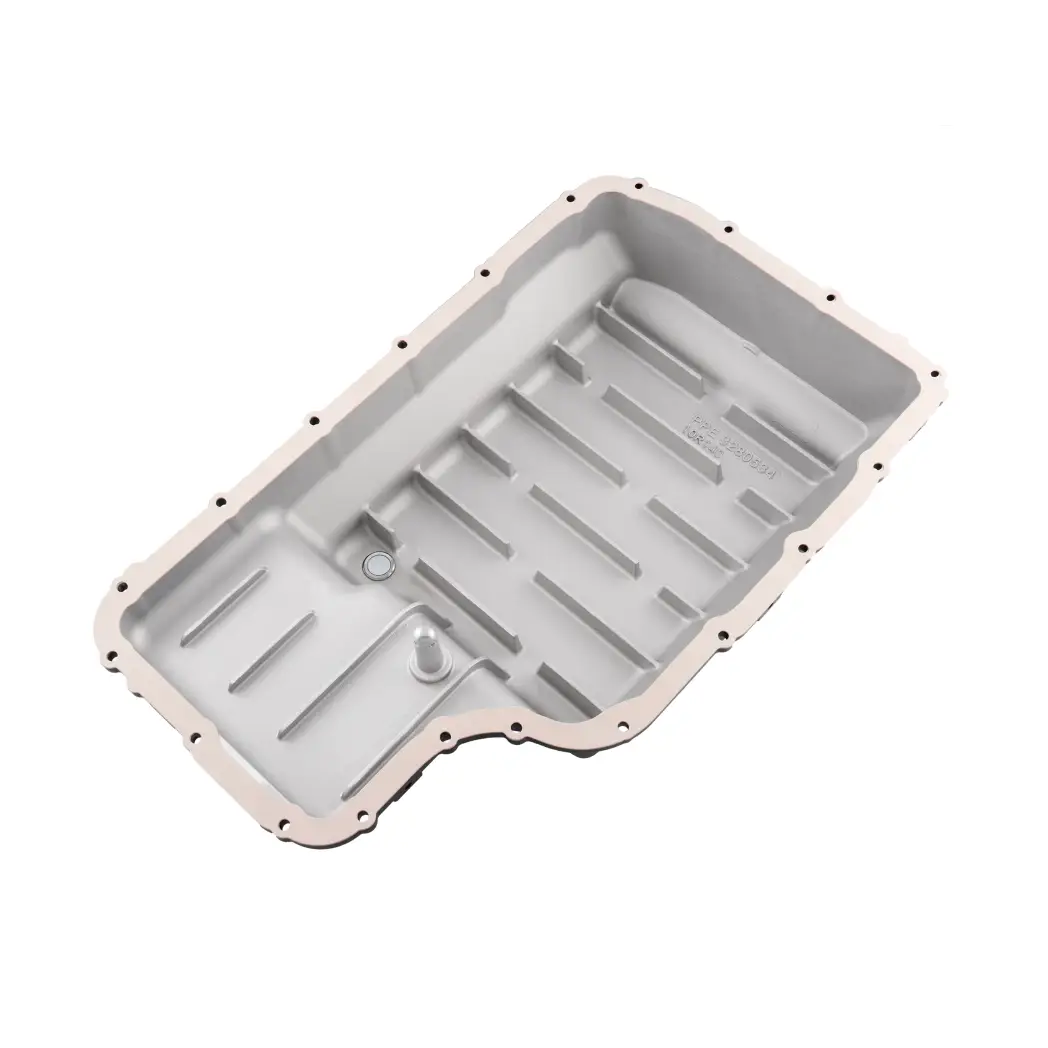

• Deep one-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
• Cast-in gussets for additional transmission housing flange support and increased rigidity

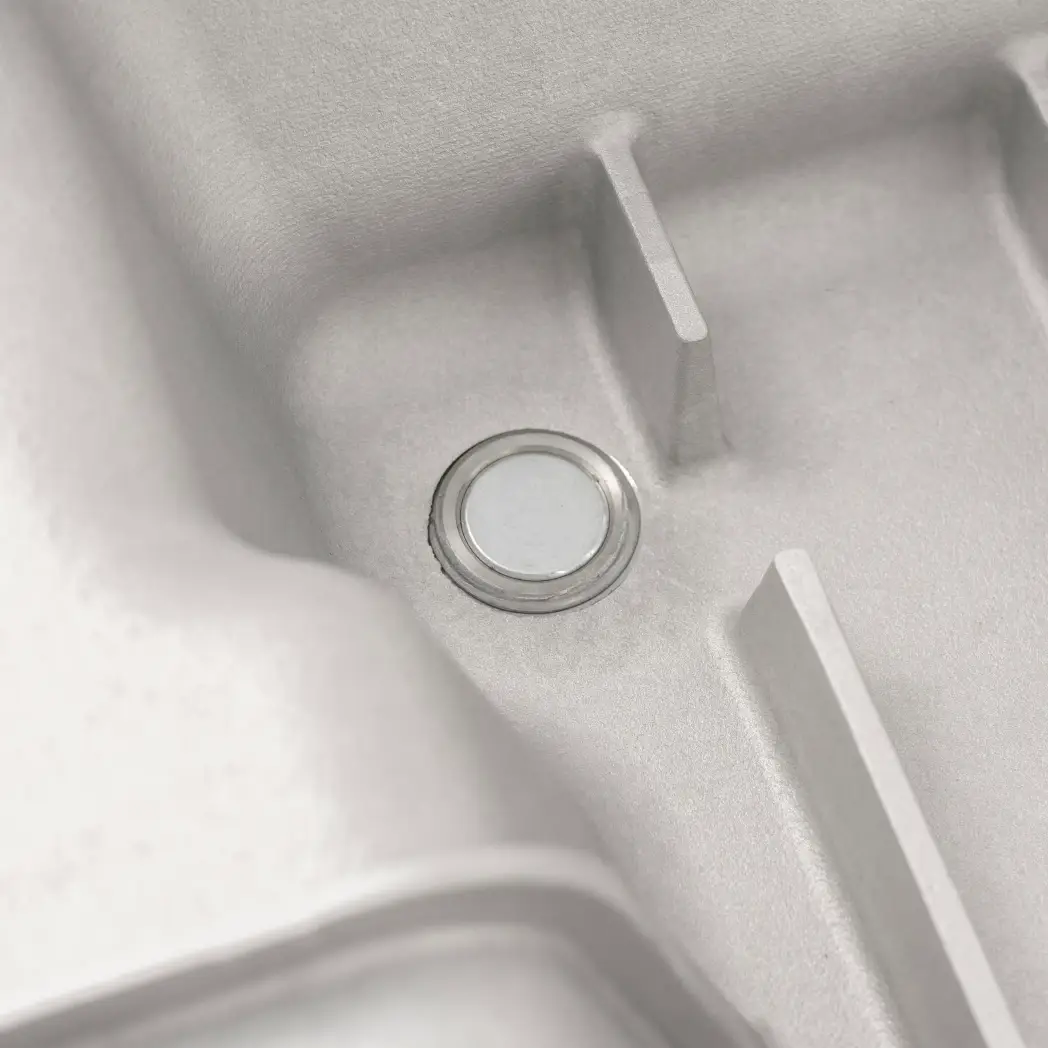

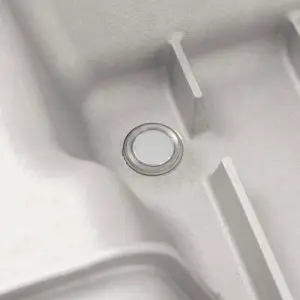

• 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
• Fluid fill fitting and fill plug included for easy services

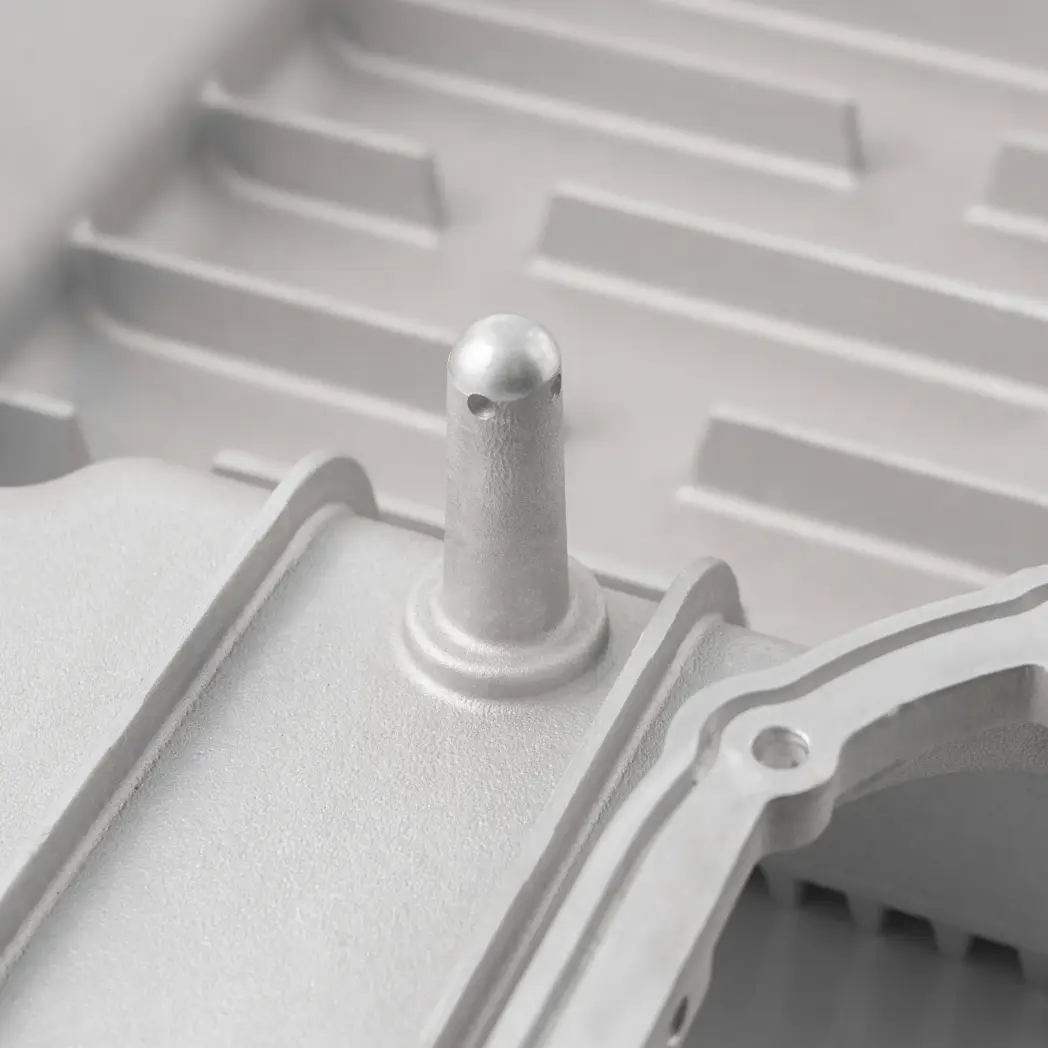

• Integrated standpipe ensures accurate fluid level checks during the filling process
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug

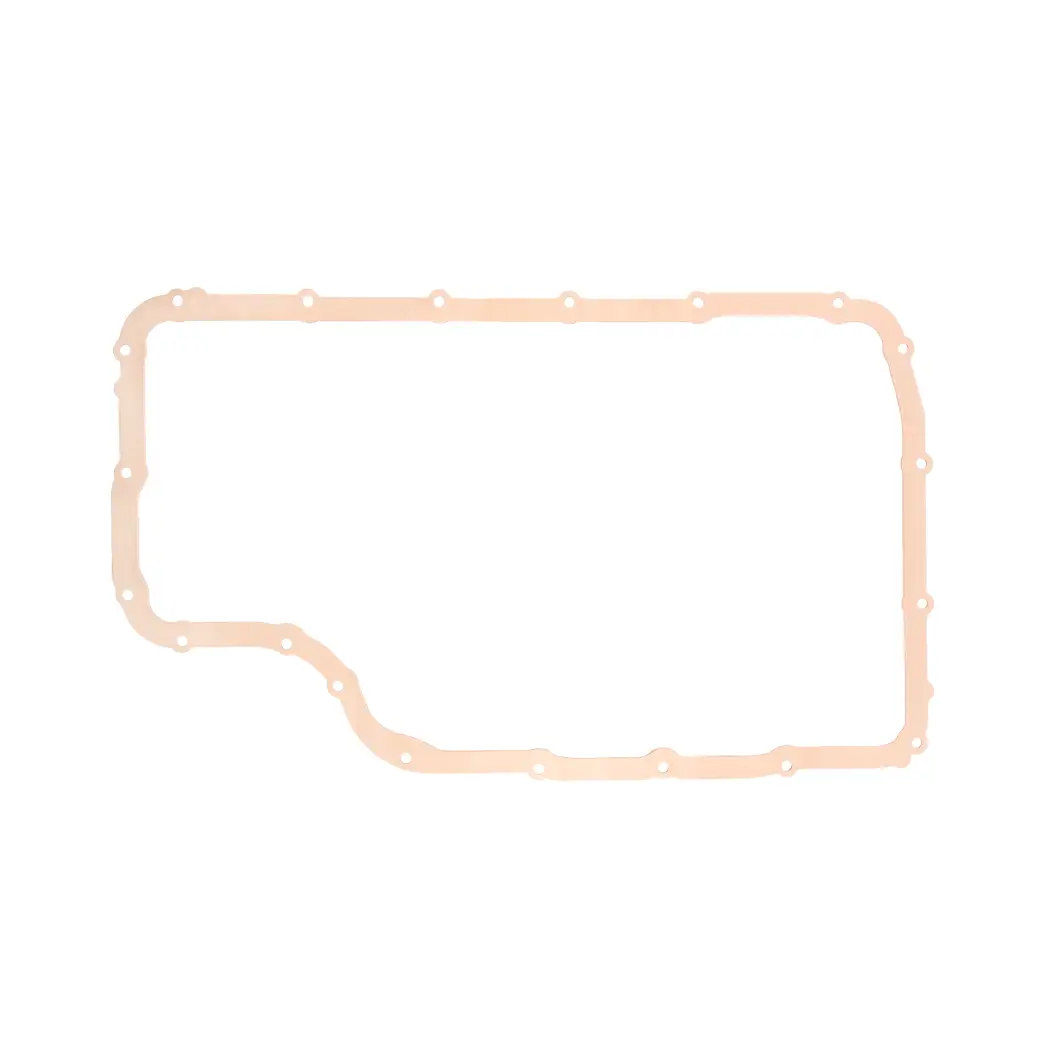

• Compatible with OEM gasket and filter
• Patent Pending

10R140 Heavy-Duty Cast Aluminum Transmission Pan

Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.

Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 5 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

A fluid level check standpipe ensures proper fluid level during the filling process. The drain plug and fluid level check plug are both equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.

Keep your 10-speed transmission running longer, healthier, and cooler with PPE.

Note: New for 2025, certain Ford Super Duty trucks equipped with the 7.3L engine may come with either the 10R140 TorqShift ten-speed transmission or the 10R100 (TorqShift-G) ten-speed transmission. These transmissions use different pans that are not interchangeable. PPE Part Number 3280534XX is designed for the 10R140, while 3280536XX fits the 10R100. Please verify your transmission type before placing an order to ensure proper fitment.
