228051020 | PPE Performance Heavy-Duty Cast Aluminum Transmission Pan Black Finish (1990-2009 Dodge 5.9L Cummins 46RH 46RE 47RE 47RH 48RE)
1990-2009 Dodge 5.9L Cummins 46RH 46RE 47RE 47RH 48RE
Description
1990-2009 Dodge 5.9L Cummins 46RH 46RE 47RE 47RH 48RE Heavy-Duty Cast Aluminum Transmission Pan
PART NUMBER: 228051020GTIN: 840171215113
OEM P/N REFERENCE:
Features
- Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
- Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
- Increases fluid capacity by 4 quarts for higher thermal capacity
- Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
- Half-inch internal baffles enhance heat absorption and minimize fluid sloshing
- External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
- Cast-in gussets for additional transmission housing flange support and increased rigidity

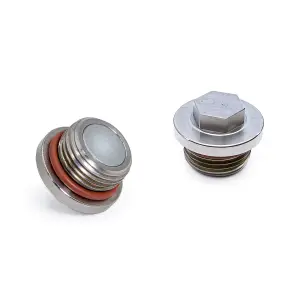

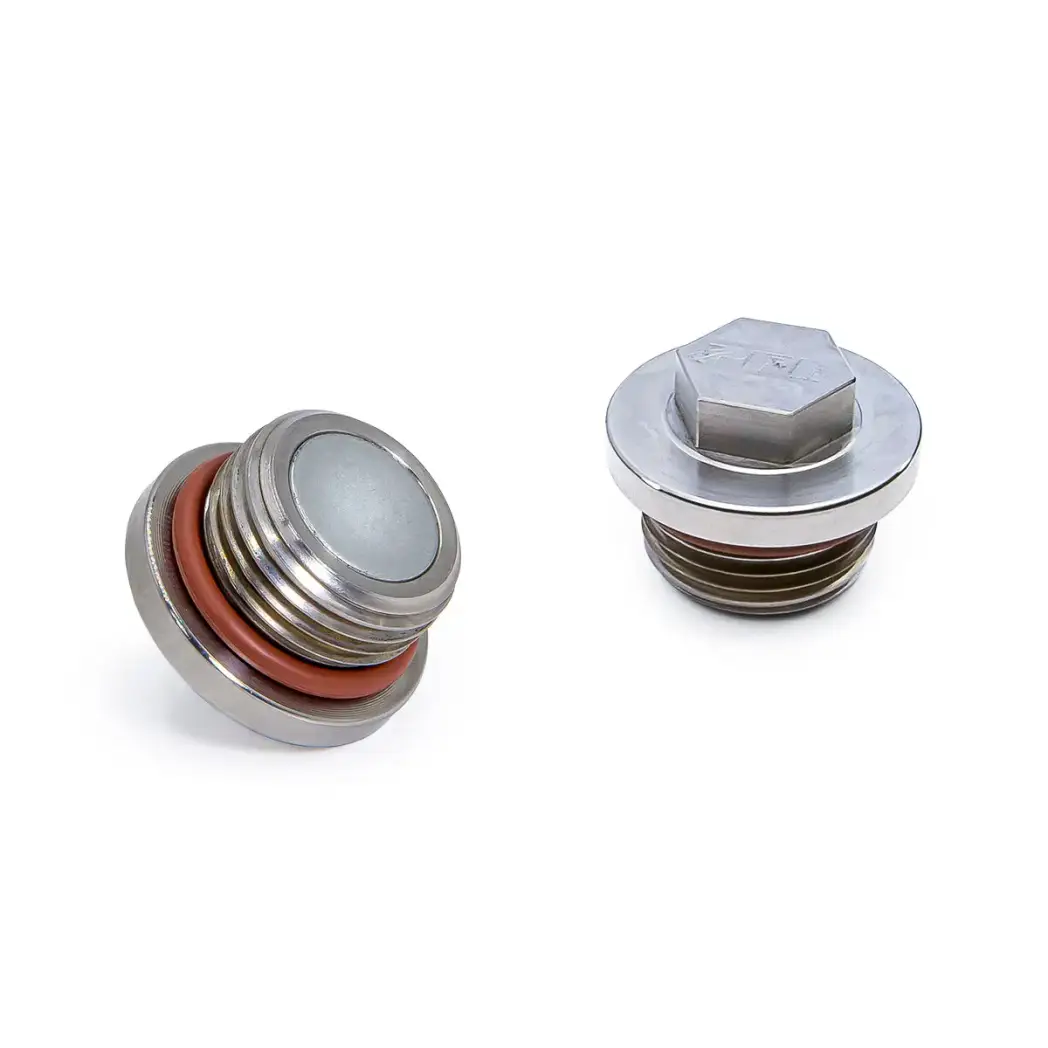

- 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
- Equipped with 1/8-inch and 1/4-inch NPT ports with pre-installed NPT plugs

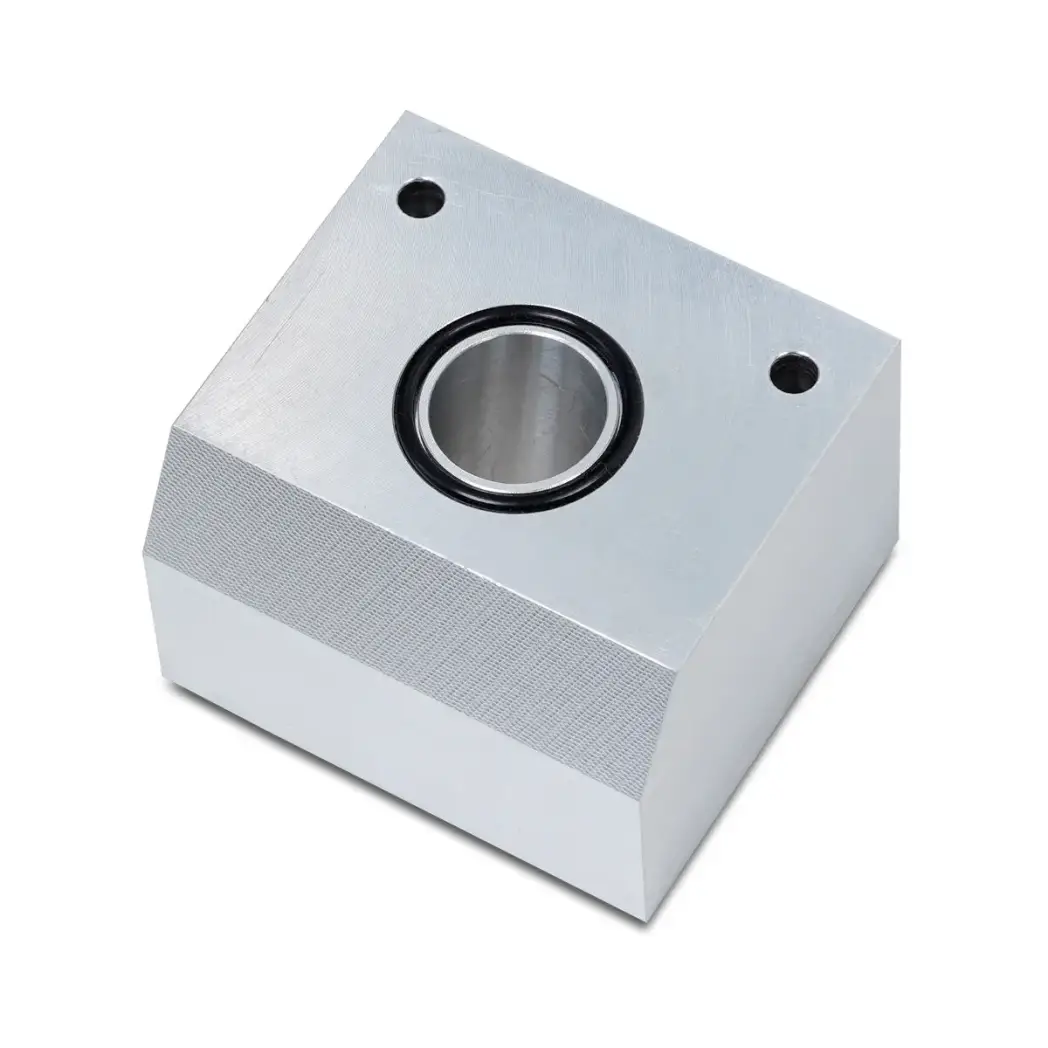

- Included filter spacer block with Viton O-ring seal
- Compatible with OEM filter

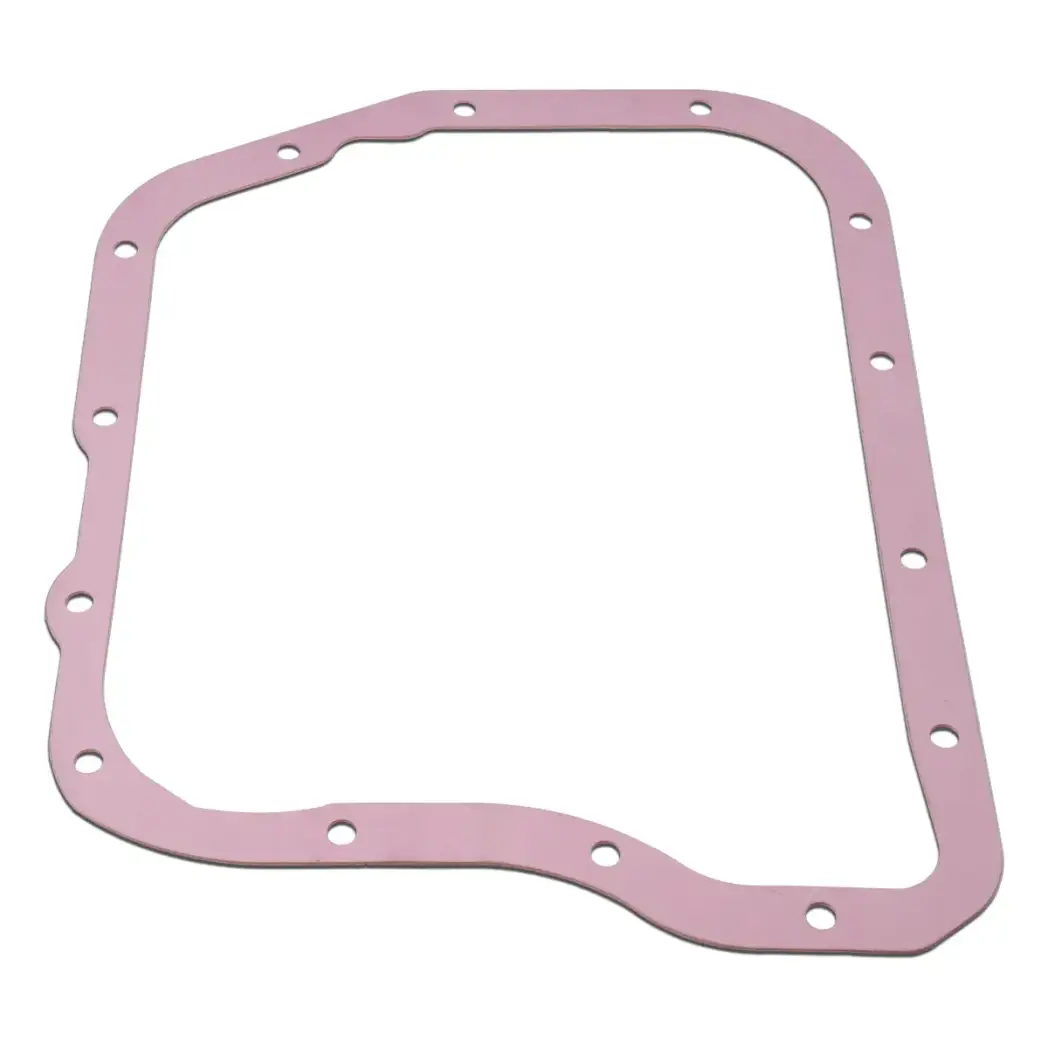

- Flat composite gasket included
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 4 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

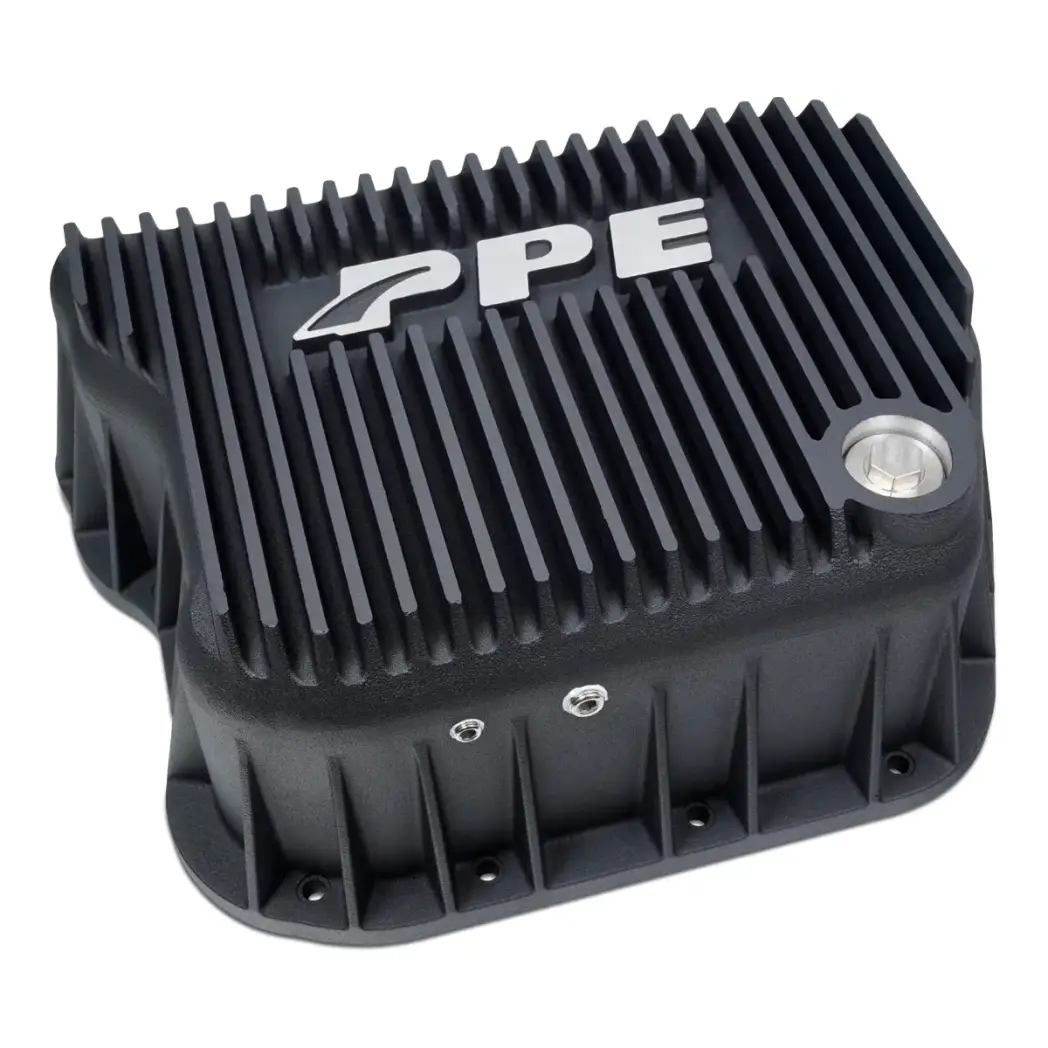

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

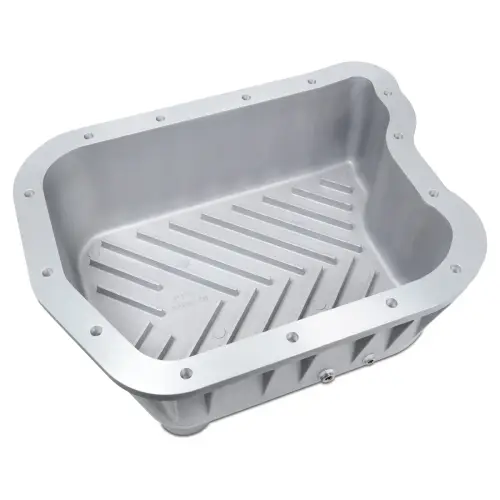

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.
The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
Keep your 4-speed transmission running longer, healthier, and cooler with PPE.
OEM P/N for Reference: Dodge/RAM 52118780AD
Application List
1999 Dodge Dakota 8 Cyl 5.9L
2000 Dodge Dakota 8 Cyl 5.9L
2001 Dodge Dakota 8 Cyl 5.9L
2002 Dodge Dakota 8 Cyl 5.9L
2003 Dodge Dakota 8 Cyl 5.9L
1998 Dodge Durango 8 Cyl 5.9L
1999 Dodge Durango 8 Cyl 5.9L
2000 Dodge Durango 8 Cyl 5.9L
2001 Dodge Durango 8 Cyl 5.9L
2002 Dodge Durango 8 Cyl 5.9L
2003 Dodge Durango 8 Cyl 5.9L
1994 Dodge Ram 1500 Pickup 8 Cyl 5.9L
1995 Dodge Ram 1500 Pickup 8 Cyl 5.9L
1996 Dodge Ram 1500 Pickup 8 Cyl 5.9L
1997 Dodge Ram 1500 Pickup 8 Cyl 5.9L
1998 Dodge Ram 1500 Pickup 8 Cyl 5.9L
1999 Dodge Ram 1500 Pickup 8 Cyl 5.9L
2000 Dodge Ram 1500 Pickup 8 Cyl 5.9L
2001 Dodge Ram 1500 Pickup 8 Cyl 5.9L
2002 Dodge Ram 1500 Pickup 8 Cyl 5.9L
2003 Dodge Ram 1500 Pickup 8 Cyl 5.9L
1994 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
1995 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
1996 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
1997 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
1998 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
1999 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
2000 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
2001 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
2002 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
2003 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
2004 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
2005 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
2006 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
2007 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
2008 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
2009 Dodge Ram 2500 Pickup 6 Cyl 5.9L Turbo
1995 Dodge Ram 2500 Pickup 8 Cyl 5.9L
1996 Dodge Ram 2500 Pickup 8 Cyl 5.9L
1997 Dodge Ram 2500 Pickup 8 Cyl 5.9L
1998 Dodge Ram 2500 Pickup 8 Cyl 5.9L
1999 Dodge Ram 2500 Pickup 8 Cyl 5.9L
2000 Dodge Ram 2500 Pickup 8 Cyl 5.9L
2001 Dodge Ram 2500 Pickup 8 Cyl 5.9L
2002 Dodge Ram 2500 Pickup 8 Cyl 5.9L
1994 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
1995 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
1996 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
1997 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
1998 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
1999 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
2000 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
2001 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
2002 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
2003 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
2004 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
2005 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
2006 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
2007 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
2008 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
2009 Dodge Ram 3500 Pickup 6 Cyl 5.9L Turbo
1994 Dodge Ram 3500 Pickup 8 Cyl 5.9L
1995 Dodge Ram 3500 Pickup 8 Cyl 5.9L
1996 Dodge Ram 3500 Pickup 8 Cyl 5.9L
1997 Dodge Ram 3500 Pickup 8 Cyl 5.9L
1998 Dodge Ram 3500 Pickup 8 Cyl 5.9L
1999 Dodge Ram 3500 Pickup 8 Cyl 5.9L
2000 Dodge Ram 3500 Pickup 8 Cyl 5.9L
2001 Dodge Ram 3500 Pickup 8 Cyl 5.9L
2002 Dodge Ram 3500 Pickup 8 Cyl 5.9L
1998 Jeep Grand Cherokee 8 Cyl 5.9L
1990 Jeep Grand Wagoneer 8 Cyl 5.9L
1991 Jeep Grand Wagoneer 8 Cyl 5.9L
Details
- 228051020
- 228051020
- 840171215113
- Pacific Performance Engineering
- New
Categories
Shipping Information
- Item Requires Shipping
- 17.5 lbs.
- W13.2500” x H7.0000” x L17.2500”
- Free Ground Shipping | Exclusions Apply*
