11101-AC | PML Cover RE5R05A Deep 1.1 Quarts Over Transmission Pan For Nissan Frontier, Pathfinder, Titan, Xterra, 350Z, G35, & G37 / Suzuki Equator / Infiniti QX56 | Natural As-Cast Finish

For Frontier, Pathfinder, Xterra and other Nissan trucks and SUVs. Pan includes magnetic drain plug and mounting hardware.

Volume:

Approximately 1.1 quarts over stock

Number of Bolts:

22

 PML designed this transmission pan for Frontier, Pathfinder, Xterra, Cars, and Trucks with Skid Plates. This heavy duty transmission oil pan fits the Nissan RE5R05A 5 speed transmission.

Benefits

• Extra capacity
• Clears frame cross members on Frontier, Pathfinder, Xterra and similar vehicles
• Ground clearance for most cars, trucks and SUVs, only 1 inch deeper than stock pan
• Skid plate clearance with overall height of 2.8 inches (enough for many skid plates)

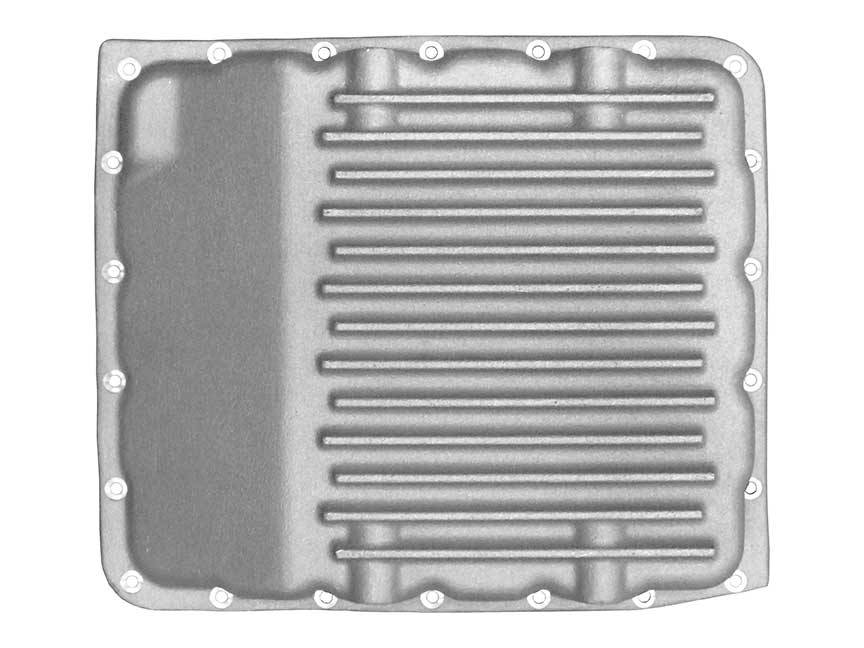

• Finned for heat dissipation
• Heavy duty constructions for thick walls and gasket flanges to provide a secure seal
• Drain hole and magnetic drain plug

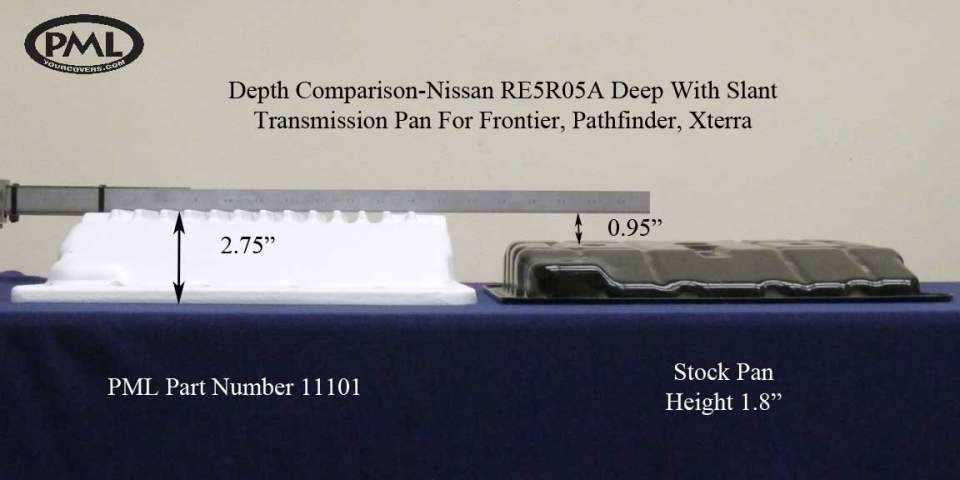

Depth is about 2.8 inches. Stock pan is about 1.8 inches. Always check your vehicle to verify transmission and clearance as PML does have a restocking fee.

Replaces PML Part Number 11091: This PML transmission pan replaces PML part number 11091.

2013/2014 version: A first revision of this transmission pan had slants on the front and rear and was 4.1 inches deep.

• Frontier, 2005 to 2019
  Around 2019 Nissan transitioned to new 9 speed transmission, PML product in development/Under Consideration, Part Number 11188
• Pathfinder, 2004 to 2012, with V8 5.6 or V6 4.0
• Xterra, 2005 to 2015
• Suzuki Equator, 2009 to 2012, may also be able to use this pan
• Titan trucks and Infinit QX56 SUVs with the Nissan RE5R0RA transmission needing clearance to the ground or skid plate
• Cars such as 350Z, G35, and G37 (2007 models) with the Nissan RE5R0RA transmission needing clearance to the ground

Always check your vehicle to verify transmission and clearance as PML does have a restocking fee.

Vehicle configurations and so there can be options for transmissions and clearance.

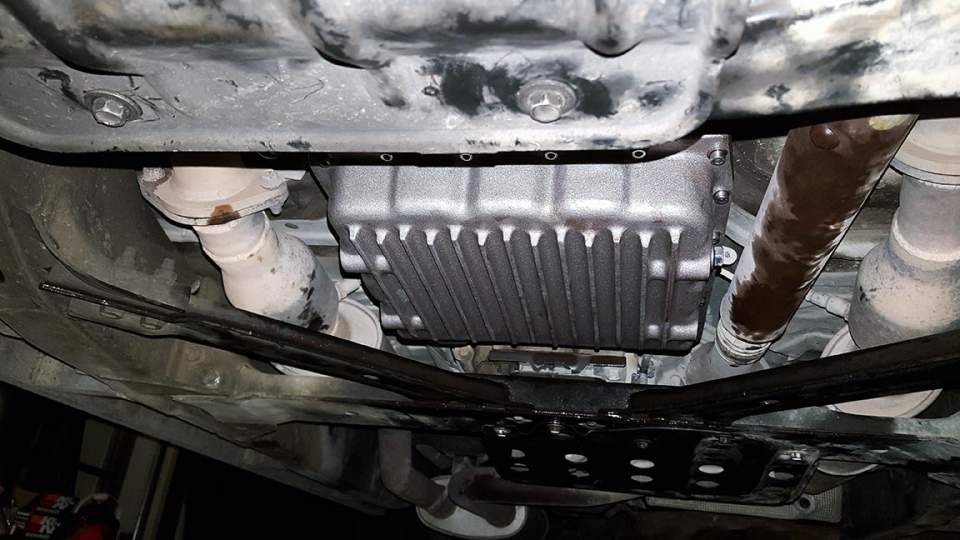

Skid Plates: We cannot guarantee that this pan will fit. Many skid plates are available. The amount of ground clearance varies depending on the vehicle. There is a restocking fee for returns. See Installations section for examples and pictures of this pan with skid plates.

We have a deep pan for the Nissan RE5R05A transmission, Part Number 11037, that is 3.5 quarts over stock.

Filter

This PML transmission pan works with the OEM filter. The Nissan filter on the RE5R05A is a screen, and it bolts on to the valve body of the transmission so no filter supports or extensions are needed.

Gasket

This transmission pan works with stock gaskets. Reference Nissan part number 3139790X0A (2007 and newer) or 3139790X00 (2003 to 2007). These are available from a local Nissan dealer or auto parts store.

Drain

PML includes a magnetic drain plug and all mounting bolts with the pan.

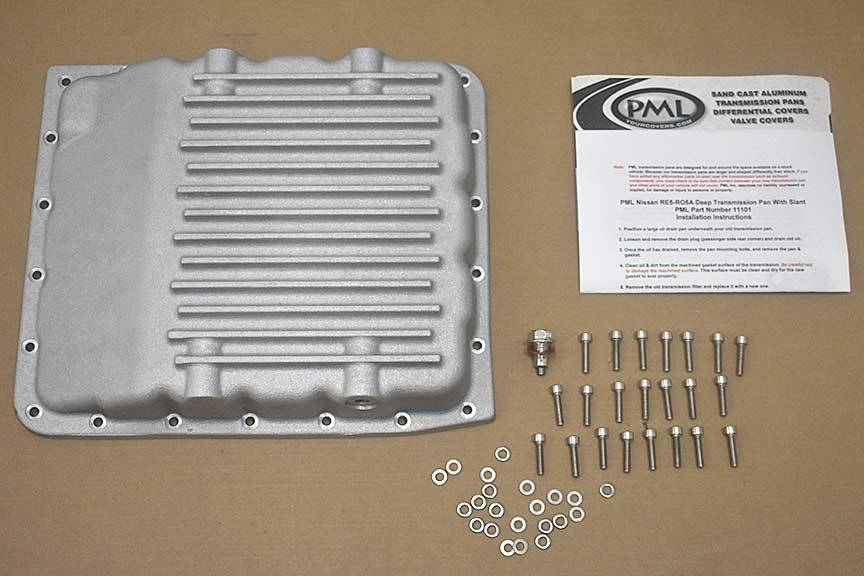

Included with PML Transmission Pan

This PML transmission pan ships with new mounting bolts with washers and a magnetic drain plug with copper sealing washer.

Optional Temperature Sending Unit Machining

You can drill and tap a 1/8 NPT hole for a temperature sending unit. This would be for an aftermarket temperature gage.

The pan has three locations that can be drilled. Two locations on the passenger/right side of the pan and one on the driver/right side of the pan.

The standard size is 1/8 NPT.
