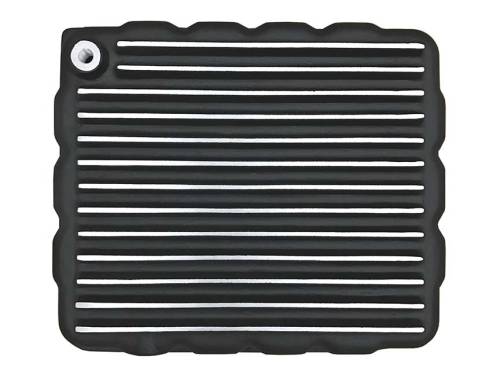

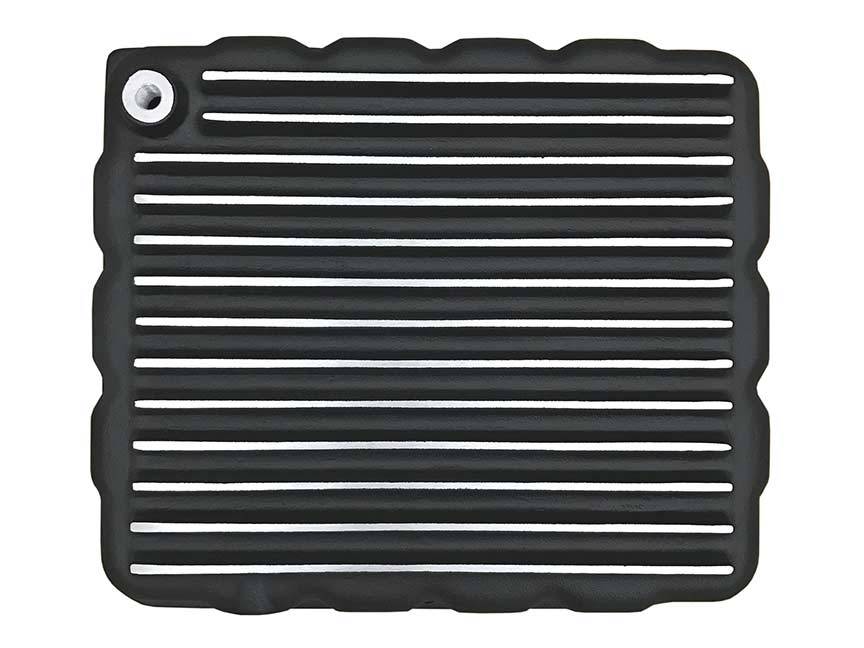

11037-B | PML Cover RE5R05A Deep 3.5 Quarts Over Transmission Pan For Nissan Titan, Armada & Navara | Black Powder Coat Finish

For Titan, Armada, and Navara. Pan includes magnetic drain plug and mounting hardware.

Volume:

3.5 qts. over stock

Number of Bolts:

22

Benefits

• Extra capacity and fins for cooling
• Heavy duty, thick wall construction for strength
• Drain and magnetic drain plug to facilitate oil changes
• Internal baffles to reduce sloshing and help with heat dissipation out of fluid
• Easy, bolt-on installation

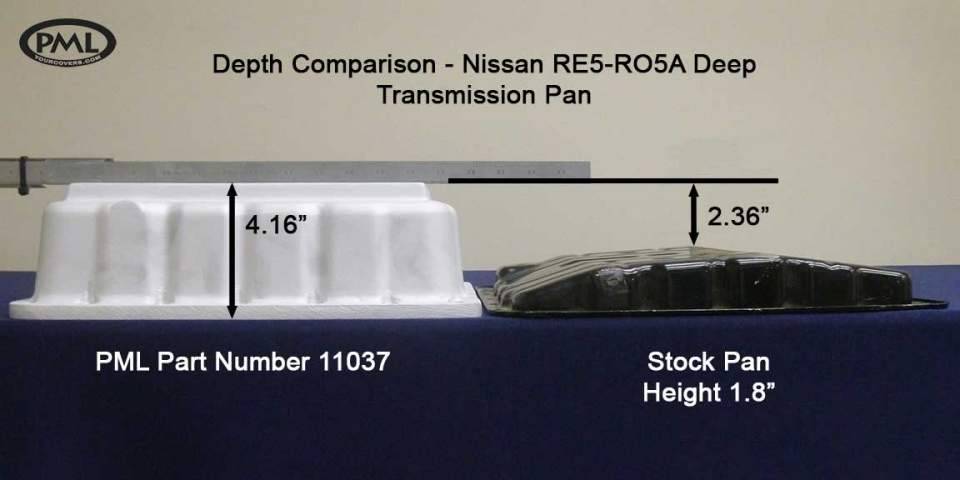

This pan is 2 ¼ inches deeper on the outside and 1 ½ inches deeper on the inside than a stock pan at its deepest point. Always check your vehicle to verify transmission and clearance before ordering.

PML designed this PML transmission oil pan for the Nissan RE5R05A. Examples of vehicles that may be able to use this transmission pan:

• Titan, 2004 to 2015
• Armada, 2004 to 2015
• Navara, 2005 to 2015
• Some Infiniti SUVs

Always check the transmission and clearance before ordering. Vehicle configurations vary.

NV owners: NV Vans, 2012 to 2016, may be able to use this pan. We've heard that NV cargo and passenger vans are based on the TItan and have the RE5R05A transmission.

Other Nissan and Infiniti vehicles: other trucks, cars, and SUVs use the RE5R05A transmission and may be able to use this pan.

Needing More Clearance: PML also makes a less deep RE5R05A pan for trucks with skid plates, cars, Frontier and Nissan SUVs. The PML part number for that pan is 11101.

7 Speed RE7RO1A: See PML Part Number 11156.

Titan Trucks with Aisin Transmission: See PML part number 11142.

Filter

The filter on the RE5R05A is a screen, and it bolts on to the valve body of the transmission so no filter supports or extensions are needed.

Gasket

This transmission pan works with stock gaskets. Reference Nissan part number 3139790X0A (2007 and newer) or 3139790X00 (2003 to 2007).

Included with PML Nissan 5 Speed Transmission Pan

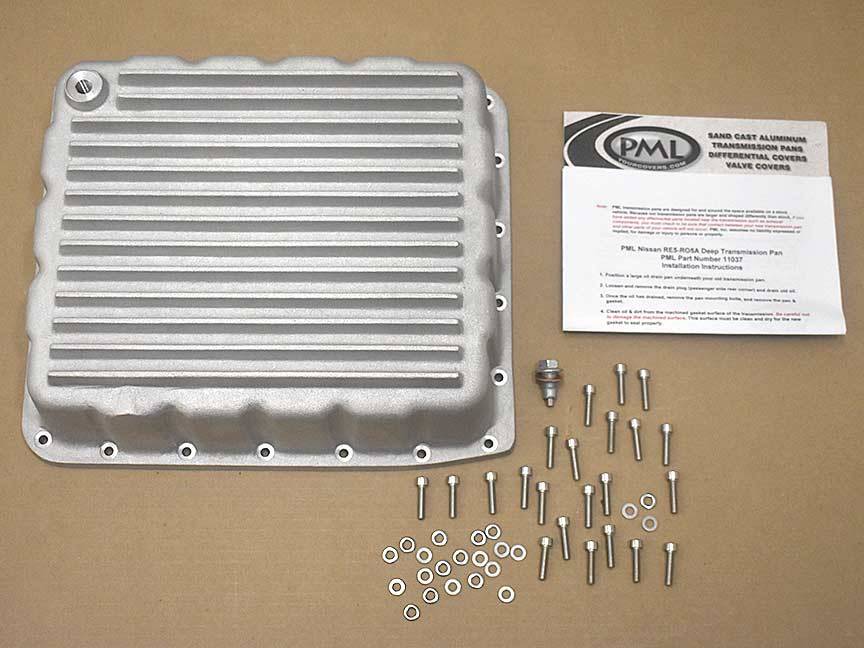

PML includes a magnetic drain plug with copper sealing washer and new mounting bolts with each pan.

Temperature Sensor

This pan has a boss that can be machined and tapped for a temperature sending unit.

The standard Titan transmission temperature gauge usually included with the tow package works independent of the transmission pan and does not need the boss machined.

The boss on this pan can be machined for use with aftermarket sensors and gages.

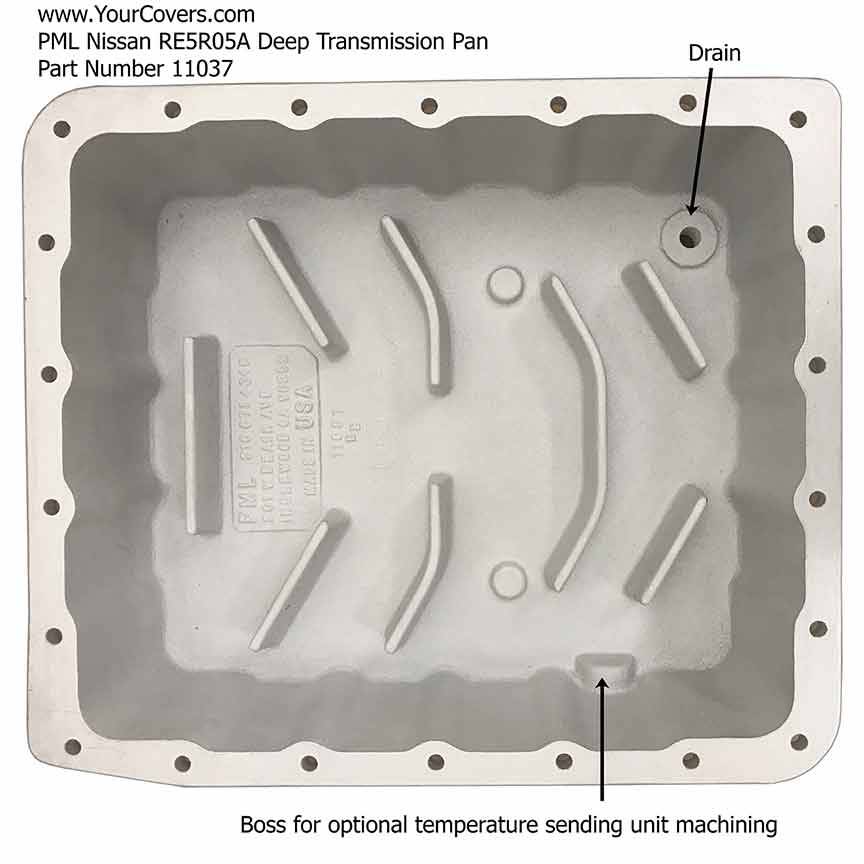

Internal Baffles, Inside of Pan

 PML designed this transmission pan with internal baffles. The baffles help direct oil flow to keep oil at the filter inlet, prevent sloshing, and aid heat transfer from oil to pan.
