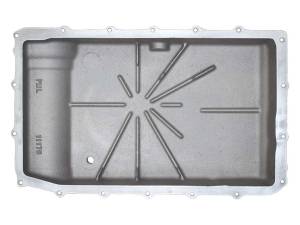

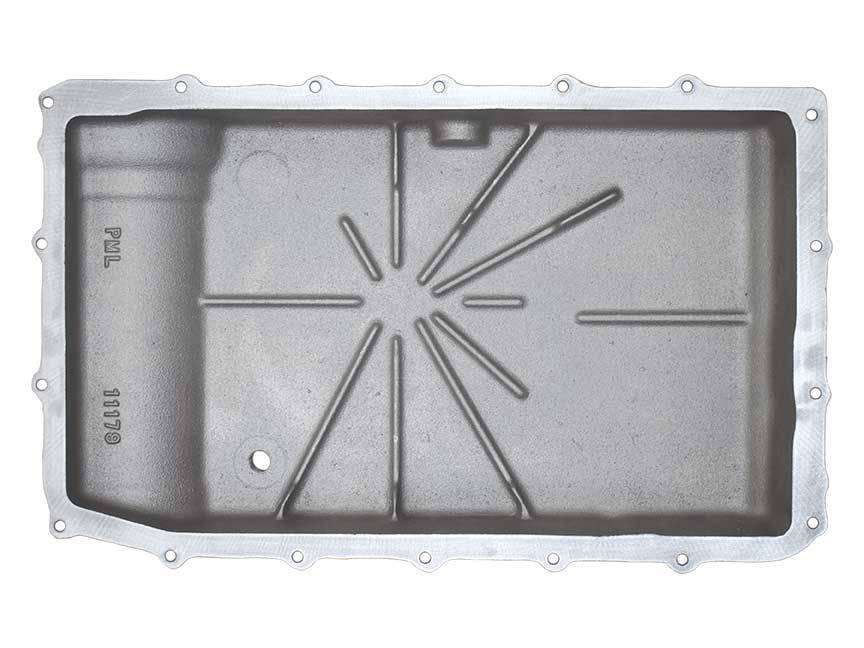

11179-AC | PML Cover Ford 10R60, 10R80 Stock Capacity Transmission Pan For Ford Bronco, Expedition, Explorer, F-150, Mustang, Ranger, Raptor, Police Interceptors, Transit Vans & F-250 | Natural As-Cast Finish

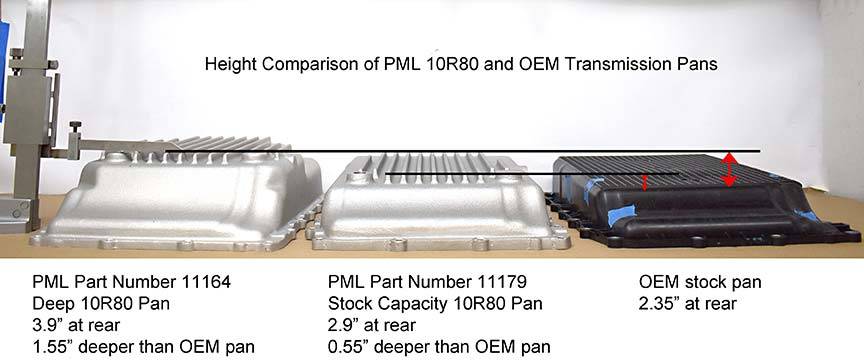

For Ford 10R80, 10R60 10 speed transmissions in Mustangs and Ford/Lincoln trucks/SUVs. Only 5/8 inches deeper than stock for cars and vehicles with skid plates.

Pan includes a magnetic drain plug and custom cork gasket.

Volume:

stock capacity

Number of Bolts:

18

Bolts hold the pan on the transmission case

PML designed this a stock capacity transmission pan for Ford 10R60, 10R80 transmissions to maintain clearance. For example, cars such as Mustang and trucks with skidplates cannot use a deep sump transmission pan.

This PML transmission pan may also fit 10R100 transmissions.

Benefits:

• Drain and magnetic drain plug for easier fluid changes
• Extra capacity
• Heavy duty sand cast aluminum construction (not plastic)

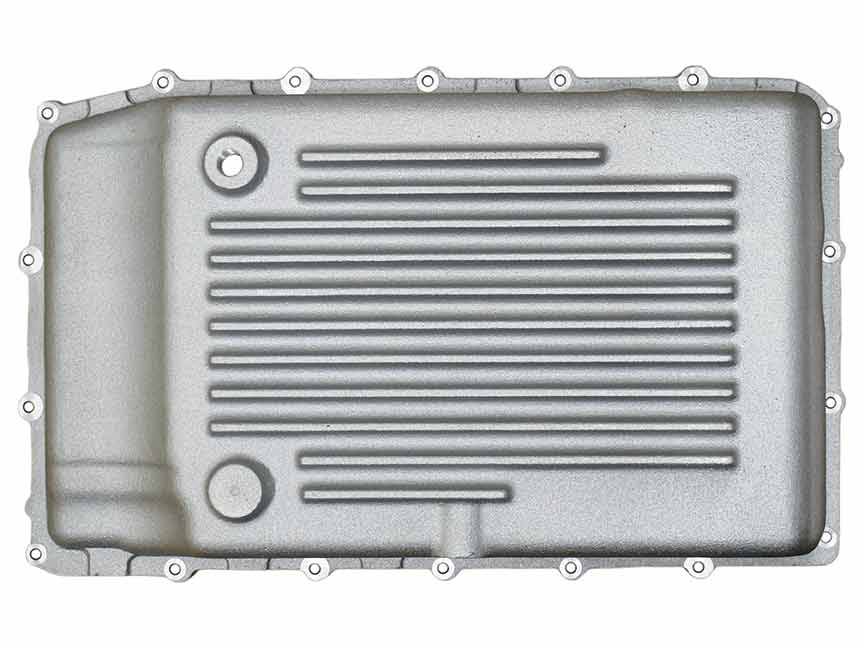

• Finned to increase surface area for heat dissipation
• Thick walls and gasket flange
• PML pan fits without modification to cooling tubes or exhaust
• Includes custom PML cork type gasket

Always check your vehicle to verify transmission and clearances.

This is a partial list of vehicles that may have a 10R60, 10R80 transmission and may be able to use this pan:

• 2020 and newer Bronco
• 2018 and newer Expedition
• 2020 and newer Explorer (may have 10R60)
• 2017 and newer F–150
• 2018 and newer Mustang
• 2017 and newer Ranger, 2019 and newer in US
• 2017 and newer Raptor
• 2020 and newer Police Interceptors
• 2020 and newer Transit Vans
• 2018 and newer Lincoln Navigator
• 2020 and newer Lincoln Aviator
• 2023 and newer F-250 6.8L gas engine trucks with the 10R100

Always check your vehicle before ordering. Configurations vary and PML cannot guarantee fitment.

Installation Notes

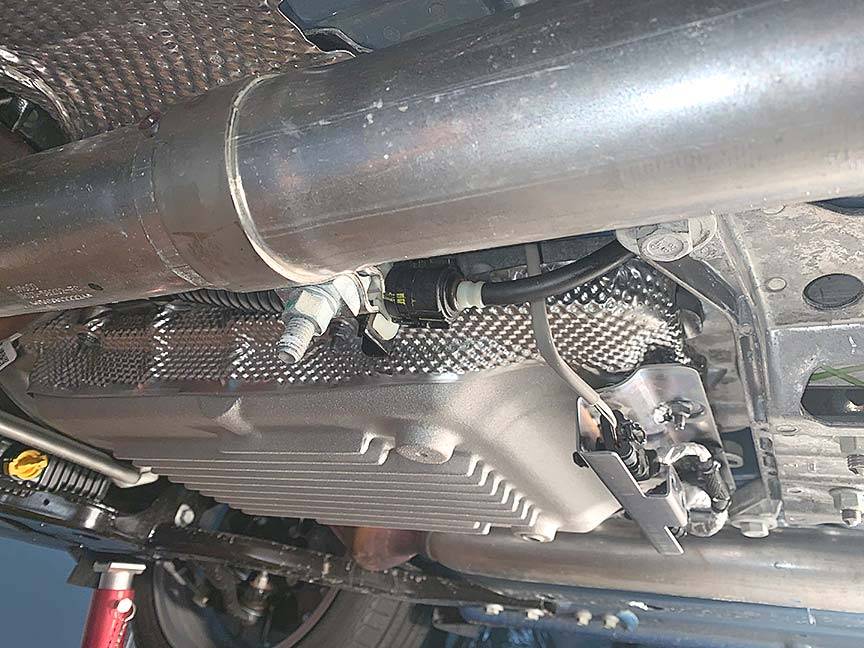

• Access to the stock pan may be difficult. On some vehicles, cooling tubes, exhaust pipes, frame cross members and skid plates must be removed or loosened and lowered. Video of an installation of PML deep pan: https://youtu.be/llKEEhhZ1tg
• Thin, metal heat shielding around the edges of the stock pan may need to be trimmed or removed to fit on the PML pan.
• Flange does not have holes on the side for blanket that wraps around transmission (blanket may only be on 2017 models).
• PML pan may not work with factory skid plates without spacers.

Drain, Optional Temperature Sensor Machining

PML pan has a drain hole and includes a magnetic drain plug.

Optionally, this pan can be drilled and tapped for a 1/8 NPT hole on the driver/left.

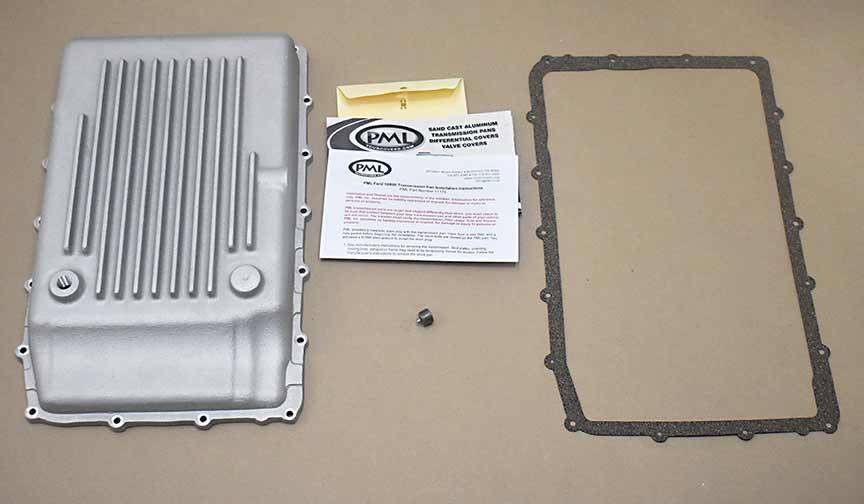

Included with PML Pan

This PML pan ships with a custom PML cork type gasket and a magnetic drain plug and installation instructions.

PML recommends a cork type gasket with our transmission pans but the OEM gasket may also be used.

Stock Pan, Transmission, Filter and Dipstick

PML designed our transmission pan to work with the stock transmission, filter, gasket, dipstick and level check/fill procedure. PML allowed for the cooling lines, plates, exhaust and frame near the pan.

Ford 10R80 transmission, filter on transmission with stock transmission pan and gasket, stock transmission pan.

On some vehicles, there is heat shielding insulation around the stock pan and undercarriage protection. There are also cooling tubes and exhaust pipes that must be moved to access the stock pan.

Ford and GM jointly developed a 10 speed transmission. Both Ford and GM will be using this transmission beginning with 2017 models. Ford calls it a 10R80 and GM calls it a 10L80. The pans are not the same.

Ford and GM are also planning beefier 10 speed transmissions, the Ford 10R140 and the GM 10L90.
