11085-AC | PML Cover Ford 6R140 Deep Transmission Pan For Ford F-250, F-350, F-450, F-550 Super Duty | Natural As-Cast Finish

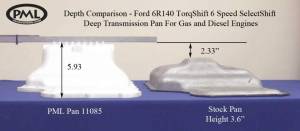

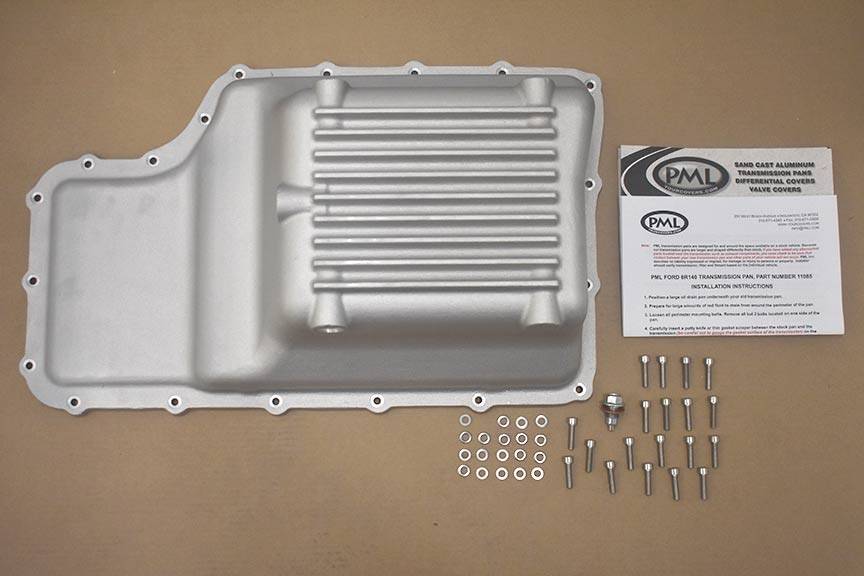

For 2011 to 2020 models of Ford Super Duty F250, F350, F450 and F550 trucks. Pan includes magnetic drain plug and mounting hardware.

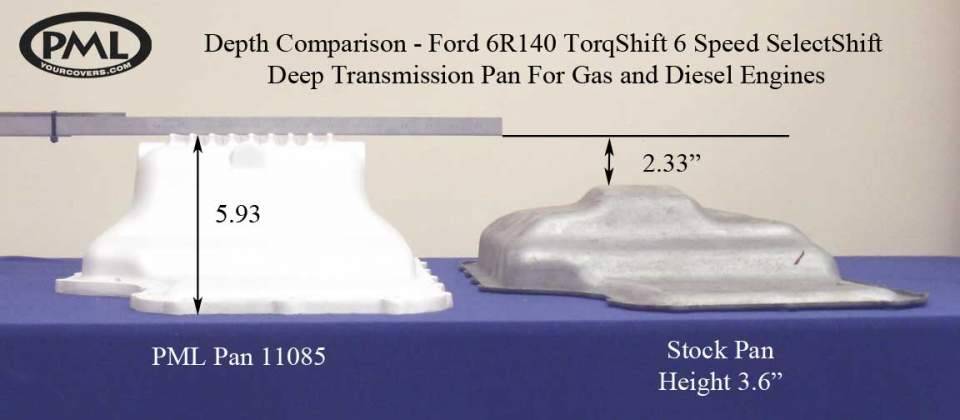

Volume:

approximately 3.4 quarts over stock

Number of Bolts:

19

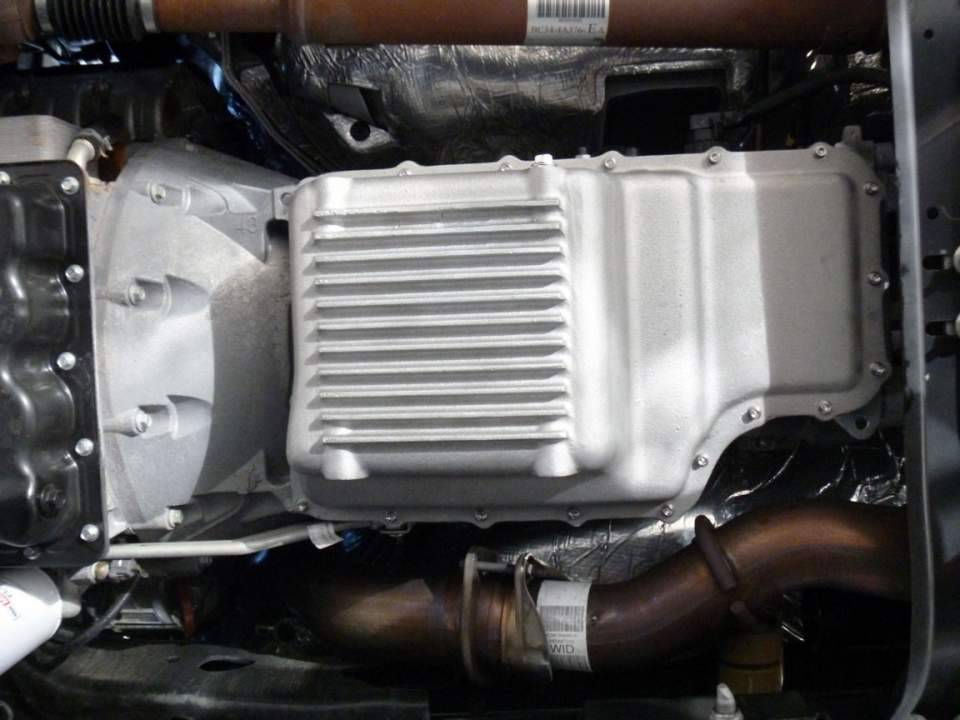

PML designed this 6R140 pan for 2011 and newer Ford Super Duty trucks with the Power Stroke Diesel or 6.2L gas engine.

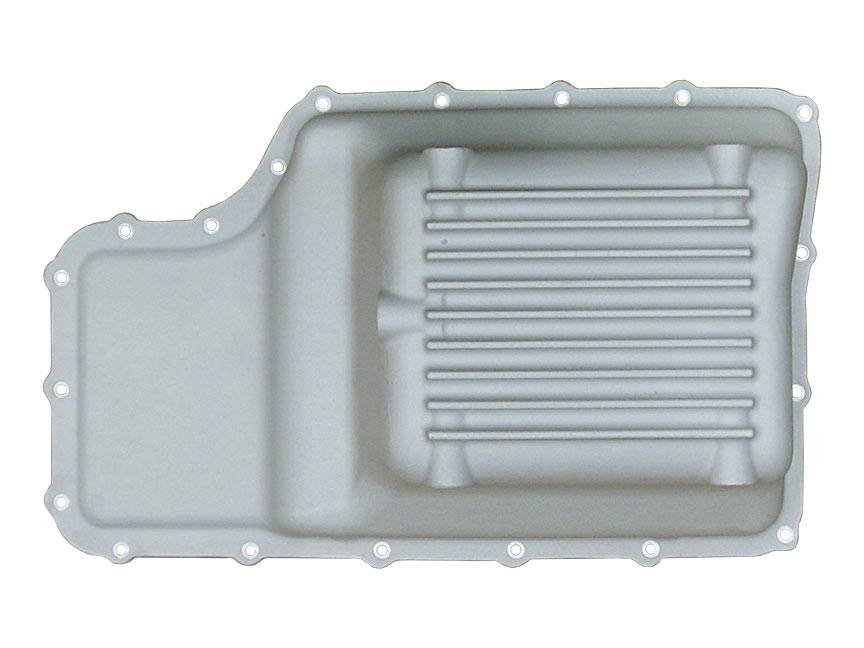

Benefits:

• Cooling — extra capacity, fins, and aluminum construction for reported temperature drops of 10 to 35 degrees
• Clearance — medium height maintains clearance, fins only on bottom
• Drain plug — on the side for safety
• Secure seal — machined flat gasket flange
• Strength — high quality, thick walls
• 1/8-27 NPT temperature sender port and plug

Typical trucks that this heavy duty transmission pan may fit are:

• 2011 to 2016 and some newer F–250 Super Duty trucks with 6.2L gas (2017 to 2019 models: see also PML part number 11089, 6R80, 6R100 transmission pan)
• 2011 to 2020 F–250 Super Duty trucks with 6.7L diesel
• 2011 to 2020 F–350 Super Duty trucks with 6.2L gas or 6.7L diesel
• 2011 to 2020 F–450 Super Duty trucks with 6.2L gas or 6.7L diesel
• 2011 to 2020 F–550 Super Duty trucks with 6.2L gas or 6.7L diesel
• Some vehicles with Ford 6.8 V10 and 6R140, such as Blue Bird school buses

Always check your vehicle to verify transmission and clearance since configurations vary.

2020 models may have a 10 speed transmission.

Inside of Pan

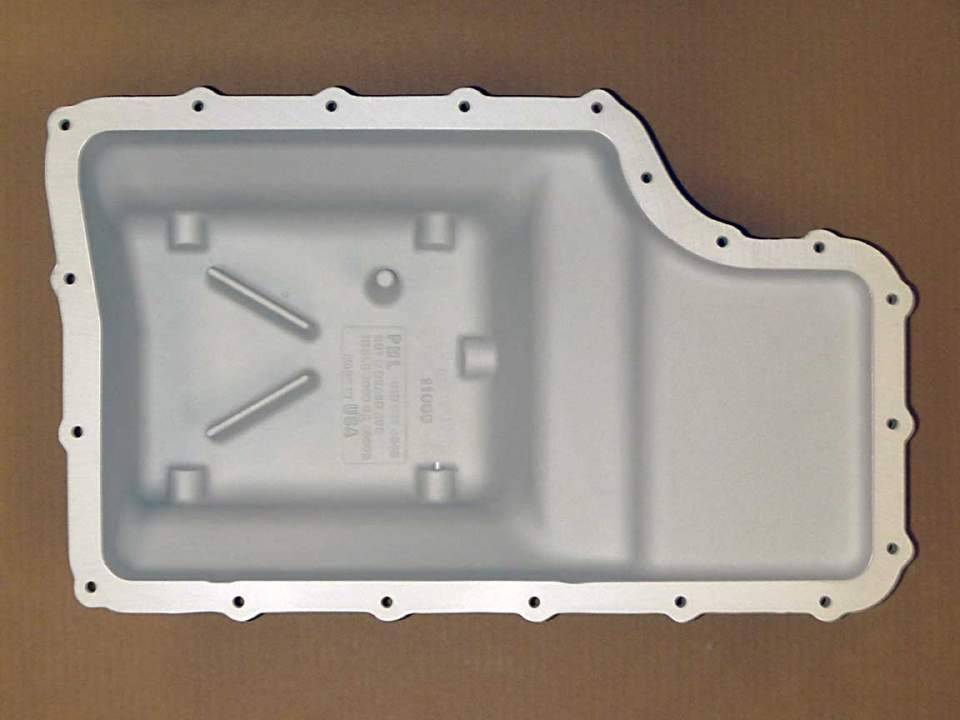

PML put baffles and a post on the bottom to direct transmission fluid and support the filter. The baffles also reduce sloshing and act as a heat sink.

The filter support keeps the stock filter securely in place. The fluid level and the filter location are the same with the PML pan as with the stock pan so the dynamics of the transmission fluid pick up do not change.

Filter and Gasket Information for PML 6R140 Transmission Pan

This PML pan works with the stock OEM gasket and filter. There is a filter support cast into the pan to hold the filter in place. With the PML pan, the fluid level and the filter pick up are at the same place as with the stock pan. No extension is needed.

This PML pan works with the stock gasket. A cork composite gasket also works well with this PML pan.

Drain for PML 6R140 Transmission Pan

PML placed the drain hole on the driver/left side, near the middle of the pan. The side location is safer than the bottom since there is less chance for damage than on the bottom. There is still easy access for maintenance. A magnetic drain plug is included.

Optional Machining For Temperature Sending Unit

Optionally, this pan can be machined for a temperature sending unit. The standard size is 1/8 NPT.

PML designed four locations that optionally can be drilled and tapped for a temperature sending unit:

• Rear of pan
• Driver/left side of pan toward the front of the pan
• Passenger/right side of the pan, toward the front of the pan
• Passenger/right side of the pan, toward the rear of the pan
