11139-AC | PML Cover Aisin AS68RC Deep Transmission Pan For Dodge Ram 3500 HD/4500 HD/5500 HD Diesel | Natural As-Cast Finish

For 2007 to 2012 Ram 3500HD, 4500HD, 5500HD Chassis Cab diesels. Pan includes magnetic drain plug and mounting hardware.

Volume:

3 to 4 quarts over stock, approximately

Dimensions:

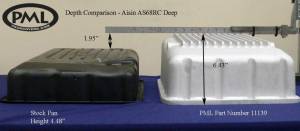

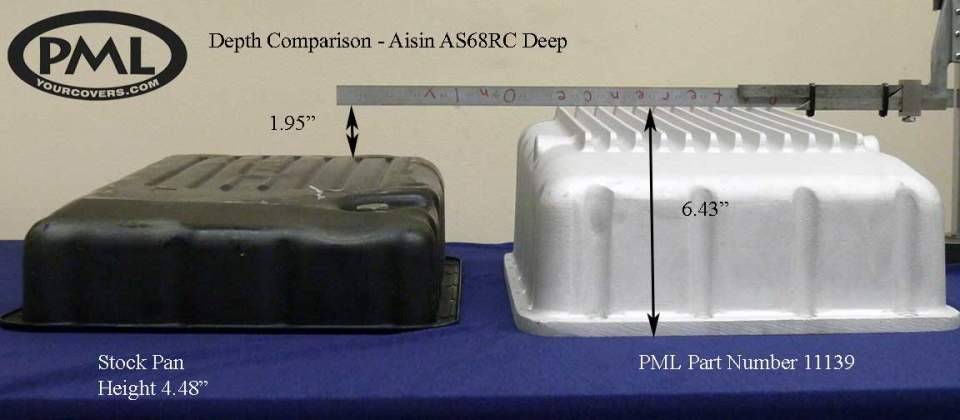

This pan is about 6½ inches deep.

Number of Bolts:

18

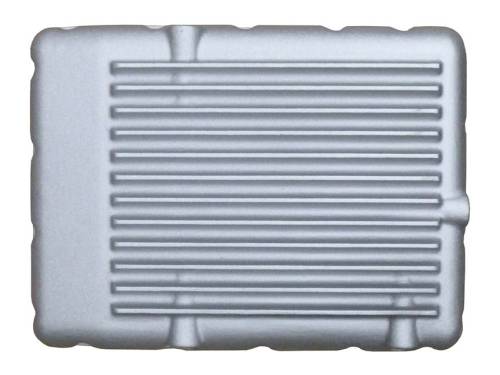

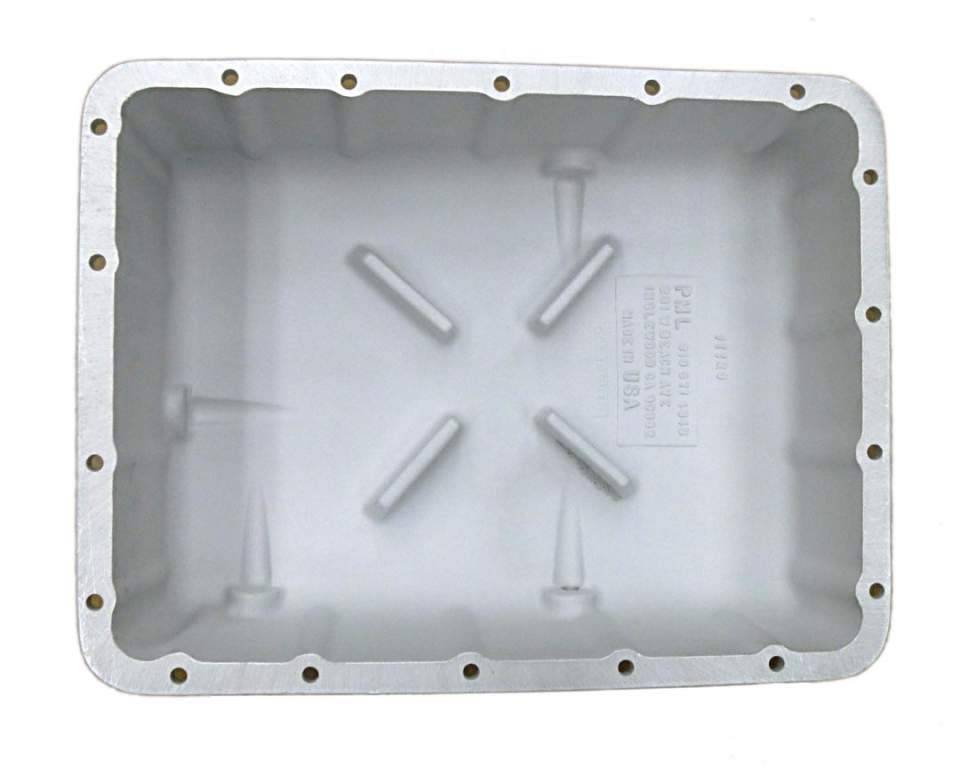

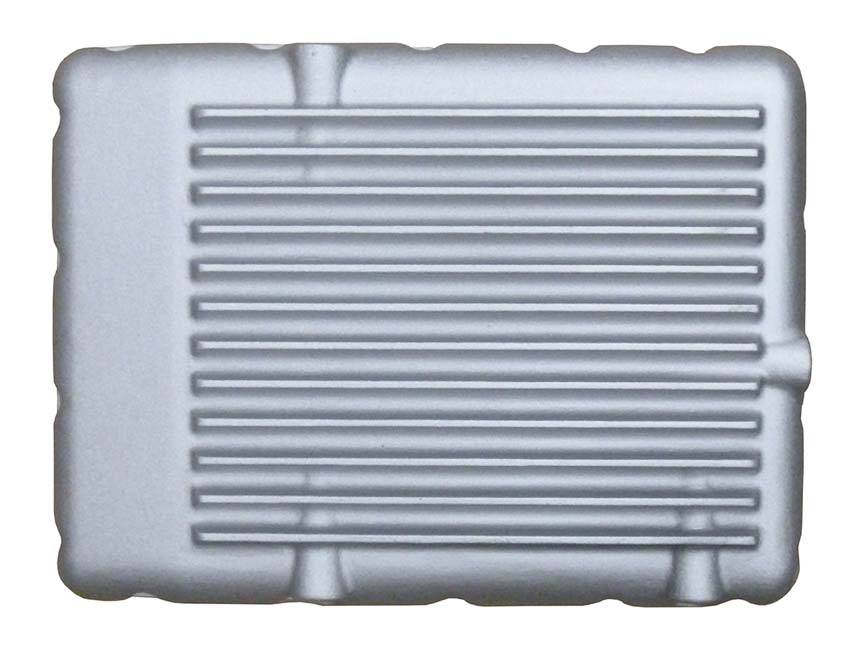

PML designed this Aisin AS68RC transmission pan for heavy duty diesel cab and chassis trucks with the 6 speed Aisin transmission.

Benefits:

• Cooling — extra fluid capacity, fins, and aluminum construction for cooler fluid temperatures
• Drain hole and magnetic drain plug — on the side for safety
• Secure seal — machined flat gasket flange for a leak free seal
• Strength — high quality, thick walls
• Works with stock gasket and filter
• Includes new mounting bolts and magnetic drain plug

Configurations vary so always check to verify transmission and clearance.

• 2007 to 2012 Dodge Ram 3500HD Chassis Cab with the 6.7 Diesel
• 2007 to 2012 Dodge Ram 4500HD Chassis Cab with the 6.7 Diesel
• 2007 to 2012 Dodge Ram 5500HD Chassis Cab with the 6.7 Diesel
• 2007 to 2009 Sterling Bullet

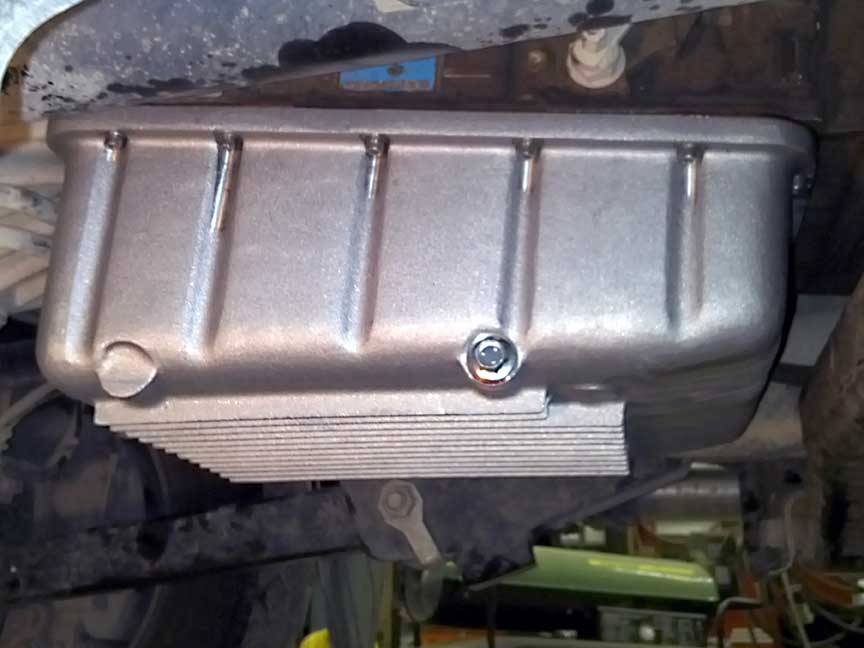

Drain for PML AS68RC Transmission Pan

A magnetic drain plug is included with the pan and all the mounting bolts. The side location is safer than the bottom since there is less chance for damage than on the bottom. There is still easy access for maintenance.

Machining for Temperature Sending Unit

his pan has three locations that can be machined for a temperature sending unit:

• Driver/left side near the front
• Passenger/right side near the rear
• Front

These locations are circular bosses that are thicker areas on the casting and are designed to be drilled and tapped.

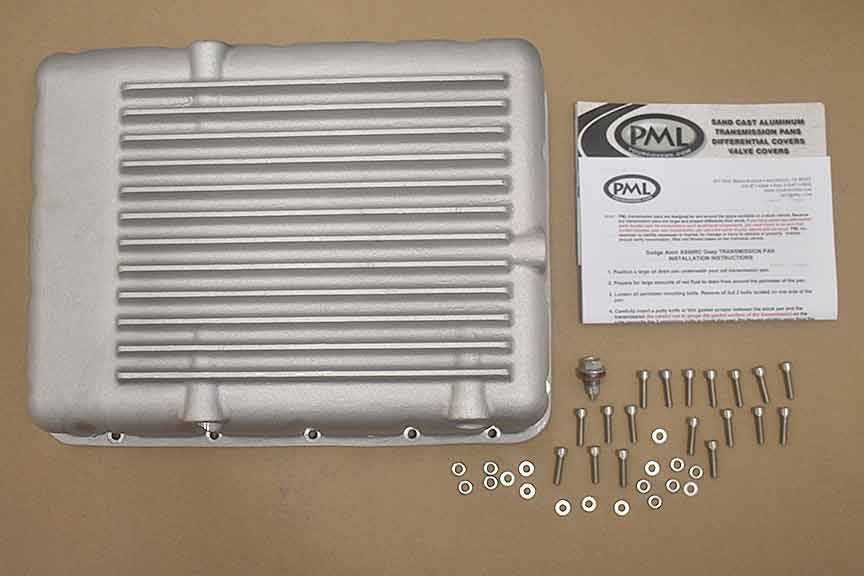

Included with PML Transmission Pan

PML includes a magentic drain plug and new mounting bolts with each pan.
