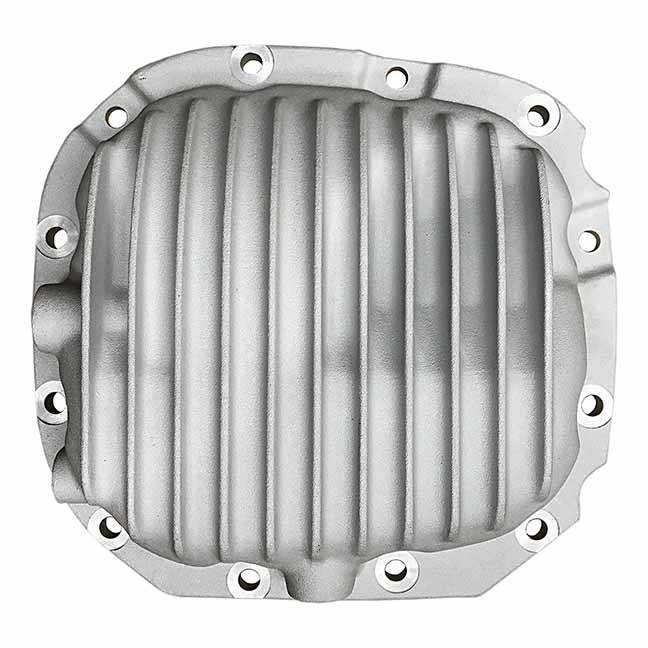

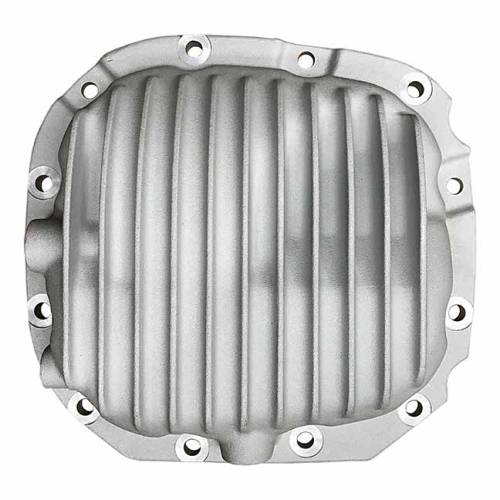

11145-AC | PML Covers Ford 8.8 Super 12 Bolt Differential Cover For Ford F-150 | Natural As-Cast Finish

For Ford 2015 and newer trucks withe the Super 8.8 rear differential. Cover includes magnetic drain plug and mounting hardware.re.

Volume:

About 0.75 quarts over stock

Number of Bolts:

12

PML designed this cover for 2015 and newer Ford F-150 trucks with the new Ford 8.8 inch Super or HD; rear differential.

Some Mustangs and other Ford or Mercury vehicles may also have this new differential and be able to use this cover.

Benefits:

• Bolt on replacement for stock cover

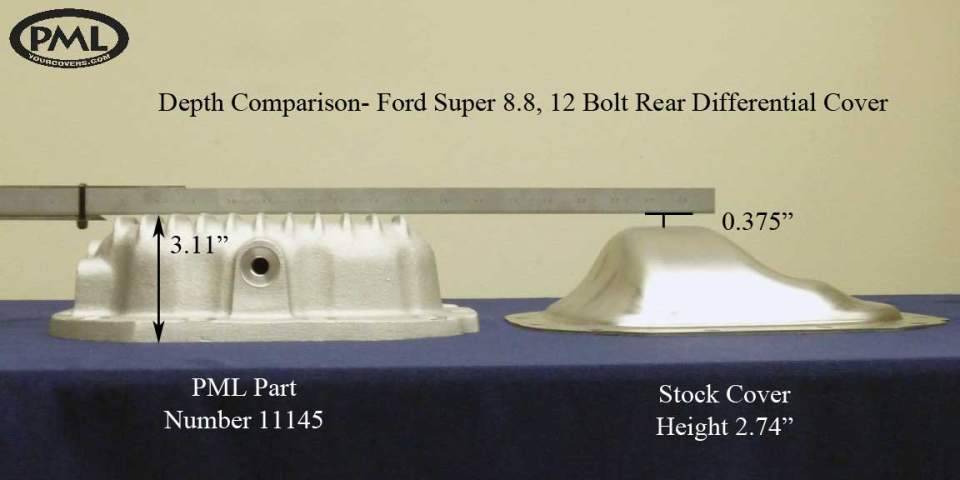

• Additional 3/4 quart capacity over stock
• Fins for dissipating heat
• Pads for using stock clips to keep lines routed above differential in place
• Drain hole and a magnetic drain plug included for easy servicing
• Fill hole on side
• Heavy duty sand cast aluminum construction
• Hardware included
• Can be drilled and tapped for a temperature sensor (optional)

2015 and newer Ford F150

Always check your vehicle to verify your differential and clearance. Configurations vary.

Some Mustangs and other Ford or Mercury vehicles may also have this new differential and be able to use this cover.

Some F-150 trucks have the larger Ford 9.75 (9 3/4) inch ring gear rear differential, which also has 12 bolts, but a different shape.

• 2018 Ford F-150
• 2017 Ford F-150 V8
• 2017 Ford F-150
• 2016 Ford F-150
• 2016 Ford F-150 XLT
• 2015 Ford F-150
• 2015 Ford F-150 2.7
• 2015 Ford F-150 EcoBoost
• 2015 Ford F-150 XLT

Fill and Level Check

Level check is on the carrier. To fill, add fluid through fill hole on the side of the cover. Stop adding once fluid starts to dribble out level check hole.

Optional Machining for Temperature Sending Unit

This cover has a location for a temperature sensor on the right side of the cover. Optionally, it can be machined for a 1/8 NPT. There is a machining charge for PML to drill and tap the hole.

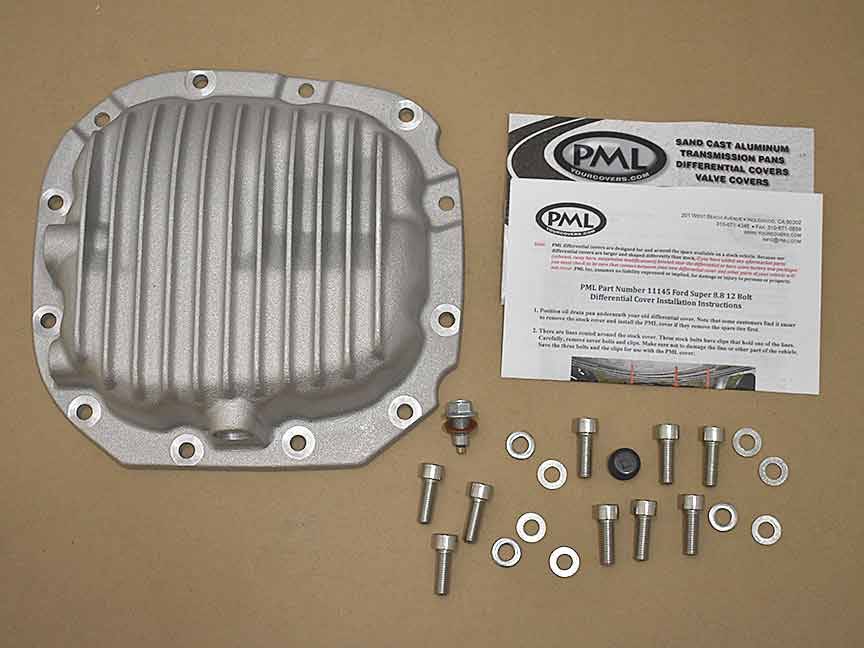

Included with PML Differential Cover

PML includes a magnetic drain plug, new mounting bolts and a fill plug with the cover.
