11529578 | Wilwood Complete DynaPro / D8-4 Brake System - Black Calipers (1963-1982 Corvette with Tru Turn System | Pin Spindle)

Wilwood Complete DynaPro / D8-4 Brake System | 1963-1982 Corvette with TruTurn System (Pin Spindle)

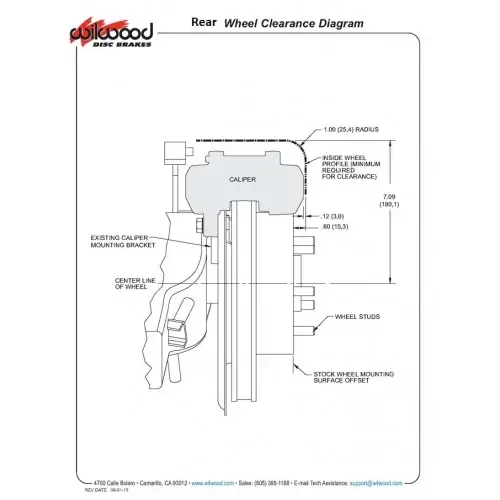

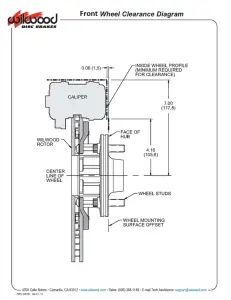

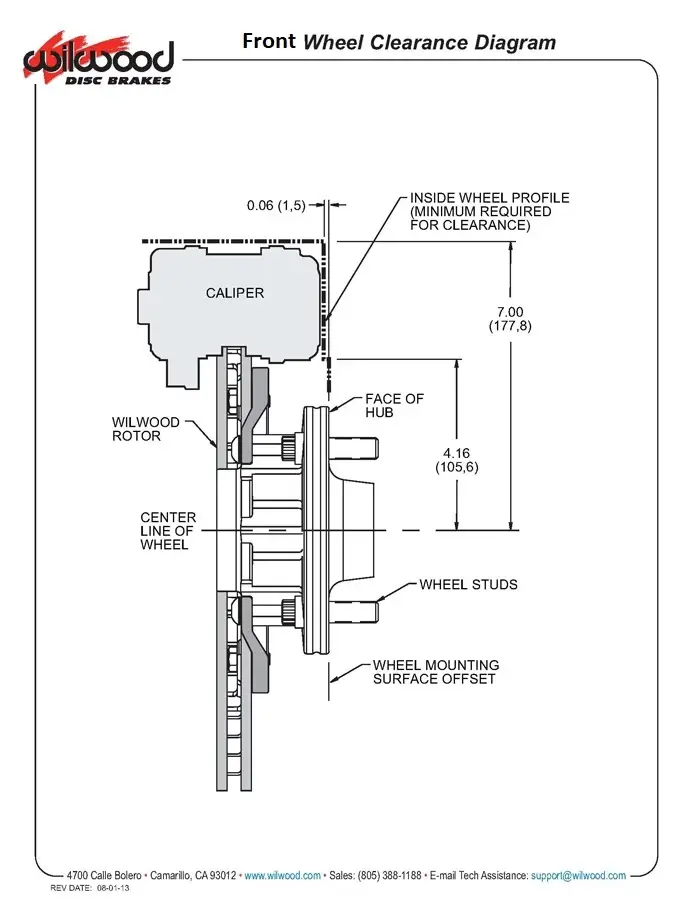

Wilwood Complete Brake System for 1963-1979 Corvette.  For use with Ridetech Coilover Suspension kit with the Ridetech AFX Pin spindle in the front and stock rear spindle/bearing support.  Compatible with stock parking brakes.  Fits 15″ or larger wheels (verify wheel fitment with template).

*** Front brake kit is not compatible with stock spindles ***

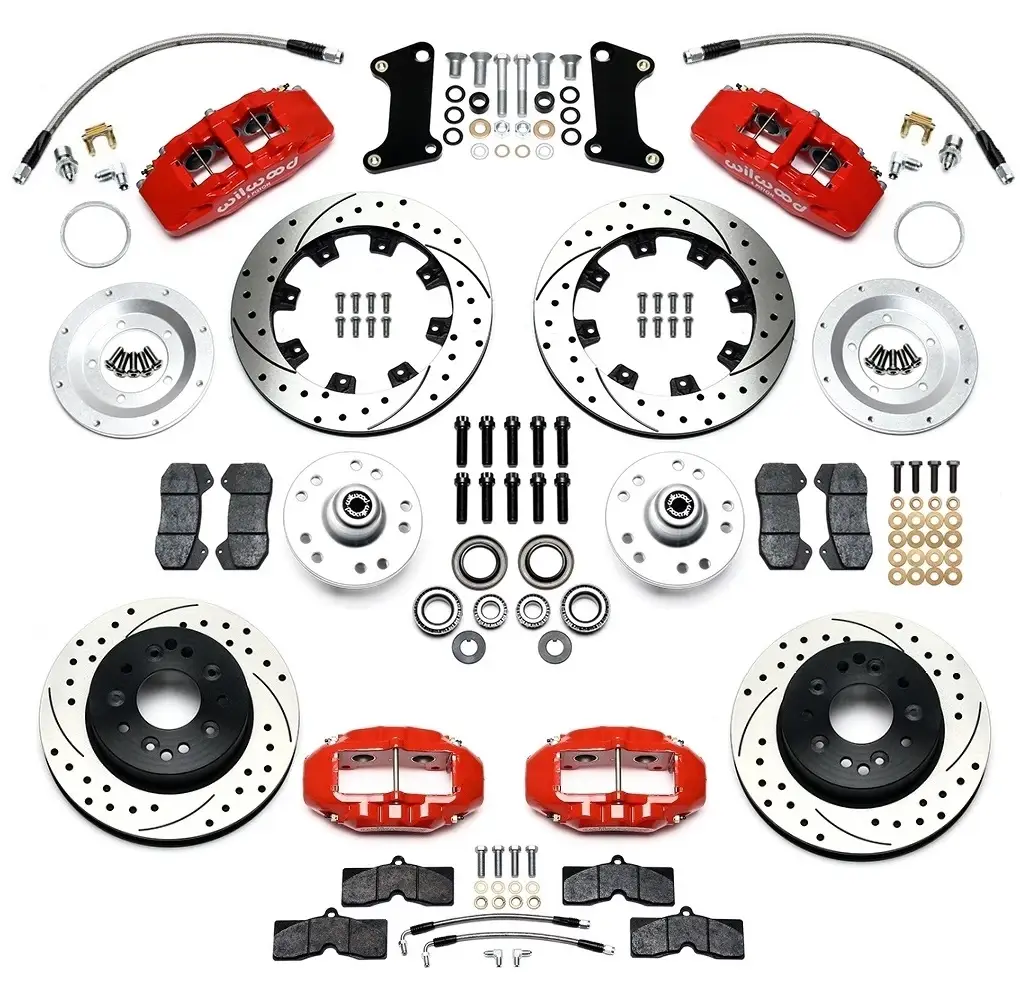

Includes:

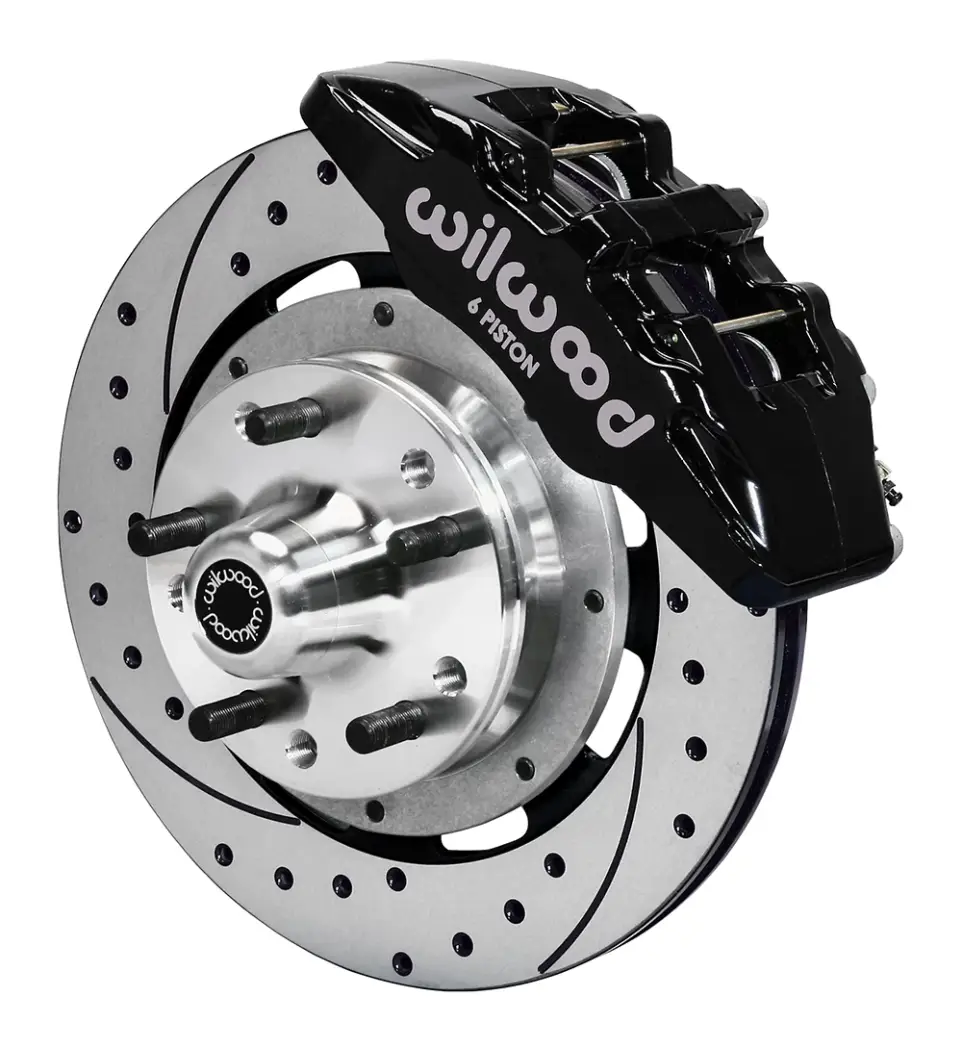

• Front Dynapro 6 Piston Calipers (Red or Black)
• Front 12.19″ Rotors, Drilled and Slotted

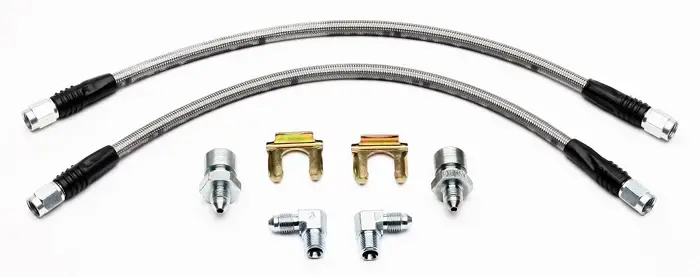

• Front -3 Stainless Steel Braided Lines with fittings

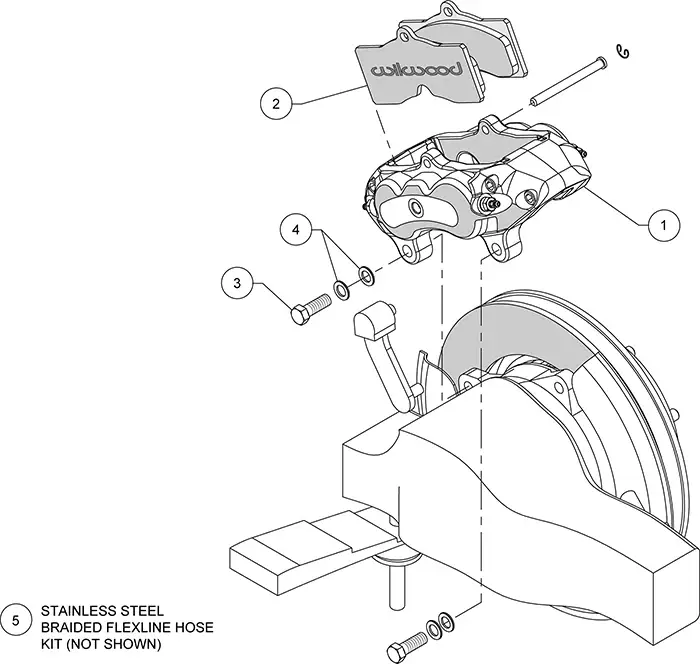

• Rear “D8-4” 4 piston Calipers (Red or Black)
• Rear -3 Stainless Steel Braided Lines with fittings

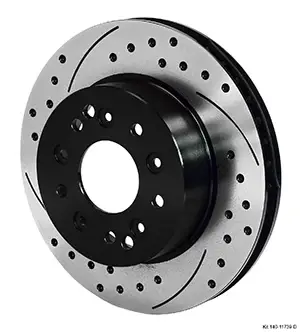

• Rear 11.75″ Promatrix Rotors

1963 & 1964 Corvettes equipped with factory rear drum brakes will require a 1965-1982 disc brake caliper brackets (Part # 11529559) & 1965-1982 parking brake assembly (if desired).

When converting from drum brakes to disc brakes a new Master Cylinder is required.  The Wilwood Tandem Aluminum Master Cylinder is great looking all-in-one solution.   They are available in 3 finishes; Bare, Black E-Coat and Media Burnished.  Bore size selection is important to create the desired pedal feel, we have found the information below to be a good rule of thumb.

• 11″-12″ rotors with Manual Brakes – 15/16″ Bore
• 11″-12″ rotors with Power Brakes – 1″ Bore
• 13-14″ rotors with Manual Brakes – 7/8″ Bore
• 13-14″ rotors with Power Brakes – 1″ Bore
