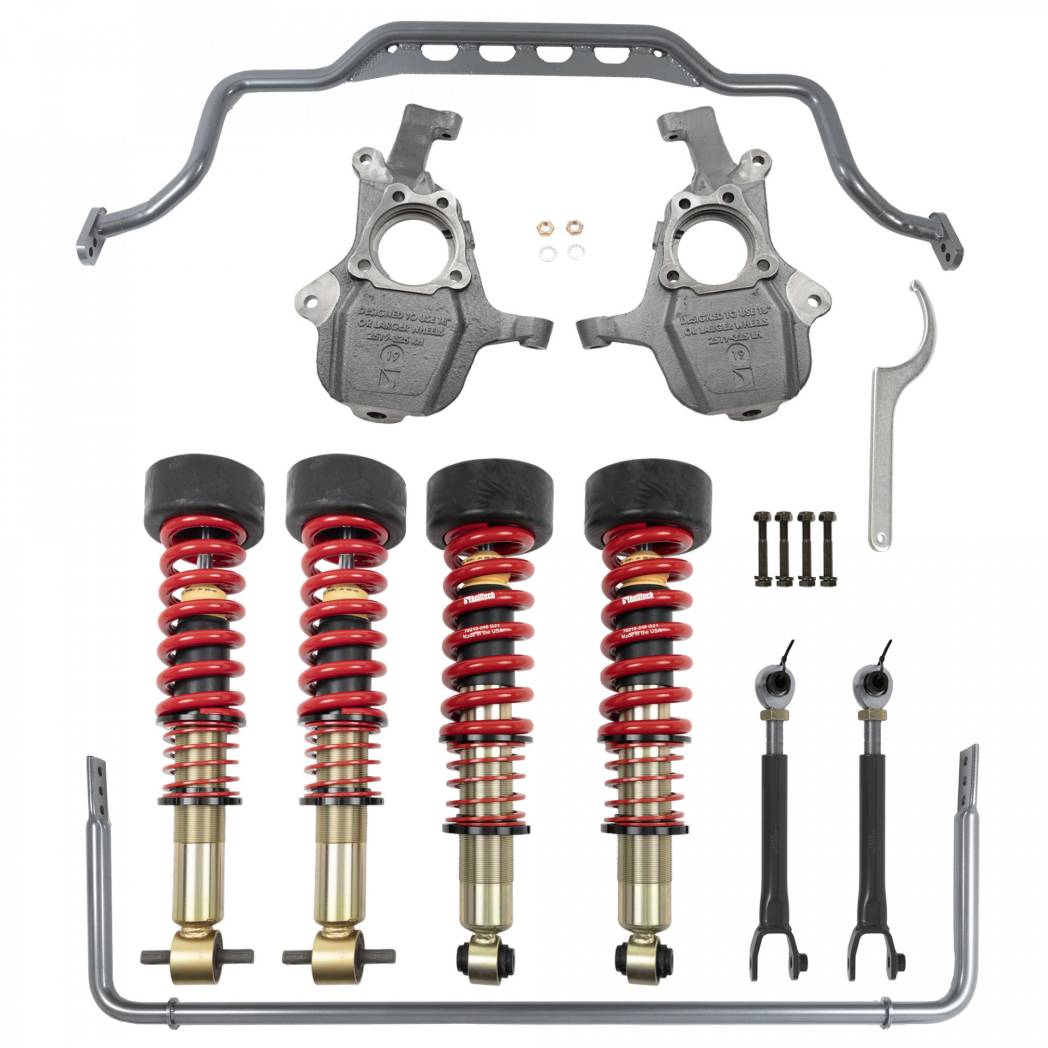

1034HK | Belltech 2 to 3.5 Inch Front / 1 to 4.5 Inch Rear Complete Lowering Kit with Street Performance Coilovers & Sway Bars (2021-2024 Suburban, Yukon XL 2WD/4WD)

Combining our newly released height adjustable front coilovers with our time-tested lowering components equal the optimum in sporttruck handling all in one convenient package. Kits will contain (depending on application), a combination of height adjustable coilovers, shock absorbers, sway bars and lowering components to give you a vast improvement over oem in overall performance and handling all while still retaining that comfortable ride quality.

Part Number: 1034HK
2021+ GM Suburban / Yukon XL 2WD/4WD
-2.5” to -3.5” Front and -1” to -4.5” Rear

Discover the next level of performance with the new line of Belltech 2021+ GM SUV lowering kits. Our kit lowers the front of your vehicle -2.5” to -3.5” and -1” to -4.5” at the rear to set the perfect stance and a lower center of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of.

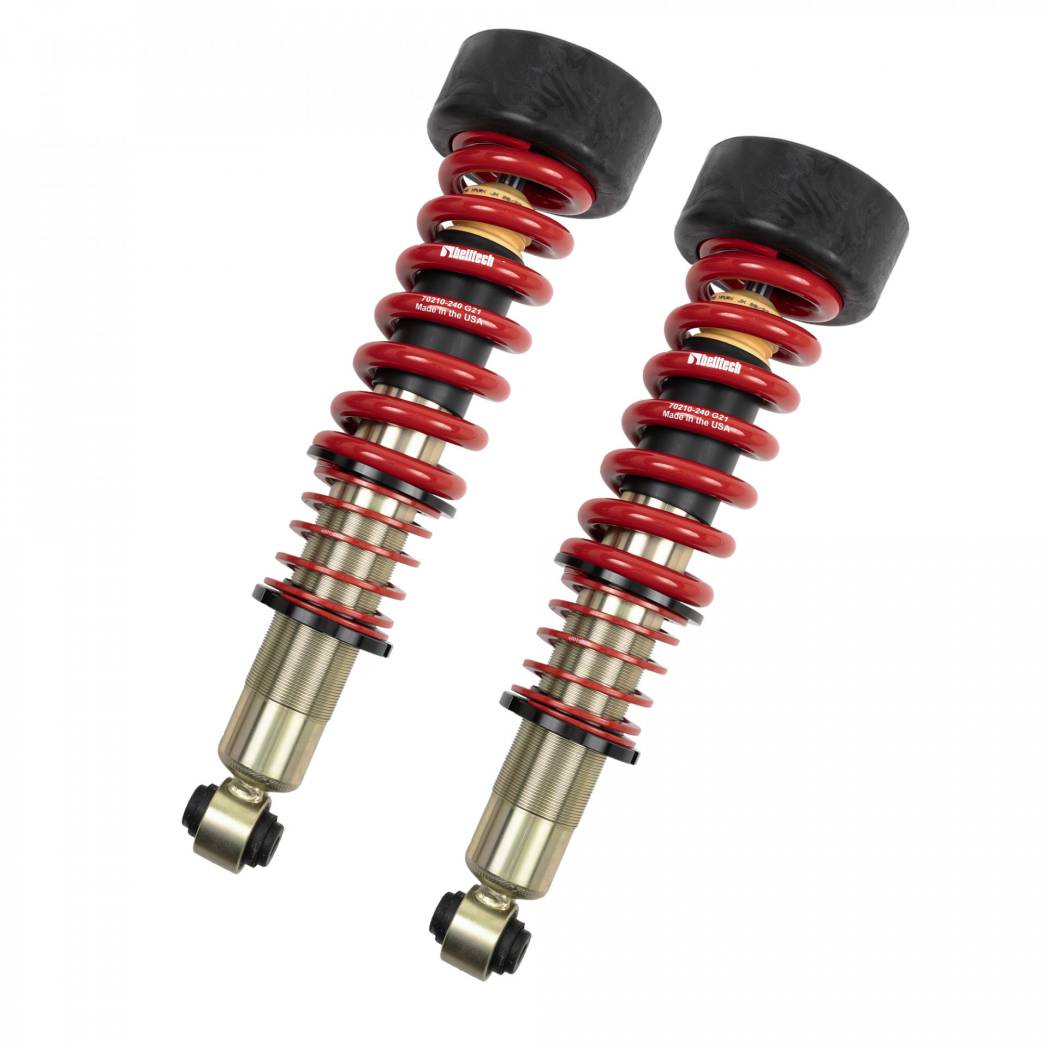

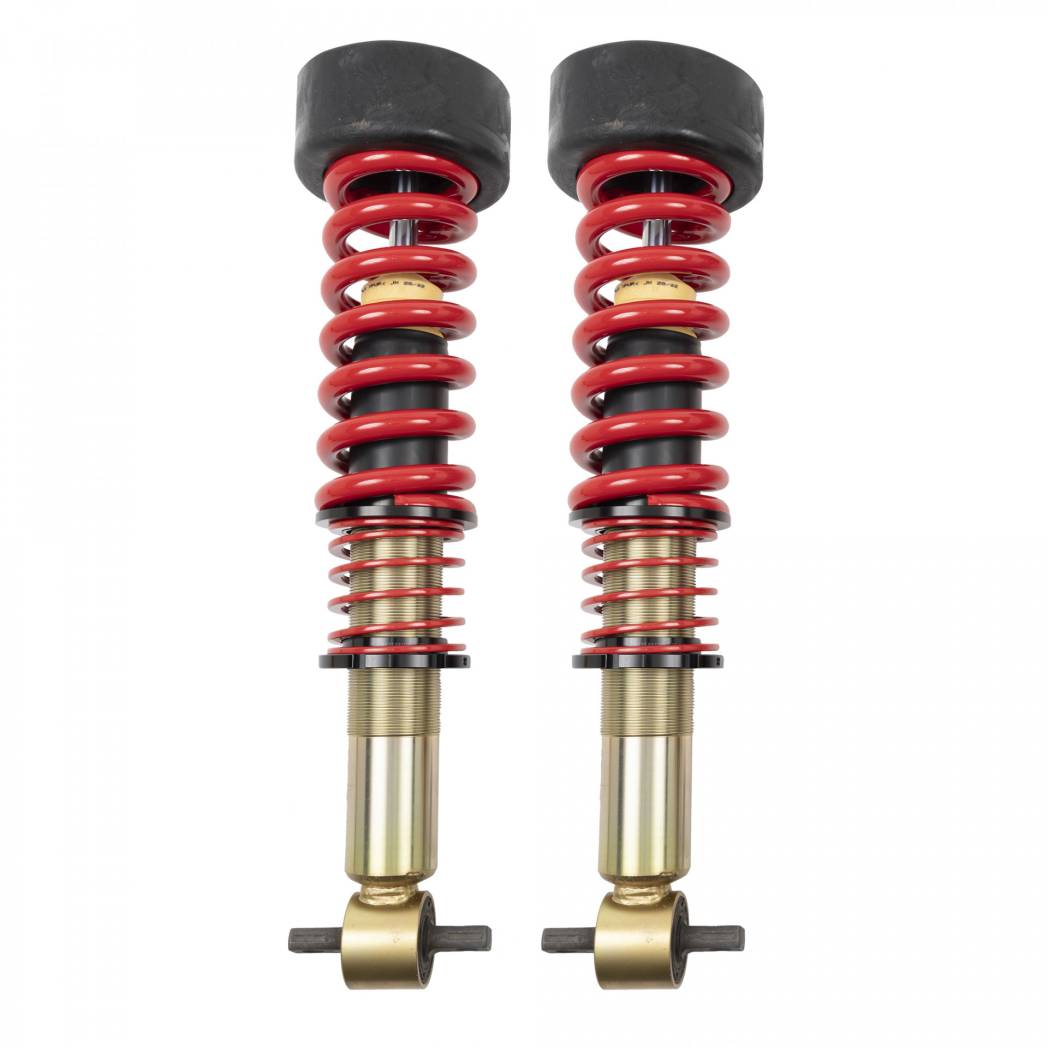

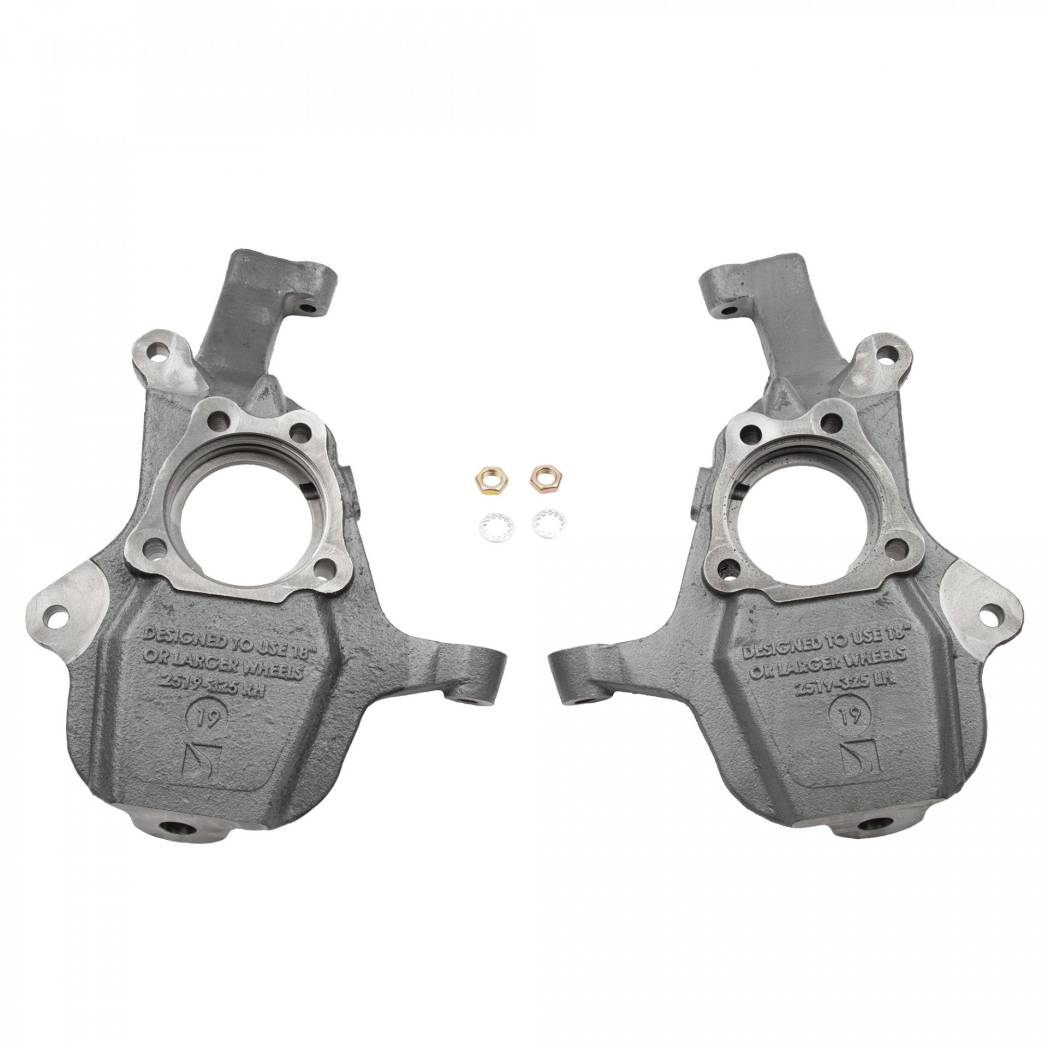

The front and rear suspension includes our robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper that features a large, 2.4” (60mm) damper body and 35mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customizable height adjustability. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell, bump stop for ideal bump stop engagement, and the OE top mounts for simplified installation. We include spindles to complete the front end lowering by bringing your wheels’ mounting position up higher and settling your vehicle closer to the ground.

Lateral control is enhanced with a 1-3/8” diameter solid front sway bar and 1-1/4” diameter solid rear sway bar that are made of cold-formed steel and powder coated for longevity. The front bar feature 2 settings of adjustability and the rear has 3 settings to meet your specific performance needs.

For the rear suspension we showcase a Belltech rear angle correction control arm kit designed to correct negative camber, return proper ball joint angles, prevent unwanted pulling, and reduce tire wear, which in the long term, is truly pertinent. Engineered specifically for the 2021+ GM SUV, the control arms are easy to install and built to last due to their solid steel construction. We finish with a high-quality powder coat to increase their longevity, Belltech control arms are immensely durable. The result is a smoother, safer ride with improved handling.

Belltech’s 2021+ GM SUV complete lowering kit brings out the best in your ride with eye-catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.

Customizable front lowering options of -2.5” to -3.5”
Customizable rear lowering options of -1” to -4.5”
Large bodied 2.4” (60mm) preset Street Performance dampers
35mm independent rebound and compression valves
Cold-formed steel springs
Adjustable length control arms for angle correction
Robust drop spindles
Replaces your OE bars to improve handling
Reduces body-roll and aids in towing
Lowers center of gravity
Easy to install
Engineered to exemplify ride quality and performance
IMPORTANT NOTES: This Belltech Lowering Kit does NOT fit Models with ARC or Magnetic Ride Shocks.
