447561 | Baja Designs S8 30 Inch Upper Grille LED Light Bar Kit For Ford F-150 Raptor | 2017-2020

S8 30 Inch Upper Grille LED Light Bar Kit For Ford F-150 Raptor | 2017-2020

447561
Pricing: $1,466.38
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Baja Designs’ Ford Raptor 30-inch S8 grille kit was designed with both functionality and visual appeal in mind. The 30-inch S8 bar emits 19,050 brilliant lumens via 24 Cree LEDs. All with a low amp draw to put less strain on your battery. A clean aluminum frame with scalloped housing, machined aluminum bezel, and stainless steel hardware protects the circuity from water or debris. The LEDs last nearly 50,000 hours while being fully waterproof and exceeding mil-spec testing for reliability.

This kit comes with brackets and hardware that to bolt to your factory mounts without drilling or cutting. Please note that this kit includes a 30-inch S8 in a driving combo beam pattern and the brackets will not accept any other light. The included harness allows you to easily tap your lights into the factory up-fitter switches.

  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

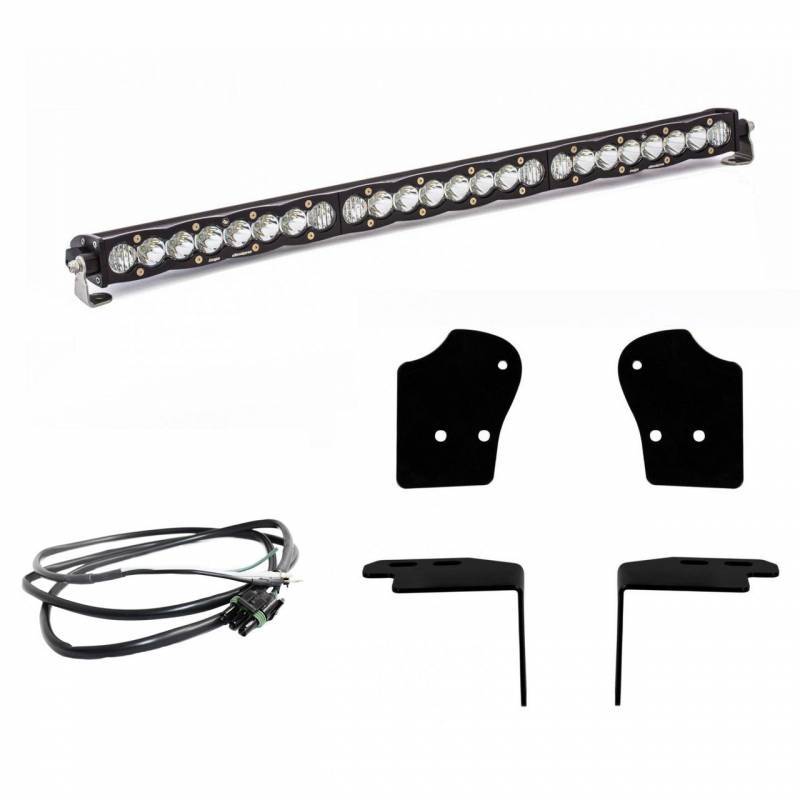

INCLUDED WITH KIT:

SKU: 703003

Dimensions

Depth (in.) 3
Height (in.) 1.6
Length (in.) 30
Weight (lbs.) 6.5

Specifications

Amperage Rating (A) 12.0
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 19,050
Description Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam/Amber Backlit Feature
Lighting Quantity 24
Lighting Type Cree LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 30 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 180
Wiring Harness Included No

Standards & Compliance

Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

DISCLAIMER AND WARNING

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application List

Ford F-150 Raptor 2017-2020
