11142-AC | PML Cover Aisin AS69RC / A466ND Deep Transmission Pan For Ram 3500/4500/5500 Diesel | Natural As-Cast Finish

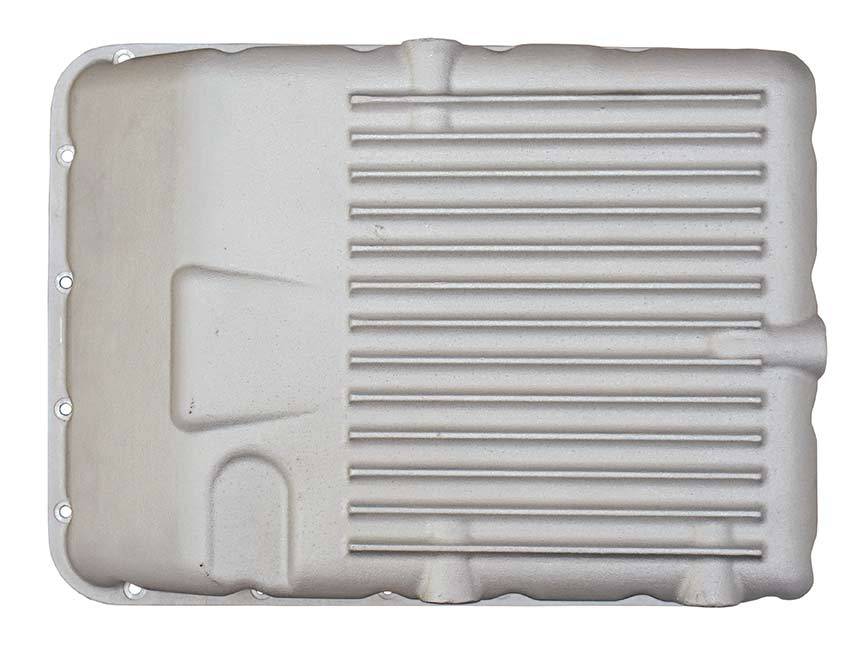

For high output diesel trucks from Ram and Nissan, such as Ram 3500, 4500 and Nissan Titan XD. Pan includes magnetic drain plug and mounting hardware.

Volume:

3 to 4 quarts over stock

Number of Bolts:

20

PML made this transmission pan for high output diesel trucks.

Benefits:

• Extra capacity
• Heavy duty construction
• Fins for heat disipation
• Drain hole and magnetic drain plug included
• Bolt on replacement — clears frame, cables cooling lines
• Baffled on the inside

PML designed this pan for the Aisin AS69RC transmission. This PML pan has also been installed on the related Aisin AS66RC and A466ND transmissions. Installer must verify that this pan is appropriate for the specific vehicle configuration.

This pan may also fit Ram Hemi engine trucks with the AS66RC. Check exhaust routing before ordering.

Installation Note: On some vehicles, there cross member towards the rear of the vehicle that makes the bolts on the back end of the transmission pan difficult to access. Although PML designed this pan to provide as much clearance as possible to those bolts, it might be necessarily to jack up the transfer case to remove the stock pan and and install the PML pan. Several customers have recommended using a 5mm ball socket for the three rear bolts under the cross member.

Possible applications:

• 2013 and newer Ram 3500, 4500, 5500 trucks with the 6.7 Cummins high output diesel
• 2015 and newer Ram Cab & Chassis with 6.4L Hemi (Aisin is an option, other transmissions possible), check for exhaust clearance
• 2016 and newer Titan XD, diesel engine

We have had an installation on a 2024 Ram 2500 diesel truck and the exhaust was NOT routed under the transmission pan and the PML pan fit great. See INSTALLATIONS section for pictures of this installation.

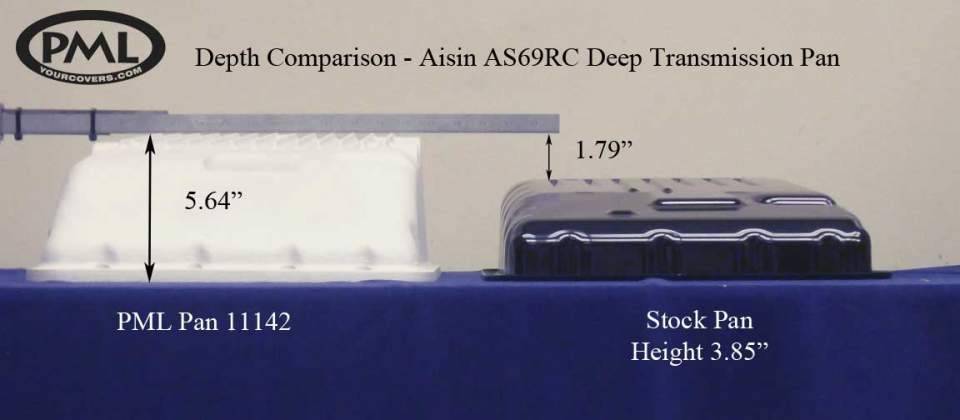

Always check your truck to verify your configuration and clearance. Check exhaust routing. This PML pan is 1.8 inches deeper than stock so look for about 2 inches between the bottom of the stock pan and the exhaust. The PML pan slants at the rear to clear the frame cross member. Configurations vary and there is a restocking fee for returned parts.

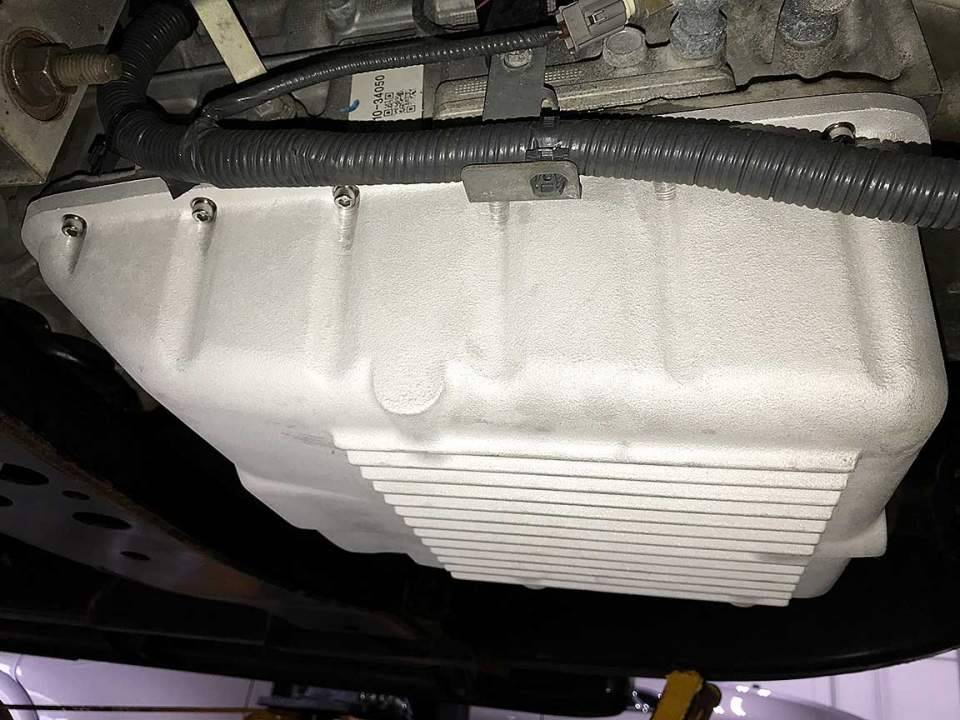

Titan Trucks: The 2016 to 2019 Nissan Titan XD diesel trucks have the Aisin A466ND transmission, which has the same stock pan and gasket and very similar filter. See pictures of an installlation of this pan on a Titan in the Installations section.

Ram Trucks with Gas Engines: Some Ram trucks have the exhaust routed under the rear of transmission pan. This may be specific to trucks with a gas engine. Check for clearance before ordering. The picture below is from a 2021 Ram 3500 4x4 Chassis Cab 6.4 Hemi AS66RC transmission. The exhaust crosses under the pan near the rear. We do not know if the PML pan fit this truck.

Gasket and Filter

This pan works with the OEM stock gasket and filter. These are not included with the pan.

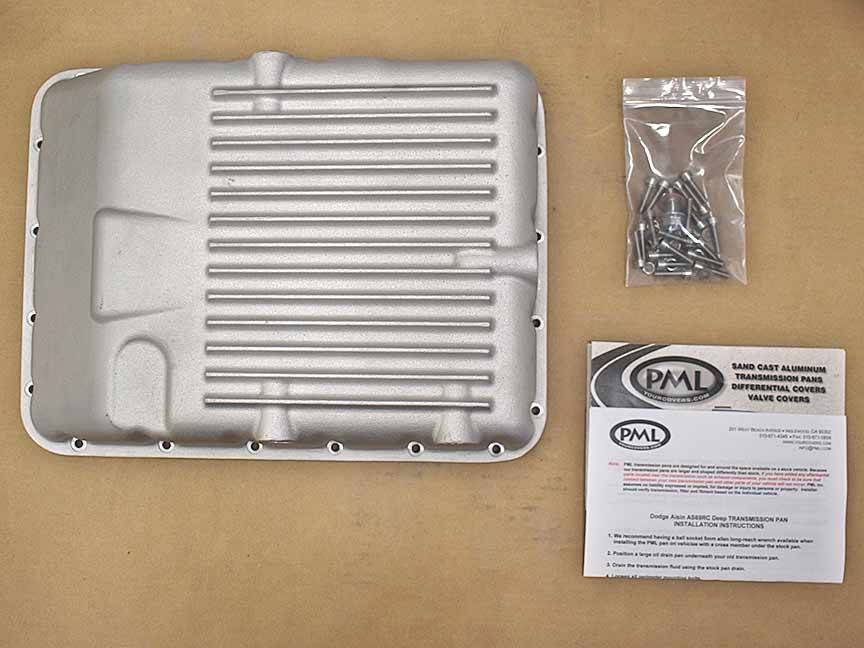

Included with PML AS69RC Pan

PML provides new mounting bolts and a magnetic drain plug with the pan.

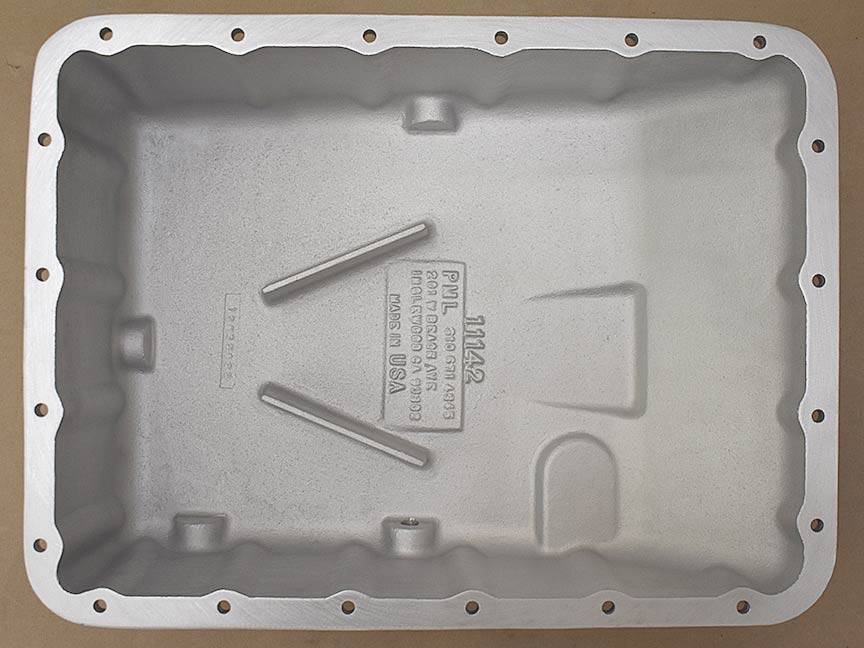

Baffles and Inside of PML Pan

The inside of the PML pan is baffled to help direct the fluid flow toward the filter pick up.

Drain

PML located the drain plug on the driver's side of the pan. On the side of the pan, the drain plug is less likely to get damaged.

Machining for Temperature Sending Unit

Optionally, this pan can be machined for a temperature sending unit.

This pan has three locations that can be machined for a temperature sending unit:

• Front of pan
• Driver's side of pan toward the front of the pan
• Passenger's side of the pan, toward the rear of the pan

These locations are circular bosses that are thicker areas on the casting and are designed to be drilled and tapped.
