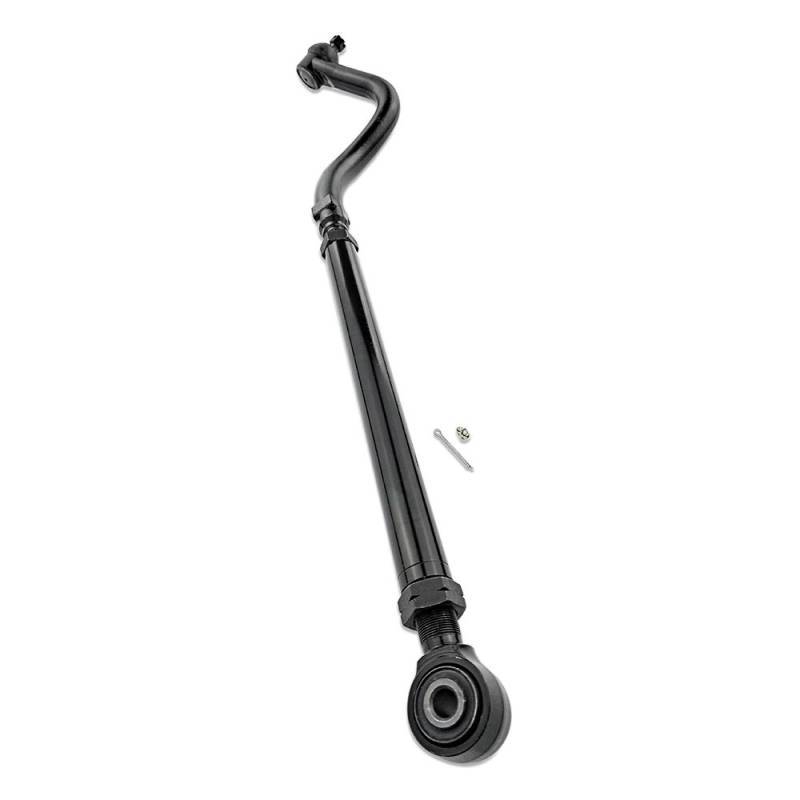

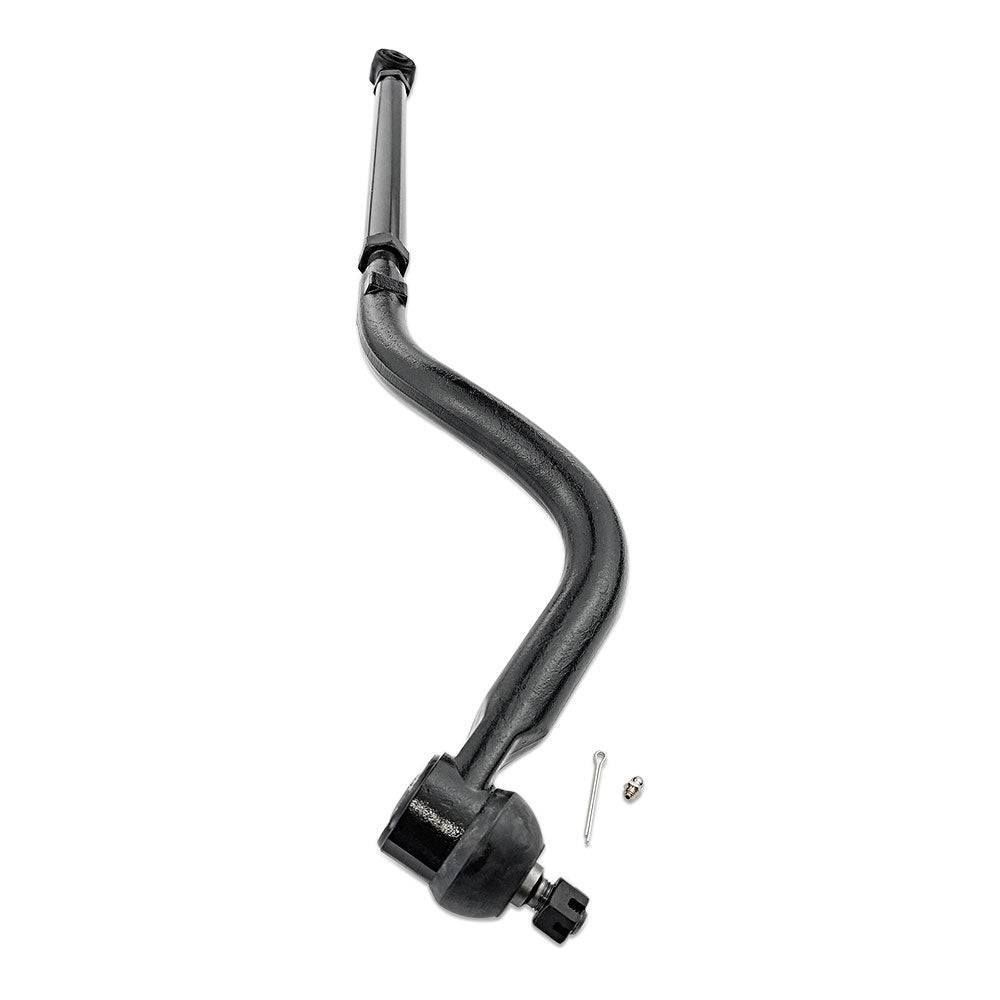

TB103 | Apex Chassis Track Bar Adjustable For Dodge RAM | 1994-2002

Fits for 1994-2002 Dodge Ram 2500 Pickup / 1994-2002 Dodge Ram 3500 Pickup / 1994-2001 Dodge RAM 1500 Pickup

TB103
Shipping: Free Ground Shipping Unavailable | This Product Does Not Qualify*
Pricing: $424.67
Qty:

Description



THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat-Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads: allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Rugged Metal to Metal Bearing

BOOTS

  • CR Rubber Boots: The most durable material for under-car applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
  • Compression Boot

FINISH

  • E-Coat Finish: Durable e-coat treatment

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • Castle Nut: Industry-standard where high vibration loads occur.

BUSHINGS

  • High Articulation Bushing: this bushing allows for 360 rotation of up tp 45 degrees for massive articulation

LUBRICATION

  • Pre-threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Zerk Fittings: Included for every application.

SPECIAL FEATURES

  • Custom Features: Adjustable when installed on truck



WHERE IT FITS:

Vehicle Position: Adjustable Front
Quantity per Vehicle: 1
Moog Interchange: DS1413 (A)
XRF Interchange: DS1413A

Application List

Dodge RAM 1500 (1994-2001) 2WD or 4WD
Dodge RAM 2500 (1994-2002) 2WD or 4WD
Dodge RAM 3500 (1994-2002) 2WD or 4WD

**This fits late model 94 Dodge Rams with 3/4" taper not the early model 94 Dodge Rams 5/8" Taper.
**This trackbar does not work with extended travel setups like Carli or Thuren that add additional droop travel.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 15.3 lbs.
  • W5.0000” x H5.0000” x L40.0000”
