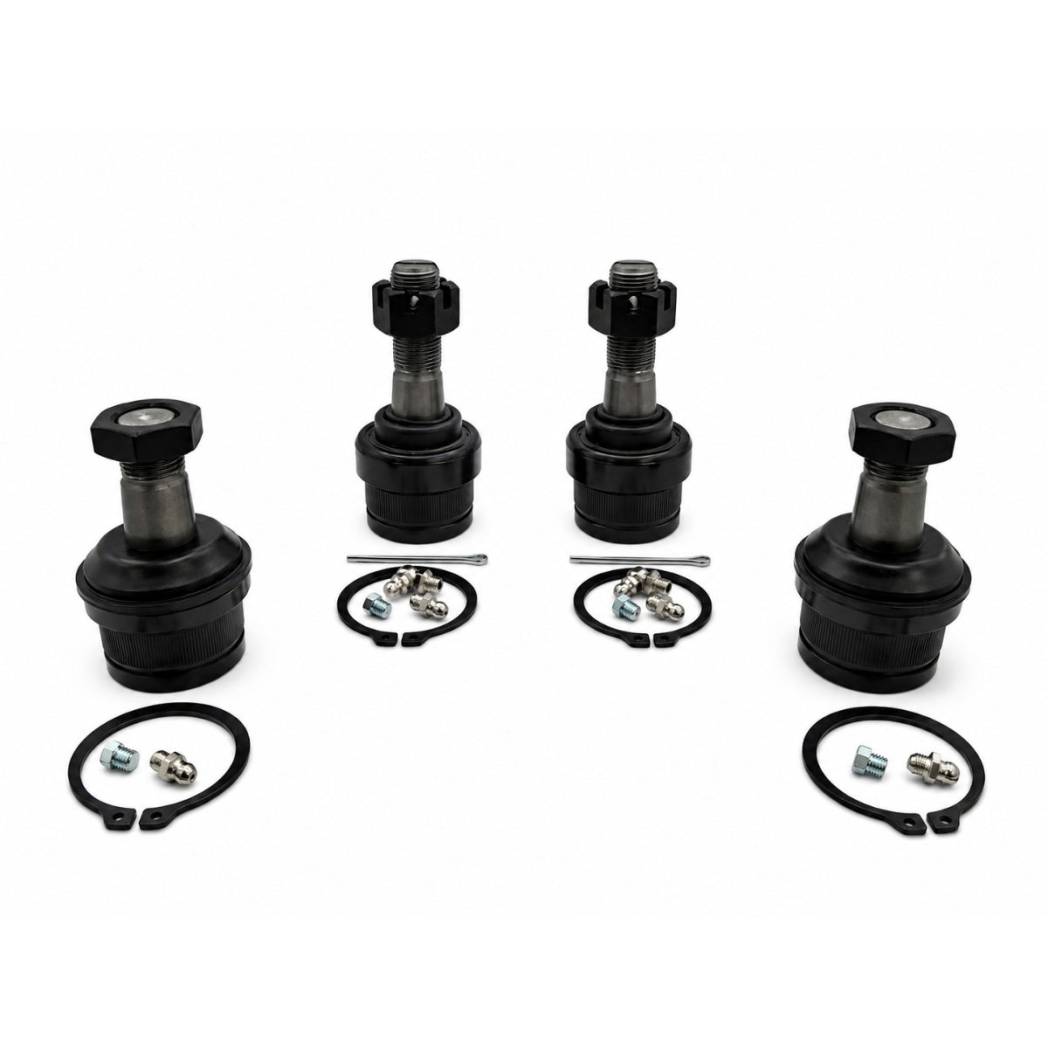

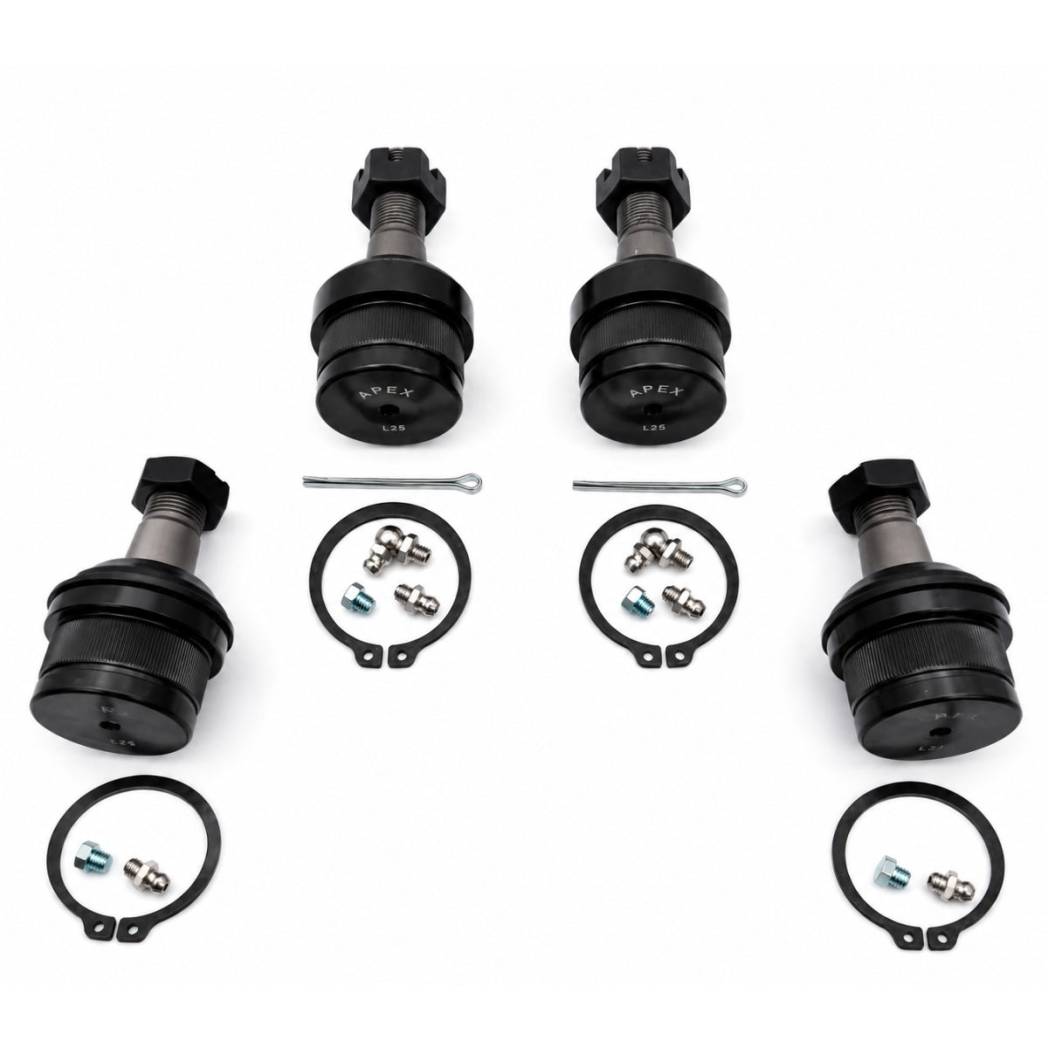

KIT160 | Apex Chassis Super HD Ball Joint Kit For Dodge/ Ford | 1980-1999 | BJ132 (X2), BJ149 (X2)

Fits for 1994-1999 Dodge Ram 2500 Pickup / 1994-1999 Dodge Ram 3500 Pickup / 1980-1999 Ford F-250 Pickup / 1980-1996 Ford F-150 Pickup

KIT160
Availability:
Pricing: $401.51
Qty:
Free Ground Shipping | Exclusions Apply*

Description

What It Fits:
Dodge RAM 2500 (1994-1999) 4WD
Dodge RAM 3500 (1994-1999) 2WD or 4WD
Ford F150 (1980-1996) 4WD
Ford F250 (1980-1999) 4WD

**Fitment notes:
Ford
Fits vehicles with front I-Beam axle, 5000 lbs and 5150 lbs.
Fits 4WD with 3850 lbs drive axle.
Fits 4WD 3850 lbs drive axle, without 4.1 gear ratio, and under 8500 lbs.

THE SPECIAL SAUCE:

HOUSING

  • SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
  • Knurled Housings: The preferred design for aftermarket installations.
  • CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.

BALL STUDS

  • SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
  • Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
  • Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
  • Rolled Threads: Are made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
  • Step Threads: allows for very easy movement of hardware on install and superior holding when torqued (installer choice).

BEARING DESIGN

  • Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.

BOOTS

  • CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
  • UPPER: Internal Seal Boot: The boot is coined onto the ball joint, for superior sealing against contaminants.
  • LOWER: Pancake Boot

FINISH

  • Phosphate Finish: Extremely durable. Double coated. Rugged look.

HARDWARE

  • Grade 8 - Class 10.9 Hardware: Superior tensile strength.
  • UPPER: Castle Nut: Industry standard where high vibration loads occur.
  • LOWER: Tension Nut: Very strong hold in most applications.

LUBRICATION

  • Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
  • Greaseable: Because it should be.
  • Pre-Greased: Just in case you forget, we have you covered.
  • Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
  • Zerk Fittings : Included for every application.

Application List

Dodge Ram 2500 (1994-1999 4WD
Dodge Ram 3500 (1994-1999) 2WD or 4WD
Ford F150 (1980-1996) 4WD
Ford F250 (1980-1999) 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 6.1 lbs.
  • W6.0000” x H6.0000” x L6.0000”
  • Free Ground Shipping | Exclusions Apply*
