501068 | Rough Country 2 Inch Leveling Kit Front Loaded Strut For Ford F-150 4WD | 2014-2023

Rough Country 2 Inch Leveling Kit Front Loaded Strut For Ford F-150 4WD | 2014-2023 | NOT Fit Raptor & 2021+ Models With CCD System/BlueCruise

501068
Pricing: $461.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Level your vehicle from front to rear while preserving the smooth, factory ride quality with Rough Country's N3 Strut Leveling Kit! This easy-to-install kit boosts the front end, removing the unsightly factory rake and giving your truck increased ground clearance and aggressive good looks.

Rough Country’s N3 Struts feature a massive bore and chrome plated piston rod with leak-proof piston seal for exceptional durability during off-road use. Each strut is tuned to OEM specs and includes a variable dampening system for outstanding handling and control on all road conditions. These struts offer improved tire contact with the road for increased stability and performance. Each lifted strut is a full replacement of your OEM equipment, engineered for a pain-free installation. Simply remove the factory strut and replace for an instant upgrade! No complicated strut disassembly required!

FEATURES

  • Easy bolt-on installation
  • Includes pre-loaded coil for no-fuss installation
  • Maintains smooth, factory-like ride
  • Increased ground clearance
  • Application specific velocity sensitive valving
  • Structurally engineered for lifted applications
  • Nitrogen gas charged to improve ride, handling, and reduce shock oil aeration
  • Offers improved tire contact with the road for increased stability and performance
  • Infinitely Variable Damping
  • Leak-proof piston seal
  • Special formulated low friction shock oil
  • Massive 1 3/8in Bore
  • Hardened chromed piston rod provides superior corrosion resistance and enhances sealing properties
  • 3-year Limited Warranty
  • Silver powder coat finish

NOTES - IMPORTANT

  • Does NOT fit Raptor model.
  • DoesNOT fit 2021+ models equipped with CCD system.
  • Does NOT fit 2021+ models equipped with BlueCruise.

SPECS

  • Mounting Location Front
  • Extended Length (in) 22.87
  • Collapsed Length (in) 18.3
  • Adjustable No
  • Est. Install Time 2-3 hours

Vehicle Applications

2014 - 2023 Ford F-150 Pickup

NOTES - IMPORTANT
Does NOT fit Raptor model.
Does NOT fit 2021+ models equipped with CCD system.

Tires & Wheels

295/60R20 Factory 20 6x135 - 0.25 Spacer
285/75R17 Factory 17 6x135 - -
285/70R18 Factory 18 6x135 - -
33x12.50R17 17x8.5 6x135 +0 -
285/70R17 17x8.5 6x135 +0 -
33x12.50R17 17x8.5 6x135 +1 -
33x12.50R17 17x9 6x135 -12 -
285/70R17 17x9 6x135 -12 -
33x12.50R17 17x9 6x135 +0 -
285/70R17 17x9 6x135 +0 -
33x12.50R17 17x9 6x135 +1 -
285/70R17 17x9 6x135 +1 -
33x12.50R17 17x9 6x135 +18 -
285/70R17 17x9 6x135 +18 -
33x12.50R18 18x8.5 6x135 +0 -
305/60R18 18x8.5 6x135 +0 -
33x12.50R18 18x8.5 6x135 +1 -
305/60R18 18x8.5 6x135 +1 -
33x12.50R18 18x9 6x135 -12 Trimming Required
285/65R18 18x9 6x135 -12 -
33x12.50R18 18x9 6x135 +0 -
305/60R18 18x9 6x135 +0 -
33x12.50R18 18x9 6x135 +1 -
305/60R18 18x9 6x135 +1 -
285/65R18 18x9 6x135 +1 -
33x12.50R18 18x9 6x135 +18 -
305/60R18 18x9 6x135 +18 -
33x12.50R18 18x9 6x135 +20 -
305/60R18 18x9 6x135 +20 -
33x12.50R20 20x9 6x135 -12 -
305/55R20 20x9 6x135 -12 -
295/60R20 20x9 6x135 -12 Minor Trimming
285/55R20 20x9 6x135 -12 -
33x12.50R20 20x9 6x135 +0 -
305/55R20 20x9 6x135 +0 -
295/60R20 20x9 6x135 +0 Minor Trimming
285/55R20 20x9 6x135 +0 -
33x12.50R20 20x9 6x135 +1 -
305/55R20 20x9 6x135 +1 -
295/60R20 20x9 6x135 +1 Minor Trimming
285/55R20 20x9 6x135 +1 -
33x12.50R20 20x9 6x135 +18 -
305/55R20 20x9 6x135 +18 -
33x12.50R20 20x9 6x135 +20 -
305/55R20 20x9 6x135 +20 -
295/60R20 20x9 6x135 +20 Minor Trimming
285/55R20 20x9 6x135 +20 -
33x12.50R20 20x10 6x135 -25 Trimming Required
305/55R20 20x10 6x135 -25 -
295/60R20 20x10 6x135 -25 Trimming Required
285/55R20 20x10 6x135 -25 -
33x12.50R20 20x10 6x135 -19 Trimming Required
305/55R20 20x10 6x135 -19 -
295/60R20 20x10 6x135 -19 Trimming Required
285/55R20 20x10 6x135 -19 -
33x12.50R20 20x12 6x135 -44 Trimming Required
305/55R20 20x12 6x135 -44 -
33x12.50R22 22x10 6x135 -25 Trimming Required
33x12.50R22 22x10 6x135 -19 Trimming Required
33x12.50R22 22x10 6x135 -18 Trimming Required
33x12.50R22 22x12 6x135 -44 Trimming Required

Components

FRONT

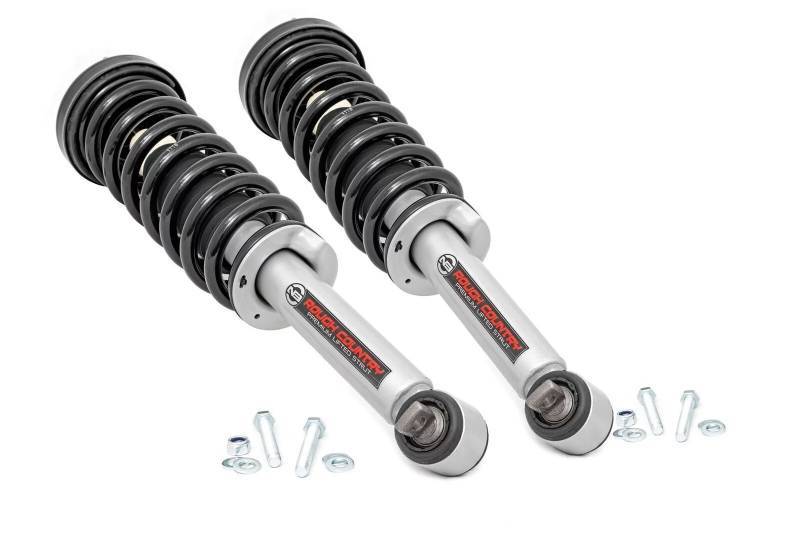

(2) Premium N3 Lifted Strut

Tires & Wheels

33x12.50R18 Factory 18 6x135 - -
295/70R18 Factory 18 6x135 - Minor Trimming
295/60R20 Factory 20 6x135 - Minor Trimming
33x12.50R18 18x8.5 6x135 -1 -
33x12.50R18 18x8.5 6x135 +0 -
33x12.50R18 18x9 6x135 -12 -
33x12.50R18 18x9 6x135 -1 -
33x12.50R18 18x9 6x135 +0 -
33x12.50R18 18x9 6x135 +18 -
33x12.50R18 18x9 6x135 +20 -
33x12.50R18 18x9 6x135 +24 -
33x12.50R20 20x9 6x135 -12 -
285/55R20 20x9 6x135 -12 -
33x12.50R20 20x9 6x135 +0 -
305/55R20 20x9 6x135 +0 -
285/55R20 20x9 6x135 +0 -
33x12.50R20 20x9 6x135 +1 -
305/55R20 20x9 6x135 +1 -
285/55R20 20x9 6x135 +1 -
33x12.50R20 20x9 6x135 +18 -
305/55R20 20x9 6x135 +18 -
33x12.50R20 20x9 6x135 +20 -
305/55R20 20x9 6x135 +20 -
285/55R20 20x9 6x135 +20 -
285/55R20 20x10 6x135 -25 -
285/55R20 20x10 6x135 -24 -
285/55R20 20x10 6x135 -19 -
285/55R20 20x10 6x135 -18 -

Details

  • 501068
  • 501068
  • 843030170721
  • Rough Country
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 25.0 lbs.
  • W12.0000” x H6.0000” x L24.0000”
