80392 | Total Vehicle Suspension System

Chevrolet, GMC
1963-1972 C-10 Pickup 2wd

80392
Please Call for Availability
1-800-606-3767
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)

Description

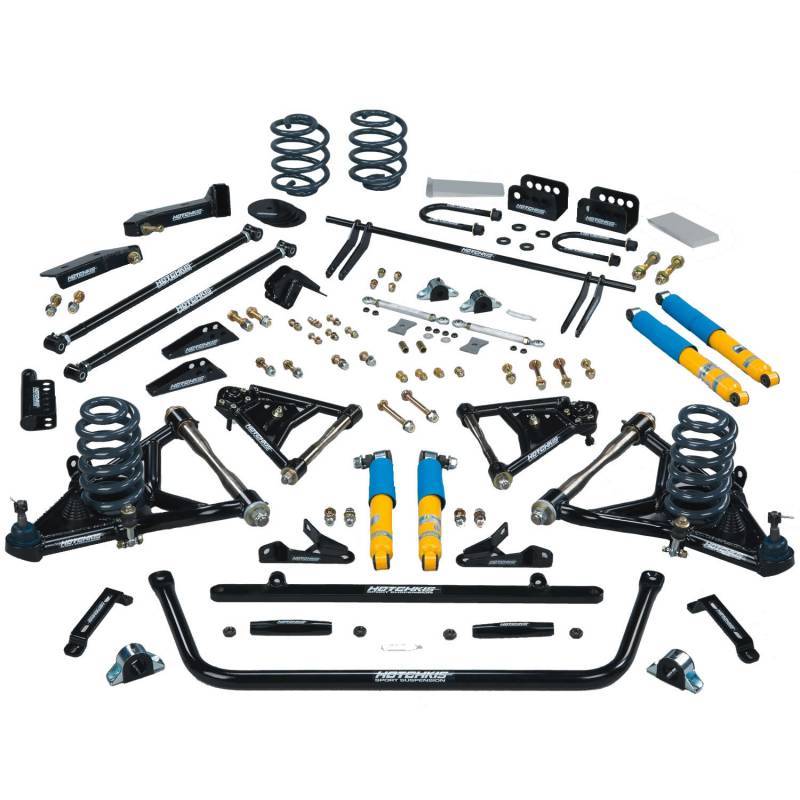

Nothing beats the Hotchkis Sport Suspension Total Vehicle System. This kit has been rigorously designed and tested on the track yet is very comfortable for your local cruise in. Every aspect of the C-10 suspension has been re engineered for the maximum performance and is being offered in a complete tuned package. Contains Tubular Upper Control Arms Tubular Lower Control Arms redesigned to extend wheelbase 1.8 in. and add up to +9 deg Caster. 4130 CNC Machined Cross Shaft / w Bronze Bushing and Delrin Bushings. Includes fabricated center link and heavy duty tie rod sleeves to eliminate bump steer. 1-7/16 in. Front Sway Bar 2 in. Lowered Front and 6 in. Lowered Rear Springs. Front and Rear Hotchkis Tuned/Bilstein Shocks with relocator brackets for maximum efficiency. Rear Adjustable Track Bar Rear Anti Squat Bracket System Unique Blade Style Rear Sway Bar System for the ultimate handling 63-72 C-10 Pickup. In front we start out with Tubular Upper and Lower Control Arms which extend the wheelbase 1.8 in. and increase caster alignment up to +9 deg. The camber curve is improved and bump steer is corrected with a new center link assembly and heavy duty tie rod sleeves. 2 in. front sport lowering springs and a 1-7/16 in. front sway bar reduce body roll and control the bumps along with the Hotchkis Tuned/Bilstein shocks and shock relocator brackets. The rear of the truck gets an adjustable full length track bar set up an adjustable anti squat bracket system improving the trucks instant center for maximum traction. 6 in. rear sport lowering springs and a 34 in. blade style sway bar reduce body roll while shock relocators and the Hotchkis Tuned Bilstein shocks effectively control suspension dampening. This system is a proven autocross winner and designed for maximum performance improvement in a installer friendly kit. Designed to work with the 2 inch drop spindles. PROUDLY MADE IN THE USA.

Features and Benefits:
Engineered To Work Together As Suspension Package
Tubular Upper Control Arms and Tubular Lower Control Arms
1-7/16 in. front sway bar, 3/4 in. solid rear sway bar.
2 in. Lowered Front, and 6 in. Lowered Rear Springs
Front and Rear Hotchkis-Tuned Fox Racing Shocks with relocator brackets
Rear Adjustable Track Bar
Rear Anti Squat Bracket System
Unique Blade Style Rear Sway Bar System

Vehicle Fitments

1963-1972 Chevrolet C-10 Pickup 2wd
1963-1972 GMC S-10 Pickup 2wd
