DJM2355-55+ | DJM Suspension 5 Inch Front / 5 Inch Rear Lowering Kit (1963-1972 C10 Pickup 2WD with Coil Spring Rear and Drum Brakes)

1963-1972 Chevrolet, GMC C10 Pickup 2WD with Coil Spring Rear and Drum Brakes

DJM2355-55+
Availability:
Pricing: $2,269.87
Qty:
Free Ground Shipping | Exclusions Apply*

Description

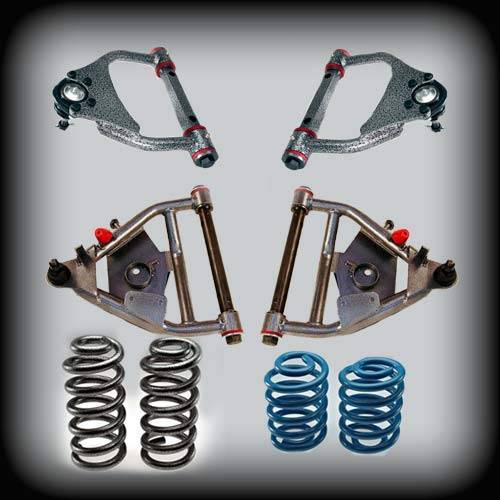

1963-1972 C10 with Coil Spring Rear & Drum Brakes 5 inch Front / 5 inch Rear Complete Lowering Kit with Upper Control Arms

Upper and lower control arms working with a engineered drop springs result in a five inch drop that you can align.  Completely assembled, they come with urethane bushings, mounting shafts, and ball joints.  The rear uses custom designed coils springs for a five inch drop.

Recommended Parts

  • Shock 1309
  • Shock 1800

Replacement Parts

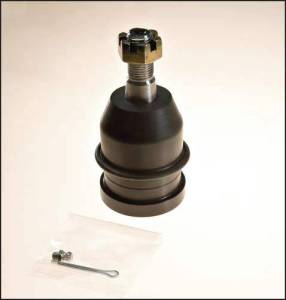

  • Upper Ball Joint 6024
  • Lower Ball Joint 6023
  • Upper Bushing Kit BK2355U
  • Lower Bushing Kit BK2355L

Vehicle Applications

1963-1972 Chevrolet C-10 Pickup 2wd
1963-1972 GMC C-10 Pickup 2wd

* Coil Spring Rear & Drum Brakes

Components

CS2353-2 2 Inch Front Coil Springs
CA2355L-3 3 Inch Front Lower Control Arms
CA2355U Front Upper Control Arms
CS2354R-4 4 Inch Rear Coil Springs

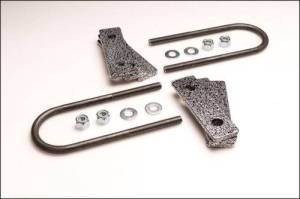

LB63LK Rear Block Kit

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 75.0 lbs.
  • W12.0000” x H12.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
