DJM3097-46 | DJM Suspension 4 Inch Front / 6 Inch Rear Lowering Kit for 1997-2003 F150 Pickup 2WD (Shocks Included)

When the 97 F-150 was introduced it brought a new generation of suspension to Fords. Gone, at least on the F-150 was the "Twin I-beam" and a new way of utilizing upper and lower control arms began and is still evolving today.

This kit, for the first time lowers a F-150 with Calmax Control Arms! A 4/6 kit, Calmax upper and lower arms matched with a 2" drop coil provide the 4" front drop while the rear is lowered with a 6" rear leaf spring axle flip kit. The flip kit has all necessary hardware including "C-sections" and the Calmax arms are sporting new ball joints, urethane bushings with DJM's"Twin Tube" pivots all installed here at the factory!

Recommended parts:

• Front Shock number 1415 (sold each)
• Rear Shock number 1910 (sold each)

Replacement Parts

• Upper Ball Joint 6370
• Lower Ball Joint 8695T
• Upper Bushing Kit BK3097U
• Lower Bushing Kit BK3097L

Lower Control Arms InstructionsUpper Control Arms InstructionsRear Flip Kit Instructions

Additional information

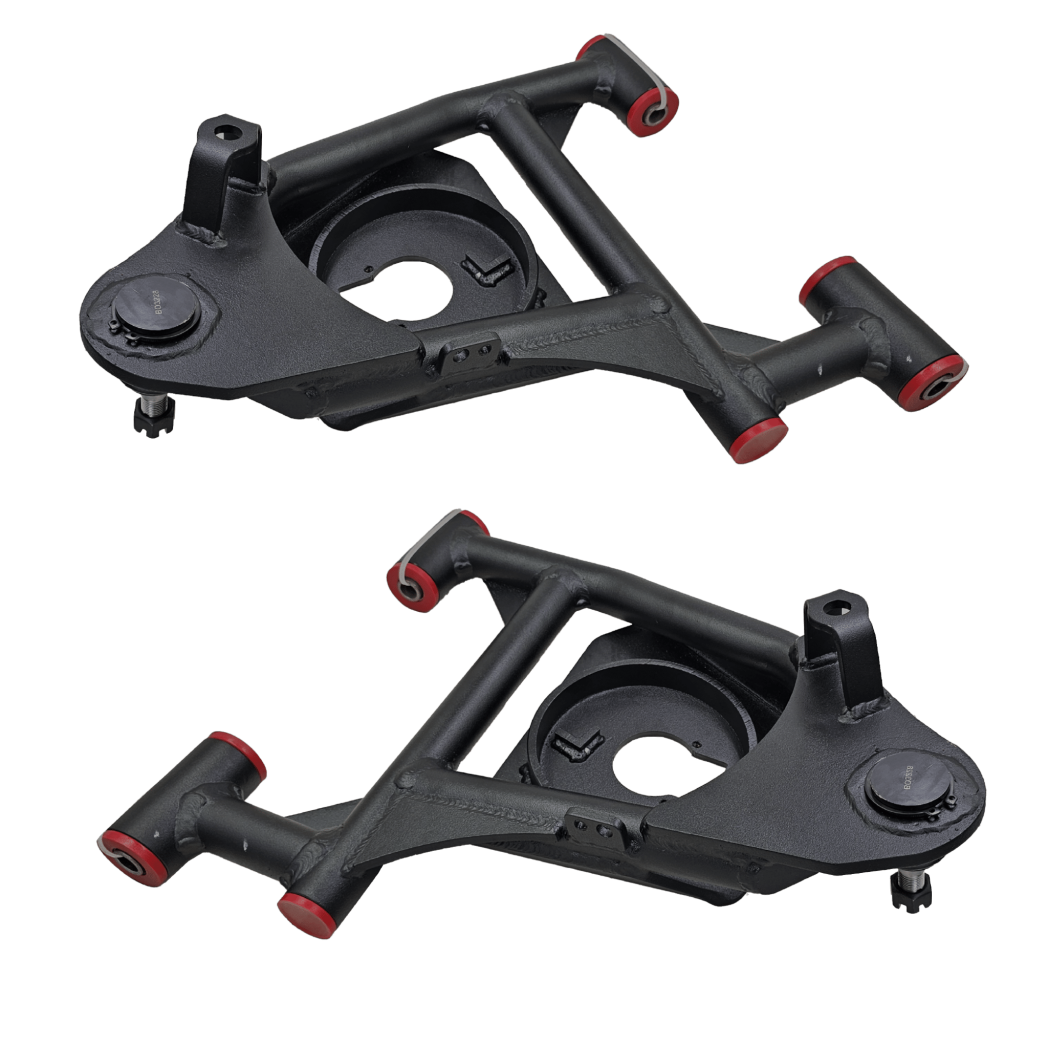

1997–2003 Ford F-150 2 inch Lowering Control Arms

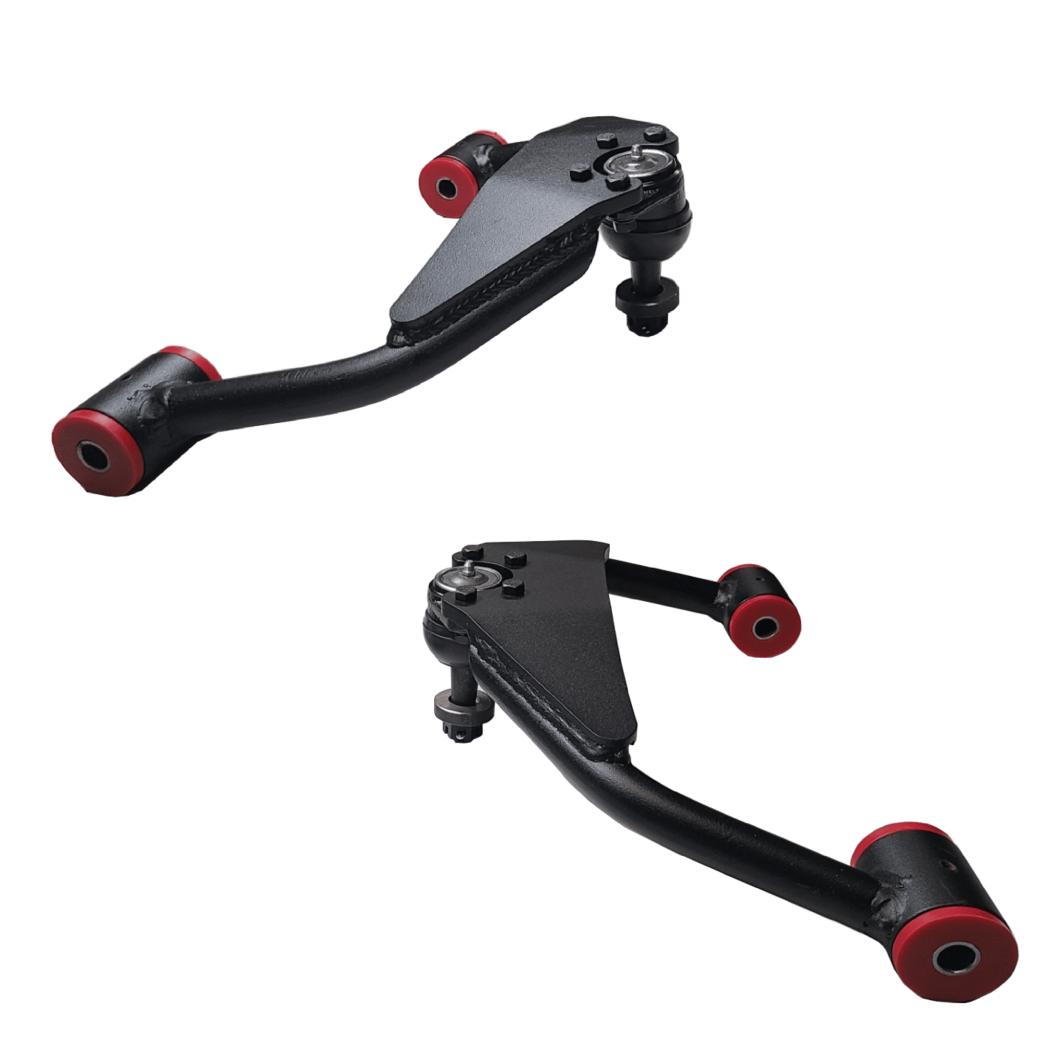

1997–2003 Ford F-150 Upper Control Arms

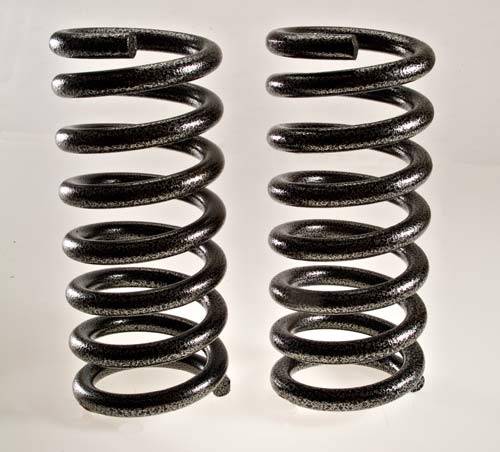

1997–2003 Ford F150/Expedition 2 inch Front Lowering Coil Springs

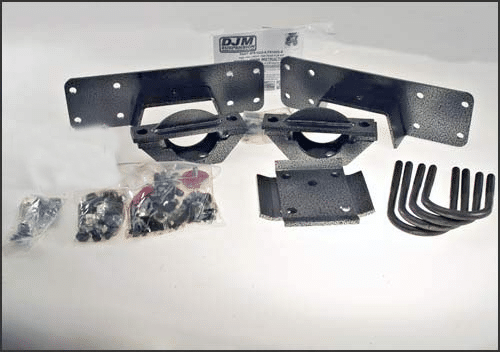

1997-2003 Ford F-150 6inch Rear Axle Flip Kit

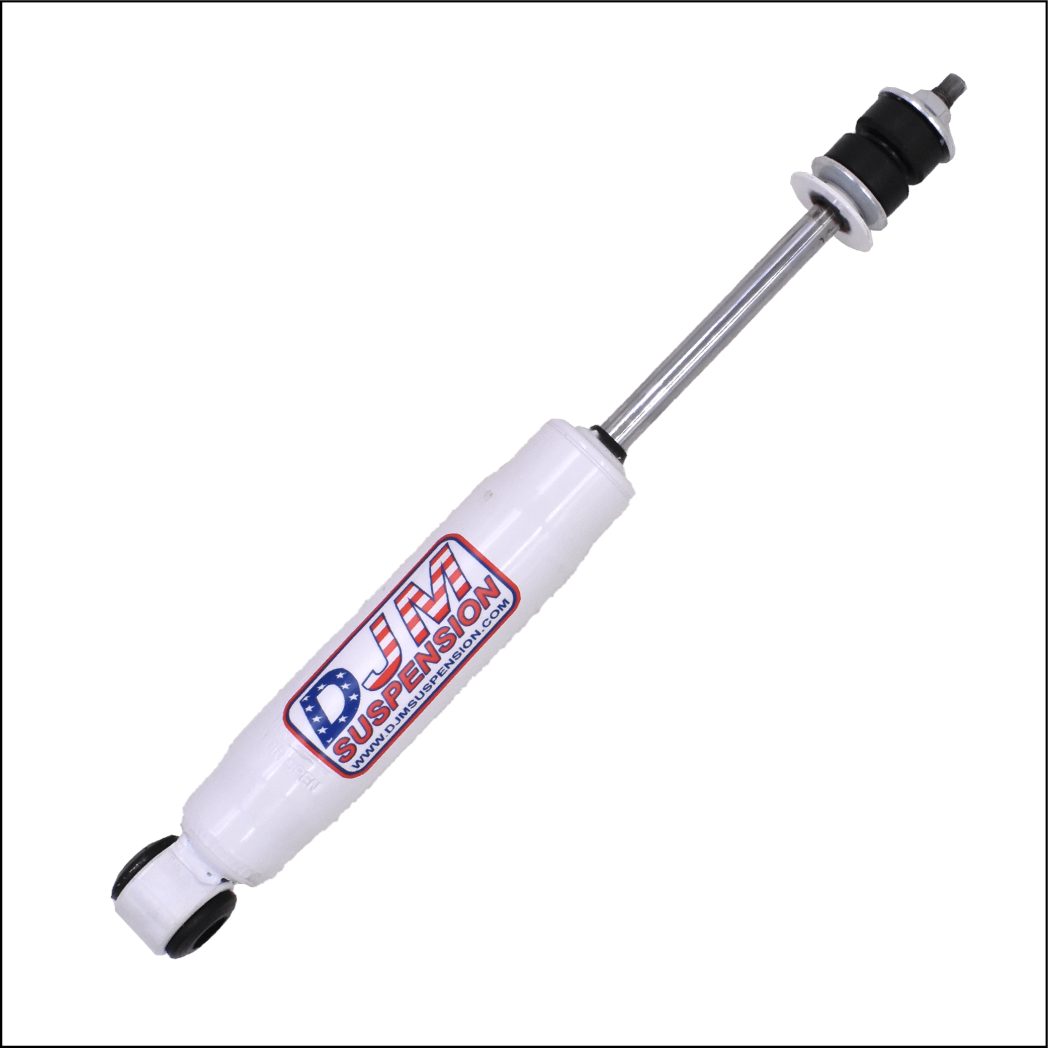

14.5" Stem / Loop SuperShock (1415)

19.5" Stem / Loop SuperShock (1910)
