DJM1012-35 | DJM Suspension 2.25 inch Wide Leaf Springs 3 inch Front / 5 inch Rear Complete Lowering Kit for C10 (Shocks Included)

1968-1972 Chevrolet C10 Pickup 2WD | 1968-1972 GMC C10 Pickup 2WD

DJM1012-35
Pricing: $932.71
Qty:
Free Ground Shipping | Exclusions Apply*

Description

1968-1972 C10 with 2.25 inch Wide Leaf Springs 3 inch Front / 5 inch Rear Complete Lowering Kit

This kit uses engineered 3 inch lowering coil springs for the front drop. Designed for C10 trucks with 2.25 inch leafs springs, the rear uses a 5 inch lowering flip kit with spring plates, u-bolts, and axle locators that can adjust the pinion angle.

Front Coil Spring InsructionsRear Flip Kit Instructions

Additional information

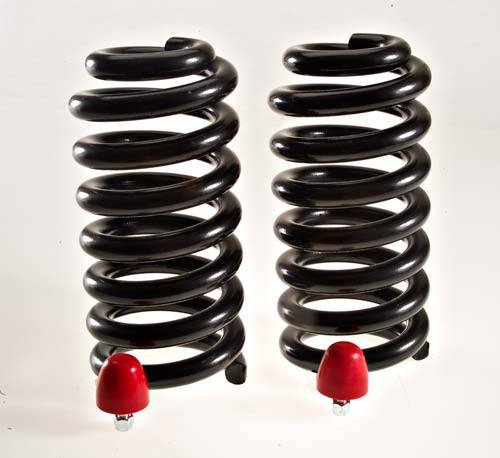

1963 - 1987 C-10 3"Front Lowering Coil Spring

Weight 30 lbs

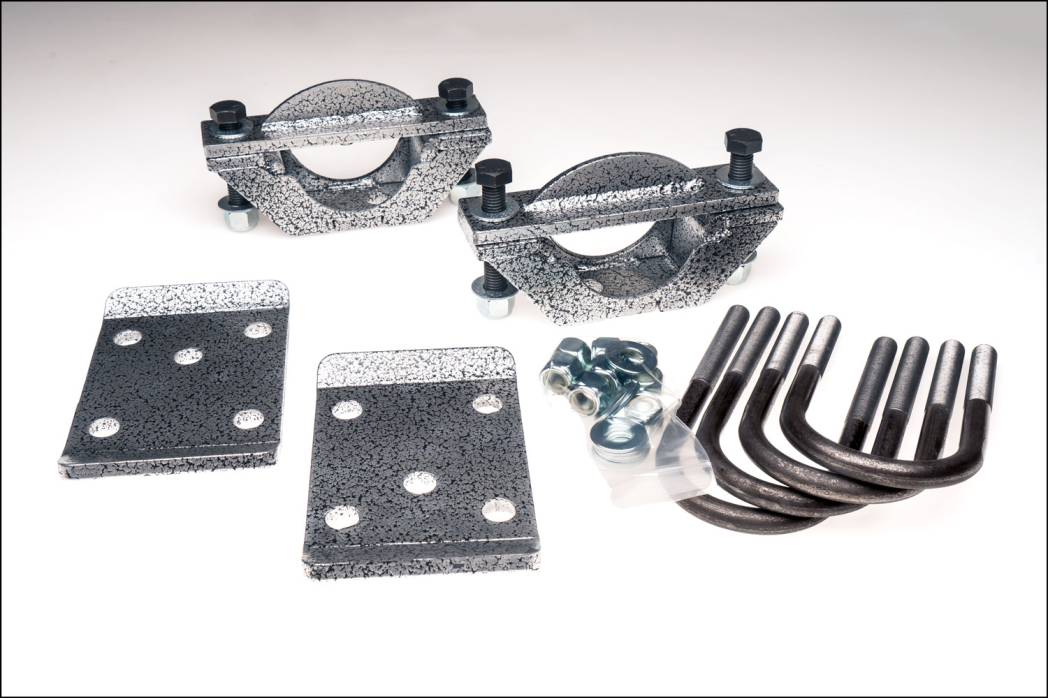

1968-1972 Chevy/GMC 5 inch Rear Leaf Spring Flip Kit For Trucks with 2.25 inch Wide Leaf Springs

Weight 20 lbs

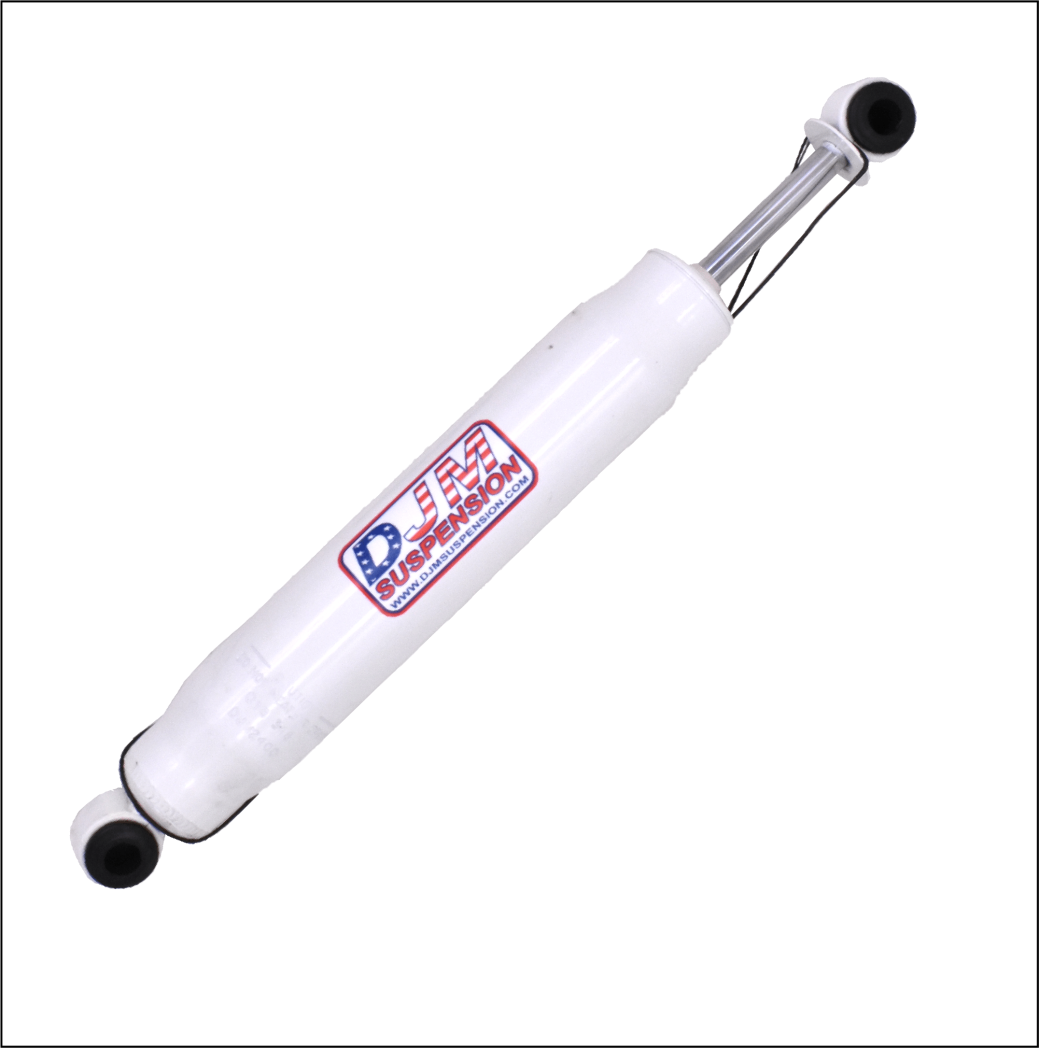

13.5" Loop / Loop SuperShock (1309)

Weight 3 lbs

18.5" Loop / Loop SuperShock (1800)

Weight 3 lbs

Application List

1968-1972 Chevrolet C-10 Pickup 2wd
1968-1972 GMC C-10 Pickup 2wd

* 2.25 Inch Leaf Spring Rear Suspension

Components

CS2353-3 3 Inch Front Coil Springs
FK1012-5 5 Inch Rear Flip Kit

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 75.0 lbs.
  • W12.0000” x H12.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
