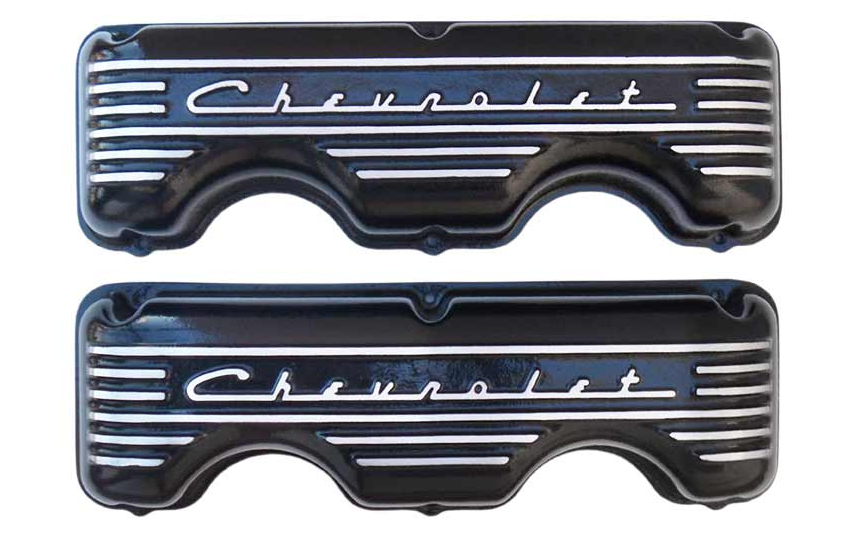

10651-BK | PML Cover Valve Cover For CHEVROLET 348, 409, Raised Script and Fins | Black Powder Coat Finish

Price for set of 2 covers. Includes mounting bolts. Gaskets, not included.

Dimensions:

Overall, these valve covers are about a 1/2 inch taller than stock.

Number of Bolts:

6 mounting bolts per cover, on the perimeter

Finishes:

PML designed these valve covers for the classic hot rods of the 1950s and 1960s with the 348 or 409 Chevy™ W block engine. The CHEVROLET script and fins are cast into the cover and raised for a classic look.

Benefits:

• Classic styling with CHEVROLET script and fins
• Heavy duty sand cast aluminum construction
• Thick walls provide strength
• Gasket flange will not bend or flex when bolts are tightened
• Licensed GM product
• Made in USA

The script and fins are cast into the covers and are raised. On powder coat finishes, the powder coating is brushed off the top so the lettering and fins stand out. On the polish finish, we do not polish between the fins and script to add contrast.

PML designed these valve covers for Chevy™ 348 or 409 W block engines.

PML fits each valve cover made on a 348 stock head during manufacturing. This verifies that the covers fit.

PML covers are heavy duty with thick walls and are larger than stock. Always check your configuration to make sure you have space for larger valve covers.

Inside of Valve Covers

PML 348, 409 valve covers have an open interior. This allows space for some roller rocker systems. PML valve covers are heavy duty with thick walls and larger than stock so always check clearance for larger covers.

Fit on Cylinder Head

PML fits all valve covers on a cylinder head.

348, 409 cylinder heads have posts on the intake manifold side near the bolt holes. The height varies from head to head. Sometimes these posts have been machined off. PML valve covers have recessed areas for these posts. Rarely, a cylinder head will have posts that are large and do not fit in the recessed areas. We have only heard of this on a few 409 heads. The recessed area is 5/16 (0.31) inch below the flange surface.

Included with Valve Covers

PML provides mounting hardware with the covers.

Gaskets

Gaskets are not included with these valve covers. PML recommends cork composite gaskets for these valve covers. Some trimming may be needed to make a gasket fit correctly.
