9917-AC | PML Covers GM 200 4R Deep Transmission Pan For Buick Regal T Type / Grand National / Chevrolet Monte Carlo SS | Natural As-Cast Finish

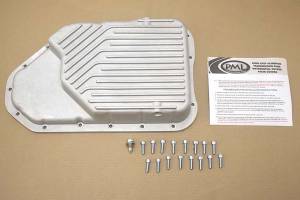

Pan includes magnetic drain plug and mounting hardware. Extra capacity.

Volume:

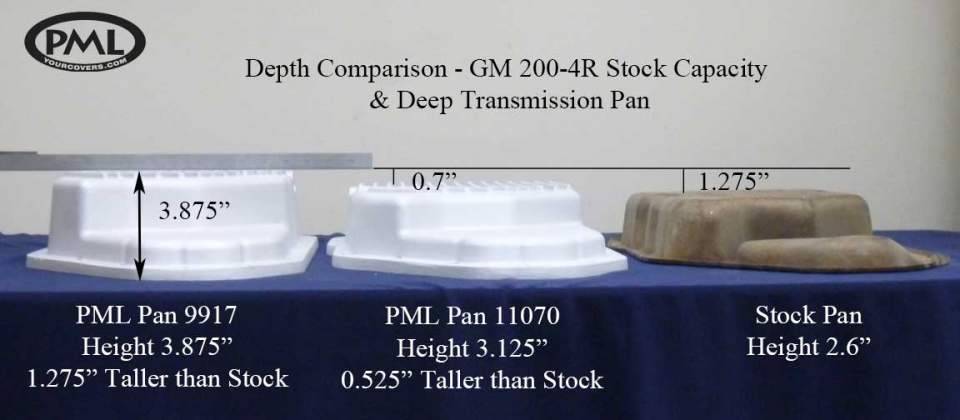

2.5 qts. over stock

Number of Bolts:

16

PML designed this pan to meet the demands of GM high performance cars with the 200 4R transmission.

Restorations and racing applications today.

Examples of vehicles using the 200–4R transmissions are:

• Buick Regal T Type
• Grand National
• Chevrolet Monte Carlo SS

If a bracket attaches to the stock pan, the bracket can require modification or replacement for attaching to a PML pan because the walls and flange of the PML pan are thicker than the stock pan.

Installer must verify clearance, fit and function. Vehicle configurations vary.

Gasket

For a gasket, PML generally recommends a cork composite type or paper fiber type gasket. There are several brands and vendors for gaskets. This is an example. It is a GM TH200-4R Transmission Oil Pan Gasket part number 8634198, ordered from GlobalTransmissionParts.com.

Inside of Pan

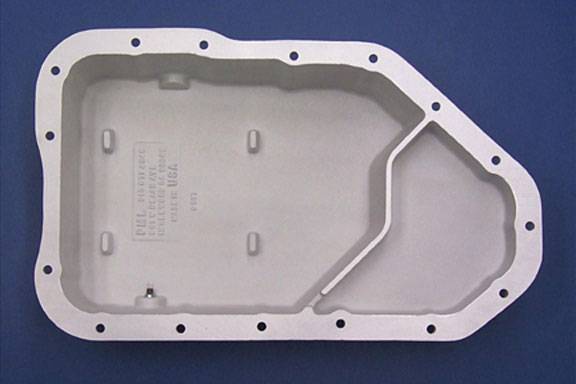

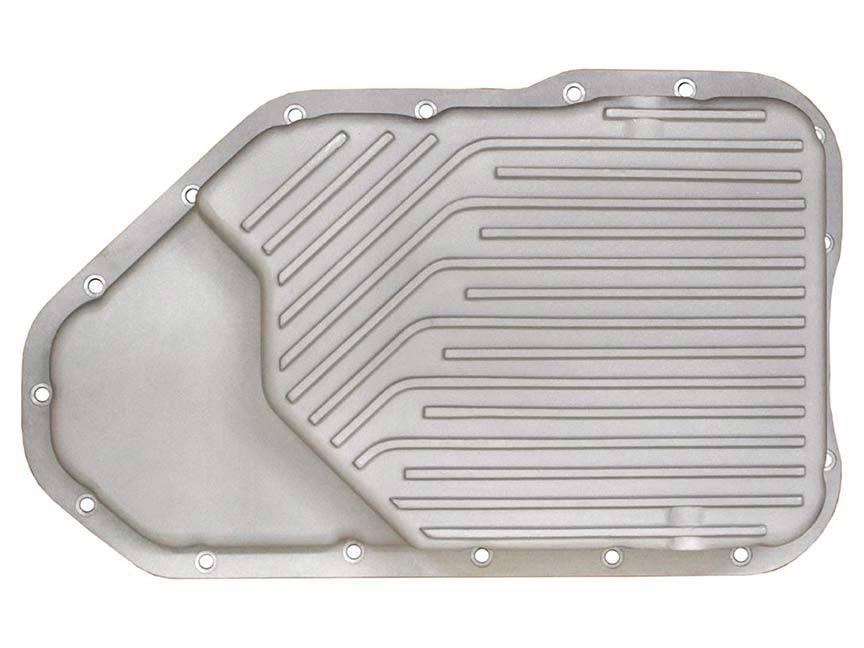

In the interior, the pan features cast-in baffles.

Filter Information

This PML pan works with stock filters. Example part numbers are: AC Delco TF234, Fram FT1057B, Fram FT1057C, Hastings TF60, Purolator P1194, Wix 58896

PML 200 4R transmission pans have filter supports so a filter extension is not needed. The supports hold the filter at the same level as the stock pan. The distance from the bottom of the stock pan to the top of the flange is 2.4 to 2.6 inches. The distance from PML filter supports to the top of the flange is the same. The stock filter is about 4.8 inches tall.

Some customers have reported to us that a 700R4 filter may also work with our 200 4R transmission pans. PML does not have any experience with this or recommend this.

Filter information is provided for reference only. Installer should verify transmission, filter and fitment based on the individual vehicle.

Drain Location

The PML deep 200 4R transmission pan has a drain on the driver side of the pan.

A magnetic drain plug is included with each pan.

Included With PML GM 200 4R Deep Pan

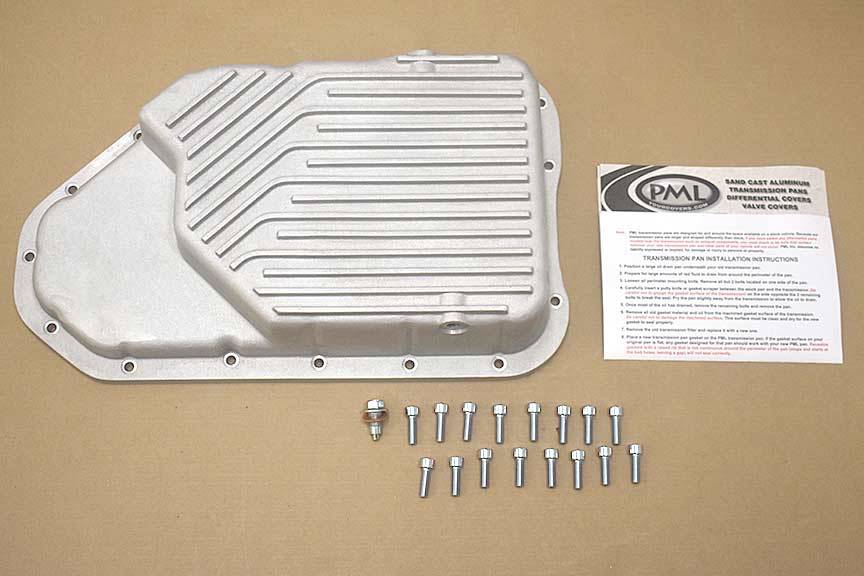

PML includes a magnetic drain plug with copper sealing washer and new mounting bolts with the pan.

Optional Temperature Sending Unit Machining

Optionally, you can drill and tap a 1/8 NPT hole for a temperature sending unit. This would be for an aftermarket temperature gage.

A boss (thick area) on the passenger side of the pan is available for drilling and tapping.

Bracket on Stock Pan?

Some vehicles have a bracket that attaches to the transmission pan and holds a cable in place. If a bracket attaches to the stock pan, the bracket will probably require modification or replacement to work on a PML pan. The walls and flange of the PML pan are much thicker than stock. This means that there is less space between the pan wall and the bolt hole.

Some customers have fabricated replacement brackets to be able to use a PML pan.
